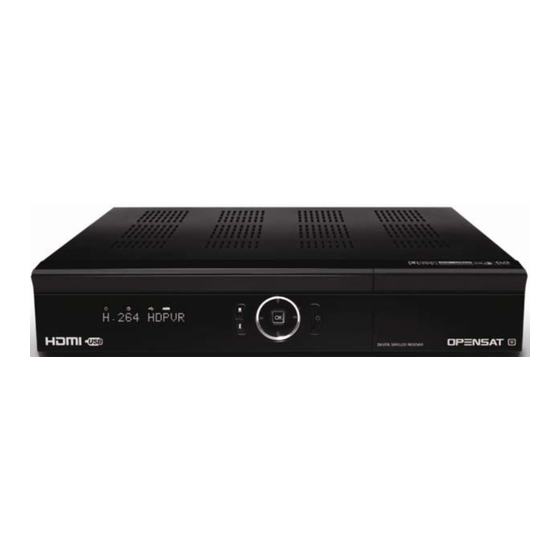

Summary of Contents for OPENSAT 9900 HDPVR

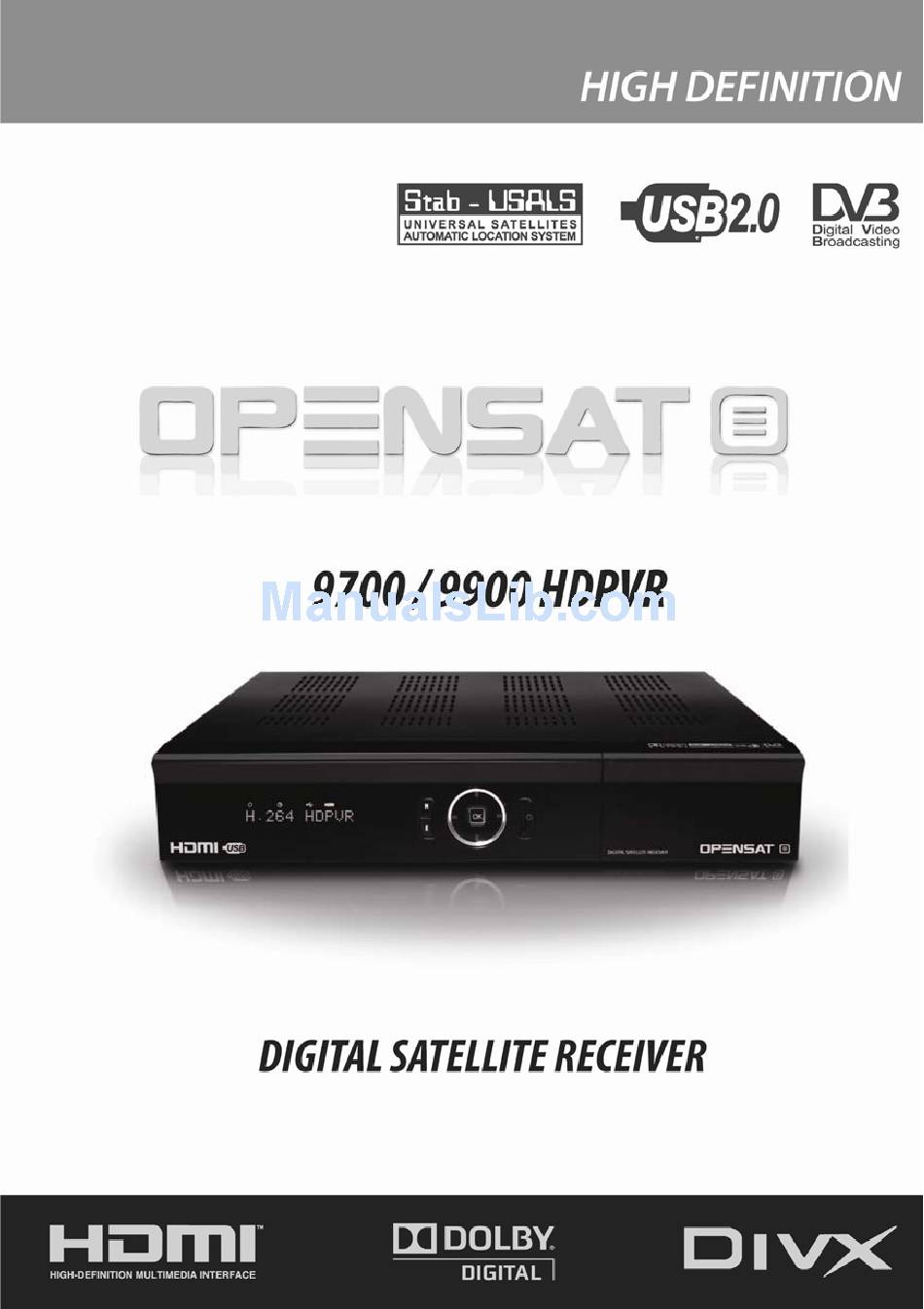

- Page 1 Cover Page...
- Page 2 ...
-
Page 3: Important Notice
IMPORTANT NOTICE ■ Safety Precaution and Warning To reduce the risk of electric shock, do not remove cover and do not expose this appliance to rain or moisture. This symbol indicates dangerous voltage inside the product and there’s a risk of electric shock or personal injury. - Page 4 IMPORTANT NOTICE • Do not stand the product on soft furnishings or carpets. • Do not stack electronic equipments on top of the product. 6. ATTACHMENTS • Do not use any unsupported attachments as these may be hazardous or cause damage to the product. 7.
-
Page 5: Table Of Contents
CONTENTS 1. Getting started 6. Multimedia Features Front panel Rear panel File filter Remote control MP3 playback Connecting TV, VCR JPEG view Connecting audio system DivX playback Software update / backup 2. Installation DB backup / restore Antenna setup Recording Advance search Background recording Motor setup... -
Page 6: Getting Started
GETTING STARTED 1.1 Features - Fully compliant with MPEG-4 HD / H.264 (DVB-S/DVB-S2) - SCPC/MCPC Receivable from C /Ku-Band Satellites - Smartcard reader - 2 Common Interface - 8000 channels programmable - DivX file playback - Electronic Program Guide for multi channel & single channel - Subtitle &... -
Page 7: Front Panel
GETTING STARTED 1.2 Front panel 3 4 5 USB 2.0 Interface VFD DISPLAY Vaccum Fluorescent Display Normal mode : Display the main menu MENU Menu mode : Exit menu mode EXIT Return to previous menu NAVIGATION Up/Dn : Channel change, Left/Right : Volume control Normal mode : Display channel list Menu mode : Select menu item STAND BY... -
Page 8: Rear Panel
GETTING STARTED 1.3 Rear panel LNB IN Connect satellite antenna cable LOOP OUT Connect to another STB (LNB IN) RS-232C Connect to PC for S/W update HDMI Connect to TV RJ-45 Connect ethernet cable S/PDIF Optical digital audio output VIDEO Composite video output AUDIO (L/R) Stereo audio output... -
Page 9: Remote Control
GETTING STARTED 1.4 Remote Control Unit FUNCTION Stand by mode [ON/OFF] Mute the sound Set RCU work with STB Select AV source of TV power ON/OFF of TV Set RCU work with TV MOTOR Display DiseqC 1.2 setup menu TIMER Display Timer reservation list V.FMT Set screen format... -
Page 10: Connecting Tv, Vcr
GETTING STARTED 1.5 Connecting TV, VCR Connecting with HDMI cable Use HDMI cable as above connection illustration. HDMI has both audio and video therefore you don’t need additional connection. Connecting with Cinch cable Use 3-RCA cable consisted of video and stereo audio (left, right). Connecting with Component cable Use 3-RCA cable (YPbPr). -
Page 11: Connecting Audio System
GETTING STARTED 1.6 Connecting audio system If you have external audio system like home theater, you can enjoy better and powerful audio as below connection illustration. - Dolby digital (optical) : Use S/PDIF optical cable into Dolby digital decoder - Stereo : Use 2-RCA cable for Audio L/R... -
Page 12: Antenna Setup
SYSTEM SETUP 2.1 Antenna Setup Select [INSTALLATION] > [ANTENNA SETUP] menu to setup your satellite antenna with appropriate value and search channels as below pictures. You may need to enter PIN code to enter [ANTENNA SETUP]. Default PIN code is 0000 and you can change this code in [PARENTAL LOCK] menu later. -
Page 13: Advanced Scan
SYSTEM SETUP 2.2 Advanced scan Select [INSTALLATION] > [ADVANCED SCAN] menu to search channels manipulating TP value as below pictures. Satellite – select satellite to setup. Press OK to open satellite list box or use Left/Right button. * TIP : Left/Right button display selected satelites only for your convenience Frequency –... -
Page 14: Motor Setup
SYSTEM SETUP 2.3 Motor Setup If you have DiSEqC 1.2 Motor box installed with your antenna, enable it in this menu to it setup as below picture. USALS function also located in this menu. * TIP : USALS is very convenient motorized DiSEqC system that support DiSEqC 1.3 command. -
Page 15: Multisat Search
SYSTEM SETUP 2.4 Multisat search This menu perform batch work of channel searching for selected satellites. Select satellite to search by pressing OK button and press RED button/GREEN button. RED : search for all kinds of channels GREEN : search for FTA channels only * TIP : If there’s no satellite you want to search, then configure satellite first in antenna setup menu. -
Page 16: Fastscan
SYSTEM SETUP 2.6 Fast scan This is a kind of network search and you can simply scan specific channels from providers. Supported packages are Canal Digitaal/TVV/TeleSAT from Astra (19.2E) satellite. Simply select package and Start Search. * TIP : Astra satellite should be configured prior to this scan. 2.7 Factory reset This will return all the user setting to factory default value including channel data. - Page 17 CHANNEL MANAGER Select [MAIN MENU] > [CHANNEL MANAGER] to perform edit channels, favorite list and satellite/TP as below picture. 3.1 Channel edit Edit channels using Lock/Move/Delete/Rename functions. * Tip You can select each categories by Left/Right button. Press TV/RAD button on RCU to switch from TV channels to Radio channels. Lock Delete Move...
- Page 18 CHANNEL MANAGER 3.1.2 Delete Press OK on the channel you want to delete, then CHECK icon will be displayed. Multiple selection is possible for one time operation. When you complete checking, press MENU button or Left/Right button then message box will ask for your final confirmation. 3.1.3 Move Press OK on the channel you want to move, then CHECK icon will be displayed.
- Page 19 CHANNEL MANAGER 3.2 Favorite edit Available favorite categories are NEWS/DRAMA, MOVIE/SPORTS/CHILDREN/CULTURE/MUSIC/SHOW, GAME/ETC. These categories names are changeable by pressing BLUE button. Press FAV button to set category on the right list box then select channel on the left list box by pressing OK button. HEART icon will be displayed on the left list box and channel name will be on the right list box.
-
Page 20: Osd Setup
SYSTEM SETUP 4.1 Language setup Select OSD language/Audio language by pressing OK button or Left/Right button. Set subtitle language ON to display subtuitle on supported channel. 4.2 OSD setup Display Info Bar – select either 2/3/5/10 seconds or Always ON/Always OFF Transparency –... -
Page 21: A/V Setup
SYSTEM SETUP 4.3 A/V setup ◆ HD Type Select either 576p/720p/1080i for video resolution of HD channels. ◆ TV Type Select either AUTO/PAL/NTSC according to your TV ◆ Aspect Ratio Select either 4:3/16:9 Screen control - Select either Letter Box/PanScan/Ignore RGB/YUV - Select either RGB/YUV for video output S/PDIF –... -
Page 22: Parental Lock
SYSTEM SETUP 4.5 Parental lock * Tip : You may need to enter PIN code to proceed this menu. Default PIN code is 0000. Parental Rate – Select age limit either 12/16/18. PIN code is required when you watch higher rated contents than set here. Channel Lock –... -
Page 23: Cas
Select [INSTALLATION] > [CAS] menu as below picture. This menu provide you with detailed information about smartcard and common interface module like version, serial number, authorization, etc. 5.1 Smartcard General information, Available entitlements and E-mail addess is possible in this menu. General Card Information menu. -
Page 24: Rs-232C
5.3 RS-232 This menu is provision for future use. -
Page 25: Multimedia
MULTIMEDIA 6.1 PVR ◆ Record Size Select either 1 ~ 12 hours. This is continous recording time when end time is not set. ◆ Timeshift Select either On/Off. Set it On to enable timeshift function. 6.2 USB Attach USB device [memory stick or USB Hard disk] into USB port on the side of front panel to use multimedia functions like software update, MP3 playback, JPEG picture view, DivX playback, recording, playback with various trick mode, etc…... -
Page 26: File Filter
MULTIMEDIA ■ File filter Press [FAV] button on RCU to display files in filter according to there file type as ALL, APP/DBS, MP3, JPG, AVI/MPG/MP4. ◆ All : display all types of file ◆ APP/DBS : APP file is software and DBS file is database (channel, TP, etc.) file type. -
Page 27: Mp3 Playback
MULTIMEDIA ■ MP3 playback Select MP3 file in USB manager and press OK to play with visual player program as below picture. File list on the left window shows MP3 files in USB device while right window shows play list and currently playing file. -
Page 28: Software Update / Backup
MULTIMEDIA ■ Software update / backup Select APP file in USB manager and press OK to update software of STB. STB will be automatically rebooted after updating software. To save or backup current system software, press [RED] button then BOX_SOFTWARE.APP file will be created in USB device. -
Page 29: Recording
MULTIMEDIA ■ Recording To record current watching channel, press [●] button on RCU then recording will be immediately started. Small message box on the upper right corner show channel name and recording time. To stop recording, press STOP [■] button. ■... -
Page 30: Time Shift
MULTIMEDIA ■ Time shift While watching channel, press [PAUSE] button on RCU then time shift immediately started. While time shift is working, trick modes are supported like Play/Pause/Seek/FF/REW as well as slow playback in both direction. Refer to RCU picture in page 8 in this manual for trick mode key operation. -
Page 31: Calendar
MULTIMEDIA ■ Background Recording & playback While recording one channel in background, you can playback recorded file at the same time. Simply start recording and press [▶] button on RCU to select file to playback. Press [■] button to stop playback first and then you can stop recording. 6.3 Calendar... -
Page 32: Game
GAME 7.1 Tetris Key Operation OK - rotate Down – Move down Left/Right – Move Left/Right... -
Page 33: Timer
TIMER 8.1 Menu description 1. Mode Available categories are Wake Up/Sleep/Duration/Recording. Wake Up : STB will be turned on at designated time and keep it on. Sleep : STB will be turned off at designated time. Duration : STB will be turned on at designated time and turned off after designated duration. Recording : STB will start recording at designated time and stop it after designated duration. - Page 34 TIMER 8.2 Operation Available event list is 7 regardless of Mode. EDIT – Change/Edit existing event. ADD – Add new event. DELETE – Delete existing event.
-
Page 35: Live Menu
LIVE MENU 9.1 Electronic Program Guide To display program guide (current and next program) for currently viewing channel, press [EPG] button on RCU then you will see below picture. Seven days EPG is available. ◆ Key Operation ▲▼ Button : Change channel ◀▶... -
Page 36: Channel List
LIVE MENU 9.2 Channel list Press OK button in live screen then channel list box will be available as below picture. Press TV/Rad button to switch TV channel list to Radio channel list, vice versa. Press FAV button to show your favorite channel list. -
Page 37: Teletext
LIVE MENU 9.4 Teletext Press TTX button on RCU to invoke teletext information. This service is available only with the channel that serve teletext. You may need to enter PIN code if you set teletext lock option ON in [PARENTAL LOCK] menu. To browse detailed information on teletext, enter numbers with RCU as seen on category screen. -
Page 38: Specifications
SPECIFICATIONS Tuner & Decoder Tuner DVB-S + DVB-S2 Frequency range 950 ~ 2150 MHz DISEqC 1.0/1.1/1.2/USALS 13/18V, 22 KHz Tone, DiSeqC 1.2 support Demodulation QPSK, 8PSK Symbol rate 1 ~ 45 MS/s 10 ~ 31 MS/s MPEG Transport Stream A/V Decoding Transport stream MPEG-2 ISO/IEC 13818-1 Profile level...
