Unisen iPazzPort Cast NC-812-16CE User Manual

Media streaming player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Music and video downloaded from iTunes is not available for this device
Thank you for purchasing the iPazzPort iPazzCast Media Streaming Player. This is a brand new
technology and the iPazzCast will work differently with different devices. DON'T GET FRUSTRATED!
Please give us an e-mail and let us help you get the most out of your iPazzCast. We want to help! You
can e-mail us directly at sales@unisenonline.com.cn. All inquires will be answered within 8 business
hours.

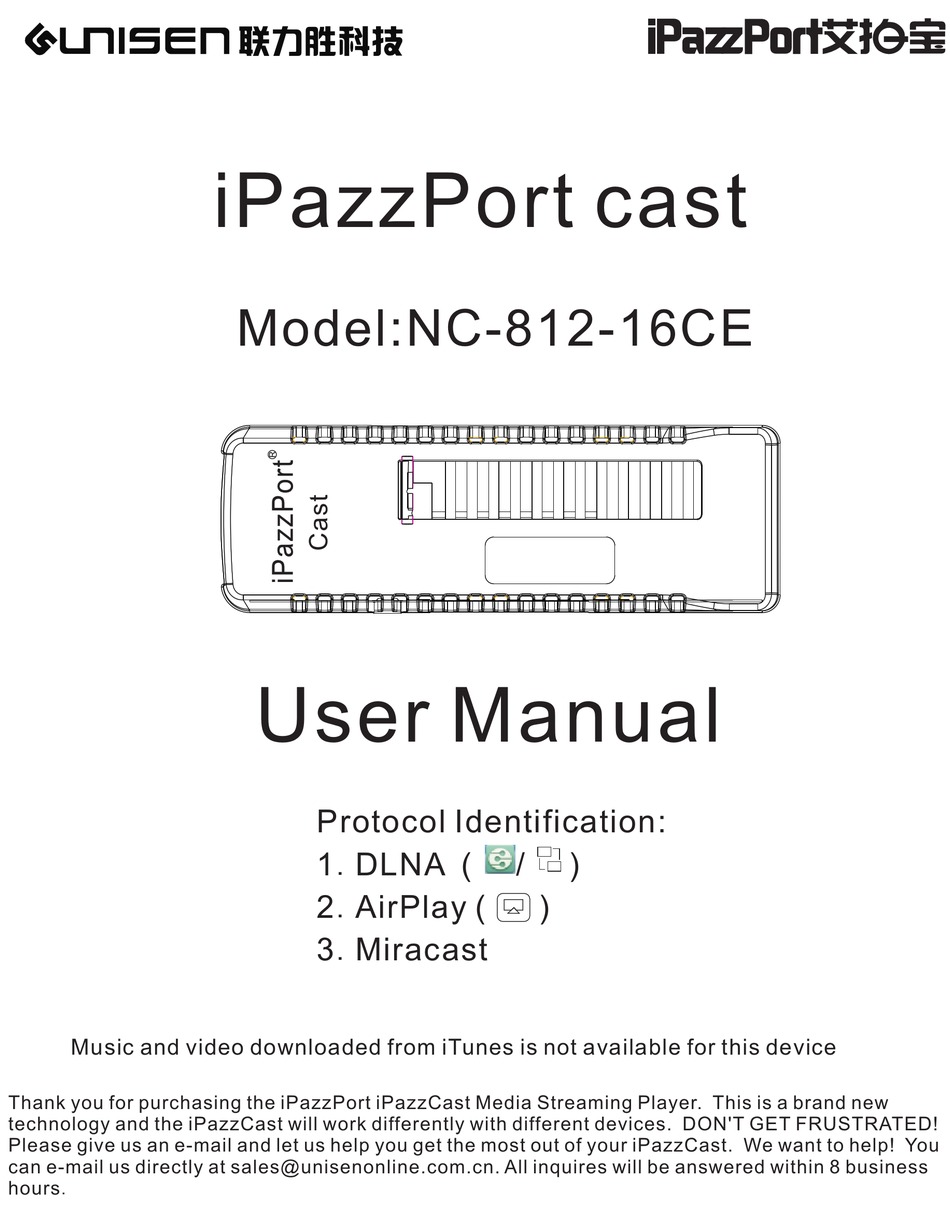

联力胜科技
iPazzPort cast
Model:NC-812-16CE

User Manual

Protocol Identification:
1.DLNA (
2.AirPlay (
3.Miracast
/
)
)
艾
宝

Advertisement

Table of Contents
loading

Summary of Contents for Unisen iPazzPort Cast NC-812-16CE

  • Page 1: User Manual

    艾 宝 联力胜科技 iPazzPort cast Model:NC-812-16CE User Manual Protocol Identification: 1.DLNA ( 2.AirPlay ( 3.Miracast Music and video downloaded from iTunes is not available for this device Thank you for purchasing the iPazzPort iPazzCast Media Streaming Player. This is a brand new technology and the iPazzCast will work differently with different devices.

  • Page 2: Table Of Contents

    Contents ............1 Introduction ............3 iPazzPort cast ............4 Start up ........Android Smart Phone/Tablet ............ 6 EZCast Mode ........... 10 EZCMirror Mode ............12 iPhone/iPad ..........EZCast Mode .......... 17 EZCMirror Mode ............18 Connect PC ............18 Windows ............

  • Page 3: Introduction

    Introduction Unisen iPazzPort Cast is a mini engine to turn your Home HD Screen become a All Media Sharing Center by Smart phone or tablet or PC you already own. The iPazzPort Cast is so tiny, so portable, don't leave it at home. You need it for sharing your favourite Video or lovely photos with family and friends.
  • Page 4 Push Mini USB-Power HD Port...

  • Page 5: Ipazzport Cast

    2.iPazzPort cast HD screen iPazzPort cast Table PC Smart phone...

  • Page 6: Start Up

    3.Start up 1.Hold and push the HD port, then plug in the USB power cord 2.Hold the power cord near the USB port of iPazzPort cast, then plug in the HD port to HD screen. Hold here...
  • Page 7 Power Power Adapter ( Recommended) 1.Turn on the HD Screen and change the video input to HD port. 2.Plug the iPazzPort cast into the HD port of the HD Screen, if needed, please use a HD extension cable. 3.Connect one end of USB cable to the iPazzPort cast, and the other end to the USB port of HD Screen 4.Some HD Screens can not provide enough power through USB port so we need to use a 5V/1A adapter.

  • Page 8: Android Smart Phone/Tablet

    4.Android smart phone/tablet (Phone/Tablet must be intalled “EZCast”) 4.1.EZCast Mode 4.1.1.Download and Install “EZCast” 4.1.2.Connect“EZCast” The iPazzPort cast screen Android screen 4.1.2.3. Connected 4.1.2.1.Go to settings,displays 4.1.2.2. Input password successfully “ EZcast-59533F49 ” “14521981” ,press“Connect”...
  • Page 9 4.1.3.Share Pictures The iPazzPort cast screen Android screen 4.1.3.3. Choose“photogarph” 4.1.3. Enter “Ezcast” 4.1.3.2.Open“photo” The iPazzPort cast screen Android screen 4.1.3.4. Success...
  • Page 10 4.1.4.Share Music The iPazzPort cast screen Android screen .1.4.2. Click 4.1.4.3. Choose music, .1.4. 1.Enter“music” “Select track” click“OK” The iPazzPort Android cast screen screen 4.1.4.4. Success...
  • Page 11 4.1.5.Share Video The iPazzPort cast screen Android screen .1.5. 1.Enter“video” .1.5.2. Click “Explorer” 4.1.5.3. Choose video The iPazzPort Android cast screen screen 4.1.5.4. Success...

  • Page 12: Ezcmirror Mode

    4.2.EZMirror Mode The iPazzPort cast screen Android screen .2.2. Click “NO”, 4.2.3. Displays “WLAN”, 1.Open“EZMirror” Enter“EZMirror” press“Return”, Android screen 4.2.5. Open“Wireless display”, 4.2.4. Click“WLAN dispaly” connect“EZCast-59533F49”...
  • Page 13 4.2.6.Connected successfully,sync to phone screen to HD screen The iPazzPort cast screen Must see the same screen both phone and HD screen, then press Home button to operate it. Otherwise, will disconnect it and can't get the correct operation . Android screen...

  • Page 14: Iphone/Ipad

    5.iPhone/iPad 5.1.EZCast Mode 5.1.1.Connect“EZCast” The iPazzPort cast screen Android screen 5.1.1.3. Connected 5.1.1.1.Go to settings,displays 5.1.1.2. Input password successfully “ EZcast-59533F49 ” “14521981” ,press“Join”...
  • Page 15 5.2.Using AirPaly share pictures,music and video The iPazzPort cast screen iPhone screen ) 5.2.3.Choose“EZCast-59533F49”,Click 5.2.1Open the taskbar 5.2.2.Click AirPlay( “Done”(note:Do not open “Mirroring”) iPhone screen 5.2.5.Photo:reture main 5.2.4.Success 5.2.5.1.click icon interface,enter “Photo”...
  • Page 16 The iPazzPort cast screen iPhone screen 5.2.5.3.Choose“EZCast-59533F49” . (Due to protocol compatibility,if fail to 5.2.5.2.Choose AirPlay icon. find this icon, wait 10s or restart the app or refer chapter 5 to reconnect WiFi or restart your devices.) The iPazzPort cast screen iPhone screen 5.2.5.4.Success...
  • Page 17 The iPazzPort cast screen iPhone screen 5.2.6.Enter“music” 5.2.6.1.Choose music The iPazzPort iPhone cast screen screen 5.2.6.2.Success...
  • Page 18 The iPazzPort cast screen iPhone screen 5.2.7.Enter“video” 5.2.7.1.Choose video The iPazzPort iPhone cast screen screen 5.2.7.2.Success...

  • Page 19: Ezcmirror Mode

    5.2.EZMirror(support iPad3 iPhone4S or above) The iPazzPort cast screen iPhone screen 5.2.1.Open the taskbar 5.2.2.Click AirPlay icon. 5.2.3.Choose“SmartCast 659”, turn on“Mirroring”,click “Done”. The iPazzPort iPhone cast screen screen 5.2.4.Success...

  • Page 20: Connect Pc

    6.Connect PC 6.1.Connect Windows 6.1.1.Download and Install“EZCast” 6.1.2.Connect Wi-Fi The iPazzPort cast screen Computer screen 6.1.2.2.Input password and connect 6.1.2.1.Open“Wi-Fi” “EZCast-59533F49” choose“EZCast-59533F49” Computer screen 6.1.3.Enter“EZCast” 6.1.2.3.Success...
  • Page 21 The iPazzPort Computer cast screen screen 6.1.4.Click“Off” The iPazzPort cast screen Computer screen 6.1.5.Success...

  • Page 22: Mac

    6.2.Conncet Mac 6.2.1.Download and Install“EZCast” 6.2.2.Connect Wi-Fi The iPazzPort cast screen Computer screen 6.2.2.2.Input password and conncet 6.2.2.1.Click“Wi-Fi”, “EZCast-59533F49” choose“EZCast-59533F49” Computer screen 6.2.2.3.Success 6.2.3.Enter“EZCast”...
  • Page 23 The iPazzPort Computer cast screen screen 6.2.4.Click“Off” The iPazzPort cast screen Computer screen 6.2.5.Success...

  • Page 24: Settings

    7.Settings 7.1.Enter setting interface:enter“EZCast”,click“Setting” The iPazzPort Android cast screen screen 7.2.Resolution Setting The iPazzPort cast screen Android screen 7.2.1.Click“Up/Down” 7.2.2.Click“OK” Switch to the proper resolution...

  • Page 25: Setting Password

    7.3.Setting Password The iPazzPort cast screen Android screen 7.3.1.Click“Left/Right”Switch to the password options The iPazzPort Android cast screen screen 7.3.2.Click“OK”,input password The iPazzPort Android screen cast screen 7.3.3.Click“OK”...

  • Page 26: Connect Wi-Fi

    7.4.Connect Wi-Fi The iPazzPort Android cast screen screen 7.4.1.Click“Left/Right”Switch to the Wi-Fi options The iPazzPort Android cast screen screen 7.4.2.Click“OK”,choose the WiFi router,input password and connect The iPazzPort Android cast screen screen 7.4.3.Success...

  • Page 27: Language Setting

    7.5.Language Setting The iPazzPort Android cast screen screen 7.5.1.Click“Left/Right”Switch to the language options The iPazzPort cast screen Android screen 7.5.2.Click“Up/Down”Switch to the proper language Android The iPazzPort screen cast screen 7.5.3.Click“OK” 7.6.Change the Default Mode:click“Up/Down”switch to EZCast Mode or EZMirror Mode,click“OK”...

  • Page 28: Faq

    8.FAQ Before connecting the iPazzPort Cast to phone, please exit the Apps run at the background and reconnect Wi-Fi 8.1.iOS 1.1.Close All Apps run on 1.2.Forget the Network 1.3.Choose the WiFi router background 1.6.Getting IP address 1.5.Connected successfully 1.4.Enter Password...

  • Page 29: Android

    8.2.Android 2.1.Close All Apps run on 2.2.Forget the Network 2.3.Choose the WiFi router background 2.6.Getting IP address 2.5.Connected successfully 2.4.Enter Password...

  • Page 30: Signal Confirmation

    9.Signal confirmation This product is mini portable wireless design,before using, please follow steps to confirm the Wi-Fi signal strength. Place the “iPazzPort Cast” at the correct position, and get the best using for it. 9.1.Test the signal strength of Wi-Fi Router. 9.1.1 Download “WiFi Analyzer”...
  • Page 31 9.3.Take the phone or tablet away 3-5m from iPazzPort Cast. 9.4. Run “WiFi Analyzer”to confirm the receiving signal strength is -60dB or above, as show below. 9.5.If the signal is low, please move “iPazzPort Cast” or connect to HD extented cable.Please make sure to no block the Wi-Fi signal.
