Summary of Contents for GoRave SOULWAY

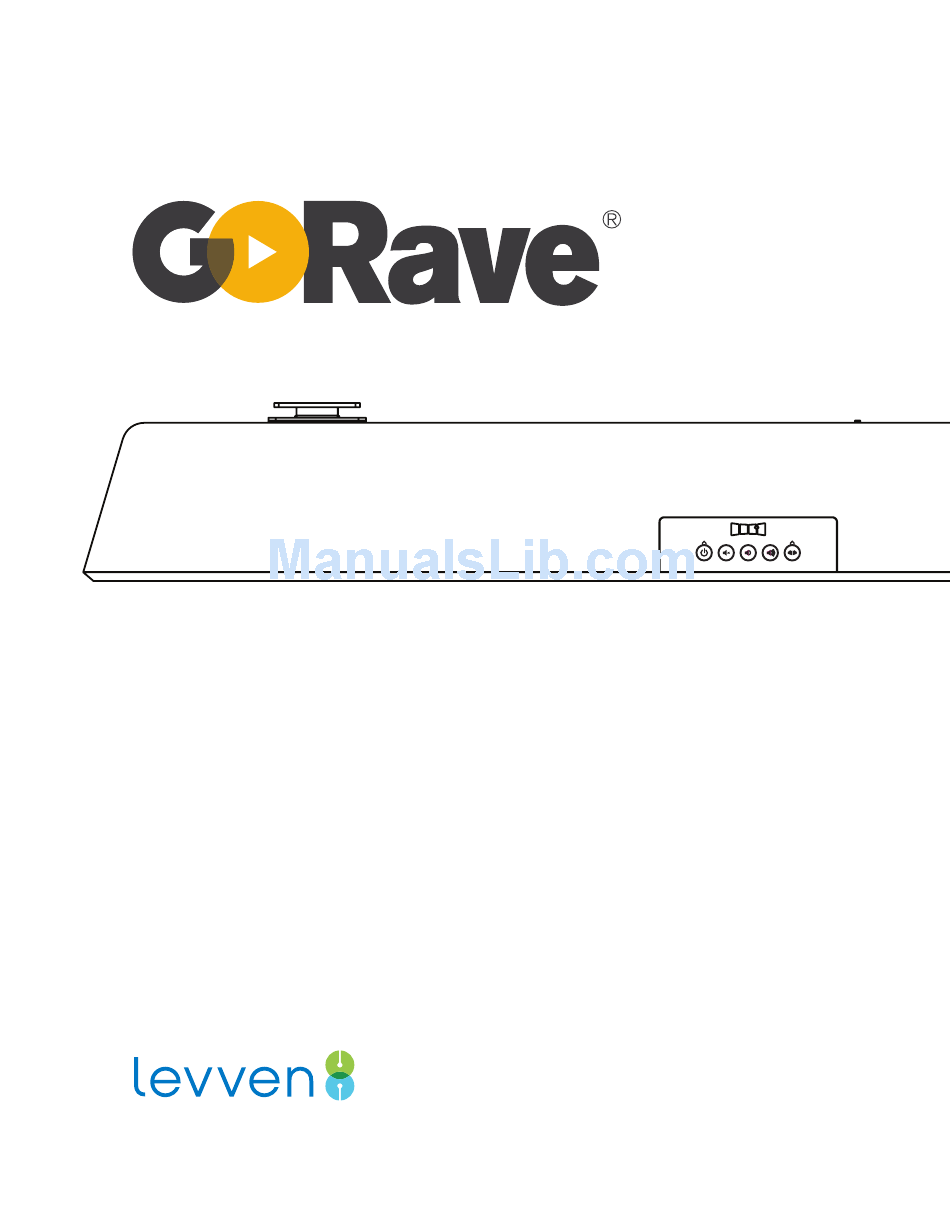

- Page 1 MORE THAN MUSIC SOUL WAY GoRave 100W Wireless Sound Bar Owner’s Manual Installation and Operation Version 1.0 / 03-04-2017 A product by Levven...
-
Page 2: Table Of Contents
V1.0 / 03-04-2017 GORAVE SOUL WAY SOUND BAR Owner’s Installation and Operation Manual MORE THAN MUSIC Table Of Contents 1. Introduction / Installation 5. Troubleshooting 1.1 Thank You 5.1 Power/Standby LED Not Lit 1.2 Safety Precautions 5.2 No Sound Playing from Soul Way 2. -
Page 3: Thank You
Introduction Thank You Thank you for the purchase of your GoRave Soul Way sound bar. This manual provides basic installation and operating instruc- tions. The manual will help you experience the performance your sound bar was designed to produce. Safety Precautions ►... -
Page 4: Components Guide
Operating instruction manual • RCA to 3.5mm coaxial cable • USB power adapter (5V, 1A) • Adhesive strip Sound Bar Components FRONT (without grill) SOUL WAY a product by MODEL: GORAVE SOUL WAY CERTIFIED TO CAN/CSA WIRELESS SOUND BAR STD. C22.2 No. 60065 INPUT 100-240V ~ 50/60Hz 16.5W CONFORMS TO ANSI/UL DELAY LEARN FCC: 2AA9N-GRBAR STD. -
Page 5: Tv Setup
V1.0 / 03-04-2017 GORAVE SOUL WAY SOUND BAR Owner’s Installation and Operation Manual MORE THAN MUSIC TV Setup The GoTV Audio Sender receives audio input from your television’s S/PDIF optical or coax audio output. The GoTV transmitter is powered from a USB port. -
Page 6: Setup The Soul Way Sound Bar
Audio Sender. Soul Way back panel: SOUL WAY a product by USB service port MODEL: GORAVE SOUL WAY CERTIFIED TO CAN/CSA Power cord concealed storage bay WIRELESS SOUND BAR STD. C22.2 No. 60065 INPUT 100-240V ~ 50/60Hz 16.5W... -
Page 7: Setup Infrared Remote Control
Playing from Smartphones, Tablets, and Computers Quick start guide a) Insert a GoRave Audio Sender into your device. b) Play audio on your device. c) Double-click the Pair/Bond button on the Soul Way. The LED status indicator should turn bright amber and you will hear your audio playing from the Soul Way sound bar. -
Page 8: Pair/Bond Button And Led Indicator
Section 4.8 to hear audio from a different Audio Sender. f) The GoRave app will list the GoRave Receivers the device has connected to. In the app, you can control the volume of each Receiver as well as Master Volume up/down. -
Page 9: Add Audio Sender To Favorites List
“All Play” mode “All Play” mode is the easiest way to use GoRave when you have more than one Audio Sender in your space. After you add or remove an Audio Sender from an Soul Way’s Favorites List, press the Pair/Bond button four times to put the Soul Way into “All Play”... -
Page 10: 4.10 Firmware Update
4.10 Firmware Update The Soul Way’s USB port is used only for software updates. GoRave may from time to time provide consumers with a firmware update for Soul Way. Instructions on how to perform the update will be provided by GoRave when necessary. -
Page 11: Warranty
Defective units will be repaired or replaced without charge, at Levven’s discretion, with a like or comparable product by the Dealer if presented with proof of purchase to the Authorized GoRave Dealer from whom the GoRave Soul Way was purchased. Any repair or service performed by any person or entity other than GoRave is not covered by this limited warranty. -
Page 12: Certifications And Approvals
NOTE: This warranty applies only to products purchased and serviced within the U.S.A. and Canada. Warranties outside these countries are as defined by the authorized GoRave Distributor for your country or region, and may vary from the above in terms and/or length. - Page 13 V1.0 / 03-04-2017 GORAVE SOUL WAY SOUND BAR Owner’s Installation and Operation Manual MORE THAN MUSIC FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
