MedeaWiz® 8X78 Bill MedeaWiz® 8X78 Input / Output Expander User Manual FW version 1.0 Manual version 1.00 Note that this manual may change periodically Please go to www.MedeaWiz.com for the latest version P a g e... -
Page 2: Table Of Contents
Custom Orders .............................. 4 Introduction The MedeaWiz 8X78 is an Input expander for the Sprite video player. It also has provisions to add 8 sinking outputs, or 6 additional 3.5mm ports to control up to 6 more Sprites. The base model is equipped with screw terminals and programmed to take up to 8 inputs and control up to 8 trigger files on the Sprite. -
Page 3: 8X78 Quick Start Guide
Switch Jumper S1 installed = no interrupt. Removed = interrupt on new trigger. Connect the Sprite I/O port to the 8X78 Serial Port using a 3.5mm 4 pole cable. Set the Sprite Control Mode to Serial Control, and set the Baud Rate to 9600. -
Page 4: 8X78 Options
Programming Options The 8X78 comes pre-programmed to take up to 8 triggers / pushbuttons that will play up to 8 files, and will drive the optional ULN2803 output driver, if installed. You can re-program the PIC processor to meet custom needs, or contact us for a quote on a custom program. -
Page 5: What's Included

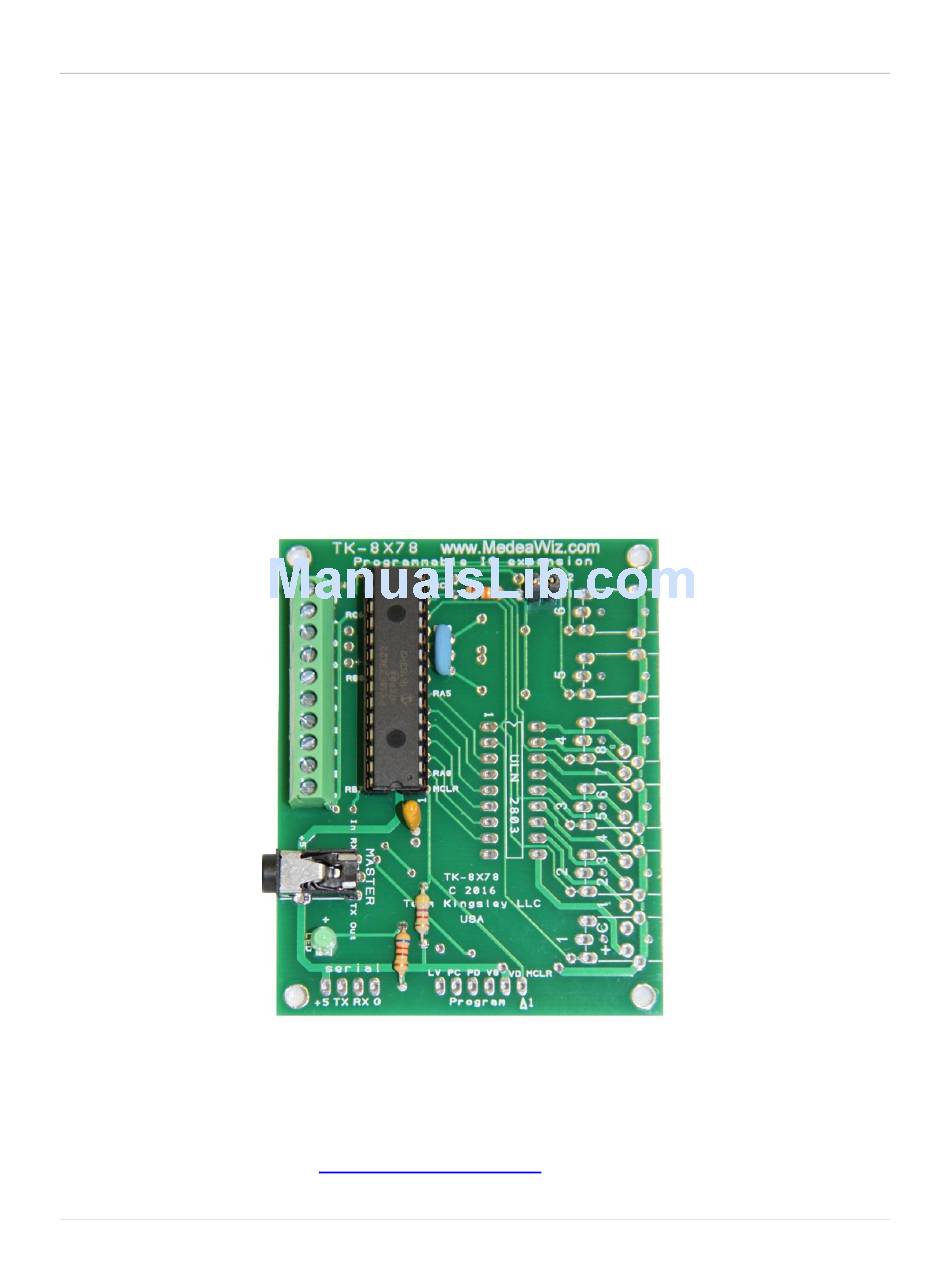

MedeaWiz® 8X78 Bill What’s included The 8X78 comes as pictured with 1) Pre-programmed PIC processor installed 2) 3.5mm 4 pole plug to plug cable, for direct plug connection to the Sprite. Support We do our very best to answer your calls and emails in a timely manner. We generally return calls and emails within 2 hours or less during business hours.
