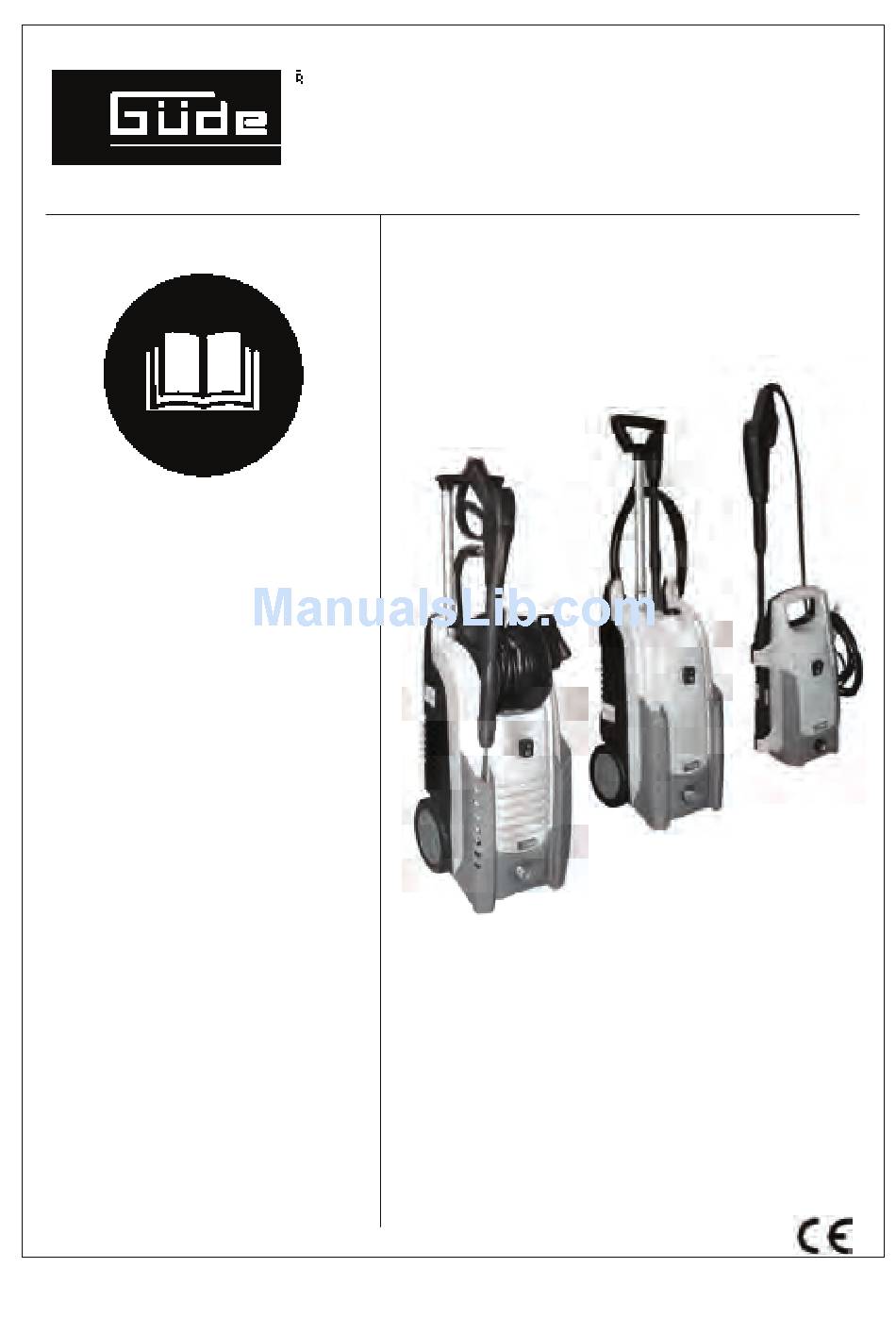

- Page 1 #86009 GHD 100 #86011 GHD 140 #86013 GHD 180 English GB Translation of original operating instructions HIGH PRESSURE CLEANER © Güde GmbH & Co. KG - Birkichstrasse 6 - D-74549 Wolpertshausen - Deutschland...
- Page 7 Integrated detergent container Introduction Pull handle for carrying Hose reel To take delight in your newly purchased high-pressure Spray gun cleaner so long as possible, please read carefully through Transport wheel this owner’s manual and safety instructions prior to putting High-pressure hose connector the device into operation.
- Page 8 It is forbidden to use the device in areas threatened by Safe Work Use the device on a connection with a residual-current possible explosions! device (RCD) safety switch. When using the device in dangerous areas (such as gas Keep your workplace in good order! stations), it is necessary to unconditionally abide by all the Disorder at the workplace may result in injuries.
- Page 9 Never attempt to change the rotation speed settings of the engine. If you are experiencing troubles in this respect, approach a qualified professional. ATTENTION During extensive operational pauses, turn the device’s Always keep the air vents free of residue or other main power switch off and unplug it.
- Page 10 water (in case of need, the product #86009 provides cleaning with a detergent admixture). • With accessories and spare parts approved by the company Güde GmbH & Co. KG. (adhere to the usage instructions which are appended to detergents). Any other type of usage constitutes an act of purpose Attention! Observe violation.
- Page 11 Now screw part 2 of the spray lancet (picture B15/12) High-pressure cleaner GHD 140 #86011 operation onto part 1 of the spray lancet (picture B15/8) (picture A8+A9). Startup • Open the water faucet In phase two, connect the high-pressure hose (picture •...
- Page 12 Only use detergents which are suitable for high-pressure Parts of the packaging (e.g. the foil, styropor) can be cleaners. dangerous for children. There’s a danger of suffocation! Keep these parts of the packaging away from children’s • Turn the high-pressure cleaner off reach and dispose of them as quickly as possible.
- Page 13 technical Filter Cleaning/Checks – Vario Nozzle Cleaning specifications. The smallest water Unscrew the adapter on the water supply connection and hose allowed has pull out the filter sieve by narrow, flat pliers. Rinse the filter the diameter of ½“ sieve with water and insert it back in. A damaged sieve needs to be replaced.
- Page 14 DECLARATION OF EU COMPLIANCE Güde GmbH & Co. KG Birkichstrasse 6 D-74549 Wolpertshausen Germany hereby declare that the concept and construction of the below-mentioned devices in versions which we market comply with the respective elementary requirements established by EU guidelines on safety and hygiene. In case of device modifications which have not been consulted with us, this declaration’s validity expires.
