Summary of Contents for Wow DTV-BX1

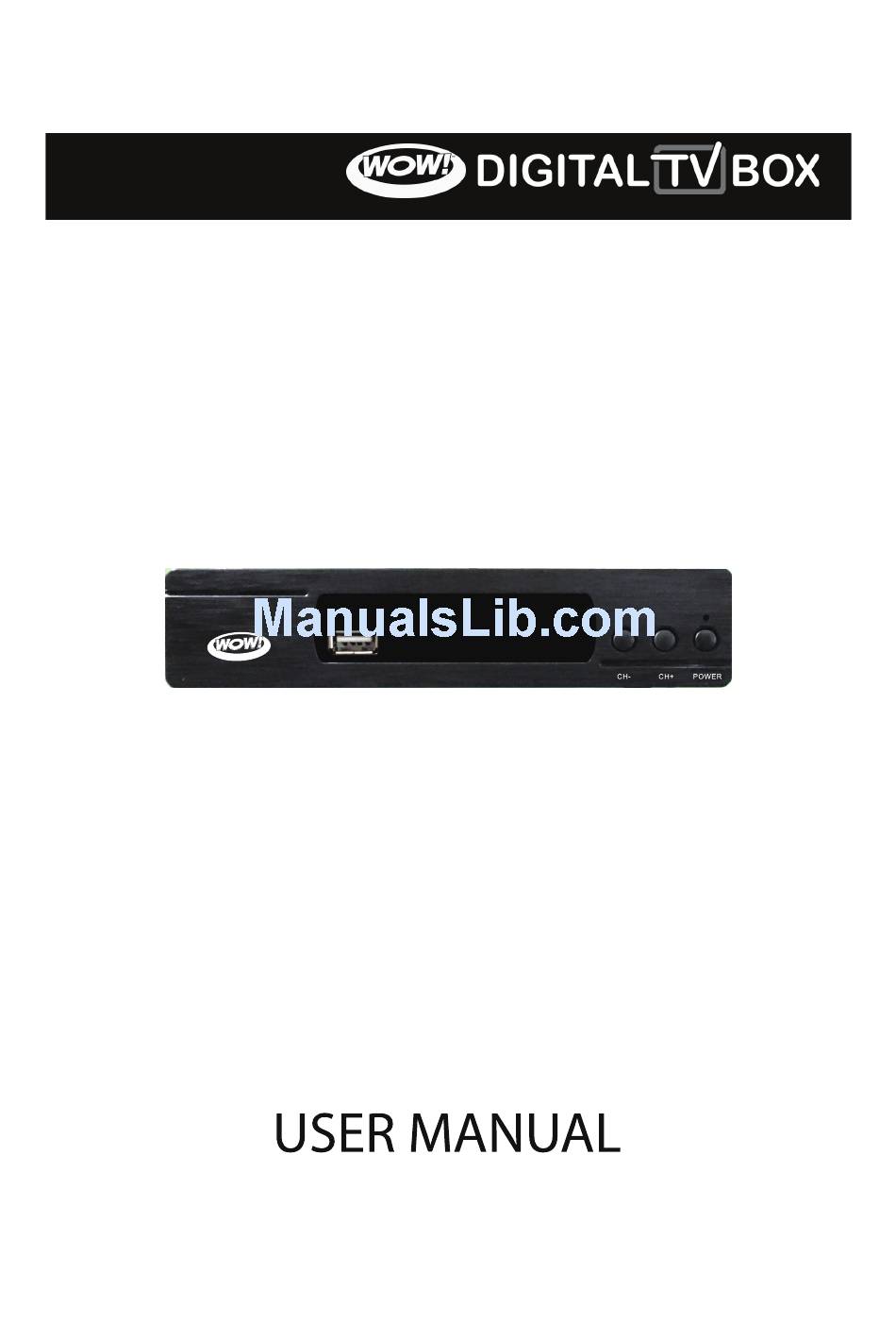

- Page 1 DTV-BX1...
- Page 2 Installing the Batteries Using the Remote Control Connecting to a Television Sleep...
- Page 3 Digital Audio Parental Guidance Recording Warranty Terms And Conditions...
- Page 4 For Your Safety To avoid electric shock, do not open the housing of the receiver. Only qualified personnel are allowed to service the receiver. Keep the receiver away from flower vases, tubs, sinks, etc., to avoid damage and electric shock. Do not expose the receiver under direct sunlight and keep it away from any heat source.
- Page 5 This symbol indicates that dangerous voltages constituting a risk of electric shock are present within the receiver. This symbol indicates that there are important operating and maintenance instructions in the user’s manual accompanying the receiver. This symbol indicates that this product incorporates double insulation between hazardous power supply voltage and user accessible parts.
- Page 6 4. LED DISPLAY SCREEN: Displays current channel and time. 5. REMOTE CONTROL SENSOR: Receives signal from the remote control USB: Used for multimedia playback or software update from USB flash drive or hard drive. 2. Rear Panel WOW! DTV-BX1 ～100-240V 50/60Hz RF L OOP...
- Page 7 Remote Control...
- Page 8 Remote Control 1.POWER:Switches between standby and power on modes. 2.MUTE:Disables/enables audio output. 3.CC: Displays Subtitle Language Options interface 4.LANG: Selects the language during media playback. 5.EPG:Opens the EPG(Electronic program Guide)interface. 6.GOTO: Goto desired time in multimedia file 7.PAGE+: Navigates through the channel list; selects the previous page 8.TTX:Displays Teletext interface 9.PAGE-: Navigates through the channel list;...
- Page 9 Installing the Batteries Remote the battery cover from the rear panel of the remote control and place 2 x AAA batteries inside the compartment. Please make sure that the battery polarities match the polarity markings inside the compartments. Using the Remote Control To use the remote control, point it towards the front panel of the receiver.
- Page 10 Connecting to a Television It is recommended to use the HDMI connection to experience the highest video output performance out of your receiver. Connect one end of the HDMI cable* to the receiver, and then connect the other end to the TV as displayed on the illustration below.
- Page 11 First Time Installation After all connections have been made properly, make sure that the receiver is connected to the power outlet. After checking connection to power outlet, turn on TV and press the Power button on the receiver. If you are using the receiver for the first time or if it the receiver was restored to factory default settings, the Installation Guide menu will appear on your screen.
- Page 12 a. Program Edit To edit the program preferences (lock, skip, favorite, move or delete), please enter this menu selection. This menu selection requires a password for access. The default password is 000000. The master unlock password is 888888. Set Favorite Channels You can create a shortlist of favorite programs that you can easily access from the Favorite Program menu.
- Page 13 Move a TV or Radio Program 1. Select the preferred channel to be moved, and then press the RED function on the remote control. A move symbol will appear on the screen. 2. Press the UP/DOWN buttons on the remote control to move the channel. 3.
- Page 14 c. Sorting You can sort channels through the following options: 1. By LCN: Sort the channels by ascending order. 2. By Service Name: Sort the channels in alphabetical order. 3. By Service ID: Sort the channels according to the station. 4.
- Page 15 3. Channel Search To access the Channel Search menu, press the MENU button on the remote control and select “Search Channel” using the RIGHT/LEFT buttons on the remote control. This menu provides options to adjust the channel search settings. Press the UP/DOWN buttons on the remote control to select an option and press the RIGHT/LEFT buttons to adjust the settings.
- Page 16 2. Press the RIGHT/LEFT buttons on the remote control to select the channel frequency. 3. Press OK on the remote control to start searching channels. 4. If a channel is found, it would be saved and added to the channels list. If channels are not found during searching, the receiver would exit the menu automatically.
- Page 17 a. OSD (On-screen Display) Language Select an OSD language. b. Subtitle Language Select the preferred subtitle language. c. Audio Language Select the preferred audio language for TV channels. If the language selected is not available, the default channel language will be used. d.
- Page 18 c. Restore Factory Default Reset your receiver to the default factory settings. You must enter the password you have set or the default password 000000 to enter this menu. This option will delete all preset channels and settings. The master unlock password is 888888. d.
- Page 19 b. Photo Configure Slide Time: Adjust slideshow interval to 1-8 seconds. ● Slide Mode: Adjust slideshow effect to modes 0-59 or random. ● Aspect Ratio: ● o Keep: Play picture in its original aspect ratio. o Discard: Play picture in full screen mode. c.
- Page 20 Deleting Scheduled Event If at any time you wish to delete a scheduled event for recording, press the BLUE function button to view the list of scheduled events. Use the arrow keys on the remote control to highlight the event you wish to delete, and then press the BLUE function button again to delete it.
- Page 21 Press the GOTO button on the remote control to select playing time. Please note that play time ● cannot exceed the current time. Press the FAST FORWARD/FAST REWIND buttons on the remote control to move through the ● current recording. Press the STOP button on the remote control once to end the playing mode.
- Page 22 Troubleshooting Problem Potential Reasons Suggested Actions No picture Power is not connected Connect the power cord of the receiver to the power outlet Receiver is not switched on Switch the receiver on through the power button on the front panel Screen shows “No signal”...
- Page 23 Technical Specifications Item Sub Item Parameter System Standard ETSI EN 302 755 (ISDB-T) Tuner Input Frequency VHF: 170 – 230 MHz UHF: 470 – 860 MHz RF Input Level -78 ~ -20 dBm RF Bandwidth 7 MHz and 8 MHz Modulation QPSK, 16QAM, 64QAM, 256QAM Video...
- Page 24 Serial Number: __________________________________________________________ Date Purchased: _________________________________________________________ To be covered by the warranty, please complete this Warranty Registration Card and return to the WOW! Sales Partner, or mail it back to us within ten (10) days from the date of purchase.
