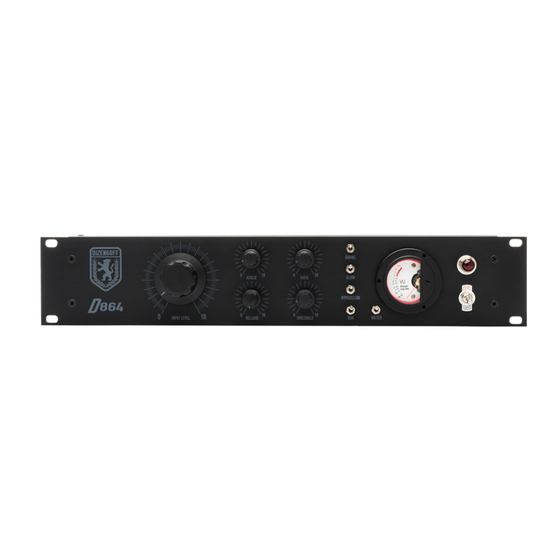

Summary of Contents for Dizengoff? Audio D864
- Page 1 Dizengoff Audio D864 Owner’s Manual ...
- Page 2 20dB of compression under certain circumstances and still sound good. In spite of this, the D864 takes a little time and patience to really get to know it. This manual is intended to walk the user through the feature set.
- Page 3 When using the D864 with a mic preamp, it’s important to utilize appropriate gain staging. There is no need to set the mic preamp for the same amount of gain used when the D864 is not in the signal chain. Doing so may cause distortion.
- Page 4 There can be a slight pop when switching between states. Bypass/Link To bypass compression or to link another D864 in stereo operation, flip the Bypass/Link switch down. Dim Switch The "dim" switch is located at the bottom of the switch matrix next to the meter.
- Page 5 Tubes The D864 uses four octal tubes. The two input tubes are 6SK7 pentodes. The level detector and gain control amplifier are 6SQ7. The output tube is 6SN7. It is worth noting that enclosure clearance is low, so when replacing tubes...
- Page 6 The D864 features XLR input and output jacks located on the rear of the unit. It also features a TS link jack for stereo operation. Copyright 2015, Dizengoff Audio. All rights reserved. The information contained in this manual may be updated at any time without prior notice.
