RevJams REV-BTS100 User Manual

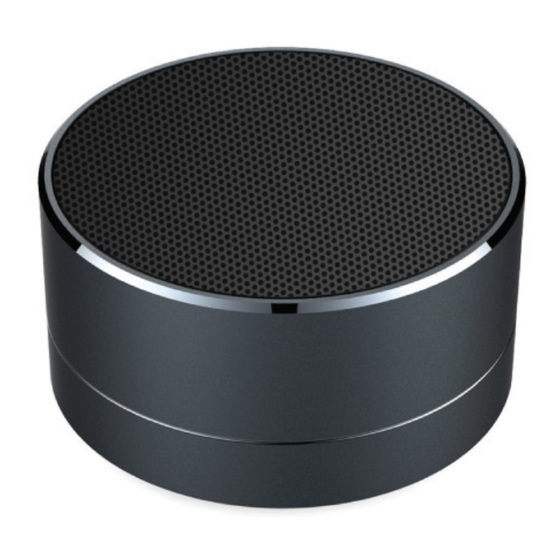

Satellite bluetooth led speaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
REV-BTS100
BLUETOOTH
LED SPEAKER
U S E R S M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REV-BTS100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RevJams REV-BTS100

Summary of Contents for RevJams REV-BTS100

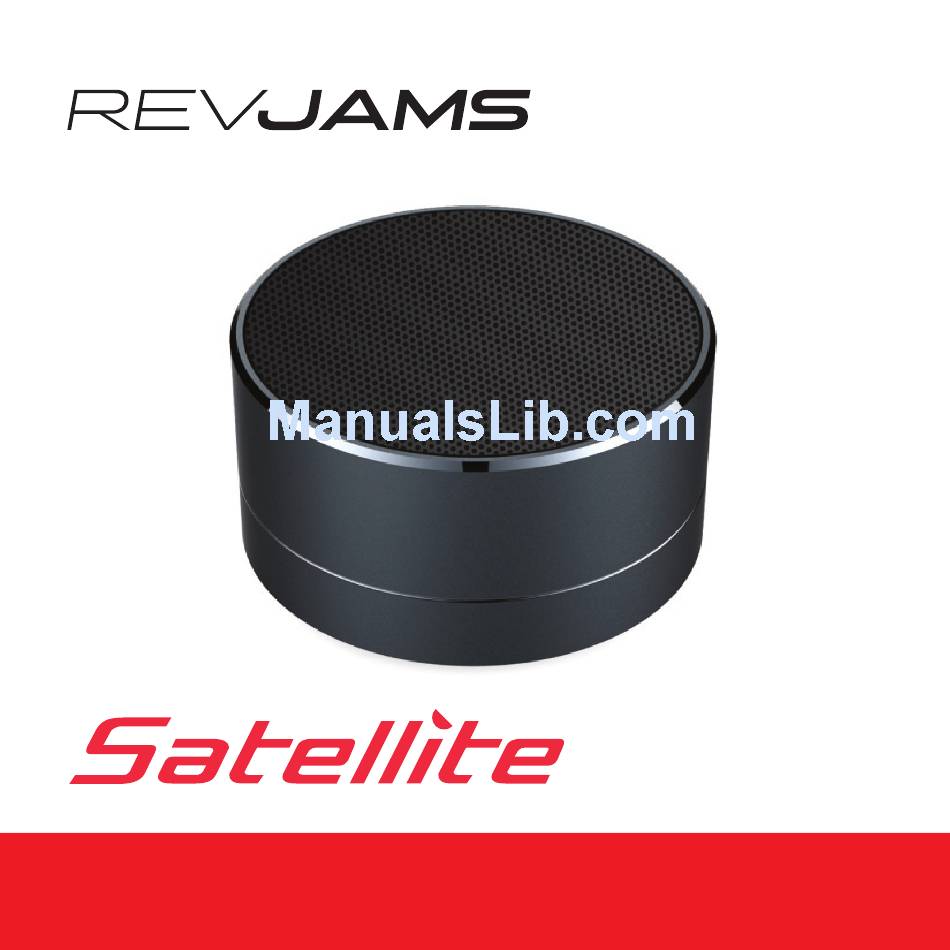

  • Page 1 REV-BTS100 BLUETOOTH LED SPEAKER U S E R S M A N U A L...
  • Page 2 Thank you for choosing the RevJams Satellite Bluetooth Speaker! Please take the time to read this manual carefully, even if you are already familiar with a similar product.

  • Page 3: Package Contents

    PACKAGE CONTENTS 1x RevJams Satellite Bluetooth Speaker 1x Micro USB Cable 1X 3.5mm AUX Audio Cable 1x User Manual...
  • Page 4 SPEAKER CONTROLS AND INDICATOR 1. Microphone 2. Power Button 3. TF/Micro SD Card Slot 4. Mode button / Reset to factory settings 5. Volume – / Previous Track 6. Multi-Function Button- Play/Pause/Answer Call 7. Volume + / Next Track...

  • Page 5: Getting Started

    GETTING STARTED To use your RevJams Satellite Bluetooth Speaker, please follow these steps: 1. Charge your Bluetooth Speaker fully 2. Pair your Bluetooth Speaker to a Bluetooth-enabled device prior to use. CHARGING YOUR BLUETOOTH SPEAKER Your RevJams Satellite Bluetooth Speaker comes with a built-in rechargeable battery and a Micro USB charging cable.
  • Page 6 PAIRING YOUR BLUETOOTH SPEAKER In order to use your RevJams Satellite Bluetooth Speaker with a Bluetooth-enabled device, you will rst need to pair the two. 1. Begin with the Bluetooth Speaker being powered o and fully charged. 2. Place the Bluetooth Speaker and the Bluetooth enabled device where they are easily viewable and no more than 3ft.

  • Page 7: Mode Functions

    RANGE Be sure to keep the speaker within 30 feet (10 meters) of the connected media device at all times for optimal performance. MODE FUNCTIONS The Bluetooth speaker is equipped with a Mode button that allows you to switch in between modes – Press the M button to switch between modes MODES SEQUENCE Bluetooth Mode →...
  • Page 8 AUX AUDIO PORT The speaker features an AUX audio port, simply connect the speaker with your non-Bluetooth mobile phone/MP3 player/PC/laptop with the 3.5mm AUX audio cable and press the Mode button to enter “Line In” audio mode. FM MODE In order for the FM Mode to work , the USB cable must be Connected to the Bluetooth Speaker during use–...

  • Page 9: Reset To Factory Settings

    RESET TO FACTORY SETTINGS In Bluetooth Mode, long press the M button for 3 seconds to restore the speaker to factory settings. LED INDICATOR GUIDE INDICATOR STATUS Blue light Power On Red light Charging Red light turns o Charging complete Blue light ashes for Bluetooth Pairing Mode Pairing...

  • Page 10: Call Mode

    CALL MODE Powering ON/OFF Turn the Power Button switch to the right to Power ON. Switch to the left to Power OFF Answering a Call Short Press the button once to accept the call, or answer the call normally via your mobile phone.

  • Page 11: Music Mode

    MUSIC MODE Adjusting the Press and Hold the Volume + to increase Volume volume or Volume – to decrease volume. You can also adjust the volume on your handset or device Play/Pause Music Once connected, Press the button once to play music. Short Press button to pause music.

  • Page 12: Specifications

    SPECIFICATIONS Bluetooth version 3.0 Bluetooth range: 30 ft. Output Power 3W Speaker Output frequency range: 150Hz-20KHz Discharge Current: 5V/0.5A Battery: Built-in lithium battery 400mAh 3.7V Charging Current: 200mA Product Size: 2.8 X 2.8 X 1.6 inches Speaker Weight: 6 oz. Music Play Time: Up to 2.5 hours Talk Time: Up to 4.5 hours Standby time: Up to 20 hours...

  • Page 13: Care And Maintenance

    CARE AND MAINTENANCE 1. Please charge your new speaker for at least 3 hours before rst use. 2. To prevent damage and risk of electrical shock, do not expose this device to dust, vibration, rain, water or liquids of any kind. 3.

  • Page 14: Fcc Compliant

    SAFETY To prevent res, shock or injury, please do not disassemble or replace any parts of this device. In the event that your device may be damaged or in need of repair, please contact a professional maintenance or quali ed service center for assistance.

  • Page 15: Warranty

    WARRANTY At RevJams, we are dedicated to making the best quality product. To back this up, your RevJams Satellite Bluetooth Speaker is covered by a One (1) Year Limited Manufacturer’s Warranty. Details of the warranty are as follows: for a period of one (1)
