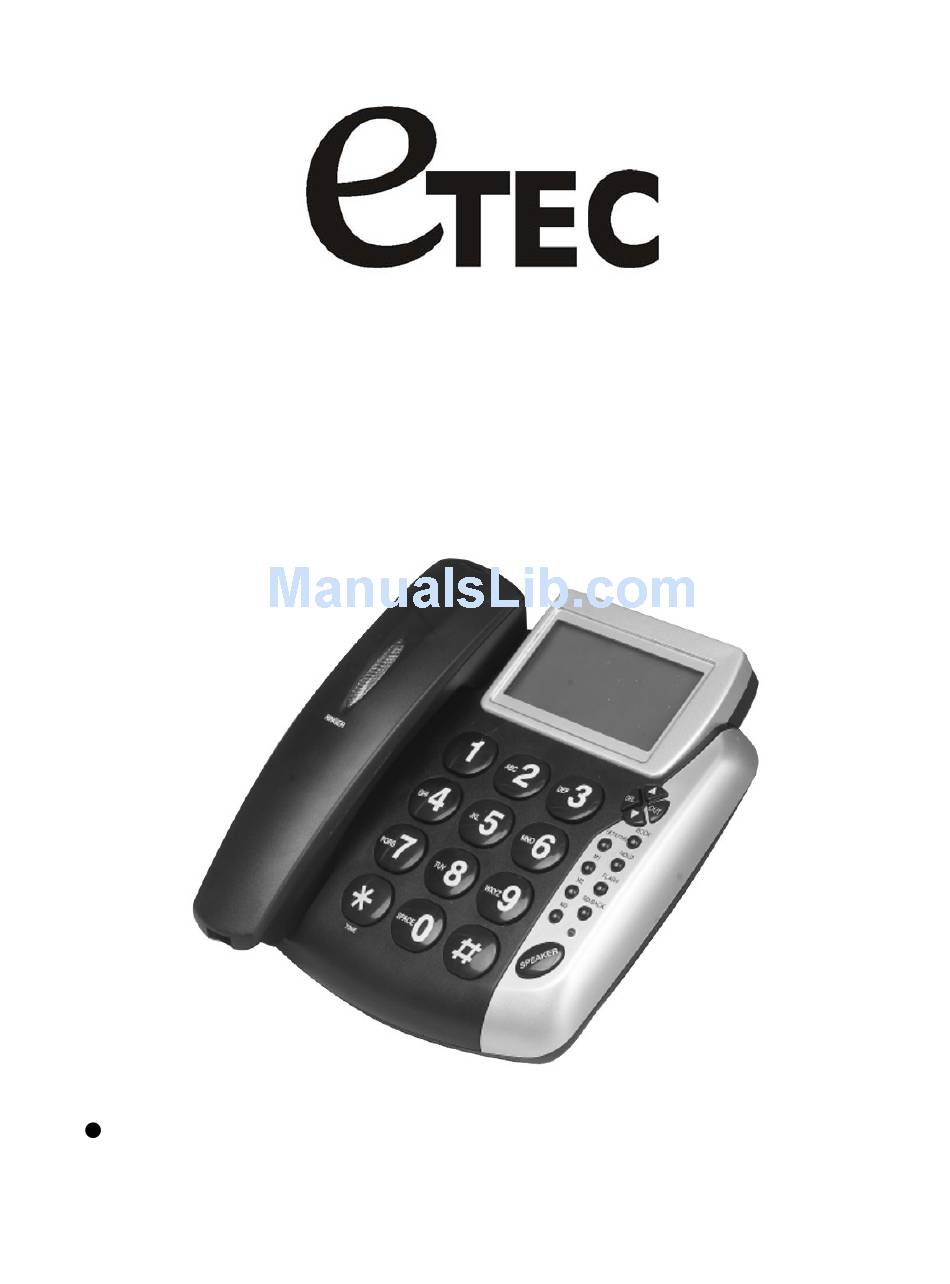

OWNER'S MANUAL AND OPERATING INSTRUCTIONS
FEATURES
-
Caller ID with Call Waiting
Extra-Large LCD Caller ID Display
-
P6900
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P6900 and is the answer not in the manual?

Questions and answers

Related Manuals for Etec P6900

Summary of Contents for Etec P6900

  • Page 1 P6900 OWNER’S MANUAL AND OPERATING INSTRUCTIONS FEATURES Caller ID with Call Waiting Extra-Large LCD Caller ID Display...
  • Page 2 4 line, 16-Digit NAME and NUMBER Display Speakerphone 25-Memory Phonebook Last 90-Incoming Call Memory Last 16-Outgoing Call Memory New Incoming Call Indicator 3 One-Touch Speed Dial buttons Clock Display 5- Level LCD Contrast Adjustment Baby Call Function Flashing LED light for incoming call notification Tone / Pulse Dialing Ringer Volume Control (Hi/Lo/Off) Handset Volume Control (Max to Min)

  • Page 3: Location Of Controls

    LOCATION OF CONTROLS INSTALLATION Plug one end of coiled cord to the jack on the handset and the other end to the handset jack in the base unit. Plug one end of flat cord to phone line jack on the phone base and the other end into the wall jack...
  • Page 4 Open the battery compartment cover; install 3- “AAA” batteries (Not Included). These batteries must be installed for the LCD display and features including Caller ID to function. The batteries are for saving the phone setting in the case of power loss. Connect a 9V AC adapter (Not Included) to the DC jack of the unit Note: The 9V Adapter and 3-‘AAA’...
  • Page 5 added and the oldest call will be deleted from memory. SETTING UP Note: Please make sure the telephone cords are properly connected and 3- “AAA” batteries and/or a 9V- AC adapter are used before starting the setup of this phone. To start, press the [SET/STORE] button to enter the “SETTING”...
  • Page 6 to 6 digits. 4. Date/Time Settings To adjust the Date/Time Settings, press [SET/STORE] and then “ARROW UP” until “DATE/TIME” appears in the display. Then press [SET/STORE] again and the Year will appear flashing in the display. Use the “ARROW UP” or “ARROW DOWN”...

  • Page 7: Receiving Caller Id Information

    [SET/STORE] and then “ARROW UP” until “PHONEBOOK INPUT” appears in the display. Then press [SET/STORE] again. INPUT NUMBER will then appear in the display. Then key the desired phone number in using the numeric keypad. When the number is completed, then press [SET/STORE] again and use the keypad to type in a name for this entry (up to 16 letters).

  • Page 8: Operation

    OPERATION 1. Making A Call Lift the handset or press speakerphone button to get the dial tone Enter the wanted telephone number on the numeric keypad 2. Review, Dial Back, Delete Incoming Calls When the handset is in the base, you can simply press the “ARROW UP” or “ARROW DOWN”...
  • Page 9 b) Press [RD/BACK] button two times and the phone will automatically go into speakerphone mode and dial back the number. 5. Pre-Dialing Enter the desired telephone number first, with the handset in the base. The number will be shown in the display. Then simply lift the handset or press the [SPEAKER] button and the entered number will be dialed out automatically.
  • Page 10 11. Ringer Volume Control (HI/LO/OFF) On the back side of the phone slide the [RINGER] switch to ‘HI’ position or ‘LO’ position to turn the ringer on. ‘HI’ for high volume and ‘LO’ for low volume. Slide the [RINGER] switch to the ‘OFF’ position to turn the ringer off. You can still dial out, but will not hear ringer sound for any incoming calls.

  • Page 11: Safety Instructions

    18. Blue Backlit Display - The unit has a blue-backlit display that allows easier use in darker areas. The blue backlight is activated when any button on the keypad is pressed (except the Speakerphone button). IMPORTANT NOTES: To operate this unit, you must have “CALLER ID SERVICE” setup with your local telephone company.

  • Page 12: Limited 90-Day Warranty

    Damage to external devices such as speakers and other memory devices are not covered nor is the cost incurred in shipping the unit for warranty repair. Under no circumstances shall eTEC USA, be liable for any loss (direct, indirect, incidental, foreseen, unforeseen, special or consequential) or for any damage arising out of, or in connection with, the use of this product.
