Summary of Contents for POWERWINCH 315

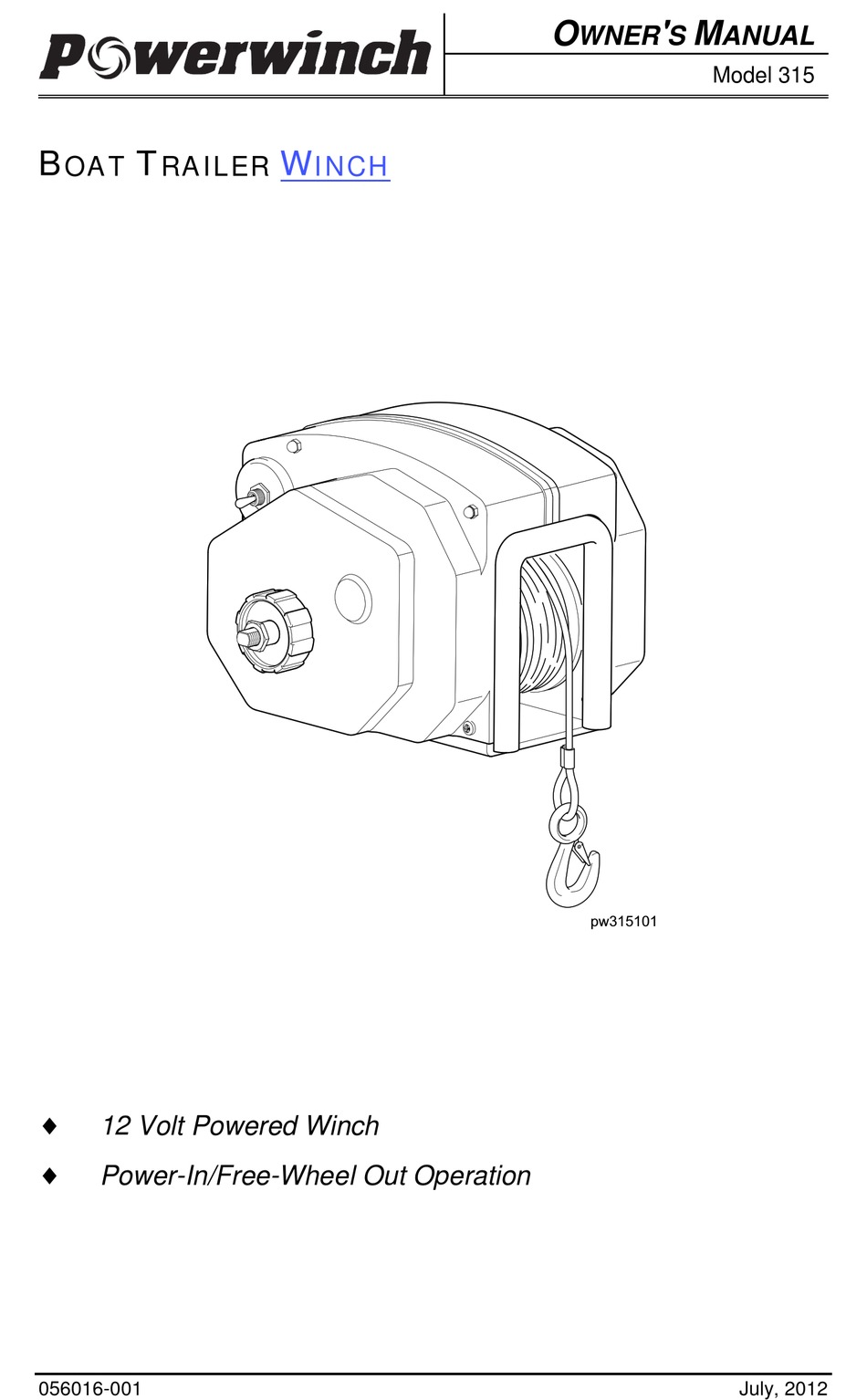

- Page 1 WNER ANUAL Model 315 RAILER INCH pw315101 12 Volt Powered Winch Power-In/Free-Wheel Out Operation 056016-001 July, 2012...
-
Page 2: Table Of Contents
ROPRIETARY TATEMENT The Powerwinch Trailer Winch is a product of Carefree of Colorado, located in Broomfield, Colorado, USA. The information contained in or disclosed in this document is considered to Carefree of Colorado. Every effort has been made to PROPRIETARY ensure that the information presented in the document is accurate and complete. -
Page 3: Safety Information
315 B OWERWINCH RAILER INCH AFETY NFORMATION WARNING SITUATION, WARNING INDICATES A POTENTIALLY HAZARDOUS WHICH, IF NOT AVOIDED COULD RESULT IN DEATH OR SERIOUS INJURY AND OR MAJOR PROPERTY DAMAGE CAUTION CAUTION INDICATES A POTENTIALLY HAZARDOUS SITUATION THAT MAY CAUSE MINOR TO MODERATE PERSONAL INJURY AND... -
Page 4: Specifications
315 B RAILER INCH OWERWINCH PECIFICATIONS Various load conditions affect winch performance. The line pull required for a specific application depends on the weight of the load, condition of the trailer rollers, and the degree of the loading ramp incline. The charts below are based on a single line pull and provided as a guideline in calculating pulling capabilities. -
Page 5: Mounting The Unit
315 B OWERWINCH RAILER INCH OUNTING THE OUNTING THE The following instructions are for standard mounting of the winch. A quick mount kit is available (p/n P7700000AJ). If installing with the quick mount kit, follow the directions with the kit. Steps 3, 4 and 6 apply when using the kit. -
Page 6: Wiring The Unit
315 B RAILER INCH OWERWINCH IRING THE WARNINGS disconnect the battery before working on electrical equipment. LWAYS use the recommended wire size and rated circuit breakers. Failure LWAYS to use the furnished and recommended sizes can cause a fire hazard and void warranty. -
Page 7: Operating The Winch
315 B OWERWINCH RAILER INCH PERATING THE INCH WARNINGS To avoid personal injury and property damage, clear the area around and behind the boat of people, animals and obstructions before loading or unloading the boat. Never stand between the load or anchor point and the winch. Serious personal injury could occur if the cable breaks. -
Page 8: Emergency Hand Crank
315 B RAILER INCH OWERWINCH MERGENCY RANK An optional emergency hand crank is available when there is no power (i.e. a dead battery). WARNING EVER USE THE HAND CRANK TO ASSIST A RUNNING MOTOR ERIOUS PERSONAL INJURY CAN OCCUR Disconnect the power cord from the winch. -
Page 9: Maintenance
315 B OWERWINCH RAILER INCH AINTENANCE UBRICATION The following steps should be performed a minimum of once a year or when the unit is placed in storage. Cable: Lubricate the cable with Whitmore's Wire Rope Spray, WD40 or equivalent. Spray the shaft and the cable as the cable is being wound. -
Page 10: Troubleshooting Guide
315 B RAILER INCH OWERWINCH ROUBLESHOOTING UIDE INCH PERATE A. Confirm power to winch 1. Check that vehicle battery is fully charged. 2. Confirm connections are for tight & clean. Correct as required. 3. Check wires that are worn or bare that may cause shorts. -
Page 11: Replacement Parts List
315 B OWERWINCH RAILER INCH EPLACEMENT ARTS pw315501... - Page 12 315 B RAILER INCH OWERWINCH Item Part Number Description Notes P7188500AJ Cable Assy, 7/32" x 20' R001266 Cover Kit P5594700AJ Emergency Hand Crank Optional P7700000AJ Quick Mount Kit Optional R001274 Motor Assy R001267 Switch P7816100AJ Socket, Power P7833901AJ Wire Harness w/ items 9 & 10...
-
Page 13: Warranty
Purchaser that FIRST the Powerwinch Product described in this manual is free of defects in material and workmanship within the terms and conditions as set forth below. Carefree’s obligation under this warranty is limited to the repair or replacement, at Carefree’s option, of any defective component within the stated warranty period.
