Summary of Contents for MTI ethos 5030

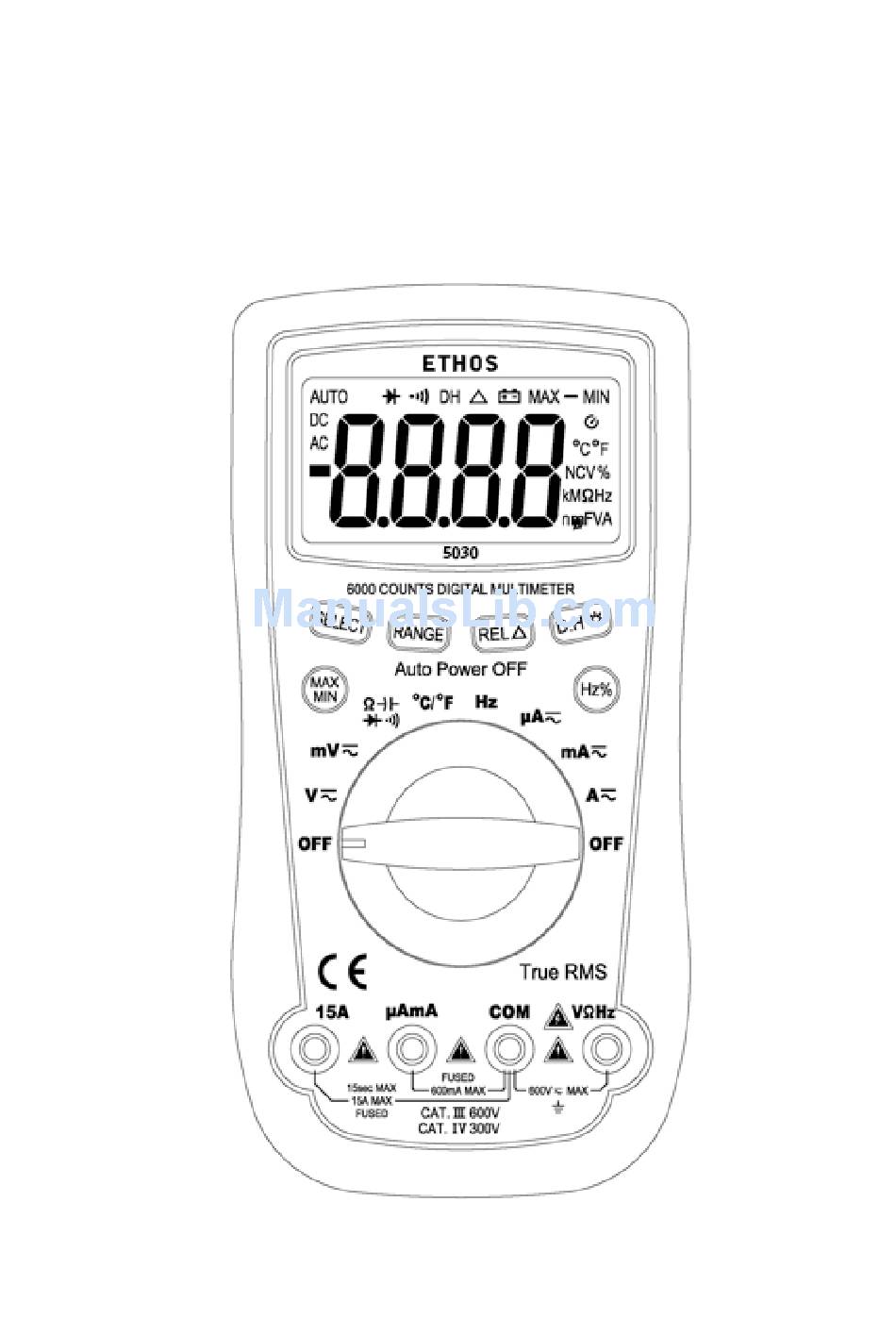

- Page 1 ETHOS 5030 TRUE-RMS DIGITAL MULTIMETER OPERATION MANUAL...
- Page 2 1. SAFETY INFORMATION SAFETY SYMBOLS Warning! Dangerous Voltage (Risk of electric shock). Caution! Refer to the user’s manual before using this Meter. Double Insulation (Protection Class Ⅱ). Alternating Current (AC). Direct Current (DC). Either DC or AC. Ground (maximum permitted voltage between terminal and ground). The symbol indicating separate collection for electrical and electronic equipment.
-
Page 3: Electrical Specifications
2. SPECIFICATIONS 2.1 GENERAL SPECIFICATIONS Display: LCD with a max. reading of 6000. Range control: Auto range & Manual range control Polarity: Automatic negative polarity indication. Zero adjustment: Automatic. Over range indication: The “OL” or “-OL” display. Low battery indication: Display " "... - Page 4 2.2.2 AC Voltage Range Accuracy Resolution 60.00mV 0.01mV ± ( 1.2%+3 ) 600.0mV 0.1mV 6.000V 60.00V ± ( 0.8%+3 ) 10mV 600.0V 100mV 600V ± ( 1.2%+3 ) AC True RMS Frequency: 40Hz～1kHz Overload protection: 600V DC or AC rms Impedance: 10MΩ，More than 100MΩ...
- Page 5 2.2.6 Capacitance Range Accuracy Resolution 9.999nF ± ( 3.0%+10 ) 99.99nF 10pF 999.9nF ± ( 2.5%+5 ) 100pF 9.999µF 99.99µF ± ( 5.0%+10 ) 10nF 999.9µF 100nF 9.999mF ± (10.0%+20) 1µF 99.99mF 10µF Overload protection: 600V DC or AC rms 2.2.7 Diode and Audible continuity test Range Description...
-
Page 6: Operation
Overload protection: 600V DC or AC rms 3. OPERATION 3.1 DC and AC Voltage Measurement 1) Connect the black test lead to "COM" socket and red test lead to the "VΩHz" socket. 2) Set the selector switch to desired “mV ”... - Page 7 3.5 Diode and Audible continuity Test 1) Connect the black test lead to "COM" socket and red test lead to the "VΩHz" socket. 2) Set the selector switch to desired “ ” position. 3) Press “SELECT” key to choose Diode or Audible continuity measurement. 4) Connect the test leads across the diode under measurement, display shows the approx.
-
Page 8: Maintenance
To select manual range, repeatedly press “RANGE” key until the display shows the desired range. The range steps upward as you press “RANGE” key. The meter will go back to auto range mode when you press “RANGE” key for more than 2 seconds. Caution: while using the manual range mode, if “OL”... - Page 9 Distributed by MTi Victoria Road, Avonmouth, Bristol, BS11 9DB Tel: 0117 938 6400 Fax: 0117 923 5374 Email: enquiries.ethos@adivision.co.uk Web: www.ethos-instruments.co.uk...
