- Page 1 CF1W Dishwasher Service Manual Models: CF1W Features l Overflow Protection Function l Good measures for Avoiding Noise l Water Softener for Descaling l Super-Capacity for 12 settings Haier Group Manual code: Edition:2004.11.23 - Page 1 of 27 -...
-
Page 2: Table Of Contents
Contents 1.Features ............................3 2.Speciafications ..........................4 3. Safety Precaution..........................6 4.Net dimension...........................7 5.Installation and Accessory Parts....................7 6.Parts and Functions .........................8 7.Function Schedule .........................11 8.Program Diagram.......................... 12 9.Maintenances Service and Trouble Shooting ................13 10. Circuit Diagram .......................... 19 11.Exploded View..........................20 12.List of Parts ..........................21 13.Damageable Parts List....................... -
Page 3: Features
Features 1.Features 1.1 Easy control and varies of washing mode This model adopts mechanical controling structure, with a integrated knob, so varies of washing programs are available for selection by turning the knob. 1.2Prewashing It may avild the peak of using electricity effectively, saving electricity consumption. 1.3 Overflow Protection Function - Page 3 of 27 -... -
Page 4: Speciafications
DISH WASHER FREE STANDING Last update 2003-2-10 2004-1-10 Revision 00.01 00.01 Supplier Type N° . CF1W Suppliers bar code N° . Sales Brand / Model GXCH Sales bar code N° . Key-features Energy efficiency Class Washing efficiency Class Drying efficiency... - Page 5 Specifications Height adjustable feet n°. / max. mm 4/20 Delay timer (from - to) Safety systems Child resistant door lock Anti flood system Waterproof anti leak system Water return protection Acqua Stop kit Programs Normal C°...
-
Page 6: Safety Precaution
Safety Precaution 3. Safety Precaution IMPORTANT Carefully read the instructions contained in this manual, as it provides information that is essential to safe and proper installation, use and maintenance of this appliance. This appliance complies with following EEC directives: -73/23/EEC of 19/02/73(Low Voltage)and subsequent modifications; - 89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and subsequent modifications. -
Page 7: Net Dimension
Net dimension / Installation and Accessory Parts 4.Net dimension 5.Installation and Accessory Parts 5.1 Positioning the Appliance Positioning the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation. -
Page 8: Parts And Functions
Installation and Accessory Parts / Parts and Functions be made to the hot water line following the same procedures as those for the connection to the cold water line. 5.5 Drain Hose Connection Insert the drain hose into a drain pipe with a minimum diameter of 4cm, Or let it run into the sink, making sure to avoid bending or crimping it. - Page 9 Parts and Functions 6.2 Functions Salt The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the water.
-
Page 10: Loading The Dishwasher
Parts and Functions Loading the detergent To open the "A" cover on the dispenser, press the "B" button. The detergent for the wash cycle should be poured into the "C" compartment. After the detergent has been placed in the dispenser, close the cover and press down until it clicks in place. -
Page 11: Turning On The Appliance
Parts and Functions Turning on the Appliance Starting a wash cycle - Make sure that the plug for the appliance is inserted into the wall socket. - Make sure that the water supply is turned on to full pressure. - Load the dishwasher (see the section entitled, "Loading the Dishwasher" on page 5). - Pour in the detergent (see the section entitled, "Salt, Detergent and Rinse Aid"... -
Page 12: Program Diagram
Program Diagram 8.Program Diagram - Page 12 of 27 -... -
Page 13: Maintenances Service And Trouble Shooting
Maintenances Service and Trouble Shooting 9.Maintenances Service and Trouble Shooting 9.1Maintenances Services It may occur that the dishwasher does not function or does not function properly Before calling for assistance,Iet us see what can be done first:have you forgotten to press one of the buttons or to perfom an essential operation? 9.2 Trouble Shooting Analysis of the common breakdowns. - Page 14 Maintenances Service and Trouble Shooting water supply trouble Phenomenon: water level cannot reach the required location Whether water is flowing in the hose Turn on the stopcock Whether the stopcock is turned on Whether solenoid valve measure whether solenoid valve is working is electrified Change the solenoid valve...
-
Page 15: Maintenances Services And Trouble Shooting
Maintenances Services and Trouble Shooting Drain pump trouble Phenomenon: water cannot be drained Repair the pipeline and drain pump Whether the pipeline Whether drain and drain pump was pump is working blocked Whether drain The drain hose is too pump is electrified high Cable or the program drain... - Page 16 Maintenances Services and Trouble Shooting Heating trouble Phenomenon: program controller stop turnning Whether socket connector is connected well Connect it well Whether thermo limiter is change thermo limiter Whether heater is OK change heater Program controller circuit broken - Page 16 of 27 -...
- Page 17 Maintenances Services and Trouble Shooting Water overflow trouble Phenomenon: drain pump keep on working Whether water is deposited is Whether water flows out of Bottom the bottom case the water overflow conduit case is leaking Check whether the water change the water level switch is closed level switch Whether...
- Page 18 Maintenances Services and Trouble Shooting Power supply trouble Phenomenon: dashwaser cannot work check whether the power connector Connect it properly check whether the pow er connector is in position is in position check whether the circuit the cable or the controller board between the two terminals should be suspected is open...
-
Page 19: Circuit Diagram
Circuit Diagram 10. Circuit Diagram - Page 19 of 27 -... -
Page 20: Exploded View
Exploded View 11.Exploded View - Page 20 of 27 -... -
Page 21: List Of Parts
Exploded View / List of part 12.List of Parts No. In Part specialized Unit Price Name of part QTY. exploded （USD） code view Complete top 0120801750 11.44 12.58 Shelf fastening small block 012G2150035 0.17 0.19 Upper front crosspiece 012G1310022 1.43 1.57 Right upright assembly 012G9350003... - Page 22 No. In Part specialized Unit Price exploded Name of part QTY. （USD） code view Drain hose stop 012G2160204 0.11 0.12 Upright small block 0120200124 0.06 0.07 Lower rear crosspiece 0120101601 1.46 1.61 Wheel for lower basket 012G2150053 0.17 0.19 Wheel for upper basket 012G2150052 0.09 0.10...
- Page 23 No. In Part specialized Unit Price exploded Name of part QTY. （USD） code view Basket guide housing 012G2160199 0.06 0.07 Ring nut for outer duct fastenig 012G2160194 0.52 0.57 Feeding dispenser assembly 012G9380536 1.26 1.39 Water diversion pipe 012G2160260 0.29 0.32 Pin for inner duct hooking 012G2150061...
- Page 24 No. In Part specialized Unit Price exploded Name of part QTY. （USD） code view Rubber coupling 012G4050152 0.08 0.09 Lower sprayer base fixing piece 012G2160193 0.13 0.14 O-type sealing ring 012G4050153 0.02 0.02 Ring nut for lower spayer fastening 012G2160261 0.08 0.09 Lower sprayer base...
- Page 25 No. In Part specialized Unit Price exploded Name of part QTY. （USD） code view Breather assembly 012G2160196 1.67 1.84 Breather ring nut 012G2150044 0.03 0.03 Tube clamp(Connector) 012G1040029 0.17 0.19 Tube clamp 012G1040030 0.03 0.03 Tube clamp 012G1040028 0.17 0.19 Handle support 0120200639 0.85...
-
Page 26: Damageable Parts List
No. In Part specialized Unit Price exploded Name of part QTY. （USD） code view Power switch 0124000084 0.95 1.05 Red indicator 012G6040017 0.67 0.74 Key-press 012G2130488 0.11 0.12 13.Damageable Parts List No. In Unit Part specialized Name of part QTY. exploded Price code... - Page 27 No. In Unit Part specialized exploded Name of part QTY. Price code view (USD) Handle small block 0120200640 0.16 0.18 Closing handle 0120200976 0.21 0.23 Timer 0124000211 17.75 19.53 Detergent dispenser 012G9380544 10.80 11.88 Door switch 012G6050032 1.54 1.69 Power switch 0124000084 0.95 1.05...
Need help?
Do you have a question about the CF1W and is the answer not in the manual?
Questions and answers

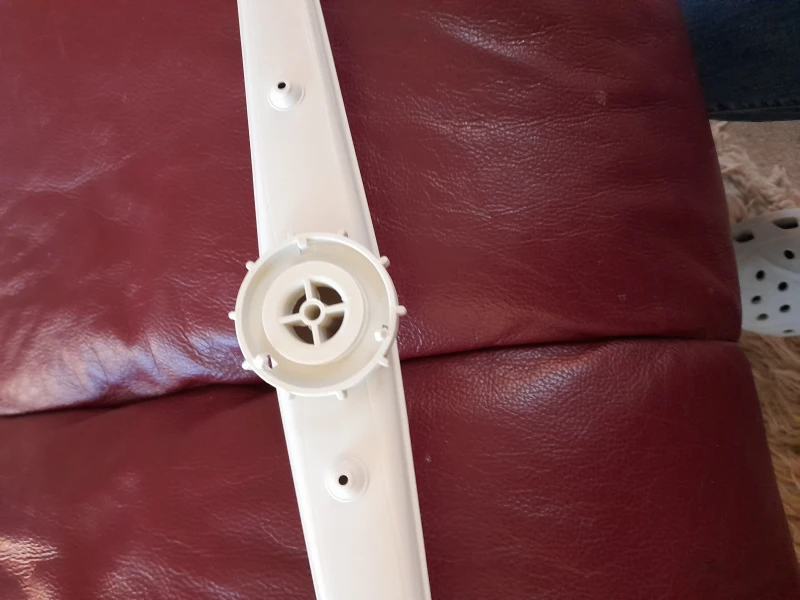

I cannot fit the upper spray arm
