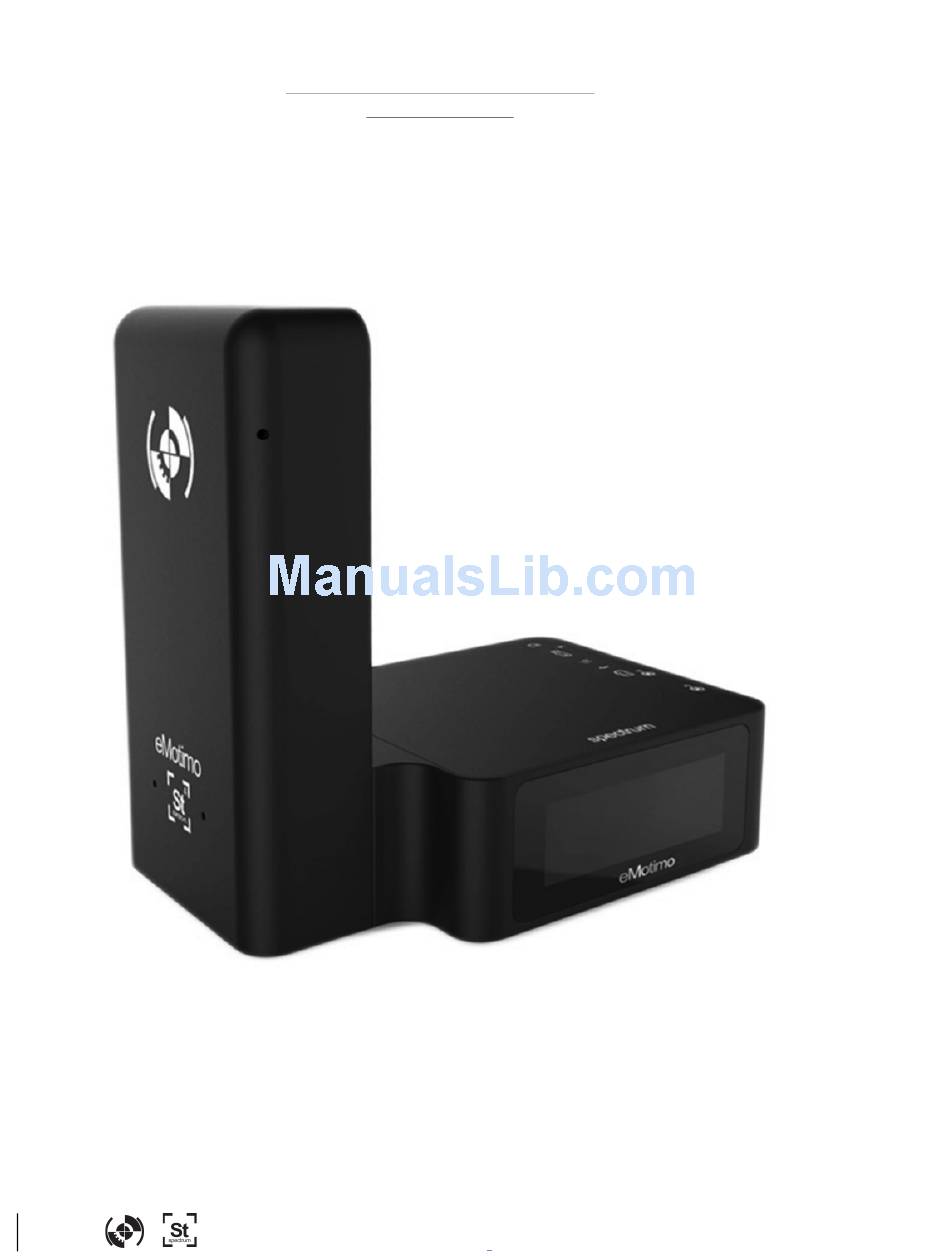

- Page 1 Instructions Firmware B003 eMotimo spectrum Instructions B003 - Copyright © 2016 eMotimo LLC...
- Page 2 L-plate mounted to your camera (this is not included by default with spectrum orders). If you do not already have one, we offer one in our store here: http://store.emotimo.com/universal-q-r-l-plate-p111.aspx This L-plate is shown in use below: eMotimo spectrum Instructions B003 - Copyright © 2016 eMotimo LLC...
- Page 3 2) Ports: 3) Power: 12-24V. Minimum 2A. 3.5A preferred. Connector: 2.1mm x 5.5mm x 12mm circular barrel connector – center positive. eMotimo spectrum Instructions B003 - Copyright © 2016 eMotimo LLC...
- Page 4 6) Charging Remote – make sure your remote is fully charged before you head out into the field. Plug in a micro USB cable (not included, but typical of many eMotimo spectrum Instructions B003 - Copyright © 2016 eMotimo LLC...
- Page 5 (indicated by orange glow). If it isn’t charging or connecting, reset it. You can do this by using a thin tool to press the reset button on the bottom of the PS4. eMotimo spectrum Instructions B003 - Copyright © 2016 eMotimo LLC...
- Page 6 Applications: General firmware navigation: eMotimo spectrum Instructions B003 - Copyright © 2016 eMotimo LLC...
- Page 7 Please bring the rig to a stop before hitting the Triangle – some motor settings are really fast and you can crash the head easily. eMotimo spectrum Instructions B003 - Copyright © 2016 eMotimo LLC...
- Page 8 This functionality is for fun or for hot head camera still shooting. This triggering is active in most modes and is good for firing test shots before starting a timelapse sequence. eMotimo spectrum Instructions B003 - Copyright © 2016 eMotimo LLC...
- Page 9 Once a preset is programed, you can move the head around freely. When you hit the preset button, the head will drive all 4 axis to the preset (GoTo target position) with the qualities you programed in to that preset. eMotimo spectrum Instructions B003 - Copyright © 2016 eMotimo LLC...
-
Page 10: Record And Playback Screen
• You cannot save these moves • You cannot record less or more that the preset amount. • Clear and Return to start menu options are not active. eMotimo spectrum Instructions B003 - Copyright © 2016 eMotimo LLC... -
Page 11: Programmed Moves
4. Interval (SMS TL): Interval is your frame rate for timelapse or stop-frame animation. If you select a 2.0 second interval, the eMotimo spectrum will trigger your camera to start a shot every 2.0 seconds. If you want to speed time more, select a longer interval (good for shots taken over a long duration of time). - Page 12 13. Delay (Disregard – know bug): If you would like to add a start delay to your shot you can do so here. Start delay allows you to start your shot after a specified amount of time. eMotimo spectrum Instructions B003 - Copyright © 2016 eMotimo LLC...
- Page 13 Hint – If you want to adjust timing or shot parameters, use the D-Pad to go back into the setup process to change a value. You can even go back and adjust the start and end points. Start the shot back up by getting to the review screen. eMotimo spectrum Instructions B003 - Copyright © 2016 eMotimo LLC...
-
Page 14: Soft Stops
When you hit stops on pan and tilt, you will feel a rumble. Start slowly here and don't change motor profiles while you are moving or you can run over and crash. eMotimo will add software to enforce motor profile changes only during stops later.
