Summary of Contents for Goodmans GSPK90IPXI Series

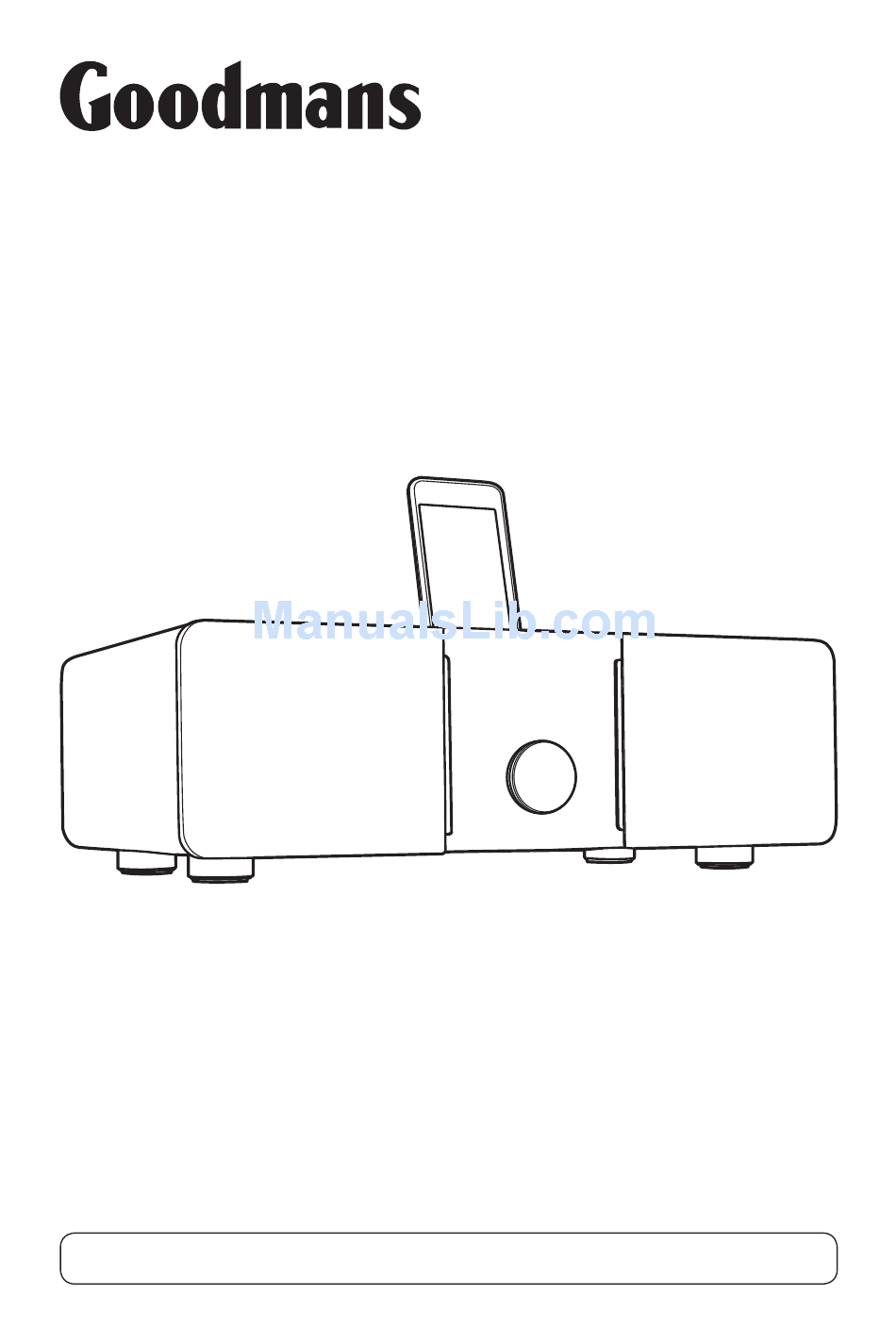

- Page 1 GSPK90IPXI Series iPod Speaker Dock with FM radio User Guide IMPORTANT: Please read all instructions carefully before use and keep for future reference...
- Page 2 Introduction Thank you for choosing this Goodmans iPod Speaker Dock with FM Radio. Not only can it receive radio stations, but you can also listen to your favourite tracks on your iPod and charge it up. It’s really simple to use; you can fully operate your iPod from the control panel on the top or from the remote control, and even connect another auxiliary device to it.
-
Page 3: Table Of Contents
What’s in the box 3.5mm Stereo Cable Remote Control Speaker Dock This User Guide 8 iPod Adaptors Quick Start Guide Contents Your Speaker Dock .......4 Specifications ......12 Get going ........6 Warnings ........13 Daily use ........8 Guarantee ........15 Troubleshooting ......11... -
Page 4: 01 Your Speaker Dock
01 Your Speaker Dock DOCK POWER Button MEMORY CARD Slot DOWN TUNE Button ARROW/ UP ARROW/RWD Button Button SLEEP/CLOCK Button EQ Button ALARM Button MODE Button MEM Button Front SPEAKER SPEAKER VOLUME CONTROL LCD Display Rear MEMORY BATTERY ON/OFF Switch Compartment POWER Cable SPEAKER Port... - Page 5 Your Speaker Dock REMOTE CONTROL REMOTE CONTROL MUTE Button STANDBY Button MODE Button MEM Button UP ARROW Button VOLUME DOWN VOLUME UP Button Button OK Button ALARM Button SLEEP Button DOWN ARROW Button RWD Button FWD Button PLAY/PAUSE Button BRIGHTNESS Button MENU Button EQ Button...
-
Page 6: Get Going
Get going Setting up the iPod Speaker Dock Insert the Mains Plug into a suitable wall socket and turn the socket on. Turn the ON/OFF Switch at the rear of the Speaker Dock to the ON position. Press the STANDBY button to turn the Speaker Dock on. Using the Remote Control The Remote Control can be used to operate the Speaker Dock. -
Page 7: Ipod Docking
Get going iPod Docking Any iPod can be connected to the Speaker Dock to allow all your songs to be played through the speakers. To connect an iPod to the Speaker Dock, select the compatible adaptor from one of the 8 iPod Adaptors supplied. -
Page 8: Daily Use
Daily use Switching On Brightness To turn the Speaker Dock on, press the Press the BRIGHTNESS button on the STANDBY button. remote control repeatedly to cycle through the 4 display brightness settings. To turn the Speaker Dock off, press the STANDBY button again. - Page 9 Daily use Radio Listening to a stored station Store a radio station as described previously. Tuning to a radio station Press the UP or DOWN ARROW buttons to Press the STANDBY button. cycle through the stored stations. Press the MODE button repeatedly until Tuner AUX in is shown on the LCD Display.
-
Page 10: Backup Batteries
03 Daily use The Speaker Dock will automatically return to Clock the last mode used prior to the clock setting Backup batteries being changed. The Backup Battery is used to keep the correct Press the ALARM button briefly to toggle the time and alarm time in case of a power failure. -
Page 11: Troubleshooting
Troubleshooting Problem Possible Cause What to do Radio sound distorted. 1. The station is not tuned in. 1. Fine tune the station. 2. There is a poor signal in the area. 2. Reposition the Speaker Dock. No radio sound. 1. The Speaker Dock is not in tuner 1. -
Page 12: Specifications
Specifications Model Number • GSPK90IPXI Power Supply • 230 - 240V AC 50Hz Power Consumption • 26 watts Power Output • 2 x 8 Watts + 24 Watts (subwoofer) Radio Frequency Coverage • FM: 87.5 - 108 MHz Dimensions • 402mm (L) x 265mm (W) x 140mm (H) IMPORTANT: Due to continual revision and improvements to our products design, specifications are subject to change without notice. -
Page 13: Warnings
Warnings WEEE General Safety This Speaker Dock has been designed and This appliance is labelled in accordance manufactured to meet European safety standards, with European Directive 2002/96/EG but like any electrical equipment, care must be concerning used electrical and taken if you are to obtain the best results and electronic appliances (Waste Electrical safety is to be assured. - Page 14 07 Warnings Electrical Information Wiring Instructions The supply cable will be either 2-core or 3-core. This Speaker Dock is fitted with a BS1363/A Follow the appropriate wiring instructions given 13 amp plug. If it is not suitable for your supply below.
-
Page 15: Guarantee
Guarantee The iPod Speaker Dock is guaranteed for twelve months from the date of original purchase. If any defect due to faulty materials or workmanship, contact the Goodmans Helpline. Have your receipt of purchase on hand. The guarantee is subject to the following provisions: •...
