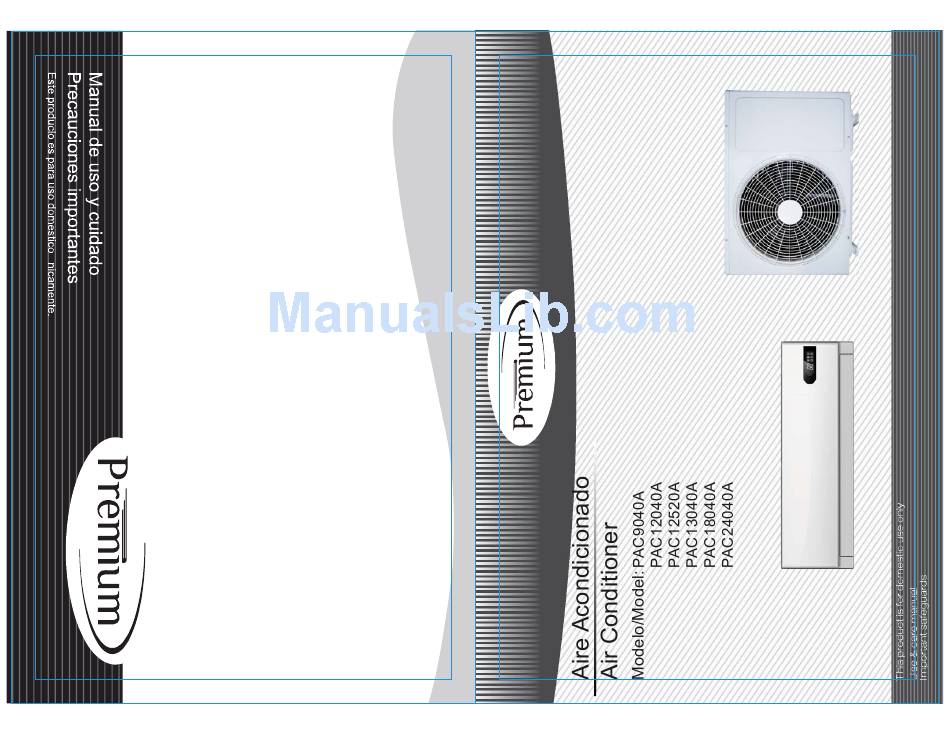

- Page 1 013374...
-
Page 3: Table Of Contents
CONTENTS -------------------------------------------------------------------- Safety Precautions WEEE Warning ---------------------------------------------------------------------------- --------------------------------------------------------------------- Parts Names Operation ------------------------------------------------------------------------------------ Remote controller operation ------------------------------------------------ Manual operation -------------------------------------------------------------------- ----------------------------------------------------------------------------------------- Notices --------------------------------------------------- Checking before operation Safety tips ------------------------------------------------------------------------------- Care and Maintenance -------------------------------------------------------------- ---------------------------------------------------------------------------------- Cleaning -------------------------------------------------------------------------- Maintenance Troubleshooting ------------------------------------------------------------------------ Installation Guide ---------------------------------------------------------------------- ---------------------------------------------------------------- Customer Guide... -
Page 4: Safety Precautions
Safety Precautions Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications WARNING This symbol indicates the possibility of death or serious injury. CAUTION This symbol indicates the possibility of injury or damage to properties only. WARNING The air conditioner must be grounded. -
Page 5: Weee Warning
CAUTION 1.Don t install the indoor unit under direct sunlight. 2.Don t block air inlet or air outlet, otherwise, the cooling or heating capacity will be weakened, even cause system stop operating. 3.Don t apply the cold air to the body for a long time. It will deteriorate your physical conditions and cause health problems. -
Page 6: Parts Names
Parts Names Indoor Unit Air inlet Indoor Unit 1 Front panel 2 Air filter 3 Handling switch 4 Louver Air outlet 5 Signal receptor 6 Supply cord 7 Remote controller 8 Drain hose 9 Refrigerant gas/ liquid pipe Outdoor Unit Air inlet Outdoor Unit 10 Cut-off valve... -
Page 7: Operation
Operation Remote controller operation air conditioner remote controller instruction Manual operation Manual operation When the remote controller does not work or can not be found, please follow these steps: 1.As the unit is operating, you can press the Auto button to stop operating. -
Page 8: Notices
Notices To prevent injury and property damage, Please pay attention to these following before operating the air conditioner. Checking before operation TRANSMIT DIGITAL ON/OFF SET TEMPERATURE( ) 1.Make sure that the ground wire is connected safely and reliably. RUNNING AUTO ROOM MODE 2. -
Page 9: Care And Maintenance
Care and Maintenance Cleaning Cleaning the indoor unit 1.Turn off the air-conditioner and remove the electrical plug from the outlet. 2.Wipe the indoor unit with dry cloth or wet cloth which is dipped by cold water. Note : Don t use water above 45 to wash the panel, or it could cause deformation or depigment. - Page 10 Troubleshooting Phenomenon Is the remote controller out of effective distance to the indoor unit? Remote controller is not available Is the battery exhausted? Are there any obstructions between the controller and the signal receptor? Is the setting temperature suitable? Is the air inlet or outlet obstructed? Cooling (Heating)efficiency is not Are air filter dirty? good...
-
Page 11: Installation Guide
Installation Guide Guide for customer 1.The installation must be done by a professional referring to the Installation instructions . 2.The wiring must be done by a qualified electrician according to the electrical safety requirements. 3.The customer should have a qualified power supply which coincides with the tag of air conditioner, the normal voltage should be in the range of 90-110% of its rated voltage. -
Page 12: Buttons Description
Buttons description LCD displays instruction SET TEMPERATURE( ) TRANSMIT DIGITAL ON/OFF AUTO RUNNING ROOM MODE COOL HIGH RUNNING MODE SPEED HEAT TIMER ON OFF ON/OFF TIMER FEELING ON/OFF display: MODE CLEAN SPEED when the remote controller is on state, the LCD will display SLEEP FRESH STRONG... - Page 13 5. FEELING button When it displays FEELING button: Press this button can be used to set the feeling function. The LCD shows the actual room temperature when the function set and it shows the setting temperature when the function cancelled. This function is invalid when the appliance at the Fan mode.
- Page 14 button Press the + or - button,you can set the temperature range from to 32 ,Display will change as you touch the button. 10. CLEAN button a. When remote controller is at the off state, press clean button, the wind guiding bars turn to initial postions for cooling, the A/C runs clean function with max duration 35mins.The purpose of its function is to clean dust on evaporator and dry the inside water of evaporator and...
- Page 15 button 13. SWING Press this button, the horizontal wind direction vanes can rotate automatically, when you have the desired vertical wind direction, press it again, the horizontal wind direction vanes will be stopped at the situation of your choice. button 14.
-
Page 16: How To Use
Usage Fix batteries 1.Slide open the cover according the direction indicated by arrowhead. 2.Put into two brand new batteries (7#), position the batteries to right electric poles (+ -). 3.Put back the cover. Automatic operation mode 1.Press the MODE button, select the automatic operation mode. -
Page 17: Fan Operation Mode
Fan operation mode 1.Press the MODE button, select the Cooling or Heating operation mode. 2.Press the SPEED button, you can select fan speed. You can select fan speed from LOW, MID, HIGH. 3.Press the ON/OFF button, the operation indicator is on, the air-conditioner starts to operate the automatic mode. -
Page 18: Attention
Attention 1.Aim the remote controller towards the receiver on the air- conditioner. 2.The remote controller should be within 8 meters away from the receiver. 3.No obstacles between the remote controller and receiver. 4.Do not drop or throw the remote controller. Funcionamiento 5.Do not put the remote controller under the forceful sunrays or heating facilities and other heating sources.
