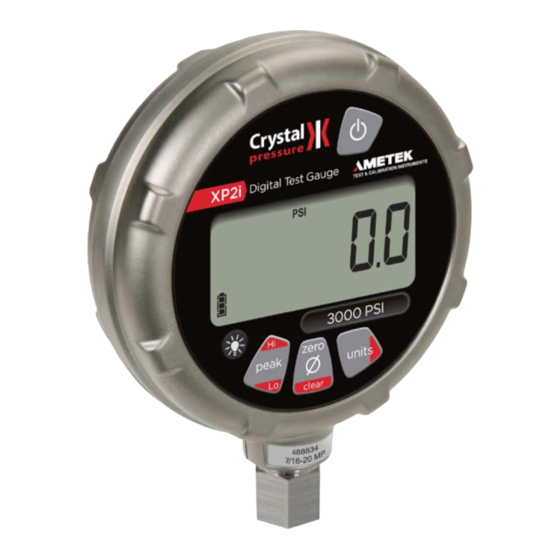

Crystal XP2i Operation Manual

Digital test gauge
Hide thumbs Also See for XP2i:
Table of Contents

Advertisement

Quick Links

XP 2 i
Operation Manual
for XP2i Digital Test Gauge (Standard and Dual-Display(DD))

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XP2i and is the answer not in the manual?

Questions and answers

Related Manuals for Crystal XP2i

Summary of Contents for Crystal XP2i

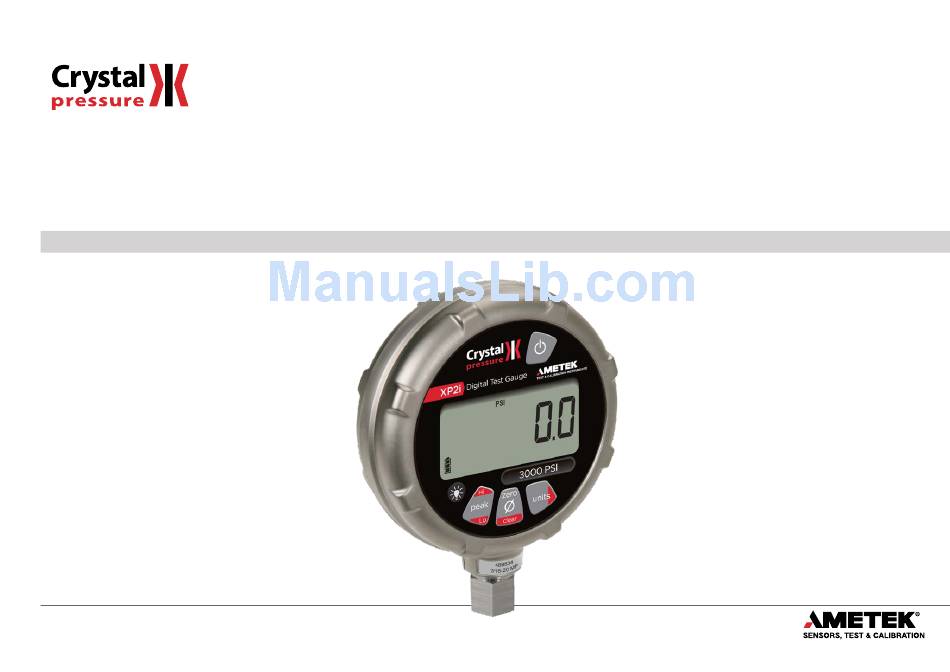

  • Page 1 XP 2 i Operation Manual for XP2i Digital Test Gauge (Standard and Dual-Display(DD))

  • Page 2: Table Of Contents

    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . XP2i DataLoggerXP Gauge Operation .

  • Page 3: Overview

    (with or without the red cover or rubber boot). Circuitry is mounted in shock absorbing elastomer supports and the batteries are easily accessible by removing four screws. But you won’t need to change the batteries often, since 3 AA batteries operate the XP2i for up to 1500 hours of continuous use.

  • Page 4: Operating Instructions

    Connect the XP2i to your system. CAUTION: Use a wrench (¾" or 19mm) for installation and removal of XP2i! There is a limit to how much rotational force can be applied to the case, so don’t rely on, or use, the case to screw the XP2i into a fitting, and don’t use the case to remove the XP2i fitting, either.

  • Page 5: Functions

    Units that you don’t need or never use can be turned off. You can also define a special unit for your XP2i with ConfigXP. You can use the XP2i to display directly in a unit not otherwise available, such as feet of seawater, or foot-pounds of torque. When you select your custom unit from the keypad, the screen displays the USER icon.
  • Page 6 WARNING: This gauge can display zero pressure when connected to a source of pressure! Do not rely on the display indication before disconnecting— it may not be indicating true pressure. Never disconnect pressure instrumentation without first relieving system pressure! To Clear the Zero Value on an XP2i zero...
  • Page 7 (4 times per second), and the displayed value is the average of the most recent 3 to 10 calculations. By increasing the number of calculations in the average, the XP2i will indicate a more stable rate. However, the XP2i will react more slowly to changes in rate.
  • Page 8 If you start the XP2i in the No Auto Off mode, you may select the brightness level in the same way. The light will never time out and turn off. Turn off the XP2i,...
  • Page 9 The following applies only to models where inches of water is a selectable pressure unit. As shipped from the factory, the XP2i is set to display inches of water corresponding to the density of water at 4° C (39.2° F). You may require a different water density for your application, so the XP2i can be set to use the density of water at 20°...
  • Page 10 Battery Replacement The XP2i uses 3 AA batteries. Loosen the four rear panel screws to gain access to the battery compartment. These four panel screws are captive inside the panel and are not removable. Pull the panel up to expose the battery compartment. After replacing the batteries, the XP2i will start operating immediately...
  • Page 11 Functions  Reset If for some reason the XP2i needs to be reset, remove any battery for at least one minute, then reinstall the battery. If the reset is successful, the XP2i will start operating without pressing the on/off button. Reset will clear the zero, peak values will be reset to the current reading, and the XP2i will be set to the default engineering units.

  • Page 12: Data Logging With Dataloggerxp

    DataLoggerXP is an optional data logging mode available for the XP2i gauge. You may purchase the DataLoggerXP option with your original order or add it later. With the XP2i’s long battery life, and Ultra Low Power (ULP) mode, you can log data over an entire year, without the need for external power supplies or battery replacements.
  • Page 13 ..... . A set of one or more readings taken by the XP2i. The user can specify different logging parameters for each successive run.

  • Page 14: Installing The Software

    „ „ „ „ „ INSTALLING THE SOFTWARE DataLoggerXP can either be installed from a CD provided by Crystal Engineering, or downloaded from the Crystal Engineering website. We recommend you check the website for the latest version. Installing from the CD Run the Setup.exe application located on the install CD.

  • Page 15: Dataloggerxp Software Operation

    DATALOGGERXP SOFTWARE OPERATION As described in the prior section, the DataLoggerXP application provides complete control of the settings for data logging mode on the XP2i. You can change logging parameters and download data using the application. In this section, you will find a description of each of the functional areas of the application.
  • Page 16  To Connect to the Gauge Plug the serial cable into the computer and XP2i gauge ports. In the DataLoggerXP main window, click Connect. The program will retrieve the current logging parameters, and then allow downloading, viewing, and saving data, as well as updating the logging parameters.
  • Page 17 Data Logging Parameters Logging parameters can be set up one of two ways: on a computer connected to an XP2i, or from the XP2i keypad. This second option allows the user to make changes in the logging parameters while in the field. Once the logging parameters have been selected, the gauge can begin recording data. The two param- eters that affect data logging (logging interval and logging type) are covered below.
  • Page 18 In the Data View dialog box, you can select the run you wish to display, and choose to include or exclude recording events. Events are non-data readings, such as tare values, low battery indications, or logging parameters. XP2i Operation Manual...
  • Page 19 If the file name does not include a “.xlt” or “.xls” extension, the data will be saved as a comma separate text file (ending either “.txt” or “.csv”) of that name. To Clear All Data Runs In the DataLoggerXP main window, click the Clear button to erase all runs from the gauge, making all memory available for the next sequence of runs. ƒ XP2i Operation Manual...

  • Page 20: Xp2I Dataloggerxp Gauge Operation

    XP2I DATALOGGERXP GAUGE OPERATION When in data logging mode, XP2i provides data logging capability along with many of the features of a standard XP2i. In order to allow operation as a data logger, some of the standard functionality of the standard XP2i is suspended.
  • Page 21 Keypad Usage The following buttons and button combinations are used to control data logging runs on the XP2i. Where two keys are indicated, the operation is executed by pressing and holding down the first key, then pressing and holding down the second key until the action is completed.
  • Page 22 Holding these two keys will clear the logging memory of the XP2i. If the gauge is recording, you must first stop logging as described above. When these but- tons are pressed, the gauge will first display its current state (Off, CLr, etc), then the number of data points available, and then CLr, indicating the clear action was successful.
  • Page 23 XP2i Reset or Battery Change Data collected by the XP2i will not be lost with a gauge reset or battery change, although any run in progress will be stopped. A reset or battery change will affect the operation of the gauge’s real-time clock. When the XP2i is connected to DataLoggerXP and the logging parameters are set, DataLoggerXP also sets the gauge’s real-time clock.

  • Page 24: Excel Templates

    You can bypass this selection during the save process to choose a different template to save your data into. Select the Use Excel Template check box and use the Browse button to find and select an alternative template. XP2i Operation Manual...

  • Page 25: Enclosure

    WRENCH HEX DIAPHRAGM ADDITIONAL SENSOR LENGTH WITH OPTIONAL FITTING ADAPTERS 1.15 1.03 1.30 (29.1) (26.1) (32.6) 1/4 INCH MNPT ADAPTER 1/4 INCH MBSP ADAPTER M20X1.5 ADAPTER (P/N MPM-1/4MPT) (P/N MPM-1/4BSP) (P/N MPM-M20X1.5) ALL DIMENSIONS ARE IN INCHES (MILLIMETERS) XP2i Operation Manual...

  • Page 26: Serial Numbers

    SERIAL NUMBERS Serial Number Location The serial number of your XP2i is located in two places; on the stem above the pressure fitting and behind the battery cover under the battery furthest from the serial port connection. You may also find your serial number using ConfigXP software. See ConfigXP for more information.

  • Page 27: Specifications

    Storage......-40 to 75° C (-40 to 167° F). Battery should be removed if stored for more than one month. Media Compatibility Liquids and gases compatible with 316 Stainless Steel. XP2i Operation Manual...
  • Page 28 WARNING: Do not use RS-232 in hazardous locations.   Pressure Connection ... . Crystal CPF Female (1/4" medium pressure tube system). U.S. Patent No. 8,794,677 Compatible with HiP LM4 and LF4 Series, Autoclave Engr SF250CX Male and Female Series.

  • Page 29: Power

    CSA: The XP2i is Intrinsically Safe only if powered by one of the following battery types: CSA: Le XP2i est un système à sécurité Intrinsèque seulement s’il est alimenté par un des Piles de type suivant: Approved Battery Type Marking (Approuvé...

  • Page 30: Pressure Ranges, Display Scales, & Resolution

    • XP2i will indicate pressure up to 10% above Range Pressure. Above 110%, the XP2i display will flash, indicating that the applied pressure exceeds the cali- brated pressure range. If the calibrated pressure range is exceeded, the pressure displayed may not be accurate.

  • Page 31: Safety & Certifications

    • Because the enclosure of the XP2i and XP2i-DD is made of aluminium, if it is mounted in an area where the use of category 1 G apparatus is required, it must be installed such that, even in the event of rare incidents, ignition sources due to impact and friction sparks are excluded.

  • Page 32: Atex/Iecex Safety Instructions

    Zařízení musí být nainstalováno takovým způsobem, aby ani v ojedinělých náhodných případech nemohlo dojít ke vzniku zdroje vznícení způsobeného jiskrami vzniklými nárazy a třením. Schválené Baterie – ČESKY (Czech) Přístroj XP2i je jiskrově bezpečný pouze pokud je napájen jedním z následujících typů baterií: Approved Battery Type Marking Rayovac Max Plus 815 -20 to 50°...
  • Page 33 El equipo se deberá instalar de tal modo que, incluso en el caso de un accidente, las fuentes de ignición debido a chispas por fricción o impactos sean evitadas. Pilas Aprobadas – ESPAÑOL (Spanish) El XP2i solo es intrínsecamente seguro si se alimenta con uno de los siguientes tipos de pilas: Approved Battery Type...
  • Page 34 L’équipement doit être installé de manière à ce que, même lors d’incidents rares, les sources d’allumage suite à un impact et des étincelles de friction soient évitées. Piles Approuvées – FRANÇAIS (French) Le XP2i est un système à sécurité Intrinsèque seulement s’il est alimenté par un des Piles de type suivant: Approved Battery Type...
  • Page 35 L’apparecchiatura deve essere installata in modo tale che, anche nell’ipotesi remota di un incidente, vengano evitate fonti di ignizione dovute a scintille da impatto e da frizione. Batterie Approvate – ITALIANO (Italian) L’ XP2i è a Sicurezza Intrinseca solo se alimentato da uno dei seguenti tipi di batteria: Approved Battery Type...
  • Page 36 Laite tulee asentaa siten, että siinä epätodennäköisessä tapauksessa, että hankaus aiheuttaa kipinöitä, ei lähellä ole syttyviä materiaaleja. Käyttöön Hyväksytyt Paristot – SUOMEN KIELI (Finnish) XP2i mittari on turvallinen määritellyissä räjähdysvaarallisissa tiloissa ainoastaan, kun käytetään seuraavia paristoja: Approved Battery Type Marking Rayovac Max Plus 815 -20 to 50°...

  • Page 37: Support

    TROUBLESHOOTING The XP2i is a very high performance gauge. Due to the high resolution of this product, you may observe conditions that appear to be defects in the product, but are in fact a result of being able to resolve and measure pressure to a degree not possible with other instruments.

  • Page 38: Calibration

    0.025% of reading, or equivalent in terms of percent of full scale. This level of accuracy requires the use of piston (deadweight) gauges or very high performance pressure controllers. “Zero” the XP2i, then record displayed pressure for two or more pressure points. Determine if the XP2i would benefit from an overall increase or decrease of the indicated pressures.

  • Page 39: Software

    AC Adapter Kit Permits operation of an XP2i from an AC supply of 90 - 264 VAC and 47 - 63 Hz . Includes interchangeable international plugs (for USA, Europe, U . K . , and Australia) . Adapter will not charge batteries, but in the event of AC power loss, XP2is will automatically revert to battery operation .

  • Page 40: Contact Us

    WARRANTY Crystal Engineering Corporation warrants the XP2i Digital Test Gauge to be free from defects in material and workmanship under normal use and service for one (1) year from date of purchase to the original purchaser. It does not apply to batteries or when the product has been misused, altered or damaged by accident or abnormal conditions of operation.
  • Page 41 © 2016 Crystal Engineering Corporation 708 Fiero Lane, Suite 9, San Luis Obispo, California 93401-8701 4870. N...
