Summary of Contents for Solar West SUB ZERO

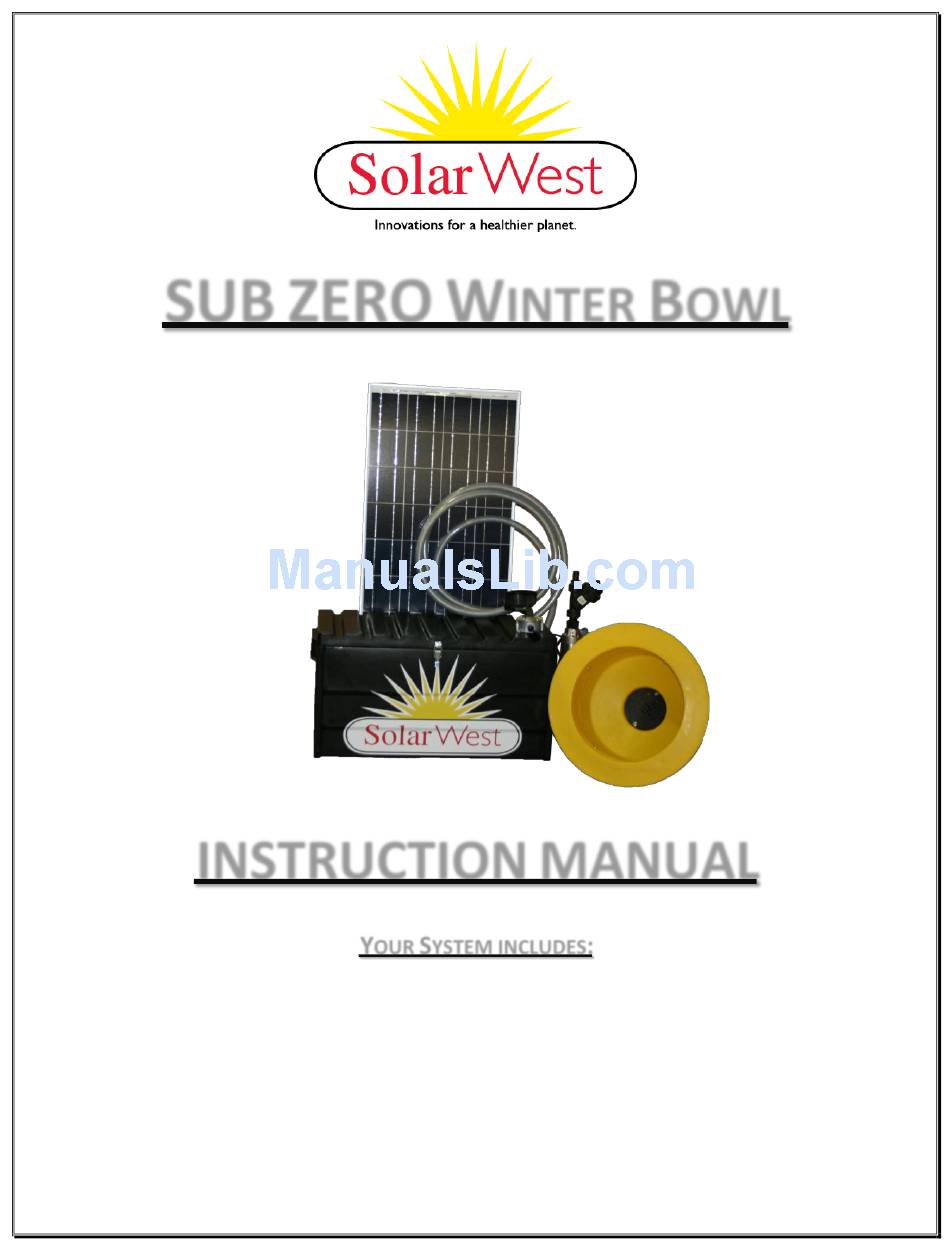

- Page 1 SUB ZERO W INTER INSTRUCTION MANUAL YSTEM INCLUDES Fully wired heavy duty battery box with relay wiring for motion eye solar panels with rack Winter water Bowl PS 150 Pump...
- Page 2 1. P ICKING THE PROPER LOCATION Set up well off water source, either a line from a well or a dugout. (Solar west recommends the use of a wet well). It can be 24” casing or larger, but you would need a reducer plate to fit the 24” bowl.
-
Page 3: Installing The Pump
3. I NSTALLING THE PUMP Well application a. Unscrew the hose barb fitting on top of the pump b. Take the steel loop out of the snap link c. Remove the black plastic disc d. Take the yellow Float off e. - Page 4 4. P ICKING THE PROPER LOCATION FOR THE A specific step-by-step installation cannot be provided, because every set up and installation is different and unique. When picking the location for the Air-x you have to consider that even a small change in average wind speed (8mph) could change the power output.
- Page 5 5. I NSTALLING THE Pick a calm day and have a second person available to give you a hand. When you mount the Air-x on the tower, make sure you have the Air-x disconnected from the batteries. The Air-x can be installed on a 1 ½” schedule 40 steel pipe or a 2” SS-20 galvanized fence tubing (0.090 inch wall thickness).
-
Page 6: Preparing The Pump
“arm” is tight and does not move. 7. S ETTING THE MOTION EYE Solar West recommends the following settings: Sensitivity: as low as possible Photocell: day and night (24hr) Time: as low as possible (about 5 sec). - Page 7 When the motion sensor shuts the pump off and the water drains back to prevent freezing. To adjust the pump volume up or down use the grey knob with the red arrow inside the control box (RPM). Solar West recommends keeping the RPM setting as low as possible to save your battery power.
- Page 8 Remove any straw from the bowl to prevent possible freeze-ups (do not pound on inside of water bowl) Sub Zero Bowl must have a good seal between lip and top casing so that no wind can blow down the casing and cause possible freeze-ups ATTERY CARE ...
- Page 9 FOR SERVICING ALWAYS REMEMBER: 1. Turn the system OFF 2. Disconnect the power sources (Solar panels and Air-X) 3. Disconnect wires from batteries 4. Service the system 5. Hook up wires to batteries 6. Connect the power sources (Solar panels and Air-X) 7.
-
Page 11: Battery Systems
Battery Connection Configurations 24V BATTERY SYSTEMS 4 – 12 V = 24V SERIES CONNECTION CONTROLLER & AIR X MOTION EYE INTERCONNECT CABLES CONTROLLER & AIR X MOTION EYE... - Page 12 ____________________________________________ P.O. BOX 160 221 – 5 AVENUE SOUTH ST. BRIEUX, SK S0K 3V0 PH: 306.275.3130 FAX: 306.275.3132 TOLL FREE: 1.877.275.9779 www.solarwest.ca...
