Magic Play FLY O’CLOCK Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

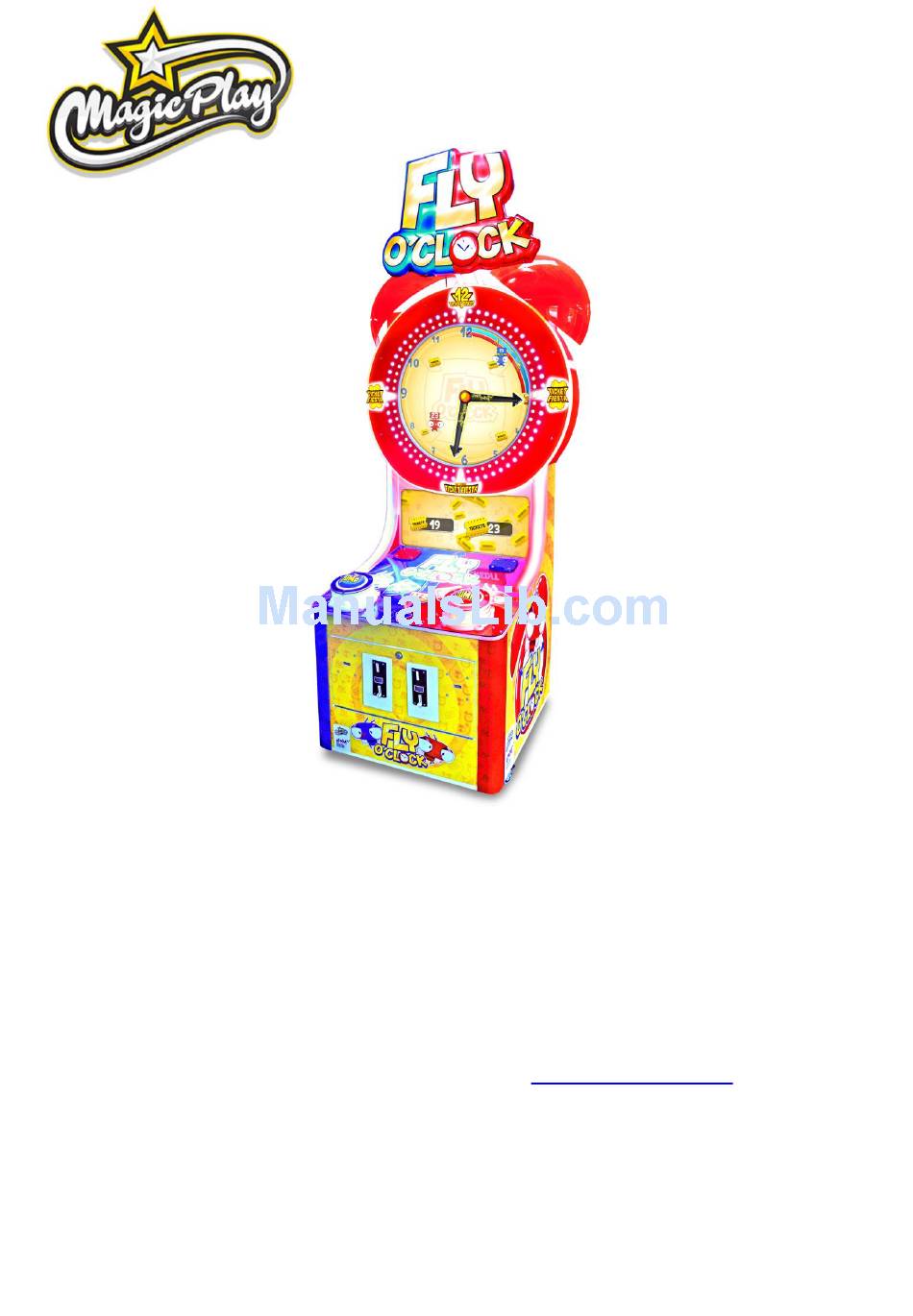

FLY O'CLOCK
Operation Manual (v1.2)
Software version: 1.0.141
MAGIC PLAY SP Z O.O.
CHOCIMSKA 6, 62800 KALISZ, POLAND
Phone/Fax: +48 62 753 21 88. e-mail:
service@magicplay.pl
website: www.magicplay.pl
Serial number:______________________________________________________
Distributor:_________________________________________________________
Date:______________________________________________________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLY O’CLOCK and is the answer not in the manual?

Questions and answers

Summary of Contents for Magic Play FLY O’CLOCK

  • Page 1 FLY O’CLOCK Operation Manual (v1.2) Software version: 1.0.141 MAGIC PLAY SP Z O.O. CHOCIMSKA 6, 62800 KALISZ, POLAND Phone/Fax: +48 62 753 21 88. e-mail: service@magicplay.pl website: www.magicplay.pl Serial number:______________________________________________________ Distributor:_________________________________________________________ Date:______________________________________________________________...

  • Page 2: Table Of Contents

    FLY O’CLOCK - USER’S MANUAL TABLE OF CONTENTS Important Safety Instructions 1. PACKAGE CONTENTS 2. SPECIFICATIONS 3. SET UP & INSTALATION 3.1. MARQUEE ASSEMBLY 3.2. DEVICE AND MOST IMPORTANT ELEMENTS 3.3. LEVEL ADJUSTMENT 3.4. PLAY ZONE 3.5. TRANSPORTING THE GAME 3.6.

  • Page 3: Package Contents

    FLY O’CLOCK - USER’S MANUAL Thank You for purchasing FLY O‘CLOCK . We hope you enjoy the product. The manual contains valuable information about how to operate and maintain your game machine properly and safetly. It is intended for the owner and/ or personnel in charge of product operation. Carefully read and understand the instructions.
  • Page 4 FLY O’CLOCK - USER’S MANUAL IMPORTANT SAFETY INSTRUCTIONS To ensure the safe usage of this product, carefully read and understand these instructions before operating your game. Save these instructions for future reference. Use this product only as described in this manual. Other uses not recomended may cause fire, electric shock or personal injury.

  • Page 5: Specifications

    FLY O’CLOCK - USER’S MANUAL THIS PRODUCT IS AN INDOOR MACHINE ONLY! DO NOT INSTALL OUTDOOR! Avoid installing in the following places to prevent fire, electric shock, injury and/ or machine malfunctioning:  Places subject to rain/ moisture, or places subject to high humidy. ...

  • Page 6: Marquee Assembly

    FLY O’CLOCK - USER’S MANUAL  Do the power supply voltage and frequency requirements meet with those of the location (110V/220V)? Are all wires linked correctly and securely connected to each other? If coupled in an incorrect manner, the connection will not be made accurately and it could cause not only irreparable damage to the machine, but also is a potential fire hazard.

  • Page 7: Level Adjustment

    FLY O’CLOCK - USER’S MANUAL 3.2 DEVICE AND IMPORTANT ELEMENTS 1. marquee 9. front service door - access to coin and bill acceptors, 2. “bells” tickets feeder, mechanical counters and service button 3. display cover 10. marquee base 4. 55” LED display 11.

  • Page 8: Play Zone

    FLY O’CLOCK - USER’S MANUAL To fix the game, adjust the leveler down until it touches the floor, lifting the casters off the ground by 5mm. Repeat the same for all levelers. NOTICE Make sure the machine is level with the ground and all the adjustable legs stick to floor closely.

  • Page 9: Activation, Update And Gameplay

    FLY O’CLOCK - USER’S MANUAL Connect the grounding conductor to the earth terminal Ensure that nothing rests on the power cord and that it (GND): is not located where it can be stepped on or tripped over. To disconnect the game, grip the plug and pul lit from To prevent electric shock, do not touch the power plug the wall outlet.
  • Page 10 FLY O’CLOCK - USER’S MANUAL 5. Click on SERVICE_ON app(see 6. Go to application list in 7. Click on FILE MANAGER app picture), confirm by clicking bottom center of the screen icon Execute on confirmation pop-up to run machine in Service Mode (wait for restart and Leave again Fly O’Clock app).

  • Page 11: Game Options

    FLY O’CLOCK - USER’S MANUAL 5. GAME OPTIONS MENU ACCES AND NAVIGATION To acces menu press SERVICE/ENTER button, located in service door, at the lower front of the machine, next to the coin and ticket counters. Use UP/PREVIOUS and DOWN/NEXT buttons to navigate in the menu. Use SERVICE/ENTER to ENTER or CHANGE the option value or selection.
  • Page 12 FLY O’CLOCK - USER’S MANUAL MAIN MENU GAME VER. X.X.XXX Check software version MUSIC VOLUME 0-100 Set music volume from 0 to 100 DEVICE SETTINGS SOUND EFFECTS VOLUME 0-100 Set sound volume from 0 to 100 BACK Return to main menu FREE PLAY ON/OFF Free play, no credits needed...

  • Page 13: Electrical Diagram

    FLY O’CLOCK - USER’S MANUAL 6. ELECTRICAL DIAGRAM www.magicplay.eu...

  • Page 14: Maintenance, Inspection

    FLY O’CLOCK - USER’S MANUAL 7. MAINTENANCE, INSPECTION 7.1 SAFETY CHECK Check the points listed before operating the machine. These checks are nessessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition 3.

  • Page 15: Black Screen Without Communicates

    FLY O’CLOCK - USER’S MANUAL No red LED light: No 5V power. Check power supply, check power supply voltage, check wirings and connections. CPU board failure is not common but possible. BLUE light: Solid RED LED light is required to see BLUE LED status! Solid or no blue LED light: MicroSD Card/software failure.

  • Page 16: Problems With Ticket Dispensing, Game Crashing/Freezing, Settings Are Not Saved

    FLY O’CLOCK - USER’S MANUAL 8.4 PROBLEMS WITH TICKET DISPENSING, GAME CRASHING/FREEZING, SETTINGS ARE NOT SAVED Caution: This will erase your game settings/electrical counters and stats! Game will need to be configured if default settings does not fit your requirements 1.
  • Page 17 FLY O’CLOCK - USER’S MANUAL 6. Go to application list in bottom center of the screen 7. Select Settings 8. Select „Apps“ 9. Find and click on Fly O’Clock application www.magicplay.eu...

  • Page 18: Problems With Coin Acceptors/Bill Acceptors

    FLY O’CLOCK - USER’S MANUAL 10. Click „CLEAR DATA“ 11. App refreshed, click on the circle at the bottom of the screen to back to machine desktop. 12. Run SERVICE_OFF app, confirm by clicking Execute on pop-up to leave Service Mode. Machine will reboot.

  • Page 19: Buttons/Coins Mech Not Working

    FLY O’CLOCK - USER’S MANUAL 8.6 BUTTONS/COINS MECH NOT WORKING 1. Check wiring connections to I/O board 2. If new CPU board, I/O board or LED driver connected you will be asked to confirm USB Access permission to USB device. Check everything as described on picture below. Check use by default → click OK.
  • Page 20 FLY O’CLOCK - USER’S MANUAL 8.8 MICROSD CARD REPAIR TUTORIAL for Windows OS 1. Download Win32 Disk Imager (link) https://sourceforge.net/projects/win32diskimager/files/Archive/Win32DiskImager-0.9.5- binary.zip/download 2. Extract downloaded program 3. Select extract location and click extract 4. Insert Micro SDCard (8GB SDHC Class 10) from your CPU board or new into your card reader and run Win32DiskImager 5.
  • Page 21 FLY O’CLOCK - USER’S MANUAL 6. When image file and drive letter is selected properly, click “Write” and wait for finish. Put SD card back into CPU board unit and turn the machine on. Solid RED and blinking BLUE LED light on CPU board means that everything is ok.

  • Page 22: Parts List

    FLY O’CLOCK - USER’S MANUAL 9. PARTS LIST Part no. Part Details Electronic parts FOC-101 55" LED display FOC-102 CPU board FOC-SD Backup SD card FOC-110 I/O board FOC-103 LED driver TMB-104 12V 5V power supply 230/115V auto switch TMB-105 12V power supply 230/115V auto switch FOC-104B...

  • Page 23: Terms Of Warranty

    FLY O’CLOCK - USER’S MANUAL 10. TERMS OF WARRANTY Magic Play Sp. z o.o. warrants that the FLY O’CLOCK game will be free from defects in electronics for a period of 12 months from the date of delivery. Warranty covers: ...
