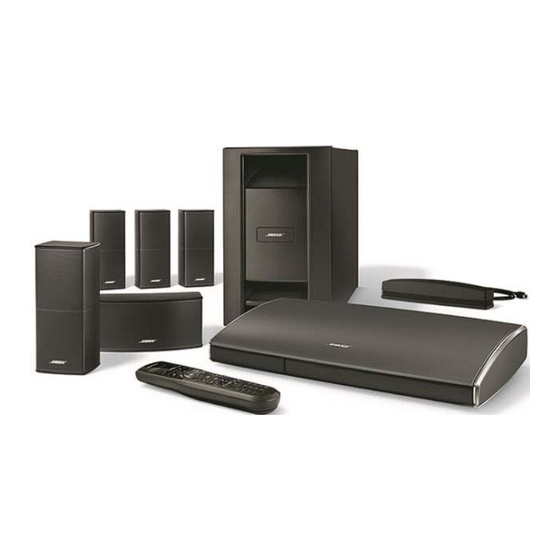

Bose Lifestyle SoundTouch 525 Service Manual
Home entertainment system. system level packaging
Hide thumbs
Also See for Lifestyle SoundTouch 525:
- Operating manual (420 pages) ,
- Owner's manual (382 pages) ,
- Setup manual (24 pages)
Related Manuals for Bose Lifestyle SoundTouch 525
Summary of Contents for Bose Lifestyle SoundTouch 525
- Page 1 ® ® ® Lifestyle SoundTouch 525 SoundTouch home entertainment system System Level Packaging © Service Manual 2015 Bose Corporation Reference Number 738511-SM REV 00...
-
Page 2: Table Of Contents
Contents Product Overview ..........................2 Safety Information ..........................3 Electrostatic Discharge Sensitive (ESDS) Device Handling ............3 Part List Notes ..........................4 Main Packaging List ......................... 5 Figure 1. Main Packaging View ......................5 Essentials Kit Packaging List ......................6 Figure 2. -
Page 3: Safety Information
SERVICING TO WARRANTY SERVICE STATIONS OR FACTORY SERVICE. PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED SERVICE CENTER, AND SHALL NOT BE RE-... -
Page 4: Part List Notes
Part List Notes 1. The individual parts located on the PCBs are listed in the Electrical Part List. 2. This part is referenced for informational purposes only. It is not stocked as a repair part. Refer to the next higher assembly for a replacement part. -
Page 5: Main Packaging List
Main Packaging List Item Description Material Variant Note Number Number COMMITMENT LETTER 251001 LINE CORD KIT - LINE CORD, 120V, NON-POL, DET ,BLK, 1500 279101-1310 - LINE CORD,220V,EUR,DET,BLK,1500 280135-1310 - LINE CORD,230V,UKS,DET,BLK,1500 280138-1310 - LINE CORD,240V,AUS,DET,BLK,1500 284243-1310 - LINE CORD, 230V,KOREA,BLK,1500mm 311668-1310 KOREA - LINE CORD,110V,TAIWAN,BSMI,DET,1525mm... -
Page 6: Essentials Kit Packaging List
Essentials Kit Packaging List Item Description Material Variant Note Number Number KIT, ADAPTIQ HEADSET 307702-001 CABLE ASSY, IR DONGLE, 3 EMITTER 324714-1010 LIT KIT, LS-525/535 III BAG, POLY, 14.38x9.87x2 mil 103351 BUMPER, RECESSED, FOOT 142839 GLOBAL WARRANTY CARD, 1 YR. 324486-0010 DRIVE,FLASH, USB, 4GB 353201-0020... -
Page 7: Satellite Packaging List
Satellite Packaging List Description Material Note Number CARTON, DC, 200B, 13.00X16.00X4.00, LS535 638306-0010 SAT ASSY, JCII, BLACK 638474-0010 SAT ASSY, JCII, WHITE 638474-0020 SAT ASSY, JCCII, BLACK 638475-0010 SAT ASSY, JCCII, WHITE 638475-0020 CABLES, SET, LCR, BLACK 724669-2010 CABLES, SET, LCR, WHITE 724669-3010 CABLES, SET, REAR, LR, BLACK 724670-2010... -
Page 8: Revision History
Revision History DATE Description 09/2015 Initial Release... - Page 9 Specifications and Features Subject to Change Without Notice Bose Corporation The Mountain Framingham Massachusetts USA 01701 P/N 738511-SM REV. 00 08/2015 (H) http://serviceops.bose.com...
