Summary of Contents for KICK ASS PORTABLE FRIDGE / FREEZER
-
Page 1: Operation Manual

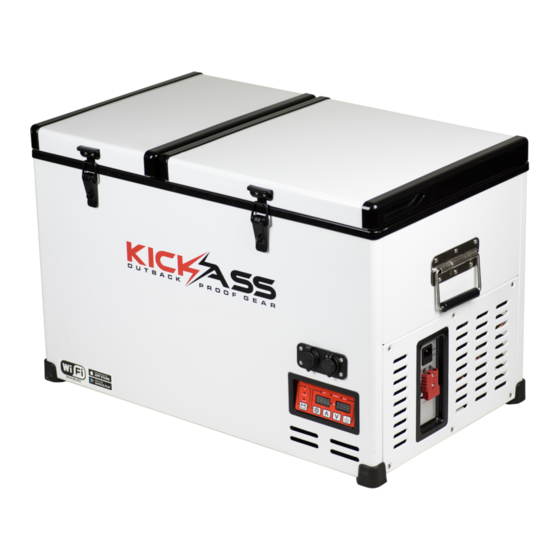

PORTABLE FRIDGE / FREEZER OPERATION MANUAL Please read all instructions and the safety section carefully before using your new KickAss portable refrigerator. -
Page 2: Table Of Contents
TABLE OF CONTENTS Features Features Important safety symbols Important safety symbols Important safety instructions Important safety instructions Contents in the box Contents in the box Setup Setup Operation - General Operation - General Operation - Wifi App Operation - Wifi App Troubleshooting Wifi... -
Page 3: Features
Thank you for purchasing a KickAss portable fridge / freezer Features: Digital electronic thermostat with LED temperature display WiFi for remote control and monitoring of the fridge with your smart phone Reliable refigeration system using the Danfoss compressor Efficient electronic technology, low energy consumption... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Warning: Do not touch exposed cables. Warning: Do not use fridge if you suspect any connections could be wet. Warning: When using the fridge in the vehicle or boat, please make sure the circuit being used is fused. If using a 240V AC power source ensure the supply is fitted with a residual current device. -
Page 5: Setup
SETUP GENERAL Note! - Your refrigerator requires good ventilation, especially around the vents of the refrigerator; allow a gap of at least 200mm around the vents. Caution! -Humidity inside the appliance can form frost and impair cooling. Do not allow frost to build up. Never clean the appliance using a hose and never submerge the unit in any liquid. -
Page 6: Operation - General
OPERATION - GENERAL NOTE: IF THE UNIT IS IN STAND-BY MODE ONLY AN ORANGE RUN LED WILL BE ILLUMINATED. TO TURN ON YOUR UNIT PLEASE HOLD THE ON/OFF SWITCH DOWN UNTIL THE RUN LED CHANGES TO GREEN AND THE TEMPERATURE READ-OUT DISPLAY IS ILLUMINATED. Temperature setting range：-18ºC～10ºC, 0ºF～50ºF Plug in the DC or AC power cable. - Page 7 SINGLE ZONE ERROR LOW VOLTAGE PROTECTION SETTING FOR BATTERY BATTERY TEMP UP TEMP DOWN POWER BUTTON BUTTON BUTTON BUTTON BUTTON DUAL ZONE ERROR BATTERY TEMP UP TEMP DOWN POWER BUTTON BUTTON BUTTON BUTTON BUTTON MAIN POWER ACCESSORY PANEL SOCKET PANEL AC 240V SOCKET AC ~100-240V...
-
Page 8: Operation - Wifi App
OPERATION - WI-FI APP This fridge has been designed with the latest WiFi technology to remote control and monitor temperature from you smartphone. To get started please download the KICKASS APP from the Google Play store or the Apple iTunes Store. Once the APP is installed please follow these easy instructions to be able to control and monitor your fridge. - Page 9 C) You will then need to register a new login. To register please fill out the fields:- USER ID – An 11 digit number i.e. 12345678900 Type – You need to select “Average User” the upgrade registration will be provided by Evakool.
- Page 10 E) Once logged in you can view the fridge's current running temperature and the voltage as well as any error messages. F) When you click the settings button a menu will extend out from the right hand Current Voltage side where additional changes to the fridge measured inside can be made.
- Page 11 GRAPHING The fridge is able to log data of the temperature and voltage recorded by the fridge. This can be handy when troubleshooting. (If you have a problem once the fridge has been running for a while you can review this data. Take a screenshot (Refer to Google on how to take a screenshot with your model Smartphone) and then email it to Evakool for review, if necessary.
-
Page 12: Troubleshooting Wifi App
TROUBLESHOOTING THE WiFi APP I can't see or connect the Wireless Network ● Make sure WiFi is turned on, on your device. ● Make sure you are in range of the fridge (normally around 10-20 meters). ● Make sure you are using the correct pass code “55555555” (8 x 5's) for the WIFI Network. -
Page 13: Cleaning And Maintenance
CLEANING AND MAINTENANCE Clean the appliance inside and out with a damp cloth after every use. If it is dirty, use sodium bicarbonate dissolved in lukewarm water to clean the unit. Note! Never use abrasive products, detergents or soap. After washing, rinse with clean water and dry carefully. -
Page 14: Error Codes
ERROR CODES The error codes are depicted by a number of flashes by the error light in a sequence every four seconds. CODE REASON/SOLUTION Low Voltage Please check the source voltage to ensure it is Ÿ above the cut out. Try lowering the voltage cut out setting to LOW 1 Flash The vehicle cabling may be inadequate/unsuitable,... -
Page 15: Warranty Statement
FRIDGE/FREEZER RANGE WARRANTY STATEMENT TERMS AND CONDITIONS Nexberg Pty. Ltd. trading as EvaKool undertakes to the original purchaser that this product is sold free of defect in materials and/or workmanship under normal use for a period of 5 YEARS. Subject to the following: - The warranty period commences from the date of purchase by the original Ÿ... - Page 16 EvaKool will not accept a warranty claim if: 1. Modifications have been carried out to the unit without EvaKool's written authority. 2. Damage to or failure of the unit has been caused in EvaKool's opinion by incorrect, extreme or unreasonable use. 3.
