Summary of Contents for Factor Electronics PRO-SUB12A

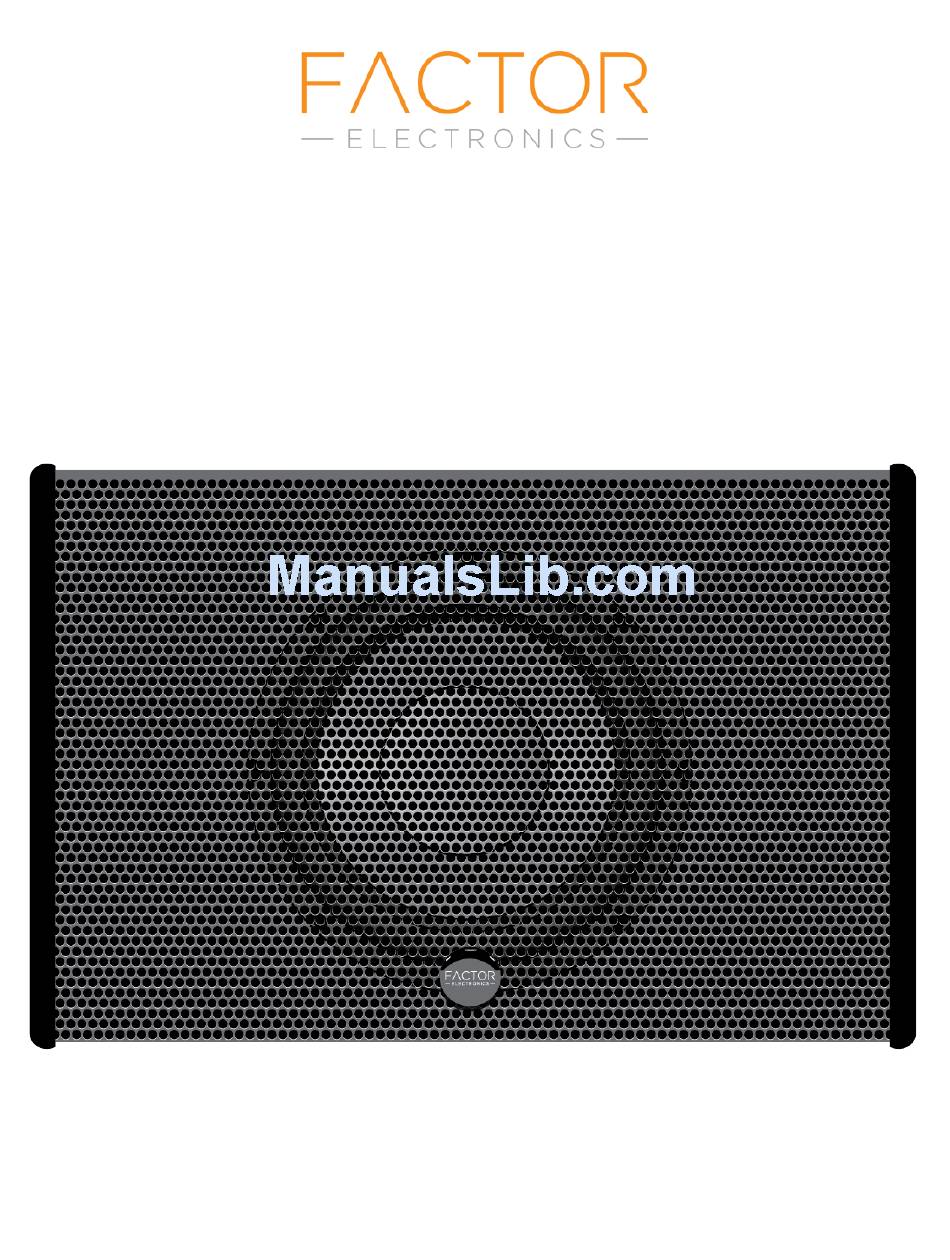

- Page 1 PREMIUMAUDIOVIDEOANDPOWERPRODUCTS PRO-SUB12A Professional Active Subwoofer Owners Manual info@factorelectronics.com www.factorelectronics.com...
-
Page 2: Important Safety Instructions
IMPORTANT NOTE: THIS OWNER'S MANUAL IS PROVIDED AS AN INSTALLATION AND OPERATING AID. FACTOR ELECTRONICS DOES NOT ASSUME ANY RESPONSIBILITY AS TO ITS ACCURACY AND SHALL NOT BE LIABLE IN TORT OR CONTRACT FOR ANY DIRECT, CONSEQUENTIAL OR INCIDENTAL LOSS OR DAMAGE ARISING FROM THE INSTALLATION, USE OR INABILITY TO USE THIS PRODUCT. -
Page 3: Optional Equipment
The PRO-SUB12A provides some unique features like 6 x M10 fly points that allow the PRO-SUB12A to be hung/flown from ceilings and trusses. This is especially useful in restaurants, bars, fitness centers, retail stores and community centers with truss /open ceilings. - Page 4 4ohm amplifier output to connect the PRO-SUB12A and run your 25/70V speakers from the 25/70V amplifier outputs. The PRO-SUB12A will not load down or lower The reflected Impedance to your commercial Amplifier. This can provide better bass response.
- Page 5 Switch to ON. Now connect an RCA cable from the LINE OUT RCA jack to the amp that will be powering my main L/R speakers. with this setup the PRO-SUB12A will produce the frequencies below 100Hz and the main L/R speakers will produce frequencies from 100 Hz- 20-kHz.
- Page 6 When the PRO-SUB12A is positioned on the same wall as your front speakers keep the PHASE switch set to 0 degrees. When the PRO-SUB12A is positioned on the opposite wall from your front speakers set the PHASE switch to 180 degrees.
- Page 7 The Frequency adjusts the low pass filter for the sub-woofer amplifier. The PRO-SUB12 will amplify frequencies below this controls setting. The PRO-SUB12A is designed to amplify low frequencies which can not be reproduced by most stereo or surround speakers. Example: check the frequency response of the main left and right speakers you are using.
- Page 8 The PRO-SUB12A provides 6 x M-10 fly points on the cabinet for hanging/ flying from ceilings and trusses. There are four fly points on the back of the PRO-SUB12A and two fly points on the top of the cabinet. This provides a variety of hanging positions Including strait down or angled with multiple angle adjustments.
- Page 9 Installation and setup: After unpacking your PRO-SUB12A find a suitable location in your room to position the unit. Finding the best location is subjective. The following diagrams can be used as a guide to get the best performance for the PRO-SUB12A.
- Page 10 Installation and setup: After unpacking your PRO-SUB12A find a suitable location in your room to position the unit. Finding the best location is subjective. The following diagrams can be used as a guide to get the best performance for the PRO-SUB12A.
- Page 11 Installation and setup: After unpacking your PRO-SUB12A find a suitable location in your room to position the unit. Finding the best location is subjective. The following diagrams can be used as a guide to get the best performance for the PRO-SUB12A.
- Page 12 Installation and setup: After unpacking your PRO-SUB12A find a suitable location in your room to position the unit. Finding the best location is subjective. The following diagrams can be used as a guide to get the best performance for the PRO-SUB12A.
- Page 13 Installation and setup: After unpacking your PRO-SUB12A find a suitable location in your room to position the unit. Finding the best location is subjective. The following diagrams can be used as a guide to get the best performance for the PRO-SUB12A.
- Page 14 Weight – 56lbs / 25.4kgs Warranty Factor Electronics amplifiers are warranted to be free from defects in workmanship and materials for a period of three (3) years from the date of purchase without charge for parts or labor. This warranty applies only to the original owner. The owners responsibilities are to provide proof of purchase from an authorized Factor Electronics dealer/distributor and transportation to the dealer/distributor the unit was purchased from or Factor Electronics.
