Summary of Contents for Stealth Scooters Rogue 1600 Turbo Edition

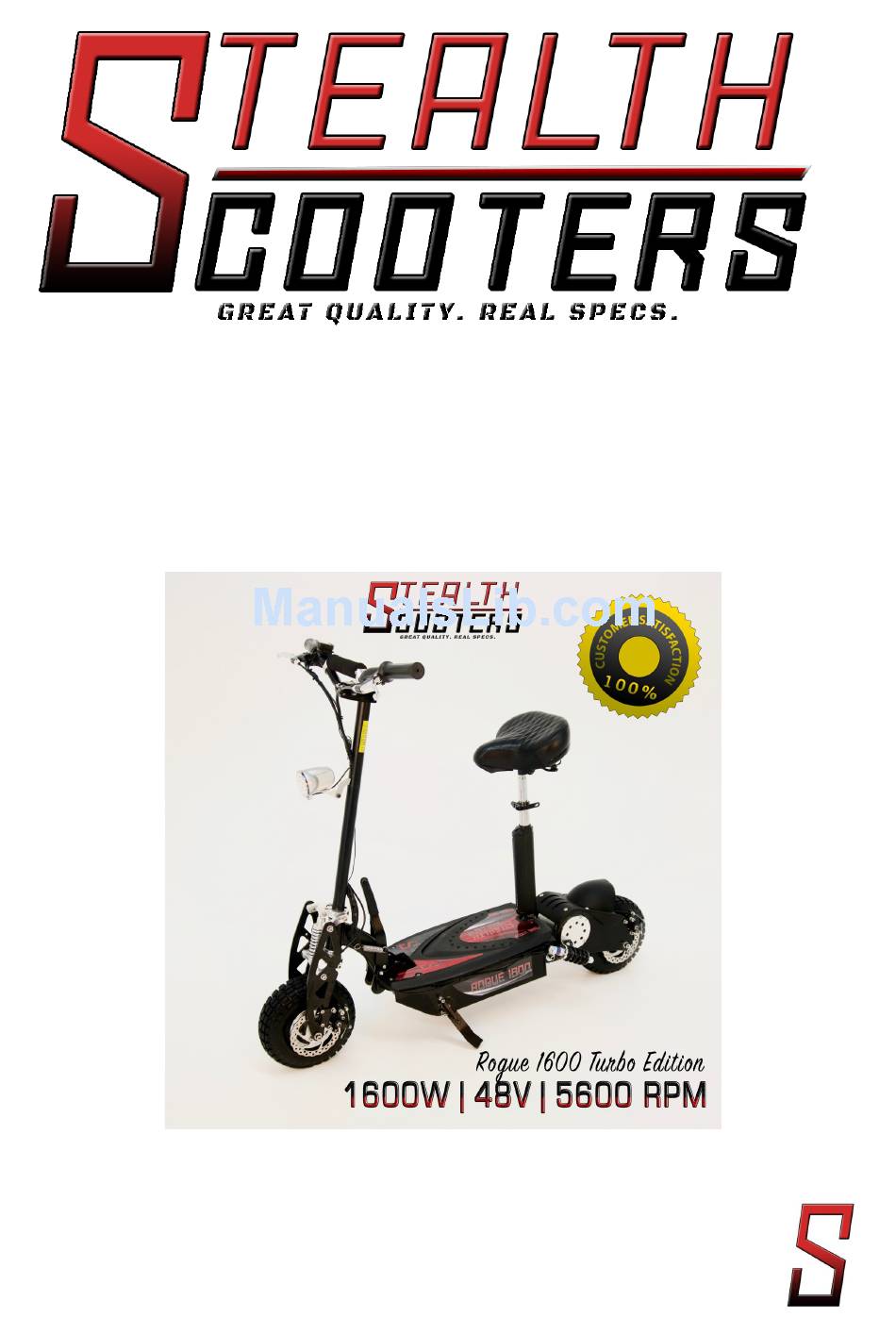

- Page 1 Rogue 1600 Owners Manual...
- Page 2 Congratulations! Thanks for choosing Stealth Scooters. We are a small startup business that focuses on customer service. Please take some time to leave a review on our website and or our eBay store. We would love to know whether we have lived up to your standards.
- Page 3 IMPORTANT! ALWAYS WEAR A HELMET AND OBEY ALL LAWS! Electric scooters of this kind including the Rogue 1600 do not conform to Federal Motor Vehicle Standards. It is intended for off road usage. To minimize risks, Riders should wear and use safety equipment such as: ...
- Page 4 Precautions ELECTRICAL: The Rogue 1600 is an ELECTRIC powered scooter, therefore WET CONDITIONS should be AVOIDED. NEVER hose down the Rogue 1600, doing so may cause the electronics to short circuit and cause an injury or fire hazard. Refer to the Maintenance section for cleaning in- struction.
-
Page 5: Package Contents
Package Contents 1. Rogue 1600 Scooter 2. 48v Charger 3. Tool Kit, User Manual, 35 amp Fuses 4. Seat 5. Seat Post and Clamp 6. Digital Dashboard Display... - Page 6 Assembly Carefully remove the Rogue 1600W Scooter from the box. To unfold the Scooter, begin by pressing down on the FOLDING HAN- DLE with one hand while gently pull- ing up on the handlebars with the other. Fully extend the handlebars to their upright position until you feel the mechanism lock into place.
- Page 7 Assembly - 2 Insert the 35amp fuse by opening the footplate cover as shown. Insert the fuse into the fuse holder. You may hear a Pop and see a little spark as the fuse slots in IT IS COMPLETELY NORMAL. Close footplate after Attach the seat post to the seat post socket on the scooter, then attach the clamp to the top of...
- Page 8 Charging The scooter must be charged for 6 hours prior to its first use. We also recommend charging your scooter after each use and prior to storage. WARNING: Do not allow your scooter to go into deep discharge, as this will damage the batteries and you will not get the desired charge cycles.
- Page 9 How to… RIDING Make sure that all of the exposed bolts and screws are tightened. Raise the kickstand to its upright position. Insert the key into the ignition and turn it towards the right. The battery in- dication lights will turn on. If you would like to turn the Front and back lights on, click the key again to the right.
-
Page 10: Maintenance
Maintenance Bodywork Remove grime with wet towel, do not hose down Tyres Inspect for condition, Maintain at 50 PSI. Brakes Tighten cable as necessary. Re- placement brake pads available on website Front Fork Tighten the bearing cap every month as shown Batteries Inspect for damage on cables, Connections, fuse occasionally... - Page 11 Maintenance The chain will come adjusted from the factory. However, it may be neces- sary to adjust the chain from time to time. The chain must be well aligned onto the sprockets in order to avoid uneven wear. This will result in short- ened chain and sprocket life.
-
Page 12: Troubleshooting
Troubleshooting SYMPTONS POTENTIAL CAUSE SOLUTION This indicates the bat- Continue to charge the The charger light turns green & red teries are adequately batteries for 6-8 hours right away charged. prior to initial use. Bad Fuse or open con- Check Fuse: Look for nection between loose or disconnected charger socket and bat-... -
Page 13: Warranty
Warranty The Rogue 1600 comes with a 12 month warranty that covers All Non—Consumable parts. Parts that are consumables include: Brake Pads Tyre and tubes Sprockets (due to wear and tear) Chain (due to wear and tear) Genuine spare parts are available on www.StealthScooters.com.au www.StealthScooters.com.au... - Page 14 Www.stealthscooters.com.au...
