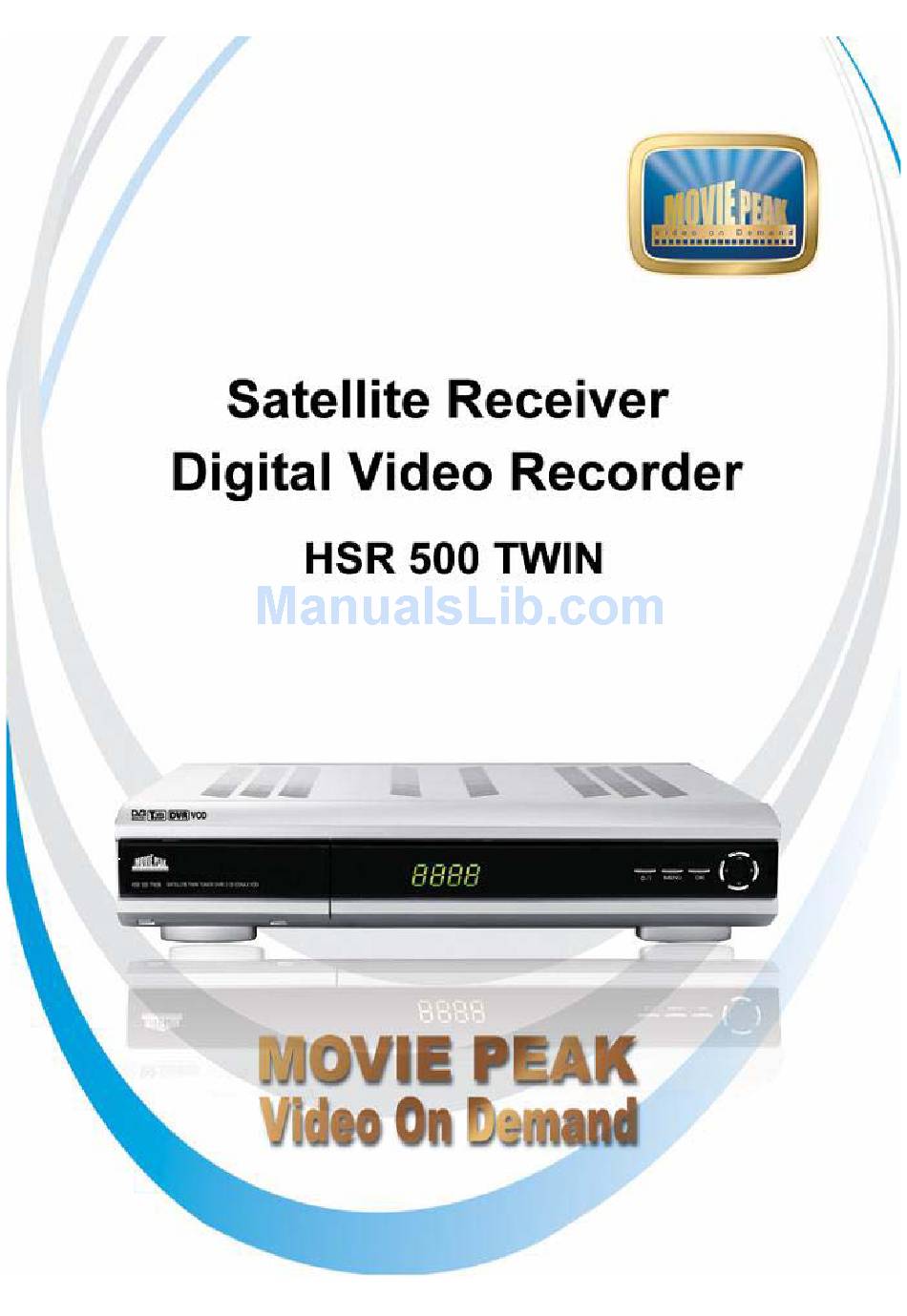

MOVIE PEAK HSR 500 TWIN Manual

Digital video recorder

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSR 500 TWIN and is the answer not in the manual?

Questions and answers

Summary of Contents for MOVIE PEAK HSR 500 TWIN

  • Page 2: Table Of Contents

    CONTENTS CONTENTS • Safety Instructions • Features • Appearance • Remote Control Unit • Receiver Connections • Inserting CI Module & Smartcard • Satellite Setup • How to Format the Hard Disk Drive • MoviePeak VOD • Search Channels • Menu Map •...
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS WARNING WARNING This indicates a hazardous situation which, if not avoided, could result in serious injury. CAUTION CAUTION This indicates a situation which, if not avoided, could damage the equipment or other properties. • Always follow these instructions to avoid the risk of injury to yourself or damage to your equipment.
  • Page 4: Features

    FEATURES FEATURES • European DVB standard digital satellite reception • Embedded CONAX with one smart card reader • Interfacing with the CAM module of DVB Common Interface standard • CONAX Push VOD implemented • PSTN Modem for return path • Twin Tuner DVR with 500G Hard Disk Drive supported •...
  • Page 5: Appearance

    APPEARANCE APPEARANCE Front View 3 4 5 1. Slot for CI Module : Insert the proper CI module fully into the slot. 2. Smart Card Slot : Insert a smartcard into the slot. 3. On/ Stand-by : Switch the receiver to On or Stand-by. 4.
  • Page 6 APPEARANCE APPEARANCE Rear View 1 2 3 4 5 6 7 8 1. VCR SCART : Connect this to a connector of the VCR through out the fully-featured SCART cable. 2. TV SCART : Connect this to a connector of the TV through out the fully-featured SCART cable.
  • Page 7: Remote Control Unit

    REMOTE CONTROL UNIT REMOTE CONTROL UNIT MoviePeak VOD MoviePeak VOD Start Movie Peak Video On Demand or returnt to TV. MUTE Switches the sound ON/OFF POWER EXIT Turns the receiver On or Exit from menu or operation Stand-by. REPEAT Repeat the selected movie.
  • Page 8 REMOTE CONTROL UNIT REMOTE CONTROL UNIT I. TV MODE I. TV MODE MUTE POWER Switches the sound Turns the receiver ON/OFF. On or Stand-by. NUMBER/ ALPHABET Direct choice of TV / Radio channel and other commands by numeric RECALL keys. Input a character Return to the previously by alphabetical keys.
  • Page 9 REMOTE CONTROL UNIT REMOTE CONTROL UNIT I. TV MODE I. TV MODE The color keys are used in the Channel List mode and DVR mode. SLEEP TIMER TELETEXT Set the sleep timer between Shows a teletext 15min and 180min with provided by the 15min interval.
  • Page 10 REMOTE CONTROL UNIT REMOTE CONTROL UNIT II. DVR MODE II. DVR MODE INDEX LIST Shows the Index List RECORD in a play mode. Enable the recording to start. VOD/DVR LIST Move to the DVR list. REPEAT Repeat the selected file. TIME SHIFTING Make the time shifting record to start in the...
  • Page 11: Receiver Connections

    RECEIVER CONNECTIONS RECEIVER CONNECTIONS ◆ It is possible to connect the different connections with the use of the SCART cables, RCA cables. Before the make a connections with the cables, you should connect the LNB IN connector of the receiver to the cables from the satellite. ◆...
  • Page 12 RECEIVER CONNECTIONS RECEIVER CONNECTIONS General Connections Connection 2 – VCR SCART LNB IN 1 / LNB 2 TUNER2 TUNER 1 Connection 1 - TV SCART Connection 3 - RCA Connection 4 - S/PDIF...
  • Page 13 RECEIVER CONNECTIONS RECEIVER CONNECTIONS 1. Connect the receiver to a TV set with the SCART Cables - Connect the SCART connector of the receiver to the SCART connector of a TV set. 2. Connect the receiver to a TV and VCR with the SCART Cables - Connect the SCART connector of the receiver to the SCART connector of a TV set.
  • Page 14: Inserting Ci Module & Smartcard

    Inserting CI Module & Smartcard Inserting CI Module & Smartcard CI Module with smartcard Smartcard To watch payable program channels, a CI Module and a smartcard are necessary. You can ask for these to the shop which you had purchased the receiver. When you subscribed to more than one service provider, you should insert proper Smartcard or CI Module with matching smartcard to get access to each bouquet.
  • Page 15: Satellite Setup

    Satellite Setup WARNING! This procedure is recommended only for authorized technicians. Resetting the TP and LNB frequencies may disable the MoviePeak service. Power on the STB Press the MENU button Go to System Information and select Factory Reset Press the OK button on the remote control Choose Reset and select Yes Choose Start and press the OK button on the remote control.
  • Page 16 Satellite Setup Select your Time Zone Press the EXIT button on the remote control Choose LNB Type and select User LNB. Choose Store and press the OK button on the remote control. Choose Search Setup by pressing the red button (◄◄) on the remote control.
  • Page 17: How To Format The Hard Disk Drive

    HOW TO FORMAT THE HARD DISK DRIVE WARNING! Hard Disk Format completely destroys the MoviePeak service ! It can only by done by authorized technicians of our company. If done by unauthorized personel voids the warrant. 1. Press the MENU key to go to the Main Menu screen.
  • Page 19 MoviePeak MoviePeak Select a Movie and Order Select a Movie and Order Choose the movie you like ... Every time you want to see a movie just press the VOD button and you see the list of MoviePeak movies. By pressing the up and down keys (used for zapping) on the remote you change the movie selections whereas the right side of the screen displays the poster and other information abut the movie, such as cost, parental rating and duration.
  • Page 20: Moviepeak Vod

    MoviePeak MoviePeak More Choices More Choices Order by SMS ... Alternatively, besides just using the OK button of the remote, it is possible to order a movie by sending SMS, following the respective directions showns on the screen (if there is no phone line). In a few minutes you get a confirmation on your mobile that the movie is unlocked, and then you can watch it, just by pressing OK.
  • Page 21 MoviePeak VOD MoviePeak VOD Recording Recording The receiver performs the recordings of VoD files automatically while at stand-by. Recordings can be stopped in below cases. - When you are in the VoD list. - When you are replaying a VoD file. - When you are recording a live program.
  • Page 22 MoviePeak VOD MoviePeak VOD - When you are in the main menu. The receiver supports the active Standby mode in order to record VoD files continuously even if you turn off the receiver by using the power button on the RCU therefore you should keep the power cord plugged to activate the VoD functionality all the time.
  • Page 23 MoviePeak VOD MoviePeak VOD Play back Play back If you press the VOD key, you can see the Movie list that contains all movies recorded in the HDD, as in left picture. If there is no information of the selected movie while the “Parental Lock”...
  • Page 24 MoviePeak VOD MoviePeak VOD While you play-back, you can enjoy various functionalities of trick play. 1. It is possible to use the fast forward functionality with the speed rate [2x, 4x, 6x, 8x] by pressing the key. For certain movie files, it may be possible that the functionality is not fully supported.
  • Page 25 MoviePeak VOD MoviePeak VOD Ordering Ordering In order to watch a selected move, you should first go through the ordering process, which can be done in two different ways (PSTN Modem and SMS). 1) Ordering with the RCU through the PSTN modem When you select a movie to play back, the menu for ordering process will be displayed, as in left picture.
  • Page 26 MoviePeak VOD MoviePeak VOD 2) Ordering through SMS If you are not available to order a movie through the PSTN modem, it is possible to order the movie using the SMS ordering method. Select a movie in the VoD list and press the White key then you can see the detailed information for the SMS ordering process as in left picture.
  • Page 27 MoviePeak VOD MoviePeak VOD Setting Setting 1) Category Setting You can list up the movies by category in the VoD list. Press the Red key then you can see the list of category as in left picture. Press the OK key on a category which you want to select.
  • Page 28 MoviePeak VOD MoviePeak VOD 4) Parental Lock / Pin-code Setting Parental Lock You can change the parental rating. Press the Zoom key ( ) and select a parental rating which you want to set. Input your PIN code to verify the change of the parental rating.
  • Page 30: Search Channels

    SEARCH CHANNELS SEARCH CHANNELS Because the receiver is supplied with factory default setting, you need to install the receiver. The installation will start up with the “ Language Setting” menu. Follow the instruction below to install the receiver properly. Press the MENU key every time you go to the next setup menu. Language Settings You can select the desired language for the Menu, Audio, Subtitle and Teletext language.
  • Page 31 SEARCH CHANNELS SEARCH CHANNELS TV Output Aspect Ratio You can select the aspect ratio of TV screen(width to height). - Select with the ◀,▶ keys or use the pull down menu. 1) 4 : 3 for normal screen TV [Full] [Center] [Letter Box] 2) 16: 9 for wide screen TV...
  • Page 32 SEARCH CHANNELS SEARCH CHANNELS Local Time Setup You can select the location where you are (time zone). When you select the time zone, the local time is automatically changed according to the time zone. - Select the time zone. - Select the summer time [ON] or [OFF]. - Adjust the time offset.
  • Page 33 SEARCH CHANNELS SEARCH CHANNELS LNB Setup It is for you to set the LNB of the receiver according to your LNB type. - Select the Satellite which confirms to your LNB using the ◀,▶ keys or pull down menu. - Other parameter values should be changed manually according to your LNB type.
  • Page 34: Menu Map

    MENU MAP MENU MAP Main Menu User Setting Language Settings Channel Lock Parental Lock Install Lock STB Lock Banner Time out User Profile DVB-subtitling OSD Transparency Menu exit timeout Aspect Ratio TV Output Contrast Local Time Setup Dolby Digital Timer Setup Video Output Installation LNB Setup...
  • Page 36: Menu Guide

    MENU GUIDE MENU GUIDE NOTE • Press the OK key to select or confirm the changes. • Press the OK key on the menu bar which has many options to be selectable, then the pull down menu will be displayed. •...
  • Page 37 MENU GUIDE MENU GUIDE Menu Language It is used to select the OSG (On Screen Graphics) language of the menu. Main Audio -It is used to select the main audio language of the channel which has multi audio languages. Second Audio - It is used to select the second audio language of the channel which has multi audio languages.
  • Page 38 MENU GUIDE MENU GUIDE Parental Lock With Parental Lock you can prevent watching TV channels you choose, listening a Radio channel, or an unauthorized change in the installation from being performed or the receiver setting from being changed. To enter the Parental Lock menu, you have to enter the correct the PIN code first.
  • Page 39 MENU GUIDE MENU GUIDE User Profile Banner Timeout You can select the time out time of the banner information(1~10). 1. Press the ◀,▶ keys or use the pull down menu to select the banner time out. DVB-subtitling You can select this to apply the DVB-subtitle display function or not.
  • Page 40 MENU GUIDE MENU GUIDE TV Output Aspect Ratio You can select the aspect ratio of TV screen(width to height). - Select with the ◀,▶ keys or use the pull down menu. 1) 4 : 3 for normal screen TV [Full] [Center] [Letter Box] 2) 16: 9 for wide screen TV...
  • Page 41 MENU GUIDE MENU GUIDE Local Time Setup You can select the location where you are (time zone). When you select the time zone, the local time is automatically changed according to the time zone. - Select the time zone. - Select the summer time [ON] or [OFF]. - Adjust the time offset.
  • Page 42 MENU GUIDE MENU GUIDE Installation Installation LNB Setup You have to set the LNB of the receiver according to your LNB type. You can go to the Fixed Dish Setup menu directly during setting the each parameter by using the RED key.
  • Page 43 MENU GUIDE MENU GUIDE Edit Edit Edit CH Use the color keys on the RCU to Edit, Add or Delete. RED - TV/ Radio Switch GREEN - Edit mode YELLOW - Add mode BLUE – Delete 1. Press the GREEN key to select the Edit mode. Rename Channel 1.
  • Page 44 MENU GUIDE MENU GUIDE Add Channel 1.Press the YELLOW key to select the Add mode. 2.Press the OK key on the [Channel] in the Add submenu. 3.Edit the new channel name with the alphabet keys or numeric keys (input) and color keys(Delete). 4.Input the PID value on Video/ Audio/ PCR parameter.
  • Page 45 MENU GUIDE MENU GUIDE Edit TP Use the color keys on the RCU to Edit, Add or Delete. RED – TP display mode out of Searched TP or All TP GREEN – Edit mode YELLOW – Add mode BLUE – Delete mode Edit TP 1.Use the ▲,▼...
  • Page 46: Channel List

    MENU GUIDE MENU GUIDE Delete All Channels You can delete all searched channels. In this case, all settings of installation and Satellite data value remain but all of the searched channels are removed. 1.Select the Yes/No with the ◀,▶ keys. 2.If you want to delete all channels, press the OK key on the [Start].
  • Page 47 MENU GUIDE MENU GUIDE DVR Setup DVR Setup Record Timer Setting You can see the reserved record list. You can also edit and delete the reserved channels and reserve a new record with the color keys. Edit 1.Select a reserved channel which you want to edit with the ▲,▼...
  • Page 48 MENU GUIDE MENU GUIDE Delete 1.Press the BLUE key. 2.Press the OK key on the channel which you want to delete, and the blue mark is displayed on the selected channel. 3.Before exit the delete mode, the message box is displayed to make a confirmation of your decision.
  • Page 49 MENU GUIDE MENU GUIDE HDD Information You can find the HDD (Hard Disk Drive) information. Model no./ Total Capacity/ System reserved/DVR Space/ Remaining Time/ Push VOD HDD Format If you want to format HDD (Hard Disk Drive), select [On] on the HDD format parameter. Note>...
  • Page 50: System Information

    MENU GUIDE MENU GUIDE System Information System Information Software Upgrade You can upgrade the receiver with new software via network. If new software version is available, the upgrade will perform automatically when the receiver is restarted (switch to Stand-by and then restart.) The receiver can also be upgraded manually: - Select [Factory 1], select [Start], and press OK.
  • Page 51 MENU GUIDE MENU GUIDE Factory Reset You can reset the receiver to its original settings. All changes made to the settings will be removed. - Select [Yes] or [No] with the ◀,▶ keys. Press the OK key on the [Start], and a message confirming your selection will appear.
  • Page 53: Channel List

    CHANNEL LIST CHANNEL LIST Press the OK key to display the channel list while you are watching a channel. In this channel list, you can have several possibilities to format the present channel list according to your choice. The formation is done by using the color keys on the RCU.
  • Page 54 CHANNEL LIST CHANNEL LIST 1) Mode Switch 1. Press the RED key and select one mode out of TV/Radio. 2) Favorite Group 1. Press the GREEN key and select one FAV group out of FAV 1 ~ FAV 8. 2. When you select a FAV group, appropriate channels to the FAV group display in the channel list.
  • Page 55 CHANNEL LIST CHANNEL LIST FAV Selection You can modify the FAV group of the present FAV channels. How to modify is same as how to select the FAV group in the FAV Selection menu of the Edit mode. 1. Press the WHITE or EXIT key to exit the FAV selection mode.
  • Page 56 CHANNEL LIST CHANNEL LIST Move FAV 1. Press the OK key on the FAV channel which you want to move. 2. Decide the position which you want to move with the ▲,▼ keys. 3. Press the OK key to confirm the new position. 4.
  • Page 57 CHANNEL LIST CHANNEL LIST 3) SAT Group 1. Press the YELLOW key and select one SAT list out of Searched SAT or All SAT. 4) Group You can reorganize the channel list according to your choice. 1. Press the BLUE key and select one out of the SAT / TP / Network / CAS / Lock / A to Z .
  • Page 58 CHANNEL LIST CHANNEL LIST Lock / Unlock You can make a lock on your desired channel. 1. If you choose the Lock/Unlock mode, a message box requiring the PIN code is displayed. Enter the correct PIN code. 2. Press the OK key on the channel you want to Lock, and the lock mark is displayed on the selected channel.
  • Page 59 CHANNEL LIST CHANNEL LIST Delete Channel If you choose the Delete Channel mode, a message box requiring the PIN code is displayed. Enter the correct PIN code. 1 Press the OK key on the channel which you want to delete then Blue mark will be displayed on the selected channel to notice you that the channel with Blue mark will be deleted.
  • Page 60 CHANNEL LIST CHANNEL LIST You can see the TV/Radio program guide of channels(EPG), if the information may be provided by the broadcaster. If you want to see the EPG guide while watching TV or listening Radio, press the EPG on the RCU. The channel list is displayed at the left side.
  • Page 62: Dvr

    These are attractiveness of Twin Tuner model. 1. Watch or Time Shifting a channel while recording a channel. 2. Playback a recorded file while recording the channel. Before the Introduction 1) DVR LIST - Press the DVR key to enter the DVR List. In the DVR list, you can get access to DVR mode.
  • Page 63 HOW TO RECORD HOW TO RECORD I. INSTANT RECORD I. INSTANT RECORD Live Signal mode 1.If you want to record a current watching channel, press the RECORD key on the RCU. 2. When you select the record type, the record banner is displayed on the left top.
  • Page 64 If you press the EXIT key, the menu will disappear. 6. If you want to stop recording, press the STOP key. Channel List mode You can select a channel in the channel list. 1. Press OK key to display the channel list. 2.
  • Page 65 3.Select the Tuner and Channel with the numeric keys. 4.Set the Start Date with the calendar. 5.Set the Start Time with the numeric keys. 6.Select the duration period with the the ◀,▶ keys. If you select the duration, the Stop Time is set automatically.
  • Page 66 3. If you want to cancel the reserved record, press the RECORD key on a reserved record channel in the EPG menu. 4.If you want to edit the reserved record, move to the Reserved Record List & Setup menu in the DVR Setup menu.
  • Page 67 3. Current Record Setup menu While a recording is in a progress, if you press the RECORD key, you can see the Current Record Setup menu. In this menu, you can edit the record duration and file name.
  • Page 68: Time Shifting

    TIME SHIFTING TIME SHIFTING Time-Shifting enables you to pause the live signal and then continue watching the live signal from the paused time onwards while live signal has moved on. 1. If you want to record a program, press the TIME SHIFTING key while watching the live signal.
  • Page 69 4. While you are watching time shifted file, the below functions are available. i) Play ii) Slow Forward/ Slow Reverse iii) FF/ REW iv) Pause v) Jump Forward/ Jump Reverse Record Start Time Current play Time Record End Time Current Time 5.
  • Page 70 HOW TO PLAY HOW TO PLAY Select a file from the DVR list 1. Press the VOD key on the RCU, then the recorded file list will be displayed. 2. When you select the recorded file you want to playback, the receiver starts playback with displaying the DVR info banner.
  • Page 71 Jump Forward and Jump Reverse You can jump about 15sec. Forward and Reverse. 1. Press the JUMP FORWARD key to go forward by 15secs. in the scene. 2. Press the JUMP REVERSE key to go reverse by 15secs. in the scene. Random Access 1.
  • Page 72 Repeat If you want to repeat the current playing recorded file, you can use this function. 1. Press the REPEAT key while playing the recorded file, then the receiver repeat the selected file. 2. Press the REPEAT key once again to cancel the repeat mode.
  • Page 73 Slow Motion You can play the recorded file with slow motion speed rate. 1. Press the SLOW FORWARD key while playback is in a progress, and you can enjoy slow motion at 1/2, 1/4, 1/6 and 1/8 rate. 2. Press the SLOW REVEERSE key to process the reverse slow motion.
  • Page 74 Index It is possible to make an index for a scene which you want to mark on. It is possible to make up to 10 indexes. 1. Press the INDEX key to mark the selected point. 2. While you are watching a recorded file, if you want to see the index info submenu, press the FUNCTION key.
  • Page 75 Frame by Frame By using the PAUSE key, you can enjoy the frame by frame playback. 1. Press the PAUSE key while playback is in a progress. 2. Press the PAUSE key again to display the next frame. 3. Press the PLAY key to exit the frame by frame mode.
  • Page 76 Playback while Recording It is possible to playback a recorded file while you are recording a channel. 1. Select a channel which you want to record. 2. Press the RECORD key. 3. Select a file which you want to play. 1) Playback a recorded file a.
  • Page 77: Dvr List

    DVR LIST DVR LIST DVR List DVR List Sort (A to Z/ Date/ Size) You can sort the PVR list by A to Z, Date and Size. 1. Press the YELLOW key and select the sort mode. Edit (Delete/ Rename/ Lock) 1.
  • Page 78: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING Problem Possible Cause Solution to the problem Time Setting is wrong. The time is not set correctly. Adjust the Time on the Menu. No display LED on the front Power cord not plugged in Plug in the power cord panel / No power supply correctly.
  • Page 79 TROUBLESHOOTING TROUBLESHOOTING Problem Possible Cause Solution to the problem The phone cable is not connectd from the When ordering a movie Connect your phone cable to the phone jack STB to the wall jack. (by pressing OK) I get in the wall. the message “Connection Note that your order is not charged Then try again to order the movie.
  • Page 80: Specifications

    SPECIFICATIONS SPECIFICATIONS 1. Tuner & Channel Input connector 2 x F type with loop through Output connector 2x F type 75 Ohm, IF signal out Frequency range 950MHz to 2150MHz Input impedance 75 Ohm Signal level -25 to -65dBm 13.5V ±1V LNB power &...
  • Page 81 SPECIFICATIONS SPECIFICATIONS 5. PSTN Modem Data 56kbps (V.92) 6. PCMCIA Number of Slot Type I, II DVB Common Interface Standard 7. Conditional Access Embedded Conax 1 Smart Card Reader 8. Recording Options Pause time (Time Shifting) about 90min Max. 9. Storage Capacity 500GB for A/V purpose Interface...
  • Page 82: Customer Care

    CUSTOMER CARE CUSTOMER CARE Phone: 801 11 from fixed line in Attica 801 11 (+30) 9715495 from mobile. (+30) 9715495 Web: www.moviepeak.gr www.moviepeak.gr TWIN PEAK S.A. 11 Gennadiou Ag.Dimitrios 173 41 Greece Fax: (+30) 210–9766.734 info@ moviepeak info@ moviepeak Email :...
