IntelliCorder SH1006 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Intellicorder
User Manual
Product Model: SH1006
Utility Model Patent No.: ZL201120121587.3
Design Patent No.: ZL201130075639.3
Standard No.: EN 55022 EN 55024
GB 17626.2-2006 Q/GZ 4-2011

Advertisement

loading
Need help?

Need help?

Do you have a question about the SH1006 and is the answer not in the manual?

Questions and answers

Summary of Contents for IntelliCorder SH1006

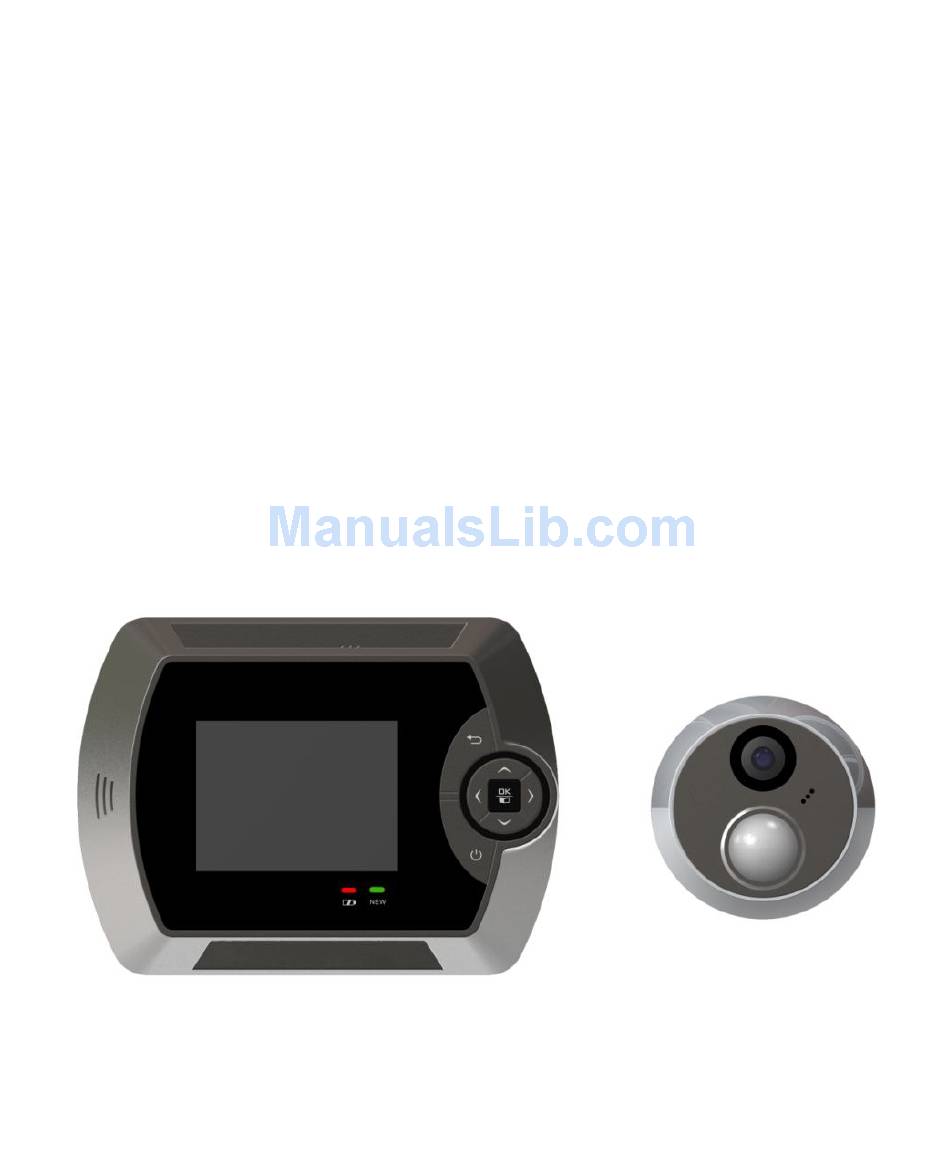

  • Page 1 Intellicorder User Manual Product Model: SH1006 Utility Model Patent No.: ZL201120121587.3 Design Patent No.: ZL201130075639.3 Standard No.: EN 55022 EN 55024 GB 17626.2-2006 Q/GZ 4-2011...
  • Page 2 Dear Users, Ple ase read the use r m anual carefully before using this product and Kindly safe kee p this manual for future re fe re nce . Safety Use Note: Warning: Please install the digital door vie we r in the re com mende d places to e nsure safe ty. To guard against the e xplosion, ple ase use the original batte ry.
  • Page 3 Catalog Chapter I: Product information Package contents Product appe arance Main feature s, functions Main spe cifications Chapter II: Install diagram Structure chart Installation proce ss Batte ry installation and re move me thod 2.3.1 Batte ry installation me thod 2.3.2 Batte ry rem ove me thod SD memory card inse rtion and remove 2.4.1 SD memory card inse rtion...
  • Page 4 2.5.2 C lock batte ry installation C harge Chapter III： Intellicorder use instruction Live mode 3.1.1 Syste m se tting 3.1.2 Time se tting 3.1.3 Parame te rs se tting 3.1.4 Playback se tting Re cord mode Chapter IV： FAQ Chapter V：...
  • Page 5 Chapter I Product introduction 1.1 Package contents (1) Intellicorde r indoor host 1pc (2) Inte llicorde r outdoor host 1pc (3) Indoor host m ounting plate 1pc (4) Powe r adaptor 1pc (5) Lithium batte ry 1pc (6) C lock batte ry 1pc (Loaded. Not installation for will loss of powe r, fitted whe n using ) (7) Fixed nut 1pc (8) Scre w 2pcs (9) Phillips scre wdrive r 1pc...
  • Page 6 1.2 Product Appearance 1.3 Product features and functions...

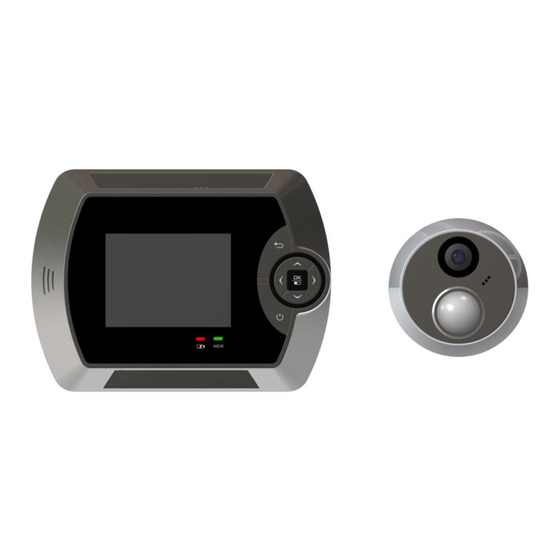

  • Page 7 The inte llicorde r SH1006 is a ne w gene ration of visual digital re cording door vie we r, it incorporate d the m ost advance d te chnical digital chipse t. W ith a unique asse mbly me thod, use r can e njoy easy and convenie nt installation without the need of any wiring and any need to alte r or modify the ir curre nt traditional peep -hole on the ir door construction.
  • Page 8 Item Spe c. Rem ark s Indoor unit size 138mm *103mm *25mm Machine Part O utdoor unit size 18m m*Dia.50m m Adapte r plate 100mm *78mm *9.5mm Work ing environment Am bient light Illum ination of the outdoor unit adaptation 20 lux ～3500 lux The re solution of images on the indoor monitor should not be less than 200...
  • Page 9 Diame te r：20MM Powe r：1W Loudspe ake r Part Loudspe ake r Impe dance ：8 O HM Display Type 240(R +G+B)*320 Dots LC D Type 2.8 inch TFT LC D Display Scree n Vie wing Dire ction 6 O ”colock Back light 4 LED white color wate r-proof...
  • Page 10 Batte ry C harge r 5.0V Input: 110 V to 240 V 50/60 Hz, 0.3 A (MO DEL:VA8B-050 O utput: Dc 5.0 V 1.0A 100) Powe r Part Batte ry Pack (lithium-ion) Voltage /capacity: 3.7 V, 1800 m Ah (MO DEL:DS-L600) C lock batte ry Dia.20.0 thick :3.2 3.0V CR 2032...
  • Page 11 Se ttings function time and date se ttings function Slee p automatically C an a utomatically go to sleep File save format JPEG,MP4...
  • Page 12 Chapter II Install diagram 2.1 Intellicorder structure chart host underside host front host underside...
  • Page 13 Ex plain the various pa rts of the structure or button: (1) Batte ry Cove r (SD m emory card and lithium batte ry inside ) (2) Lock bracke t for batte ry cove r (3) Color LC D scree n (4) Re turn: (5) C ursor: △▽...
  • Page 14 2.2 Install process (1) Unscre w the slee ve out com ple te ly first from the outdoor part, Rem ove the back ing of double -sided adhe sive (pic.2.1); (2) Pass the Outdoor slave through the pee phole, and stick it to the outside of the door like shown in pic.2.2;...
  • Page 15 (3) Removing the double-side d adhe sive on the mounting brack e t (pic.2.3); Double-side d adhesive pic.2.3...
  • Page 16 (4) Follow pic.2.4, to stick the mounting brack e t on the door , then install the Scre w for fix ing, and buck le the m ale conne ctor of the FPC with the female Conne ctor on the mounting bracke t;...
  • Page 17 (5) Remove the insulate shee t on the clock batte ry (pic.2.5); Insulate she e t Square groove pic.2.5...
  • Page 18 (6) Follow pic.2.6 install the indoor host to the mounting bracke t; pic.2.6...
  • Page 19 (7) Lock the scre ws with the Philips scre wdrive r (pic.2.7); Scre w pic.2.7 (8) Install finishe d.
  • Page 20 2.3 Battery install and remove 2.3.1 Battery installation method 2.3.1.1 Push the batte ry cove r lock to the le ft, it will ope n automatically (pic.3.1); 2.3.1.2 Install the batte ry like in Pic.3.2: push the batte ry Buckle outward, then install the batte ry in;...
  • Page 21 2.3.2 Battery remove method O pposite to the batte ry install ste ps. Batte ry Batte ry buck le pic.3.2...
  • Page 22 2.4 SD memory card insertion and remove 2.4.1 SD memory card insertion 2.4.1.1 Follow step 2.3.1.1 to ope n the batte ry cove r; 2.4.1.2 Inse rt the SD m emory card to the SD slot like pic.4.1; 2.4.1.3 Re place the batte ry cove r, push the batte ry cove r lock to the right, the n buckle up. SD card SD slot pic.4.1...
  • Page 23 2.4.2 SD memory card remove 2.4.2.1 Follow step 3.1.1 to ope n the batte ry cove r; 2.4.2.2 Press and re lease SD card (pic.4.2); 2.4.2.3 Re place the batte ry cove r, push the batte ry cove r lock to the right, the n buckle up. Re le ase SD card SD card pic.4.2...
  • Page 24 2.5 Clock battery replacement 2.5.1 Clock battery remove 2.5.1.1 Remove the two scre ws on the indoor host, the n take down the indoor host; 2.5.1.2 Remove the cove r on the back of the clock batte ry by rotating tabs into unlocked position.
  • Page 25 2.5.2 Clock battery installation 2.5.2.1 Inse rt the clock batte ry unde r the splinte r like pic.5.3, then press the top into the batte ry containe r; Batte ry block splinte r pic.5.2 2.5.2.2 Install the clock batte ry cove r by rotating it clock wise ; 2.5.2.3 Install the indoor host.
  • Page 26 2.6 Charge When the battery has low capacity, the capacity icon will indicate empty, please charge the battery. 2.6.1 Connect the power adaptor to the power supply; 2.6.2 Insert the DC plug to charging pot of the host, the indicate Light turn on (red);...
  • Page 27 Chapter III Operation Press powe r on ke y to turn on the de vice ( )(5 se conds). Mode se le ction: Live mode (LIVE) / Re cord mode (R ECOR D), through the mode switch in the lowe r side for se le ction. Note s: Unde r live m ode (LIVE), shut down automatically whe n non-ope ration for 40 se conds.
  • Page 28 3.1 Live mode (LIVE) Press △▽ to zoom in/out image with 3X; Press to switch btw came ra m ode and re cording m ode ; ■ Came ra mode: Press O K to take photos ■ Re cording m ode : Press O K to start/stop Shortly pre ss O K to e nte r m ain me nu.
  • Page 29 Press△▽ to se le ct se tting, Press O K to e nte r se tting ,press once to re turn pre vious me nu，shortly press to re turn to monitoring inte rface .  System se tting  Tim e se tting ...
  • Page 30 3.1.1 System setting Press△▽ to switch se tting option, and press O K e nte r to the se tting catalog . 3.1.1.1 Language se tting Press to se le ct language , then press O K to confirm .
  • Page 31 3.1.1.2 Infrare d se tting Press to se le ct close/far, then pre ss O K to confirm .
  • Page 32 Ne ar: infrare d distance is around 0-1.5M Far: infrared distance is around 0-2.5M...
  • Page 33 3.1.1.3 Format Press to se le ct YES/NO , then press O K to confirm your se le ction. Note: Fo rmat will delete what saved in the SD memory car d, p lease use with caution. 3.1.1.4 Default se tting Press to se le ct YES/NO , the n press O K to confirm whe the r to re store factory se ttings.
  • Page 34 3.1.1.5 Ve rsion No. Show software Ve rsion No. 3.1.1.6 NAND R emove to SD C ard Press △ ▽ to se le ct Yes or No, the n press O K ke y to confirm if removing the built-in mem ory to SD card.
  • Page 35 3.1.2 Time setting ▽ Press O K to se le ct or switch se tting position, the n press△ to adjust time .
  • Page 36 3.1.3 Parameter setting Press to switch se tting option, the n press O K ente r to the se tting catalog. Note : Se ttings updates take e ffe ct whe n you reboot the inte llicorder. 3.1.3.1 Back light Press to se le ct back light or NO (if nee d to ope n scree n unde r re cord mode ), then pre ss O K to confirm your se le ction (de fault: NO ).
  • Page 37 3.1.3.2 Time stam p Press to se le ct YES/NO (if show time whe n came ra/re cord), then press O K to confirm your se le ction (de fault: YES).
  • Page 38 3.1.3.3 Re cord se tting Press to se le ct cam e ra/re cord mode , the n press O K to confirm your se le ction (de fault: re cord m ode ). 3.1.4 Playback setting ▽ Press O K to ente r the sub-conte nt, the n press △ to mak e your desired se le ction and ▽...
  • Page 39 Playing back photos, press to re vie w your photos; Playing back re cording, press O K to se le ct play/pause ; Press to se le ct back ward/forward; Volume + / Volume -, Press △/▽； W he n the storage space is full, the be low re m inde r will come to the inte rface . De le te the dire ctory or file : Se le ct the file or dire ctory you nee d to de le te , press...
  • Page 40 SH1006 is e quippe d with inte rnal mem ory for imme diate re cording, afte r re corded 15 se conds, the re cording will be finishe d and stored autom atically, and the gre en light will turn out.
  • Page 41 W he n re cording, pre ss powe r k e y to turn on/off the LC D display. Infrared C aution: 1. Susceptible to radio freque ncy radiation inte rfe re nce, to be away from sources of inte rfe rence . 2.
  • Page 42 A: Around 5 se conds, be cause the system nee ds time to initial. 2. Q : When the SH1006 is work ing, how long will it e nte r into standby mode ? A: afte r no ope ration for 40 se conds, it will ente r to standby mode and save powe r.
  • Page 43 A：It own 256M memory, ex cept for system me mory, about 240M le ft available , so can store picture s about 1113pcs, and 11 m inute s of video. Ple ase consult below chart for de tails: C apacity（GB） Num be r of picture s (pcs) Video time (m inute s）...
  • Page 44 Chapter V Fault、solution and Precautions 1. Please do not use sharp obje cts to graze the LC D of indoor host to pre ve nt scratch on the LC D. 2. W he n magnifying the image, the noise will be come highe r, this is norm al. 3.
