Summary of Contents for FURIOUS MOSKITO 70

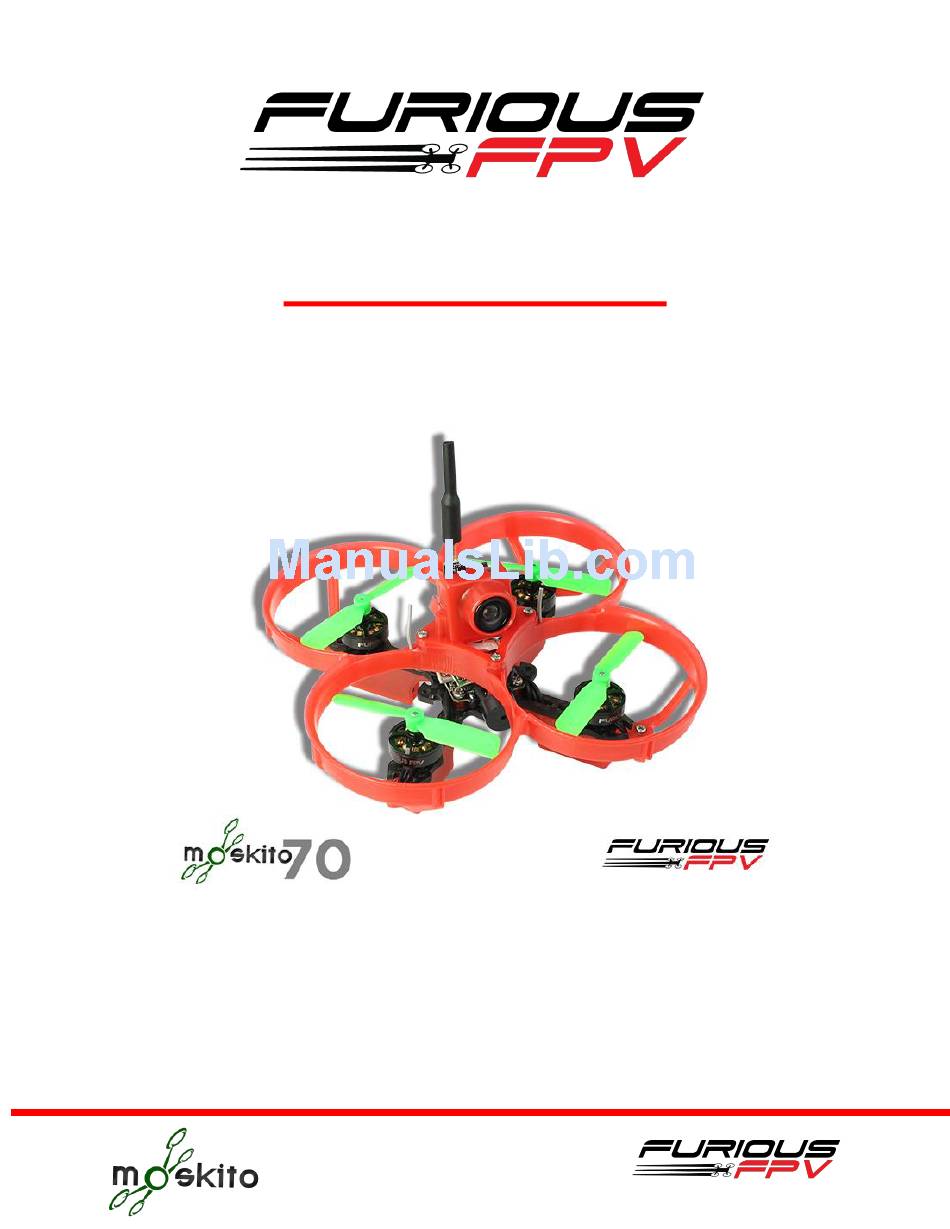

  • Page 1 MOSKITO 70 BNB 70‐size FPV racer–Rev. Spektrum...
  • Page 2 Uber small and micron light, Furious FPV debuts the lightest and smallest brushless quad copter that has ever seen flight. Enter the insanity of the Moskito 70 - the itch that feels oh, so good. Integration is the key to success, and with the Moskito 70, we have packaged this little beast to perform.

  • Page 3: Table Of Contents

    Contents Specifications: ............................... 4 Attention ............................... 4 Disclaimer..............................5 Overview ............................... 6 Quick Start Guide - ............................8 How to do bind Moskito rev.Spektrum......................9 Guide configuration transmitter for Moskito70 ..................12 Guide configuration transmitter: ......................12 Meaning of flight mode: ......................... 15 Guide change frequency Video Transmitter of Moskito70 ................

  • Page 4: Specifications

    When setting up mini-quads, there is always a remote chance that a configuration change can spin up motors unexpectedly. Furious FPV accepts no responsibility, or liability, for any injury, or damage, to persons or property, caused by the use of the Moskito70.

  • Page 5: Disclaimer

    It is your responsibility to use it reasonably and according to your experience level. Use common sense. Fly safe. You are on your own. Furious FPV has no liability for use of this aircraft.

  • Page 6: Overview

    Overview The following diagram shows the main features of the Moskito and the internal layout.

  • Page 8: Quick Start Guide

    Quick Start Guide This section requires the following equipment. ● 6-channel R/C Radio SPEKTRUM DSM2/DSMX transmitter, 5.8 GHz FPV receiver system/display/goggles, PC for detailed configuration, and (optional) HD camera 1. Bind Moskito with your Spektrum TX Guide Bind Receiver Moskito with Transmitter. Press Ctrl+Click your TX to go to Guide bind SpekTrum...

  • Page 9: How To Do Bind Moskito Rev.spektrum

    How to do bind Moskito rev.Spektrum. Step 1: Plug USB connect Moskito with Betaflight via USB port. Step 2: Click Connect on Betaflight . Step 3: Check Turn On RX of UART 3 in tab PORT. Step4 : From Configuration tab make sure that you have selected "Enable Serial-based receiver" and Serial receiver is correct (SPEKTRM2048 for DSMX)
  • Page 10 Step 5: Go to CLI tab and paste this command: set spektrum_sat_bind = 9 save Step 6: After that, Moskito will auto reset. When reset processing finish. Please un-plug USB cable and re-plug it, you will see have LED fast Blink. That mean you active mode bind for Moskito success.
  • Page 11 Step 7: Bind TX with Moskito. When Moskito at Bind mode, LED Bind on Moskito fast blink. At time, you press and hold Bind button and turn on your Transmitter, when finish processing bind, LED on Moskito will turn on and on your TX show generation is DSMX.

  • Page 12: Guide Configuration Transmitter For Moskito70

    Guide configuration transmitter for Moskito70 By default, factory-built aircraft had been installed for flight, but you must configuration compatible your channel transmitter. Guide configuration transmitter: Step 1: Open Betaflight and Connect Moskito70 via USB port. Step 2: Go to Receiver tab, change your kind Transmitter at Channel Map box. Which Spektrum, we choose JR / Spektrum / Graupner at Channel Map.
  • Page 13 - Push 2 gimbal your transmitter UP– RIGHT, channel ROLL, PITCH, YAW, THROTTLE on interface of Betaflight go to Min = ~ 2000. Your aircraft will can’t take off if value of channel Roll, Pitch, Yaw, Throttle don’t go from ~1000 to ~2000.

  • Page 15: Meaning Of Flight Mode

    Meaning of flight mode: ANGLE mode is the easiest to learn. When the sticks are centered, the flight controller is always working to level the quad. The deviation of the Roll/Pitch controls from neutral defines the angle of the quad in flight. Not a great mode for racing, but definitely the mode to use for the maiden flight.

  • Page 16: Guide Change Frequency Video Transmitter Of Moskito70

    Guide change frequency Video Transmitter of Moskito70 Supporting touch switch select channel frequency group.Supporting NTSC/PAL switch.Support vertical inverted image switch. 8 LEDs display channel and 6LEDS display frequency group information, 1 LED display PAL/NTSC and FLIP information. Camera+VTX button functions: Camera button: Press and hold 2 second to switch NTSC/PAL Single press to Flip Video...

  • Page 17: Frequency Table

    For technical questions, please email tech@furiousfpv.com On our website FuriousFPV.com we have Q&A section at the bottom of the product page. Facebook is also a place for support. Pleaes like our facebook https://www.facebook.com/FuriousFPV/ We also support on our Furious FPV Facebook Group https://www.facebook.com/groups/1282045311867056/?fref=ts...
