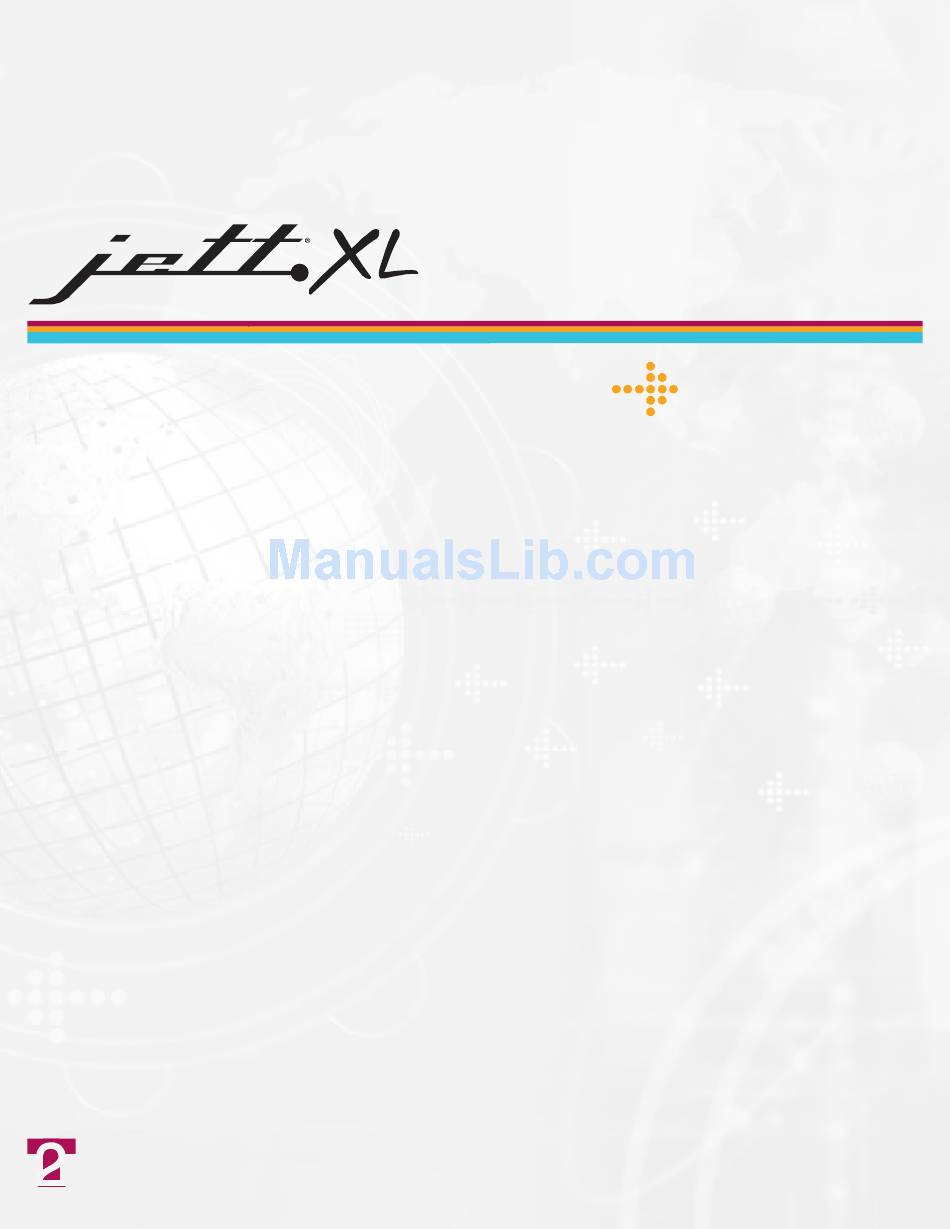

Two Technologies JETT XL User Manual

Hide thumbs Also See for JETT XL:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
U
'
G
SER
S
UIDE
TM
TM
Two Technologies, Inc.
MAN0359, R
. B
EV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JETT XL and is the answer not in the manual?

Questions and answers

Related Manuals for Two Technologies JETT XL

Summary of Contents for Two Technologies JETT XL

  • Page 1 ’ UIDE Two Technologies, Inc. MAN0359, R...
  • Page 3 OPYRIGHTS AND RADEMARKS Two Technologies is a trademark and JETT is a registered trademark of Two Technologies, Inc. Microsoft, Windows CE 5.0, Windows NT, Windows 2000, Windows XP, Visual C++, eMbedded Visual C++, Visual Basic and Visual Studio .NET 2003 are either trademarks or registered trademarks of the Microsoft Corporation.
  • Page 4 INSTALLATION OR USE OF ITS PRODUCTS AND TWO TECHNOLOGIES MAKES NO WARRANTY WHATSOEVER FOR PRODUCTS NOT MANUFACTURED BY TWO TECHNOLOGIES. TWO TECHNOLOGIES SHALL NOT BE LIABLE FOR DAMAGES DUE TO DELAYS IN DELIVERIES OR USE AND SHALL IN NO EVENT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, WHETHER ARISING FROM CONTRACT, TORT OR NEGLIGENCE, INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS, LOSS OF GOODWILL, OVERHEAD OR OTHER LIKE DAMAGES.
  • Page 5 The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC S 15.21 ECTION Changes or modifications to this unit not expressly approved by Two Technologies may void the user’s authority to operate the equipment. ANADIAN EPARTMENT OF OMMUNICATIONS...

  • Page 6: Jett•Connect Cables

    VORSICHT! Bei Verwendung von NiMH Akkus, die nicht durch Two Technologies, Inc. geliefert, empfohlen oder genehmigt wurden besteht Explosionsgefahr! Benutzen Sie daher nur solche NiMH Akkus/Batterien, die mit dem Gerät geliefert wurden bzw. Ersatzakkus, die durch Two Technologies, Inc. geliefert, empfohlen oder genehmigt wurden.
  • Page 7 ATTERY ISPOSAL Dispose of batteries in a safe manner. The following are general guidelines for the safe use and disposal of NiMH batteries: • Replace a defective NiMH battery immediately as it could damage the unit. • Do not throw the NiMH battery it in trash that is disposed of in landfills as it contains heavy metals.

  • Page 8: Table Of Contents

    ONTENTS ........................1-1 Chapter 1. VERVIEW About this Manual..............................1-1 Related Documents ............................1-1 About Two Technologies............................1-1 About the JETT•XL ..............................1-1 JETT•XL Features............................... 1-2 ..................2-1 Chapter 2. OMPONENTS AND NDICATORS Front Components ..............................2-1 Front Panel ................................2-2 Compact Flash Slot Cover .............................
  • Page 9 Appendix A...................... A-1 PECIFICATIONS Appendix B.................B-1 IGNAL AND SSIGNMENTS JETT•connect Cables..............................B-1 1210 Series Modular Interface Cables ........................B-2 Modular Cable Adapters...........................B-3 Null Modem Cable ..............................B-3 ............................. I-1 NDEX IST OF ABLES Table 1-1: Connector Covers ............................1-3 Table 2-1: Front Components and Indicators ......................2-1 Table 2-2: Front Components and Indicators ......................

  • Page 11: Chapter 1. Overview

    This manual describes the standard features and operation of the JETT•XL. Unless otherwise stated, the operational characteristics described herein correspond to factory default configurations and settings as shipped from Two Technologies. Wherever used herein, the term “JETT” applies to all JETT•XL models (except as noted).

  • Page 12: Jett•Xl Features

    JETT•XL F EATURES PERATING YSTEM The JETT•XL uses Windows CE 5.0 as its operating system. You can develop applications quickly and easily using the latest development tools and network connectivity from Microsoft, such as eMbedded Visual C++ 4.O, Visual Studio .NET 2003 and ActiveSync 3.8. ECHARGEABLE ATTERY The JETT•XL comes with a rechargeable Nickel Metal Hydride (NiMH) battery pack that can provide up to...

  • Page 13: Table 1-1: Connector Covers

    Protection) rating of 65 as defined by IEC standard 529. Although not required to maintain an IP65 rating, Two Technologies offers connector covers that help prevent electrolysis (corrosion that occurs due to a chemical reaction between water and a connector that conducts electricity).

  • Page 15: Chapter 2. Components And Indicators

    HAPTER OMPONENTS AND NDICATORS RONT OMPONENTS This section describes the components found on the font of the JETT. Figure 2-1: Front Components Table 2-1: Front Components and Indicators Item Component Description Display Supertwist nematic liquid crystal display with touch screen Front Panel Contains the On/Off switch and modifier keys indicators (see Figure...

  • Page 16: Front Panel

    # 0 non- magnetic tip screwdriver, which you can purchase from Two Technologies (Part Number 14673). You can also purchase additional screws from Two Technologies (Part Number 12624).

  • Page 17: Interface Connections

    NTERFACE ONNECTIONS This section describes the interface connectors found on the bottom of the JETT. JETT• CONNECT YSTEM The JETT•connect system is a set of rugged interface and cable connectors especially designed for industrial environments. It features positive connector retention without any hardware restraints for quick connect/disconnect operations and a contact design that prevents failure due to pin fatigue and cable stress after repeated use.

  • Page 18: 6-Pin Modular Connector

    Black, 15-Foot Null Modem Cable (DE9 Female to DE9 Female) CELAT-P Modular Cable to DE-9 Cable Adapter Use of other power supplies unless approved by Two Technologies may cause damage to the unit and void the warranty. OMPONENTS AND NDICATORS...

  • Page 19: Chapter 3. Operation

    HAPTER PERATION OWER USPEND WITCH The On/Off switch is located above the keypad. Its function depends on the state of the JETT at the time the switch is pressed and on the length of time that the switch is depressed. Operations that the Power switch can initiate are: •...

  • Page 20: Power Off

    OWER To turn off the JETT, press and hold the ON/Off switch for approximately eight seconds. This action will also terminate running applications and cease serial port operations). USPEND Suspend mode allows you to suspend, but not terminate active applications. In this mode, the display will turn off and the JETT will cease serial port operations.

  • Page 21: Charging The Unit

    HARGING THE The nickel metal hydride battery technology used in the JETT has exceptional charge life without the “charge memory” characteristic of conventional nickel cadmium batteries. Partially discharged batteries or extended periods with the charger left connected will not adversely affect battery life or performance. Note: Because the internal battery charger senses several conditions, including temperature, you should charge the unit away from any known or potential heat sources.

  • Page 22: Replacing Batteries/Battery Pack

    EPLACING ATTERIES ATTERY CAUTION! There is a risk of explosion if you replace the NiMH battery with an incorrect type. Only use a NiMH battery supplied with your unit or a replacement NiMH battery supplied, recommended, or approved by Two Technologies, Inc.

  • Page 23: Data Entry

    To provide you a method of navigating and using Windows CE .NET until you configure and map your keypad for your application, Two Technologies provides a template that shows how to access the default functions (see figure below).

  • Page 24: Modifier Keys

    ODIFIER The following modifier keys (located on the bottom of a standard keypad) enable you to access the various functions that can appear on a key. Figure 3-8 provides an example. Figure 3-8: 45-Keypad Multifunctional Key Delete Modifier keys take effect when first pressed and typically remain in effect until you press another key, unless its another Modifier key (see Table 3-2).

  • Page 25: Ce Keyboard

    CE K EYBOARD In addition to entering data through the keypad, you can also enter data by using the CE Keyboard. This utility displays a keyboard on the screen to allow data entry via the Command Line or into applications where “text accessibility”...

  • Page 26: The Windows Ce .Net Desktop

    CE .NET D INDOWS ESKTOP This section provides a brief overview of the functions that appear on the JETT desktop. For information on how to change desktop settings, refer to Windows CE .NET help (Start > Help). Figure 3-11: Windows CE .NET Desktop ESKTOP UNCTIONS You can access the following applications, functions and data entry utilities from the JETT desktop:...

  • Page 27: Power Status Icons

    OWER TATUS CONS The JETT will display power status icons (Table 3-4) in the taskbar status area (Figure 3-12) to indicate power use, charging status and low battery conditions. Table 3-4: Power Status Icons Icon Description Batteries are charging Batteries are low—approximately 30 minutes or less of use remaining (the CHARGE/LOW BAT LED will blink red once per second) Batteries are very low—approximately 10 minutes or less of use remaining (the CHARGE/LOW BAT LED will turn solid red)

  • Page 28: Using The Compact Flash Slot

    SING THE OMPACT LASH The Compact Flash Slot located on top of the JETT enables you utilize a variety of devices such as memory cards, barcode scanners, GPS cards and network cards. If you intend to use a device card, it may also be necessary to install a driver. If so, make sure the card is Windows CE .NET 4.2 compatible and you have the necessary drivers.

  • Page 29: Chapter 4. Configuration

    HAPTER ONFIGURATION ONTROL ANEL The table below lists the available control panel functions on the JETT. Table 4-1: Control Panel Functions Icon Function Description Aux Switch For units with a second COM that supplies 5VDC output, use this function to set the default power state (On or Off), and test the connected devices.

  • Page 30: P Ower M Anagement

    Icon Function Description PC Connection Use this function to enable direct connection to a desktop computer Power Use this function to: Check battery power Set device to turn off when idle Set up power schemes Check the power levels of your system devices Regional Settings Use this function to change the appearance of region specific information, such as date, time and currency.

  • Page 31: Taskbar And Start Menu Settings

    ASKBAR AND TART ETTINGS To change the Taskbar and Start Menu settings: Select Start > Settings> Taskbar & Start Menu. The Taskbar and Start Menu Properties dialog box opens: Select the General tab: Check Always on Top to ensure that the taskbar is always visible, even when a program appears in a full window (maximized).

  • Page 33: Chapter 5. Making Connections

    HAPTER AKING ONNECTIONS REATING AN CTIVE ONNECTION ActiveSync is a desktop utility program (available as a free download from Microsoft) that allows you to synchronize certain types of information between a PC and the JETT. You can also use ActiveSync to transfer files and install programs on the JETT.
  • Page 34 Click OK to exit. On the ActiveSync menu bar, select Get Connected from the File menu. ActiveSync will then start the Get Connected wizard. Click Next. ActiveSync will start attempting to establish a connection (this process will take several seconds). On the JETT, tap PC Link.

  • Page 35: Subsequent Communication

    12. On the JETT, an icon indicating a ActiveSync connection will appear in the system tray. 13. To terminate the ActiveSync connection, double-tap the connection icon to display the Connect to PC-115K dialog box and tap Disconnect. UBSEQUENT OMMUNICATION After you install ActiveSync and establish the initial communication between the PC and the JETT, use the following procedure to set up subsequent sessions: If not already attached, connect an interface cable to an available COM port on the PC and the RS- 232 port on the JETT.

  • Page 36: Making A Bluetooth Connection

    AKING A LUETOOTH ONNECTION Named after a tenth-century Danish king that united Denmark and Norway, Bluetooth is a worldwide standard for the wireless exchange of data between two devices. Typical uses of Bluetooth include: • File Transfer • Local Area Network access •...
  • Page 37 Select the Services tab and enable the File Transfer Service. Select the General tab and click Bluetooth Connection Manager. Click Generic Device Search. Click Next. The JETT will begin to search for other Bluetooth devices. Select a device and click Next. AKING ONNECTIONS...
  • Page 38 The JETT will then list the available services of the selected Bluetooth devices. 10. Select File Transfer and click Next. 11. Click Connect. 12. When prompted, enter the passkey. 13. After establishing a connection, the JETT will display a list of available files on the connected device AKING ONNECTIONS...
  • Page 39 AKING ONNECTIONS...

  • Page 40: Setting Up Identification For Remote Networks

    THERNET ETWORK ONNECTION Note: If you are using communications cards other than those supplied by Two Technologies, you will need to install the appropriate drivers for Windows CE .NET 4.2 and ARMV4 processors. To create a Wired Ethernet connection: Insert the Ethernet card into the JETT and connect the cable to the network.

  • Page 41: Connecting To A Mail Server

    ONNECTING TO A ERVER You can send and receive e-mail by connecting to a POP3 or IMAP4 server. Inbox contains an e-mail service for each method you use. For either service, you must establish a connection to your Internet service provider (ISP) or to the appropriate mail server in your local area network.
  • Page 42 In the Required panel: Select the name of the connection you created to connect to the mail server. If you are receiving e-mail through a network (Ethernet) connection, select Network Connection. If you want Inbox to use your current connection, select (none). If you have not created a connection, select Create new connection, double-tap the Make New Connection icon, and follow the instructions in the wizard.

  • Page 43: Chapter 6. Troubleshooting

    HAPTER ROUBLESHOOTING JETT DOES NOT RESPOND WHEN PRESS THE POWER BUTTON • Is the unit in Suspend mode? • If battery-powered, check the batteries. • Are all cables connected properly: Is the power supply plugged into an active AC outlet? Is the power connector securely plugged into the JETT? JETT, CHANGED MY SYSTEM SETTINGS...
  • Page 44 JETT ACTS SLOWLY • The unit may be short of program memory or storage memory. • Increase the amount of storage or program memory through the System control in the Control Panel. • You can also delete any unnecessary files. JETT.

  • Page 45: Appendix A Specifications

    PPENDIX PECIFICATIONS OWER Recharge/Line-Power: 11 to 18 VDC, 1.5A Standard: Input at 11 to 18 VDC via JETT•connect system interface for line-power or battery charging operations Optional: Output at 5 VDC @ 1.2A to operate peripheral devices (either port) Rechargeable Battery Type: Nickel Metal Hydride (or 6 AA alkaline batteries) Current Rating: 2 Amp Maximum Voltage: 7.2 Volts Capacity: 1400 mAh...

  • Page 46: Figure A-1: Case Dimensions

    LUETOOTH Specification: Bluetooth 1.2 Data Rate: 720 kbps maximum Frequency Range: Bluetooth 2.4 GHz ISM band frequency hopping Transmit Range: Up to 30 feet (10 meters) Authentication: Via passkey NVIRONMENTAL Operating Temperature: -20°C to +50°C Storage Temperature: -20°C to +70°C Charging Temperature: -20°C to + 40°C Humidity: 5-95% Non-condensing IP Rating: 65...

  • Page 47: Figure B-1: 708 Cable (Male De9) Rs-232 Signal And Pin Assignments

    PPENDIX IGNAL AND SSIGNMENTS JETT• CONNECT ABLES Figures B-1 and B-2 list the standard RS-232 signal and pin assignments for the JETT•connect cables. Figure B-1: 708 Cable (Male DE9) RS-232 Signal and Pin Assignments Viewed Facing Connector JETT• Connect DE 9 Connector Power White w/Black Stripe Pin 1 (Reserved)

  • Page 48: Appendix B. Signal And Pin Assignments

    Figure B-2: 91709 Cable (Female DE9) RS-232 Signal and Pin Assignments 5 4 3 2 1 Viewed Facing Connector 9 8 7 6 JETT• Connect DE 9 Connector Power White w\Black Stripe Pin 1 (Reserved) Blue Pin 2 (GND) Pin 5 (GND) Gray Pin 3 (RI) Pin 9 (RI In)

  • Page 49: Modular Cable Adapters

    ODEM ABLE Figure B-5 lists the signal and pin assignments for Two Technologies’ 14375 DE-9 Female to DE-9 Female null modem cable. Please note that this cable differs from standard null modem cables in that it uses Pin 9 for input power for the JETT.

  • Page 51: Index
