Summary of Contents for PDG Mobility IP-PTZ643W
Page 1

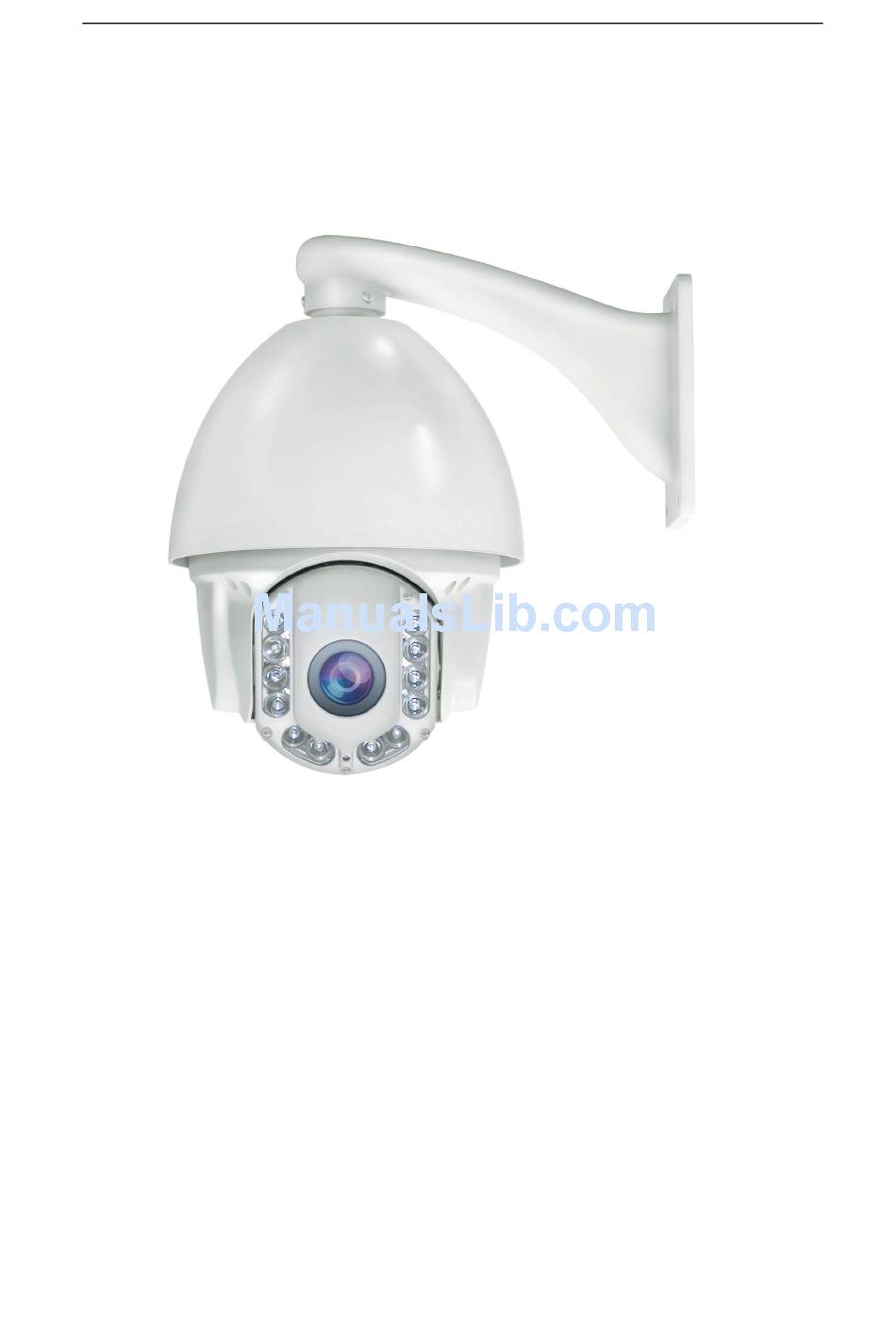

User Manual for IP-PTZ643/645 IP – High Speed PTZ with IRs Models IP-PTZ643W 1.3mp IP-PTZ645W 2.0mp 20 x Optical Zoom 1.3 and 2 Megapixel models ONVIF Protocol 4.7mm ~ 94mm Lens 12 x High Power IRs up to 150m Version 007...
User Manual for IP-PTZ643/645 Chapter 1 Introduction 1.1 System Requirement System requirement of web browser accessing is as follows: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 7.0 and above version.
User Manual for IP-PTZ643/645 Product Overview Power Power Supply 12vDC 4A ± 10% Max 15w day Max 30x night Consumption IR Distance 100m ~ 120m Decoder Built In Pan Range 360° Tilt Rotate 90° High Speed Pan 0. 6° ~ 200°/s Presets Tilt 0.8°...
Page 7
User Manual for IP-PTZ643/645 1.6.2 Wall Bracket Dimensions Step 1. Place bracket against wall and mark the four positions for screw holes. Step 2. Drill and plug holes. . Step 3. Feed multi-core cable from camera through bracket.
Page 8
User Manual for IP-PTZ643/645 Step 4. Secure the camera with 4 screws to the bracket. silicon Step 5. Feed the camera cable either through the wall or take it out sideways via the access on the side of the bracket as shown above. Fix bracket to wall and seal with silicon around exposed cable entry points.
User Manual for IP-PTZ643/645 1.7 Power Supply and Network Connections RS485 Connection 1.7.1 Power Supply Connection The PTZ is rated at 12vDC using a 4Amp regulated power supply. The connector is a 2.1mm power jack. 1.7.2 Network Cable Connection The network connection is the RG45 connector. This allows connection direct to another device using a crossover cable, connecting to a router using a LAN cable or a switch.
User Manual for IP-PTZ643/645 1.7.4 Simple Troubleshooting Fault Check Possible Cause Solution No picture and Mains power Power supply Replace supply PTZ mainboard Replace no telemetry Motor fault Mechanical fault Obstruction or part failure Image okay but Camera Camera angle Adjust as camera is not movement...
User Manual for IP-PTZ643/645 1.8 Basic Operation 1.8.1 General The versatility of this IP PTZ camera allows it to communicate through different platforms. As these platforms are not the same, you will need to use reference manuals referring to the particular platform used in addition to this manual. 1.8.2 Power On Self Test When this camera is powered up, it runs a self-test by panning and tilting to prove that it works okay.
User Manual for IP-PTZ643/645 1.9 Info on General & Function Commands 1.9.1 General Commands Using double layer preset commands allows a greater option of commands to be used. The following is a list of General Commands. Like the 92 command for setting the Patrol/Tour there are other commands for Pattern setup and running, IR, etc.
Page 13
User Manual for IP-PTZ643/645 CALL/SHOT 91 CAMERA MODULE FUNCTION IRCUT On IRCUT Off IRCUT Auto On IRCUT Auto Off CALL/SHOT 91, CALL/SHOT <n> Eg. CALL 91, CALL 3 (option 3) PRESET 92 PATROL/TOUR FUNCTION CALL Patrol 1 CALL Patrol 2 CALL Patrol 3 CALL Patrol 4 CALL Patrol 5...
Page 14
User Manual for IP-PTZ643/645 CALL/SHOT 94 PTZ CONTROL Park Preset 1-8 9-16 Park Patrol 1-8 17-20 Park Pattern 1-4 Park Auto Scan Park AB Line Park Time 0 Off Park Time 10s Park Time 30s Park Time 60s A Line scan setting B Line scan setting High Speed line scan start Middle Speed line...
User Manual for IP-PTZ643/645 1.9.3 Patrol/Tour Setup Procedure After setting the required presets (Refer 1.8.3) you need to create a Patrol/Tour number, add the required presets to that number, then save the settings. Note that commands for setting presets are different from commands calling presets. When setting presets press the PRESET button and when calling the preset press the CALL or SHOT button.
User Manual for IP-PTZ643/645 1.10 Connecting IP Camera to IP DVR 1.10.1 Connecting through Alien MEGA DVR Connect the camera to a router or switch and the DVR to a network using a standard LAN cable. Enter the DVR menu and select VIDEO. Click on IP Camera menu.
Page 17
User Manual for IP-PTZ643/645 Complete the following:- IP Camera Address as set in the PTZ camera Protocol : ONVIF Management Port: 80 User Name: admin (Username set in PTZ camera default is admin) Admin Password: 12345 (Password set in PTZ camera default is 12345) Then click Add button.
User Manual for IP-PTZ643/645 Chapter 2 Network Connection 2.1 Setting the Network Zoom Camera over the LAN Purpose: To view and configure the zoom camera via a LAN, you need to connect the network zoom camera in the same subnet as your computer, and install the SADP or CCTVWindow software to search and change the IP of the network zoom camera.
User Manual for IP-PTZ643/645 2.1.2 Detecting and Changing the IP Address You need the IP address to access the network zoom camera. Steps: 1. To get the IP address, you can choose either of the following methods: Use SADP, a software tool which can automatically detect the online network zoom cameras in the LAN and list the device information including IP address, subnet mask, port number, device serial number, device version, etc., shown in Figure 2-3.
User Manual for IP-PTZ643/645 2.2 Setting the Network Camera over the WAN Purpose: This section explains how to connect the IP camera to the WAN with a static IP or a dynamic IP. 2.2.1 Static IP Connection Before you start: Please apply a static IP from an ISP (Internet Service Provider).
User Manual for IP-PTZ643/645 2.2.2 Dynamic IP Connection Before you start: Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the IP camera to a modem or a router. Connecting the IP camera via a router Steps: 1.
User Manual for IP-PTZ643/645 Chapter 3 Network IP Camera 3.1 Accessing by Web Browser Steps: 1. Open the web browser. 2. In the address field, input the IP address of the network zoom camera, e.g., 192.0.0.64 and press the Enter key to enter the login interface. 3.
Page 23
User Manual for IP-PTZ643/645 Figure 3-2 Download and Install Plug-in Figure 3-3 Install Plug-in (1) Figure 3-4 Install Plug-in (2)
Page 24
User Manual for IP-PTZ643/645 Figure 3-5 Install Plug-in (3) Note: You may find when using Internet Explorer that the plug-in does not run. If this occurs you may have to enter the Tools menu in I.E (press the ALT key if the menu bar in not displayed) and select Compatibility View Settings, then add the IP address that you are accessing the IP camera on, followed by Close, close I.E then refire and the plug-in should then run correctly.
User Manual for IP-PTZ643/645 Chapter 4 Live View Live View Page Purpose: The live video page allows you to view live video, capture images, use PTZ control, set/call presets and configure video parameters. Log into the network zoom camera to enter the live view page, or you can click on the menu bar of the main page to enter the live view page.
User Manual for IP-PTZ643/645 Live View Parameters: Configure the image size and stream type of the live video. 4.2 Starting Live View In the live view window as shown in Figure 4-2, click on the toolbar to start the live view of the zoom camera. Figure 4-2 Start Live View Table 4-1 Descriptions of the Toolbar Icon...
User Manual for IP-PTZ643/645 Please refer to the following sections for more information: Configuring remote recording in Section 6.2 Configuring Recording Schedule. Setting the image quality of the live video in Section 5.1 Configuring Local Parameters and Section 5.4.1 Configuring Video Settings. Setting the OSD text on live video in Section 5.6 Configuring OSD Settings.
User Manual for IP-PTZ643/645 Table 4-2 Description of PTZ Control Panel Button Description Zoom in/out Focus near/far Adjust speed of pan/tilt movements 4.4.2 Setting/Calling a Preset Purpose: A preset is a predefined image position. For the defined preset, you can click the call button to quickly view the desired image position.
User Manual for IP-PTZ643/645 Figure 4-5 Calling a Preset 4.4.3 Setting / Calling a Patrol/Tour Purpose: A patrol/tour is a series of presets. It can be configured and called on the patrol settings interface. There are up to 8 patrols for customising. A patrol can be configured with up to 32 presets.
User Manual for IP-PTZ643/645 4. Configure the preset number, patrol time and patrol speed. Name Description Patrol Time It is the time staying on one preset point. The camera moves to another preset point after the time set. Patrol Speed It is the speed of moving from one preset to another.
User Manual for IP-PTZ643/645 Figure 4-8 Set the Park Action 2. Check the checkbox to Enable Park Action. 3. Set the Park Time as the inactivity time of the zoom camera before it starts the park actions. 4. Choose Action Type the from the drop-down list. Auto scan, patrol and preset are available.
User Manual for IP-PTZ643/645 Chapter 5 Camera Configuration 5.1 Configuring Local Parameters Note: The local configuration refers to the parameters in the live view and other operations using the web browser. Steps: 1. Enter the Local Configuration interface: Configuration > Local Configuration Figure 5-1 Local Configuration Interface 2.
User Manual for IP-PTZ643/645 Live View Performance: Set the live view performance to Least Delay, Balanced or Best Fluency. Record File Settings: Set the saving path of the video files. Record File Size: Select the packed size of manually recorded and downloaded video files.
Page 34
User Manual for IP-PTZ643/645 Figure 5-2 Time Settings Configuring Time Synchronisation by NTP Server (1) Check the checkbox to enable the NTP function. (2) Configure the following settings: Server Address: IP address of NTP server. NTP Port: Port of NTP server. Interval: The time interval between the two synchronising actions by NTP server.
Page 35
User Manual for IP-PTZ643/645 Configuring Time Synchronisation Manually (1) Check the Manual Time Sync checkbox. (2) Click to set the system time from the pop-up calendar. (3) Click to save the settings. Note: You can also check the Sync with local time checkbox to synchronise the time of the zoom camera with the time of your computer.
User Manual for IP-PTZ643/645 Figure 5-6 DST Settings 5.3 Configuring Network Settings 5.3.1 Configuring TCP/IP Settings Purpose: TCP/IP settings must be properly configured before you operate the zoom camera over network. Steps: 1. Enter TCP/IP Settings interface: Configuration > Basic Configuration > Network > TCP/IP Or Configuration >...
User Manual for IP-PTZ643/645 2. Configure the NIC settings, including the IPv4(IPv6) Address, IPv4(IPv6) Subnet Mask and IPv4(IPv6) Default Gateway. 3. Click Test to make sure that the IP address is not used.(optional) 4. Click to save the above settings Notes: If the DHCP server is available, you can check to automatically obtain...
User Manual for IP-PTZ643/645 3. Click to save the settings. 5.3.3 Configuring PPPoE Settings Purpose: If you have no router but only a modem, you can use Point-to-Point Protocol over Ethernet (PPPoE) function. Note that this is not generally available in the UK. Steps: 1.
Page 39
User Manual for IP-PTZ643/645 Figure 5-10 DDNS Settings 2. Check the Enable DDNS checkbox to enable this feature. 3. Select DDNS Type. Four DDNS types are selectable: IPServer, DynDNS, HiDDNS and NO-IP. DynDNS: Steps: (1) Enter Server Address of DynDNS (e.g. members.dyndns.org). (2) In the Domain text field, enter the domain name obtained from the DynDNS website.
Page 40
User Manual for IP-PTZ643/645 IPServer Settings Figure 5-12 HiDDNS: Steps: (1) Enter the Server Address: www.hik-online.com. (2) Enter the Domain name of the camera. The domain is the same with the device alias in the HiDDNS server. (3) Click to save the settings. Figure 5-13 HiDDNS Settings NO-IP: Steps:...
User Manual for IP-PTZ643/645 5.3.5 Configuring SNMP Settings Purpose: You can use SNMP to get zoom camera status and parameters related information. Before you start: Before setting the SNMP, please use the SNMP software and manage to receive the zoom camera information via SNMP port. By setting the Trap Address, the zoom camera can send the alarm event and exception messages to the surveillance center.
User Manual for IP-PTZ643/645 2. Check the corresponding version checkbox ( ) to enable the feature. 3. Configure the SNMP settings. Note: The configuration of the SNMP software should be the same as the settings you configure here. 4. Click to save and finish the settings.
User Manual for IP-PTZ643/645 (a switch). The switch forwards the identity and password to the authentication server (RADIUS server). The switch forwar ds the certificate of authentication server to the network camera. If all the information is validated, the switch allows the network access to the protected network.
User Manual for IP-PTZ643/645 Figure 5-17 QoS Settings 2. Configure the QoS settings, including video / audio DSCP, event / alarm DSCP and Management DSCP. The valid DSCP value ranges from 0 to 63. The DSCP value is bigger, the priority is higher.
User Manual for IP-PTZ643/645 2. Configure the FTP settings, including server address, port, user name, password, directory and upload type. Setting the directory in FTP server for saving files: In the Directory Structure field, you can select the root directory, parent directory and child directory.
User Manual for IP-PTZ643/645 Figure 5-21 Configure UPnP Settings 5.3.10 Configuring NAT (Network Address Translation) Settings Steps: 1. Set the port mapping mode: To port mapping with the default port numbers: Choose To port mapping with the customised port numbers: Choose Then you can customise the value of the port number by yourself.
Page 47
User Manual for IP-PTZ643/645 Configuration > Advanced Configuration > Network > Email Figure 5-22 Email Settings 2. Configure the following settings: Sender: The name of the email sender. Sender’s Address: The email address of the sender. SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).
User Manual for IP-PTZ643/645 emails with attached alarm images. Interval: The interval refers to the time between two actions of sending attached pictures. Authentication (optional): If your email server requires authentication, check this checkbox to use authentication to log in to this server and enter the login user name and password.
User Manual for IP-PTZ643/645 The main stream is usually for recording and live viewing with good bandwidth, and the sub-stream can be used for live viewing when the bandwidth is limited. Refer to the Section 5.1 Configuring Local Parameters for switching the main stream and sub-stream for live viewing.
User Manual for IP-PTZ643/645 Figure 5-24 Audio Settings 2. Configure the following settings. Audio Encoding: G.722.1, G.711ulaw, G.711alaw, MP2L2 and G.726 selectable. Audio Input: When an intercom is connected to the camera, you need to set this option to LineIn. When a microphone is connected to the camera, you need to set this option to MicIn.
User Manual for IP-PTZ643/645 Figure 5-25 Region of Interest 5.5 Configuring Display Settings Purpose: You can set the image quality of the network camera, including brightness, contrast, saturation, sharpness, etc. Note: The parameters in Display Settings interface vary depending on the models of network camera.
User Manual for IP-PTZ643/645 Figure 5-26 Display Settings 5.5.1 Image Adjustment Brightness This feature is used to adjust brightness of the image. The value ranges from 0 to 100. Contrast This feature enhances the difference in color and light between parts of an image. The value ranges from 0 to 100.
User Manual for IP-PTZ643/645 Auto: The iris, shutter and gain values will be adjusted automatically according to the brightness of the environment. Iris Priority: The value of iris needs to be adjusted manually. The shutter and gain values will be adjusted automatically according to the brightness of the environment. Figure 5-27 Manual Iris Shutter Priority: The value of shutter needs to be adjusted manually.
User Manual for IP-PTZ643/645 manually. Min. Focus Distance This function is used to limit the minimum focus distance. The value can be set to 1.5m, 3m, 6m, 10cm and 50cm. The minimum focus value varies depending on the models of camera. 5.5.4 Day/Night Switch The Day/Night Switch mode can be set to Auto, Day and Night.
User Manual for IP-PTZ643/645 5.5.6 WDR (Wide Dynamic Range) The wide dynamic range (WDR) function helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the field of view, WDR balances the brightness level of the whole image and provide clear images with details.
User Manual for IP-PTZ643/645 camera. Auto-Track In Auto-Track mode, white balance is continuously being adjusted in real-time according to the colour temperature of the scene illumination. This function varies depending on the models of zoom camera. 5.5.8 Image Enhancement 3D Digital Noise Reduction The 3D digital noise reduce function processes the noise in the video signal.
User Manual for IP-PTZ643/645 5.5.10 Other Lens Initialisation The lens operates the movements for initialisation when you check the check box for Lens Initialisation. Zoom Limit You can set Zoom Limit value to limit the maximum value of zooming. The value can be set to 20, 40, 80, 160 and 320.
User Manual for IP-PTZ643/645 Figure 5-36 Adjust OSD Location 6. Click to activate above settings. Configuring Text Overlay Settings Purpose: You can customise the text overlay. Steps: 1. Enter the Text Overlay Settings interface: Configuration > Advanced Configuration > Image > Text Overlay 2.
User Manual for IP-PTZ643/645 Figure 5-37 Text Overlay Settings 5.8 Configuring Privacy Mask Purpose: Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded. Steps: Enter the Privacy Mask Settings interface: Configuration >...
User Manual for IP-PTZ643/645 4. Click and drag the mouse in the live video window to draw the mask area. Note: You are allowed to draw up to 4 areas on the same image. 5. Click to finish drawing or click to clear all of the areas you set without saving them.
Page 61
User Manual for IP-PTZ643/645 Figure 5-39 Enable Motion Detection (3) Click . Click and drag the mouse on the live video image to draw a motion detection area. Note: You can draw up to 8 motion detection areas on the same image. (4) Click to finish drawing.
Page 62
User Manual for IP-PTZ643/645 Figure 5-40 Arming Schedule (2) Choose the day you want to set the arming schedule as shown in Figure 5-41. (3) Click to set the time period for the arming schedule. (4) After you set the arming schedule, you can click to copy the schedule to other days (Optional).
Page 63
User Manual for IP-PTZ643/645 Figure 5-41 Arming Time Schedule 3. Set the Alarm Actions for Motion Detection. Purpose: You can specify the linkage method when an event occurs. The following contents are about how to configure the different types of linkage method. Figure 5-42 Linkage Method Check the checkbox to select the linkage method.
User Manual for IP-PTZ643/645 Upload to FTP Capture the image when an alarm is triggered and upload the picture to a FTP server. Note: You need a FTP server and set FTP parameters first. Refer to Section 5.3.8 Configuring FTP Settings for setting FTP parameters. Trigger Channel Record a video when an event occurs.
User Manual for IP-PTZ643/645 2. Check Enable video tampering checkbox to enable the video tampering detection. 3. Set the video tampering area. Refer to Step 1 Set the Motion Detection Area in Section 5.9.1 Configuring Motion Detection. 4. Click to edit the arming schedule for video tampering. The arming schedule configuration is the same as the setting of the arming schedule for motion detection.
Page 66
User Manual for IP-PTZ643/645 Figure 5-44 Alarm Input Settings 4. Click to set the arming schedule for the alarm input. Refer to Step 2 Set the Arming Schedule for Motion Detection in Section 5.9.1 Configuring Motion Detection. 5. Check the checkbox to select the linkage method taken for the alarm input. Refer to Step 3 Set the Alarm Actions for Motion Detection in Section 5.9.1 Configuring Motion Detection.
User Manual for IP-PTZ643/645 Figure 5-45 Linkage Method 5.11.1 Configuring Alarm Output Steps: 1. Enter the Alarm Output Settings interface: Configuration>Advanced Configuration> Events > Alarm Output 2. Select one alarm output channel in the Alarm Output drop-down list. 3. Set a name in for the alarm output (optional).
User Manual for IP-PTZ643/645 Figure 5-46 Alarm Output Settings 5.12 Handling Exception The exception type can be HDD full, HDD error, network disconnected, IP address conflict and illegal login to the zoom cameras. Steps: 1. Enter the Exception Settings interface: Configuration >...
User Manual for IP-PTZ643/645 Chapter 6 Record Settings Before you start: To configure record settings, please make sure that you have the network storage device within the network or the SD card (optional) inserted in your zoom camera. 6.1 Configuring NAS Settings Before you start: The network disk should be available within the network and properly configured to store the recorded files, log files, etc.
User Manual for IP-PTZ643/645 (1) Enter the HDD Settings interface (Advanced Configuration > Storage > Storage Management), in which you can view the capacity, free space, status, type and property of the disk. (2) If the status of the disk is Uninitialised as shown in Figure 6-3, check the corresponding checkbox to select the disk and click to start initialising the disk.
Page 71
User Manual for IP-PTZ643/645 Figure 6-6 Recording Schedule Interface 2. Check the checkbox of Enable Record Schedule to enable scheduled recording. 3. Set the record parameters of the zoom camera. Figure 6-7 Record Parameters Pre-record: The time you set to start recording before the scheduled time or the event.
Page 72
User Manual for IP-PTZ643/645 Overwrite: If you enable this function and the HDD is full, the new recorded files overwrite the oldest recorded files automatically. Recording Stream: You can set the recording stream as Main Stream or Sub Steam. 4. Click to edit the record schedule.
Page 73
User Manual for IP-PTZ643/645 detection area and check the checkbox of Trigger Channel in the Linkage Method of Motion Detection Settings interface. For detailed information, please refer to the Step 1 Set the Motion Detection Area in the Section 5.9.1 Configuring Motion Detection.
User Manual for IP-PTZ643/645 (3) Check the checkbox and click to copy settings of this day to the whole week. You can also check any of the checkboxes before the date and click (4) Click to save the settings and exit the Edit Record Schedule interface.
Page 75
User Manual for IP-PTZ643/645 Steps: 1) Configure the FTP settings and check checkbox in FTP Settings interface. Please refer to Section 5.3.8 Configuring FTP Settings for more details to configure FTP parameters. 2) Check checkbox in Motion Detection Settings or Alarm Input interface.
Page 76
User Manual for IP-PTZ643/645 Figure 6-10 Snapshot Settings...
User Manual for IP-PTZ643/645 Chapter 7 Playback Purpose: This section explains how to view the remotely recorded video files stored in the network disks or SD cards. Playing Back Video Files Steps: 1. Click on the menu bar to enter playback interface. Figure 7-1 Playback Interface 2.
Page 78
User Manual for IP-PTZ643/645 3. Click to play the video files found on this date. The toolbar on the bottom of Playback interface can be used to control playing process. Figure 7-3 Playback Toolbar Table 7-1 Description of the buttons Button Operation Button...
User Manual for IP-PTZ643/645 types as shown in Figure 7-6. Figure 7-6 Video Types 7.2 Downloading Video Files Steps: 1. Click on the playback interface. The pop-up menu is shown in Figure 7-7. All the video files are listed. Figure 7-7 Video Downloading interface 2.
User Manual for IP-PTZ643/645 The video files are not all listed on one page. You can click to turn pages. 7.3 Downloading Captured Images Steps: 1. Click on the playback interface. The pop-up menu is shown in Figure 7-8. 2. Set the linkage type of capturing the pictures as timing, alarm, motion, etc.. 3.
User Manual for IP-PTZ643/645 Chapter 8 Log Searching Purpose: The operation, alarm, exception and information of the zoom camera can be stored in log files. You can also export the log files on your demand. Before you start: Please configure network storage for the zoom camera or insert a SD card in the zoom camera.
User Manual for IP-PTZ643/645 Chapter 9 Others 9.1 Managing User Accounts Enter the User Management interface: Configuration >Basic Configuration> Security > User Or Configuration > Advanced Configuration> Security > User The admin user has access to create, modify or delete other accounts. Up to 31 user accounts can be created.
Page 83
User Manual for IP-PTZ643/645 Figure 9-2 Add a User Modify a User Steps: 1. Left-click to select the user from the list and click 2. Modify the User Name, Level or Password. 3. In the Basic Permission field and Camera Configuration field, you can check or uncheck the permissions.
Page 84
User Manual for IP-PTZ643/645 Figure 9-3 Modify a User Delete a User Steps: 1. Left-click the user name you want to delete and click 2. Click on the pop-up dialogue box to delete the user. Figure 9-4 Delete a User...
User Manual for IP-PTZ643/645 9.2 Configuring RTSP Authentication Purpose: You can specifically secure the stream data of live view. Steps: 1. Enter the RTSP Authentication interface: Configuration> Advanced Configuration> Security > RTSP Authentication Figure 9-5 RTSP Authentication 2. Select the Authentication type basic or disable in the drop-down list to enable or disable the RTSP authentication.
User Manual for IP-PTZ643/645 9.4 Configuring IP Address Filter With this function on, the camera allows certain IP addresses whether to log in or not. Filter Type Description Forbid the IP addresses added in Forbidden the IP Address Filter interface to log in.
User Manual for IP-PTZ643/645 Figure 9-9 Device Information 9.6 Maintenance 9.6.1 Rebooting the Zoom camera Steps: 1. Enter the Maintenance interface: Configuration > Basic Configuration> System > Maintenance Or Configuration > Advanced Configuration> System > Maintenance: 2. Click to reboot the network zoom camera. Figure 9-10 Reboot the Device 9.6.2 Restoring Default Settings Steps:...
User Manual for IP-PTZ643/645 Note: Clicking restores all the parameters to default settings including the IP address and user information. Please use this button with caution. Figure 9-11 Restore Default Settings 9.6.3 Importing/Exporting Configuration File Steps: 1. Enter the Maintenance interface: Configuration >...
User Manual for IP-PTZ643/645 your computer to upgrade the device. Firmware Directory: You need to find the directory where the firmware locates. The device can find the firmware in the directory automatically. 3. Click to select the local upgrade file and then click to start remote upgrade.
User Manual for IP-PTZ643/645 Figure 9-15 RS-232 Settings Note: If you want to connect the camera by the RS-232 port, the parameters of the RS-232 should be exactly the same with the parameters you configured here. 2. Click to save the settings. 9.8 RS-485 Settings Purpose: The RS-485 serial port is used to control the PTZ of the camera.
User Manual for IP-PTZ643/645 Appendix Appendix 1 SADP Software Introduction Description of SADP SADP (Search Active Devices Protocol) is a kind of user-friendly and installation-free online device search tool. It searches the active online devices within your subnet and displays the information of the devices. You can also modify the basic network information of the devices using this software.
Page 92
User Manual for IP-PTZ643/645 panel on the right side, or click to show the network parameter panel. Modify network parameters Steps: 1. Select the device to be modified in the device list and the network parameters of the device will be displayed in the Modify Network Parameters panel on the right side.
User Manual for IP-PTZ643/645 Appendix 2 Port Mapping The following settings are for TP-LINK router (TL-R410). The settings vary depending on different models of routers. Steps: 1. Select the WAN Connection Type, as shown below: Figure A.2.1 Select the WAN Connection Type 2.
Page 94
User Manual for IP-PTZ643/645 Example: When the zoom cameras are connected to the same router, you can forward the ports of a zoom camera as 80, 8000, 8200~8210 and 554 with IP address 192.168.1.23, and the ports of another zoom camera as 81, 8001, 8201~8211 and 555 with IP 192.168.1.24.
Click on Setup then double click the Alien Icon Logo to the left of DVR name to display Modify Device Information and enter the local IP address, port 8000, the user and password in the IP-PTZ643W/645W and channel number set to 1, then click OK. admin...
Page 96
User Manual for IP-PTZ643/645 Then click on Preview and double click the Alien Icon to display the video. To access the CCTVWindow settings for the camera, click on Setup and single click the Alien Icon to the left of the PTZ camera name, the Remote Settings box in the centre of the screen display will display in heavy type and clicking this will provide access to the camera settings.
