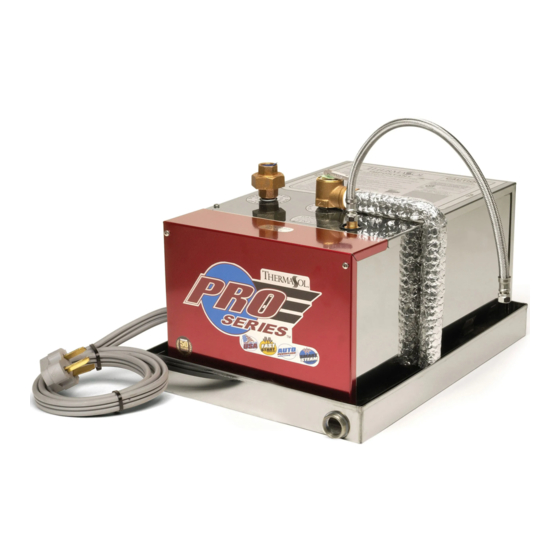

Thermasol PRO SERIES Installation Instructions Manual

Hide thumbs Also See for PRO SERIES:

Advertisement

Quick Links

Download this manual See also: Operating Manual

Installation Instructions

If you are a plumber installing this unit, please leave this owners manual &
warranty card with the owner when you finish the installation.
•
DO NOT USE THIS PRODUCT UNLESS YOU HAVE CONSULTED YOUR DOCTOR AND RECEIVED WRITTEN PERMISSION TO DO SO. USE OF THIS
PRODUCT MAY BE HAZARDOUS TO YOUR HEALTH.
•
STEAM IS HOT! DO NOT TOUCH OR GO NEAR THE STEAM HEAD FROM THE TIME THE UNIT IS "ON", UP TO ONE HOUR FROM THE TIME THE
UNIT IS OFF. SEVERE BURN WILL OCCUR IF YOU COME IN CONTACT WITH THE STEAM HEAD OR STEAM EMITTING FROM THE STEAM HEAD.
•
NEVER ATTEMPT TO FILL AROMA THERAPY RESERVOIR ON THE STEAM HEAD WHEN UNIT IS IN THE "ON" POSITION. SEVERE BURNS WILL
OCCUR.
•
DO NOT USE THERMASOL AROMA THERAPY OILS OR SKIN CARE PRODUCTS OR ANY PRODUCT IN CONJUNCTION WITH YOUR THERMASOL
UNIT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
•
YOUR SHOWER MAY BE A SLIP AND FALL HAZARD CHECK WITH YOUR CONTRACTOR OR TILE MANUFACTURER REGARDING THE SAFE USE
OF YOUR FLOORING IN A STEAM APPLICATION. SLIPPING AND FALLING INTO THE STEAM HEAD ITSELF OR INTO THE STREAM OF STEAM
EMITTING FROM THE STEAM HEAD WILL CAUSE SERIOUS BURNS, OR PHYSICAL INJURY.
Note: Before contacting Customer Service for Technical Support, please have the model number and
serial number (including all numbers and letters) located on the unit.
2255 Union Place, Simi Valley, CA 93065 – (800) 776-0711
26 Industrial Avenue, Fairview NJ 07022 – (800) 631-1601
DOC NO. 81060
PRO SERIES
WARNING
Headquarters & Technical Support
Eastern Sales Office
www.thermasol.com
1 OF 18
Thank You!
RevA 06/01/03
