Page 1: Instruction Manual
® Hulk Compactor Range Manual Original Instruction Manual Read instructions before operating tools Models manual is applicable to: COMPACT24HP COMPACT110V COMPACT230V COMPACT230VEU V1.2 PUBLISHED DATE: 01/03/2016... -
Page 2: Specification
Model Specifications Evolution Power Tools reserves the right to make improvements and modifications to the design and technical specification of this product without prior notification. This manual was originally written in English. www.evolutionpowertools.com... - Page 3 HULK PETRoL EnGInED ComPACToR HULK ELECTRo ComPACToR Engine Type Single cylinder 4 stroke OHV Motor 230V or 115V 50/60 Hz 780 W Engine Power (HP) 2.4 @ 3600 min Motor Speed (min 2860 (no load) Spark Plug Replacement LD E6TC (available from Evolution)
-
Page 4: Table Of Contents
TABLE oF ConTEnTS PAGE Specification Important Information Evolution Limited Guarantee Instruction Manual Read instructions before operating this tool. General Safety Rules Additional Specific Safety Rules Labels and Symbols Machine Overview Getting Started General Operating Advice Maintenance Troubleshooting Guides Long Term Storage... -
Page 5: Evolution Limited Guarantee
Technical help is also not exhaustive) blades, cutters, drills, chisels available from your supplier. or paddles etc. In no event shall Evolution Power Tools be liable for loss or damage WEB www.evolutionpowertools.com/register resulting directly or indirectly from the use of our merchandise or from any other cause. - Page 6 1) General Power Tool Safety Warnings inattention while operating power tools may [Work area safety] result in serious personal injury. b) Use personal protective equipment. a) Keep work area clean and well lit. Always wear eye protection. Protective Cluttered or dark areas invite accidents. equipment such as dust masks, non-skid b) Do not operate power tools in explosive safety shoes, hard hat or hearing protection...
- Page 7 d) Store idle power tools out of the reach regulate the engines speed. You may alter the factory set running parameters. of children and do not allow persons unfamiliar with the power tool or these d. Use only the type of fuel listed in this Instructions to operate the power tool.
- Page 8 b. Smoking, using a naked flame or use of an approved face mask with replaceable producing sparks is strictly forbidden filters when using this machine. whilst refuelling. Petrol is highly flammable and its vapours are combustible. You should always: c. Ensure that the fuel tap is turned ‘off’. •...
- Page 9 If using this equipment on a construction site it is important that the operator conforms note: Hulk Petrol: It is best and safest practice to any site rules/regulations that may apply. when transporting this machine in a vehicle Consult the site foreman or other responsible person for details.
- Page 10 Reasons for Compaction ELECTRICAL SAFETY – HULK ELECTRo Disturbed soil, new infill, subbase or blacktop THE mAInS PLUG will have air pockets and small voids within, which, if not compacted can lead to possible This product is fitted with the correct moulded problems developing.
- Page 11 Contact Evolution Power and arm. It is possible that the operator Tools for replacement labels. could develop “Vibration white finger disease”...
-
Page 12: Machine Overview

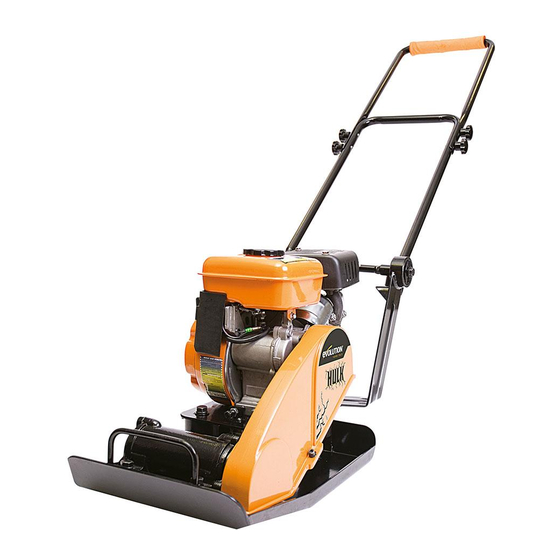

HULK PETRoL (12) (13) (11) (14) (10) 1. VIBRATION PLATE 8. ENGINE OIL FILLER/DIPSTICK 2. FUEL TANK 9. AIR FILTER 3. ENGINE ‘ON/OFF’ IGNITION SWITCH 10. SPARK PLUG 4. THROTTLE LEVER 11. EXHAUST 5. CHOKE CONTROL 12. ENGINE OIL DRAIN PLUG 6. - Page 13 mACHInE oVERVIEW HULK ELECTRo 1. VIBRATION PLATE 4. ANTI-VIBRATION HAND GRIP 2. CROSSBAR/CABLE STORE 5. UPPER SECTION - HANDLE 3. SAFETY START ‘ON/OFF’ SWITCH 6. MIDDLE SECTION - HANDLE www.evolutionpowertools.com...
-
Page 14: Getting Started
In addition to the standard items supplied with UnPACKInG this machine the following accessories are Caution: This packaging contains sharp also available from the Evolution online shop objects. Take care when unpacking. This at www.evolutionpowertools.com or from machine could require two persons to lift, your local retailer. - Page 15 If you have the petrol engined machine complete all assembly before filling the engine with 0.25L of the recommended service oil. 1. Attaching the Extension Handle – Hulk Petrol note: The Handle Extension has an anti-vibration hand grip which helps the operator to manage the vibration transmitted by the machine to the hand/ arm of the operator.
- Page 16 Safety Switch down to the motor is ‘free’ and not ‘trapped’ during the assembly process. Initial filling and checking the oil level – Hulk Petrol WARnInG: This machine does not come filled with oil. No attempt to start the engine must be made until the crankcase is filled to the correct level with the correct grade of oil.
- Page 17 • Hulk Petrol - Check all fuel hoses, unions and filler caps etc for signs of fluid leakage. Any leak detected must be repaired before operations commence.
- Page 18 Note: The Hulk will begin to vibrate and travel as soon as the engine is started. The operator should ensure due diligence when starting this machine. Stopping your Hulk Petrol Engine • Press the engine ignition rocker switch to the ‘OFF’ (0) position.
- Page 19 Travel – Hulk Petrol note: Adjusting the speed of the engine alters the frequency of vibration and also the speed at which the machine travels forwards. Adjusting the engine speed controls should only be attempted with the engine switched off and not running.
-
Page 20: General Operating Advice
We recommend that only competent operators who Fig. 12 have experience in servicing and maintaining petrol engines attempt these procedures. If in doubt have the machine serviced at an Evolution approved Service Centre. 1. Engine oil replacement Engine oil should be replaced after the initial ‘running in’... - Page 21 • Check the electrode gap of the plug using a set of feeler gauges. • Adjust if necessary. The gap is given in ‘Specification Hulk Petrol’. • Re-install the spark plug. Be careful that it engages the threads in the cylinder head correctly.
- Page 22 • Hand- tighten spark the plug using the supplied spark plug socket. • Slide a short, suitable tommy bar through the hole in the end of the spark plug socket. • Position the tommy bar so that equal amounts protrude through either side of the spark plug socket. •...
-
Page 23: Maintenance
4. Fuel Tank Filler Filter Occasionally visually check the condition of the fuel tank filler filter (when refuelling is ideal). If there is any sign of deposit build up, remove the filter from the tank and clean. • Clean the filter with environmentally friendly water based degreasing agent and if necessary blow the fine mesh through with clean, dry compressed air. - Page 24 • Replace the drive Belt Guard and securely tighten the three (3) socket headed screws in their original positions. 6. Recoil Starting System The ventilation slots should be kept clean and free from any obstructions. Remove any foreign matter from the ventilation slots. HULK PETRoL RoUTInE mAInTEnAnCE After first 4 Every Every...
- Page 25 Remove spark plug, clean and replace. Try again until engine fires. Air Filter clogged or Replace Air Filter. contaminated with oil. major Fault. Contact Agent or Evolution Power Tools for further advice. machine Belt Tension Incorrect. Adjust the belt tension. does not vibrate.
-
Page 26: Troubleshooting Guides
Hulk not Travelling. LonG TERm SToRAGE HULK PETRoL If your Evolution machine is not going to be used for a period of 4 months or more (e.g. over the winter period) the operator should consider preparing it for long term storage. -
Page 27: Environmental Protection
Use of optional Evolution Accessories (available as a customer purchase option) Evolution Paving Pad Using the Paving Pad allows the operator to compact/settle Driveway Paving, Block Paving and Patio Slabs etc without the risk of damage or scratching to the decorative top surface of the pavings by the steel vibration pad. - Page 28 PARTS DIAGRAm www.evolutionpowertools.com...
- Page 29 ® The manufacturer of the product covered by this Declaration is: Evolution Power Tools, Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant provisions of the Machinery Directive and other appropriate directives as detailed below.
- Page 30 PARTS DIAGRAm www.evolutionpowertools.com...
- Page 31 ® The manufacturer of the product covered by this Declaration is: Evolution Power Tools, Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant provisions of the Machinery Directive and other appropriate directives as detailed below.
- Page 32 ® UK HQ FRAnCE HQ USA HQ Evolution Power Tools, Evolution Power Tools, Evolution Power Tools LLC, Venture One, Longacre Close, 61 Avenue Lafontaine, 33560, 8363 Research Drive, Holbrook Industrial Estate, Carbon-Blanc, Davenport,Iowa 52806 Sheffield, S20 3FR, UK France U.S.A TEL: +44 (0) 114 251 1022 TÉL: + 33 (0)5 57 30 61 89...
