dr. Tech WH1170 Instruction Manual

Wall hanging or free standing
Hide thumbs

Advertisement

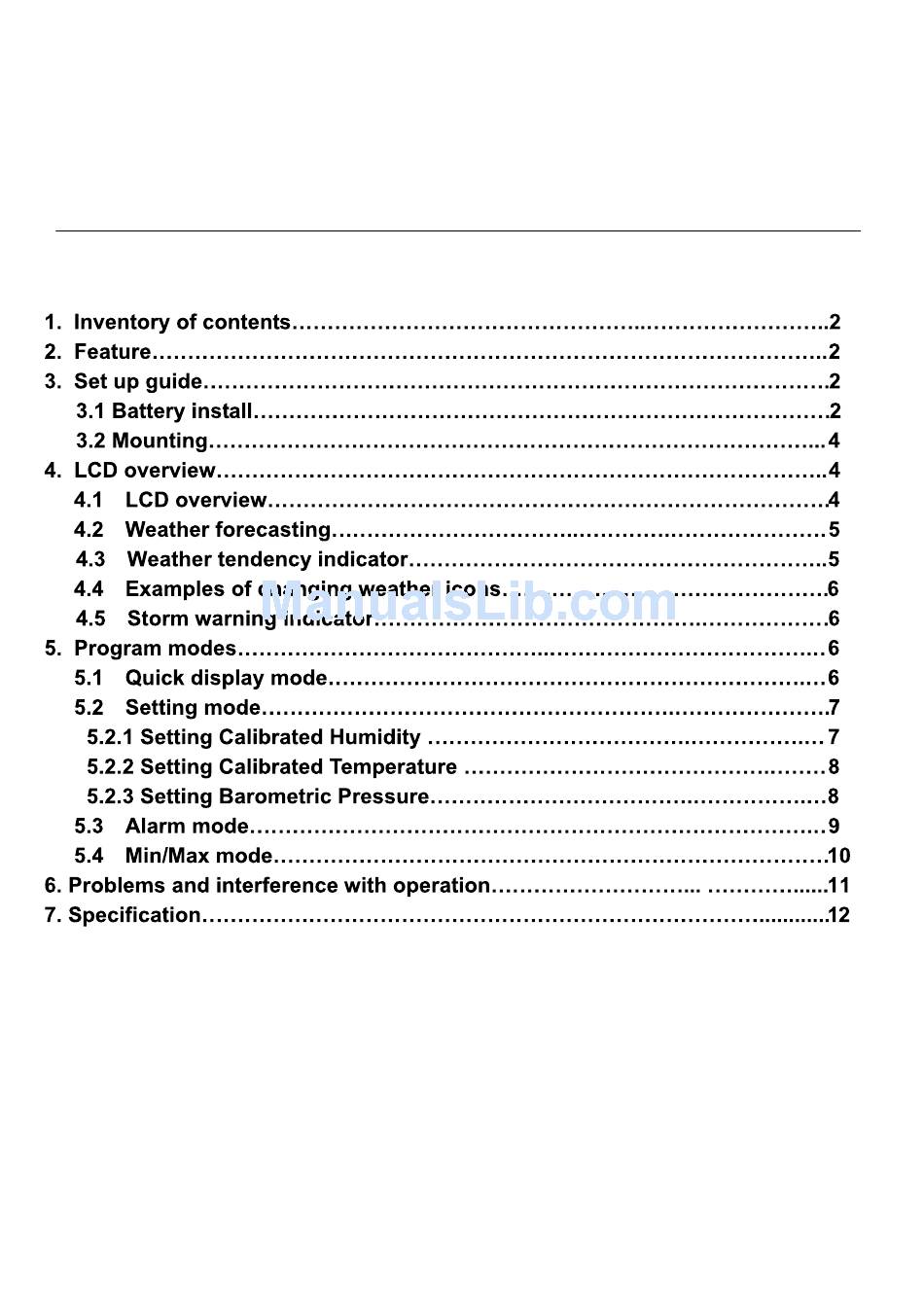

Table of Contents

WIRELESS WEATHER STATION
INSTRUCTION MANUAL
Page
This Operation Manual is part of this product and should be kept in a safe place for
future reference. It contains important notes on setup and operation.
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WH1170 and is the answer not in the manual?

Questions and answers

Bratt
August 3, 2025

comment réinitialiser le fuseau horaire à 1

0

Summary of Contents for dr. Tech WH1170

  • Page 1 WIRELESS WEATHER STATION INSTRUCTION MANUAL Page This Operation Manual is part of this product and should be kept in a safe place for future reference. It contains important notes on setup and operation. - 1 -...

  • Page 2: Inventory Of Contents

    1. Inventory of contents 1) Base station 2) One WH2 remote sensor with mounting bracket 3) Instruction manual 2. Feature 1) Wireless outdoor and indoor humidity (%RH) 2) Wireless outdoor and indoor temperature (°F or °C) 3) Records min. and max. humidity 4) Records min.
  • Page 3 After the remote sensor is powered up, the sensor will transmit weather data every 8s for 6 times. After this learning period is over, then the transmitter will transmit every 48s. When the base station is powered up, a short beep will sound and all LCD segments will light up for about 3 seconds before it enters into learning mode to learn the sensors security code.

  • Page 4: Lcd Overview

    3.2 Mounting 1) Base station With one foldable legs at the back of the unit, the base station can be placed onto any flat surface or wall mounted at the desired location by the hanging holes also at the back of the unit. It is important to check that the radio signal can be received before permanently mounting any of the units 2) Remote sensor Note: To achieve a true temperature reading, avoid mounting...
  • Page 5 1. DST 16. Outdoor humidity display 2. DCF Radio Controlled Time 17. Outdoor temperature and humidity 3. Time low/high alarm 4. Radio Controlled Time icon 18. Temperature display unit 5. Alarm on indicator 19. Outdoor temperature display 6. Day of week/ time zone 20.

  • Page 6: Program Mode

    4.4 Examples of changing weather icons: 4.5 Storm warning indicator The storm threshold can be set to suit the user’s requirement for storm forecasting from 3-9hPa (default 4hPa). When there is a fall over pressure threshold within 3 hours, the storm forecasting will be activated, the clouds with rain icon and tendency arrows will flash for 3 hours indicating the storm warning feature has been activated.
  • Page 7 5.2 Setting Modes - Press the SET key for 3 second while in normal mode to enter the normal Setting mode - Press the SET key to select the following setting in sequence : 1) Time Zone Setting The default time zone setting value is 0 base on Germany DCF time (GMT+1) 2) 12/24 hour format 3) Manual time setting (hours/minutes) 4) Calendar setting (year /month /date)
  • Page 8 Note: The remote (outdoor) thermo-hygrometer will always display the measured humidity level and not the calibrated humidity level. Only the console will show the calibrated value. Note: The dew point calculation is based on the calibrated humidity level. 5.2.2 Setting Calibrated Temperature Temperature is measured by a resistive thermal device (RTD) and is subject to electronic variation.
  • Page 9 The standard sea-level pressure is 29.92 in Hg (1013 mb). This is the average sea-level pressure around the world. Relative pressure measurements greater than 29.92 inHg (1013 mb) are considered high pressure and relative pressure measurements less than 29.92 inHg are considered low pressure. To determine the relative pressure for your location, locate an official reporting station near you (the internet is the best source for real time barometer conditions, such as Weather.com or Wunderground.com), and set your weather station to match the...
  • Page 10 Canceling the Temperature Alarm While Sounding a. When a set weather alarm condition has been activated, that particular alarm will sound and flash for 120 second. Press any key to mute the alarm. When weather alarm condition was activated again within 10 minutes, alarm will not sound but will continue to flash until weather conditions have become more steady.

  • Page 11: Problems And Interference With Operation

    - In the minimum reading Mode, press the + key to display the following minimum values together with the time and date at which these values were recorded, if press SET key for 2 seconds in the following individual minimum value will be reset to current reading: 1.
  • Page 12 - 12 -...
