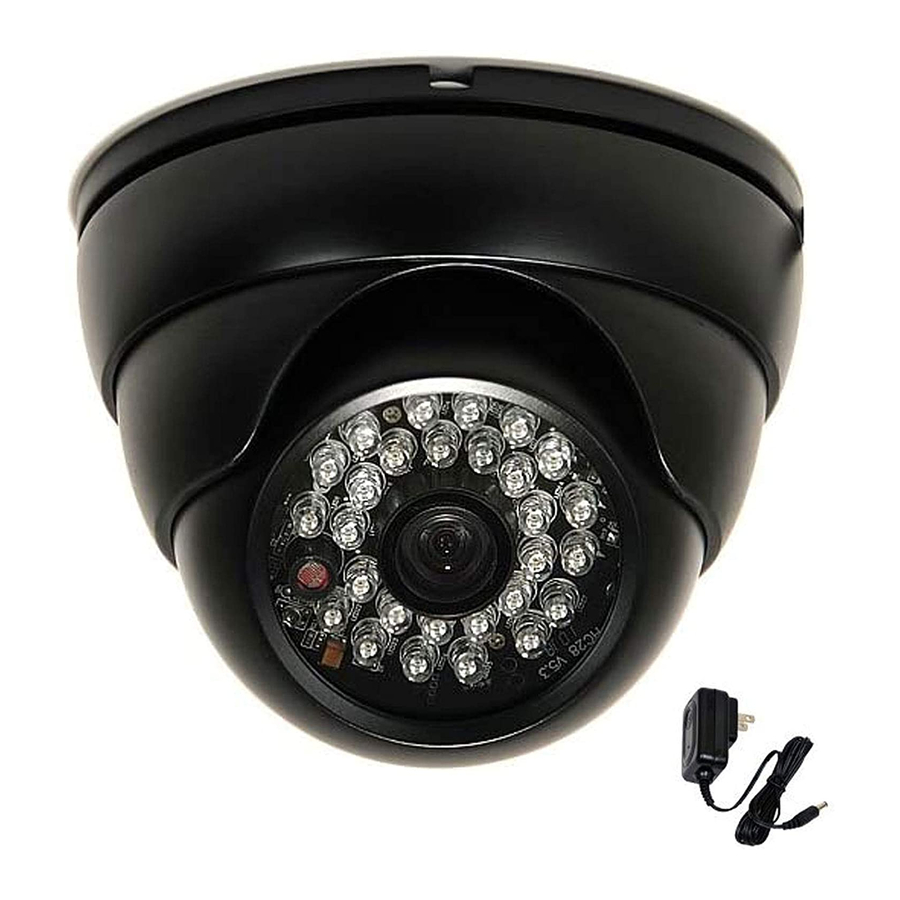

700TVL
REAL WDR/3DNR/DEFOG/I R OPTI M I Z E/ SCENE SELECTI O N
DOME CAMERA
USER'S MANUAL
Sony 960H Double Scan CCD II
■
Horizontal Resolution of over 700 TV Lines
■
IR LED : 30 units (IR Type)
■
Night View Distance : Indoor 35 / Outdoor 25m(IR Type)
■
Real Wide Dynamic Range
■
True Day & Night(ICR)
■
Day & Night(w/o ICR)
■
2D&3D Noise Reduction
■
IR-Optimizer
■
Digital Image Stabilizer
■
Defog(Auto. Detection)
■
Motion Detection (Frame rate link)
■
Multi-languages OSD
■
Polygon Privacy mask
■
Intelligent scene recognition
■
Lens shading compensation
■
Coaxial communication
■
3-Axis Gimbal & Vandalproof Dome Housing(Vandalproof Type)
■
3-Axis Gimbal & Plastic Dome Housing
■
Weatherproof (IP66)(Vadalproof Type)
■
51-002-301
Advertisement
Table of Contents
Related Manuals for Effio 700TVL
Summary of Contents for Effio 700TVL
-

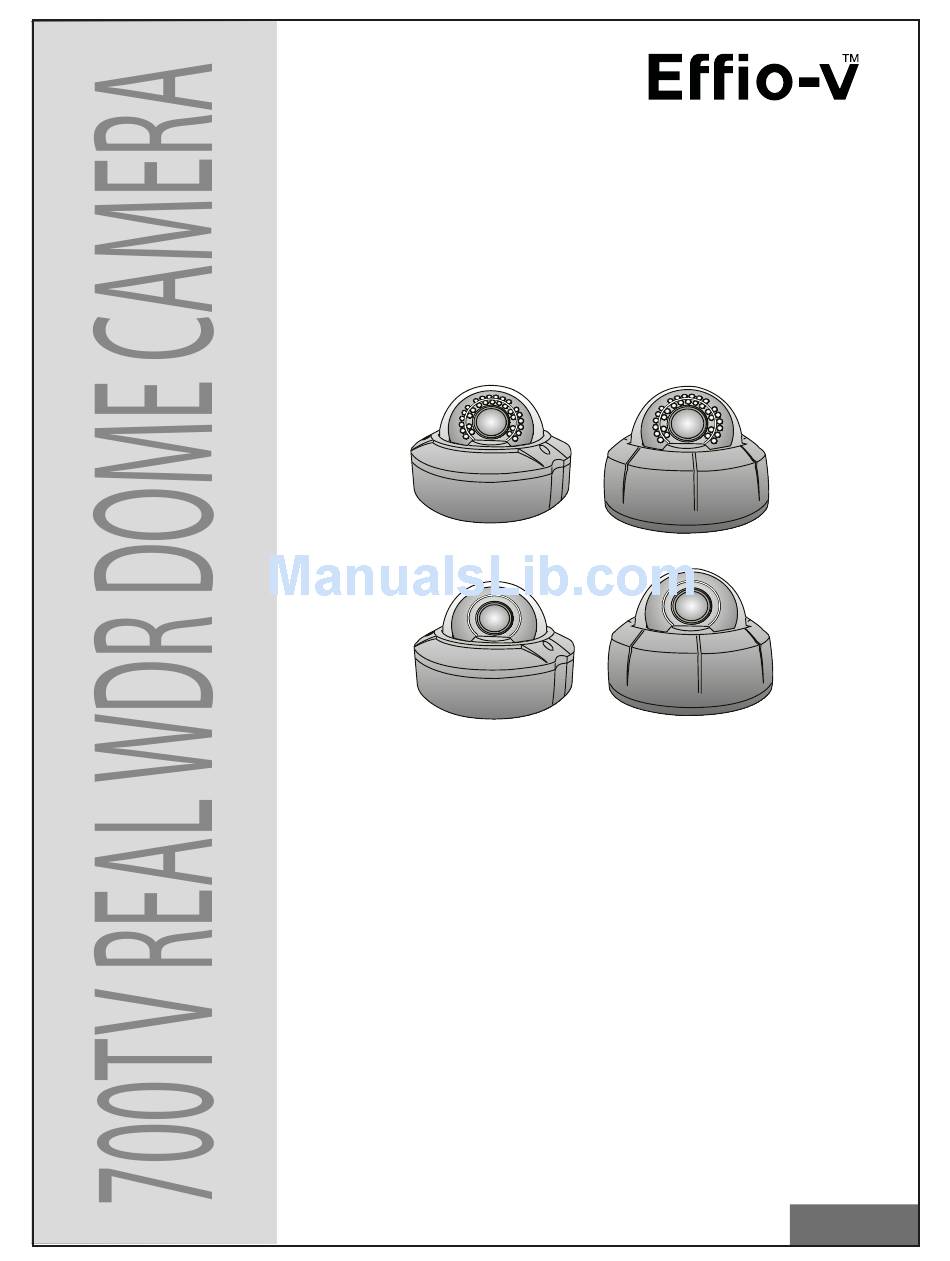

Page 1: Dome Camera
700TVL REAL WDR/3DNR/DEFOG/I R OPTI M I Z E/ SCENE SELECTI O N DOME CAMERA USER’S MANUAL Sony 960H Double Scan CCD II ■ Horizontal Resolution of over 700 TV Lines ■ IR LED : 30 units (IR Type) ■... - Page 2 The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
- Page 3 Precaution Do not Keep the camera face to strong light directly Do not install the camera in extreme temperature conditions. Do not disassemble the camera even if troubles happened To avoid malfunctions, never use the camera close to a gas or oil leak Do not drop the camera or subject them to physical shocks.
- Page 4 Horizontal Resolution ■ Over 700TVL with 960H CCD DNR(Digital Noise Reduction) ■ -Improved “blur” of moving objects -Fine color reproduction in low luminance Low Light Performance ■...
-
Page 5: Names And Functions Of Parts
2. Names and Functions of Parts IR LED Type ③ ② ① ③ ② ⑤ ZOOM ① ⑥ ④ FOCUS Non IR LED Type ② ① ② ①... - Page 6 ① Base ② Dome Cover Ring ③ IR LEDs ④ Focus Handle Used to provide for accurate of an object within the lens field of view ⑤ Zoom Handle Used to adjustzoom magnification by turning ⑥ OSD Board Service Video LEFT ENTER DOWN...
-
Page 7: Installation And Connection
4. Installation & Connection Vandalproof Dome Camera Plastic Dome Camera Wall Wall Note : * Ceiling pad(gasket) should be sticked to above base in installation place. * Wall mounting backet and other instruments should be used with dome camera if the installation condition is not appropriate to cover the whole dome base. - Page 8 DC Power Connecting Adaptor Power (Adaptor Plug) Video Cable RS485 -(White) (Option) RS485 +(Orange) RS485 - RS485 + Monitor PORT2 PORT1 RX TX RX AC Power Connecting Power Adaptor Video Cable RS485 -(White) (Option) RS485 +(Orange) RS485 - RS485 + Monitor PORT2 PORT1...
-
Page 9: Setup Menu Flow
5. Setup Menu Flow SETUP MENU ADVANCED MENU SHUTTER CUSTOM FULL AUTO SCENE SELECT INDOOR SHUTTER/ MANUAL SHUTTER OUTDOOR AGC MAX BACKLIGHT AUTO AE LEVEL AGC MAX SENS UP SPEED DELAY CNT WHITE BAL ATW FRAME ENVIRONMENT PUSH USER1 B-GAIN R-GAIN B-GAIN USER2... - Page 10 ADVANCED MENU MODE IR AREA BOTTOM LEFT RIGHT WEIGHT LEVEL IR OPTMIZER IR LED LEVEL LEVEL MIN DAY/NIGHT LEVEL MAX COLOR NIGHT COLOR GAIN IR SHADE COMP PATTERN POSH POSV LENS SHD COMP PATTERN POSH POSV DEFOG LEVEL FLKLESS MODE...
- Page 11 PICT ADJUST SETUP MENU ADVANCED MENU BRIGHTNESS CONTRAST SHARPNESS EZOOM COLOR GAIN TILT PRIVACY MASK AREA SEL DISPLAY POSITION COLOR TRANSP MOSAIC DETECT SENSE MOTION DET INTERVAL BLOCK DISP MASK AREA AREA SEL AREA MODE MOTION AREA BOTTOM LEFT RIGHT SYNC MODE PHASE SYS SETTING...
-
Page 12: Language Version
SETUP MENU ADVANCED MENU SYS SETTING FLIP LCD/CRT PROTOCOL ADDRESS COMMUNICATION BAUD RATE DATABIT PARITY STOP BIT CAMERA ID LANGUAGE VERSION MANUAL REGISTRATION REG. POINT CURSOR COLOR W.PIX MASK BLINK MAINTENANCE REG.NUMBER AUTO BACK DATA CLEAR CAMERA RESET SAVE EXIT NOT SAVE CANCEL BACK... - Page 13 6. Dimension unit :mm...
-
Page 14: Specifications
7. SPECIFICATIONS NTSC TV System Sony 960H Double Scan CCD II Sensor (H)1020 x (V)508 (H)1020 x (V)596 Total Pixels (H)976 x (V)494 (H)976 x (V)582 Effective Pixels H/V 15.734/59.94Hz H/V 15.625/50Hz Synchronization 2:1 Interlace Scanning System 700 TV Lines in color Horizontal Resolution Color : 0.3 Lux Min. -
Page 15: Positive / Negative
2D, 3D (OFF / 1~6) Digital Noise Reduction OFF / H / V / HV Flip(Mirror) POSITIVE / NEGATIVE Effect 1 ~ 20 Steps Lens Shading Compensation OFF / On (15 masks) Polygon Privacy Mask OFF / ON (24 x 16 Block) Motion Detection MANUAL / AUTO (64 point) Blemish Compensation... -
Page 16: Product Warranty Card
PRODUCT WARRANTY CARD 1) ITEM # : 2) S/N # : 3) INSTALLATION CONDITION - Indoor / Outdoor - Power supply SPECIFICATION : DC12V / AC24V CURRENT __________ mA 4) TROUBLESHOOTING - No picture - Bad image - No power - Water damage - LED ON / OFF...
