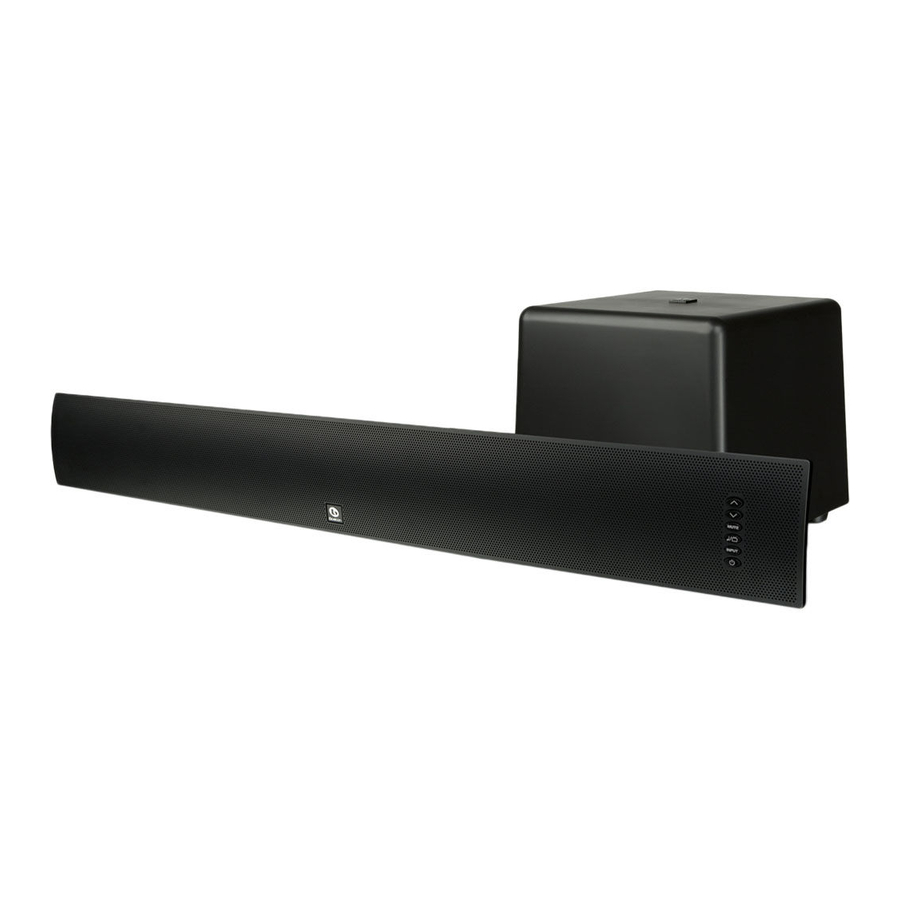

Boston Acoustics TVee 25 Service Manual

Television entertainment enhancement system
Hide thumbs Also See for TVee 25:

Advertisement

Quick Links

Download this manual See also: Owner's Manual
TVee
®
Television Entertainment Enhancement System
Español
Subwoofer de Sistema para realzar
la televisión y el entretenimiento
TVee Model 25 Service Manual
doméstico
Model 25
Français
Système d'amélioration sonore
pour la télévision
30-June-2011

Advertisement

loading
Need help?

Need help?

Do you have a question about the TVee 25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Boston Acoustics TVee 25

Summary of Contents for Boston Acoustics TVee 25

  • Page 1 TVee Model 25 ® Television Entertainment Enhancement System Español Français Subwoofer de Sistema para realzar Système d’amélioration sonore la televisión y el entretenimiento pour la télévision TVee Model 25 Service Manual doméstico 30-June-2011...

  • Page 2: Specifications

    Specifications System Power: 150 watts peak Soundbar Woofers: Dual 11/2” x 6” HHRT drivers Subwoofer: 6” woofer Wireless Technologies: 2.4 GHz frequency hopping (subwoofer) Dimensions: (H x W x D) Soundbar 4 7 / x 311/2 x 4 7 / ”...
  • Page 3 Troubleshooting TVee Soundbar does not power on. • Is the power supply plugged into a live wall outlet? • Is the power supply properly connected to the soundbar power input? • Is the rear panel power switch in the “on” position? •...
  • Page 4 There is a “pop” noise when I turn off my television. • Program TVee to be turned on and off with the power button on your television remote control. Volume of my television speakers gets louder than my TVee system over time. •...
  • Page 5 also used on TVeeM20? TVee Model 25 Service Parts List 120‐002924 PHONO WIRE SET TVEEM2 120‐003475 CABLE OPTICAL TVEEM25 120‐003480 TVEEM25 BAR ELECTRONICS ASSEMBLY 120‐003481 TVEEM25 SUB AMP ASSY‐120V 120‐003486 TVEEM25 SUB AMP ASSY‐230V 120‐003491 GRILLE ASSY TVEEM25 126‐000159 UNIV PS 20VDC 120VAC 126‐000162 UNIV PS 20VDC 230VAC 132‐000165 FUSE 1.0A 250V 20MM VDE FUSE 0.5 A 250V 20MM TIME LAG 132‐000166 137‐001634 DETACHABLE POWER CORD 120V 137‐001635 DETACHABLE POWER CORD 230V 141‐002382 TVEE CLOTH BAG BAR 141‐002384 TVEE CLOTH BAG SUB 141‐002795 INNER RSC BAR 141‐002796 INNER RSC ENDS 141‐002797 INNER KRAFT PAPER TOP 141‐002798 INNER RSC SUB 141‐002799 INNER RSC BOTTOM 141‐002858 RSC‐1‐EA TVEEM25 141‐002859...
  • Page 7 VREF-1 C164 LMV934 CN20 74HC4052 To Power Switch AIN1 10uF/16V AIN0 R119 A3.3V DC-Input R6H-3T LD1117-5V LD1117-3V3 680R/1W Aux in 100P 100P/NPO TH 4 Ohm/4A R133 C142 C09A 10K/0805 47.5K R48 0R 0.1U 1000u/25V 0.1U 220u/16V 0.1U 220u/16V 470u/16V C165 0.1U 10uF/16V EJ-3556A...
  • Page 8 For REFERENCE ONLY - Please see BA p/n's in service parts list PDF 檔案以 "FinePrint pdfFactory Pro" 試用版建立 http://www.fineprint.com...
  • Page 9 For REFERENCE ONLY - Please see BA p/n's in service parts list PDF 檔案以 "FinePrint pdfFactory Pro" 試用版建立 http://www.fineprint.com...
  • Page 10 For REFERENCE ONLY - Please see BA p/n's in service parts list PDF 檔案以 "FinePrint pdfFactory Pro" 試用版建立 http://www.fineprint.com...
  • Page 11 the D2 Audio "SCAMP" tool is BA p/n 120-003489 Step 1: Connect the D2 SCAMP tool as shown below and also connect the USB cable to the D2 SCAMP tool (The GREEN LED should blink) Step 2) Power on the Tvee25 press the standby button press the standby button again (standby mode) Step 3) Launch TOAST...
  • Page 12 Step 4) Select the correct D2E file (file name will change depending on release version) Step 5) Press the “Load” Button and the progress will happen as follows with a successful load Page 2 of 4...
  • Page 13 Page 3 of 4...
  • Page 14 Step 6) Power off and disconnect all programming cables Page 4 of 4...
  • Page 15 the Megawin MCU programming tool is BA p/n 120-003487 Programming the TVee MCU using the Megawin 8051 ISP-ICP Programmer Please note: to carry out these programming instructions using a PC, it is necessary to first install the driver and the application program (see Chapter 3 of the User Manual). Also, transfer the Megawin Project File (.mpj) to the PC then, follow the steps below: supporting information for the following steps is posted on SDI Connect MEGAWIN programmer to the USB connection on the computer.
  • Page 16 Please Note: After the programmer has been updated, disconnect the USB cable from the PC and the programmer, then proceed: Power off the TVeeM20/25/30 (press power switch to off). Connect Megawin programmer to 4-pin header on TVeeM20/25/30 – (note it's not connected to the PC at this point). Verify GND to GND connection between TVee and Megawin (see image below).
