INMOVEMENT DT4 Dual User Manual

Elevate desktop

Advertisement

Quick Links

Elevate Desktop DT4 Dual
For the latest User Installation Guide please visit: www.joininmovement.com
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Deutsch
Benutzerhandbuch - Nederlands
Guida per l'utente - Italiano
Användarhandbok - svenska
ユーザーガイド : 日本語
用户指南 : 汉语
888-45-342-G-00 rev. C • 07/15
Maximum total weight (including monitor, keyboard
and mouse) not to exceed 20 lbs ( 9.1 kg)
www.joininmovement.com
1 (844) 646-6683
User's Guide
Reduce.Reuse.Recycle
1 of 18

Advertisement

loading
Need help?

Need help?

Do you have a question about the DT4 Dual and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for INMOVEMENT DT4 Dual

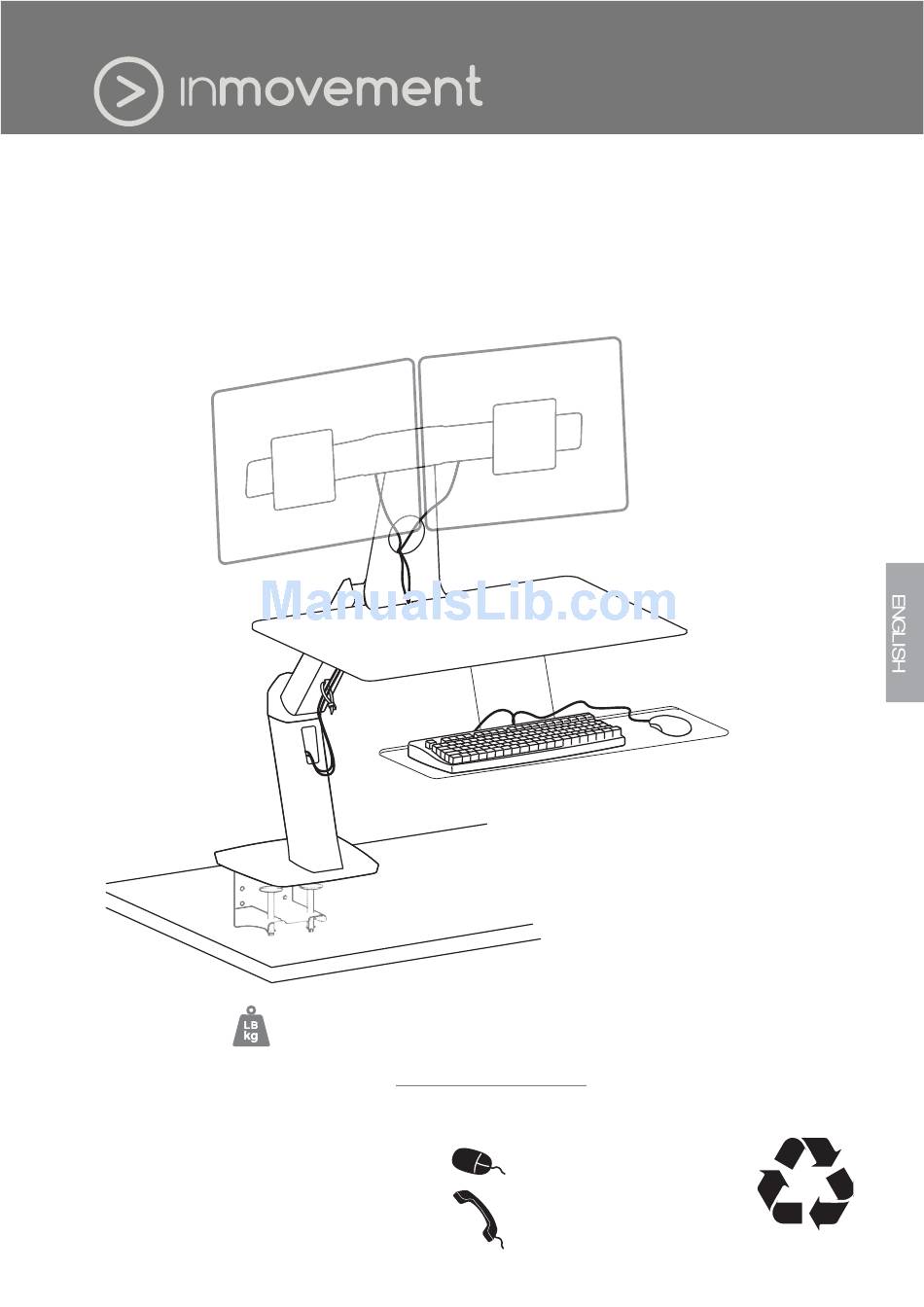

  • Page 1 User's Guide Elevate Desktop DT4 Dual Maximum total weight (including monitor, keyboard and mouse) not to exceed 20 lbs ( 9.1 kg) For the latest User Installation Guide please visit: www.joininmovement.com User's Guide - English Guía del usuario - Español Manuel de l’utilisateur - Français...
