Summary of Contents for Transition Networks SI-IES-1200-LRT

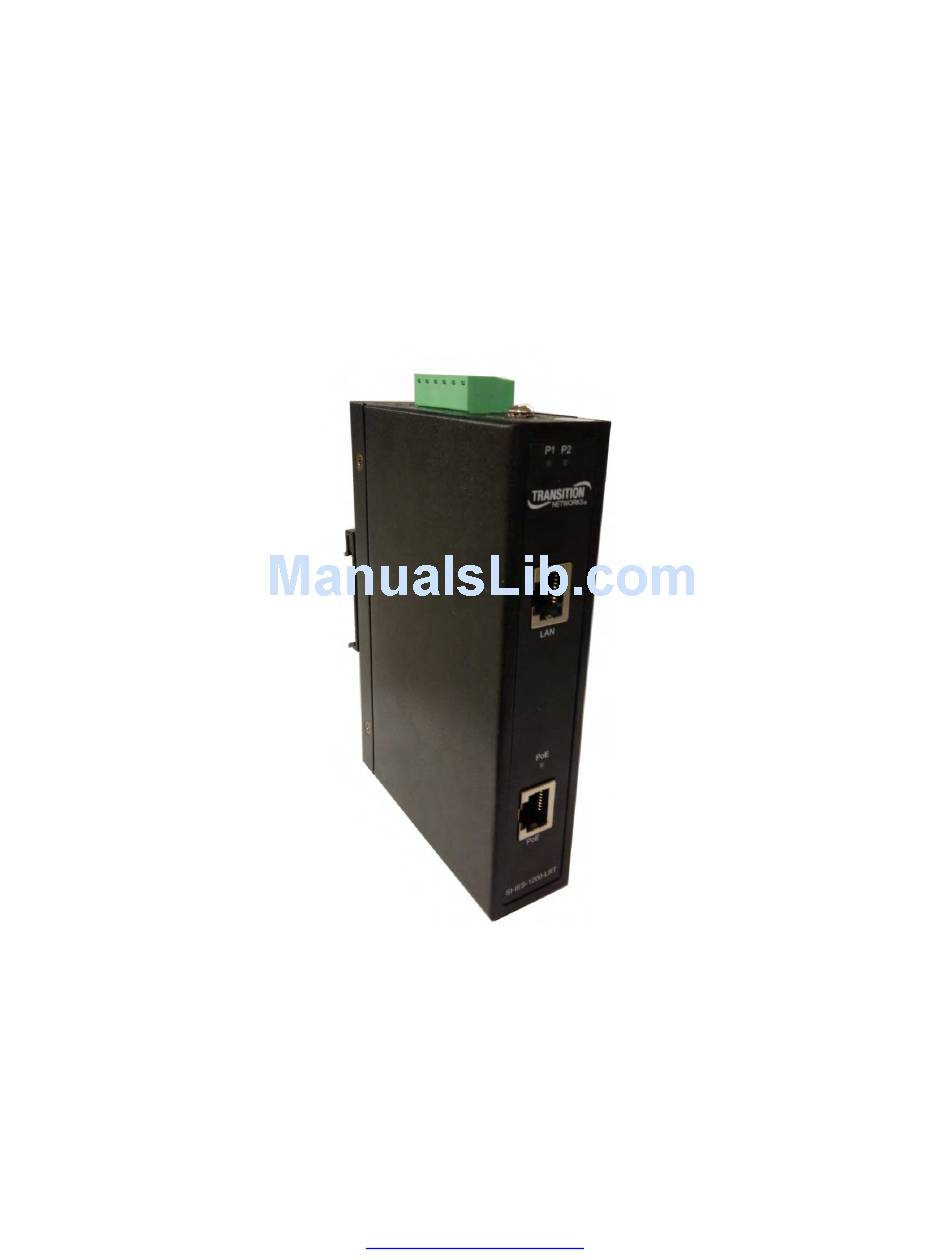

- Page 1 Transition Networks SI-IES-1200-LRT User Manual SI-IES-1200-LRT Hardened Gigabit PoE/PoE+ Injector User Manual PN 33586 Rev. D 33586 Rev. D https://www.transition.com Page 1 of 21...
- Page 2 All trademarks and registered trademarks are the property of their respective owners. Copyright Notice/Restrictions Copyright © 2014- 2017 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means (graphic, electronic or mechanical) without written permission from Transition Networks.
-
Page 3: Table Of Contents
Transition Networks SI-IES-1200-LRT User Manual Table of Contents Overview ............................... 4 Introduction..............................4 Features ..............................4 Specifications ............................5 Packing List ............................... 6 Optional Accessories (sold separately) ....................6 Hardware Description ............................ 6 Dimensions..............................6 Front Panel ..............................7 Top View ..............................8 Grounding the PoE Injector ........................ -
Page 4: Overview
SI-IES-1200-LRT User Manual Overview The SI-IES-1200-LRT is an unmanaged hardened PoE+ injector that adds up to 30 Watts of power on a network segment. Injectors are commonly used to power PoE devices in locations where a power source does not exist. The injector has redundant input power connections, and a fault alarm relay to ensure safe reliable operation in temperatures between -40°C and +75°C. -
Page 5: Specifications
Transition Networks SI-IES-1200-LRT User Manual Specifications IEEE802.3 10BASE-T and IEEE802.3u 100BASE-TX Standards IEEE802.3ab 1000Base-T IEEE802.3af/at Power over Ethernet. Compliant with 802.3at in Environment A when using an isolated power supply. LAN port: Data/Signal pins 1, 2, 3, 6 PoE port: Data/Signal pins 1, 2, 3, 6... -
Page 6: Packing List
Transition Networks SI-IES-1200-LRT User Manual Packing List □ One Power over Ethernet Injector □ One Wall-mounting Kit □ One DIN-rail mounting clip □ One Documentation Postcard Optional Accessories (sold separately) Industrial Power Supply 25130. Input: 85-264VAC, 120-370VDC. Output: 48VDC, .83A, 39.8 Watts. -
Page 7: Front Panel
Transition Networks SI-IES-1200-LRT User Manual Front Panel The Power over Ethernet Injector front panel has two RJ-45 ports and three LED indicators. LAN port: RJ-45 Ethernet port used to connect to the existing Ethernet network. PoE port: RJ-45 Ethernet port capable of supplying power over the Ethernet cable and providing an Ethernet connection to powered devices. -
Page 8: Top View
Transition Networks SI-IES-1200-LRT User Manual Top View The SI-IES-1200-LRT is designed with two redundant power inputs which allows you to supply redundant input power in the range of 24 to 48V. Grounding the PoE Injector Follow the instructions below to attach the PoE Injector to ground. -
Page 9: Wiring The Power Inputs
48 to 51VDC, so you do not need to adjust input voltage above 48VDC in order to meet IEEE802.3at PoE+ spec. The SI-IES-1200-LRT provides 51VDC with 600mA to the PD, which meets the IEEE802.3at spec. So even you have the input to the SI-IES-1200-LRT set to 48VDC, the POE port output always provides 51VDC. 33586 Rev. D https://www.transition.com... -
Page 10: Rj-45 Pin Assignments
Transition Networks SI-IES-1200-LRT User Manual RJ-45 Pin Assignments The UTP/STP ports will automatically sense for Fast Ethernet (10Base-T/100Base-TX) or Gigabit Ethernet (10Base-T/100Base-TX/1000Base-T) connection. Auto MDI/MDIX means that the port can connect to another switch or workstation without changing straight through or crossover cabling. See the figures below for straight through and crossover cable schema. -
Page 11: 10/100Base-Tx Cable Schema
Transition Networks SI-IES-1200-LRT User Manual 10/100Base-TX Cable Schema 10/100/1000Base-T Pinouts The table below describes the gigabit Ethernet RJ-45 pinouts. Pin # Signal Name Description BI_DA+ Bi-directional pair A+ BI_DA- Bi-directional pair A- BI_DB+ Bi-directional pair B+ BI_DC+ Bi-directional pair C+... -
Page 12: 10/100/1000Base-T Cable Schema
Transition Networks SI-IES-1200-LRT User Manual 10/100/1000Base-T Cable Schema The following two figures illustrate the 10/100/1000Base-T cable schema. 33586 Rev. D https://www.transition.com Page 12 of 21... -
Page 13: Power Supply Specifications
Transition Networks SI-IES-1200-LRT User Manual Power Supply Specifications Power supply option TN PN 25130 specs are provided below (subject to change). This power supply provides the isolation recommended for Environment A. 25130 Features and Specifications Features Variable AC input range ... -
Page 14: 25130 Dimensions
Transition Networks SI-IES-1200-LRT User Manual 25130 Dimensions Dimensions: Width: 1.57” [40 mm] Depth: 3.94” [100 mm] Height: 3.54” [90 mm] 33586 Rev. D https://www.transition.com Page 14 of 21... -
Page 15: Installation
Transition Networks SI-IES-1200-LRT User Manual Installation DIN-Rail Mounting Assembling the DIN-Rail Clip The DIN-Rail clip is screwed on the device at the factory. If not, please refer to the following steps and figure to secure the DIN-Rail clip on the device. -
Page 16: Mounting The Poe Injector
Transition Networks SI-IES-1200-LRT User Manual Mounting the PoE Injector Follow the steps below to hang the device on the standard DIN rail. 1. Position the rear side of the device directly in front of the DIN rail. Make sure the top of the clip hooks over the top of the DIN rail. -
Page 17: Wall-Mount Plate Mounting
Transition Networks SI-IES-1200-LRT User Manual Wall-Mount Plate Mounting Follow the steps below to mount the device with the wall-mount plates. 1. To remove the DIN-Rail clip from the device, unscrew the screws that secure it. 2. Align the screw holes of the wall-mount plates with the ones of the device. -
Page 18: Troubleshooting
Transition Networks SI-IES-1200-LRT User Manual Troubleshooting □ Verify that you are using the right power cord and adapter. Do not use a power adapter with DC outputs higher than the power rating of this equipment, or damage will occur. □... -
Page 19: Warranty
180-day limited warranty. All warranty claims are subject to the restrictions and conventions set forth by this document. Transition Networks reserves the right to charge a $50 fee for all testing and shipping incurred, if after testing, a return is classified as “No Problem Found.”... -
Page 20: Declaration Of Conformity
SI-IES-1200-LRT User Manual THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR IMPLIED. TRANSITION NETWORKS IS NOT LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, INCLUDING LOSS OF DATA, ARISING FROM ANY CAUSE OR THEORY. AUTHORIZED RESELLERS ARE NOT AUTHORIZED TO EXTEND ANY DIFFERENT WARRANTY ON TRANSITION NETWORKS’S... - Page 21 10900 Red Circle Drive Minnetonka, MN 55343 USA Tel: 952- 941-7600 or 1-800-526-9267 Fax: 952-941-2322 Copyright © 2013-2017 Transition Networks All rights reserved. SI-IES-1200-LRT Hardened Gigabit PoE/PoE+ Injector User Manual, PN 33586 Rev. D 33586 Rev. D https://www.transition.com Page 21 of 21...
