Summary of Contents for MGE UPS Systems Galaxy 5000

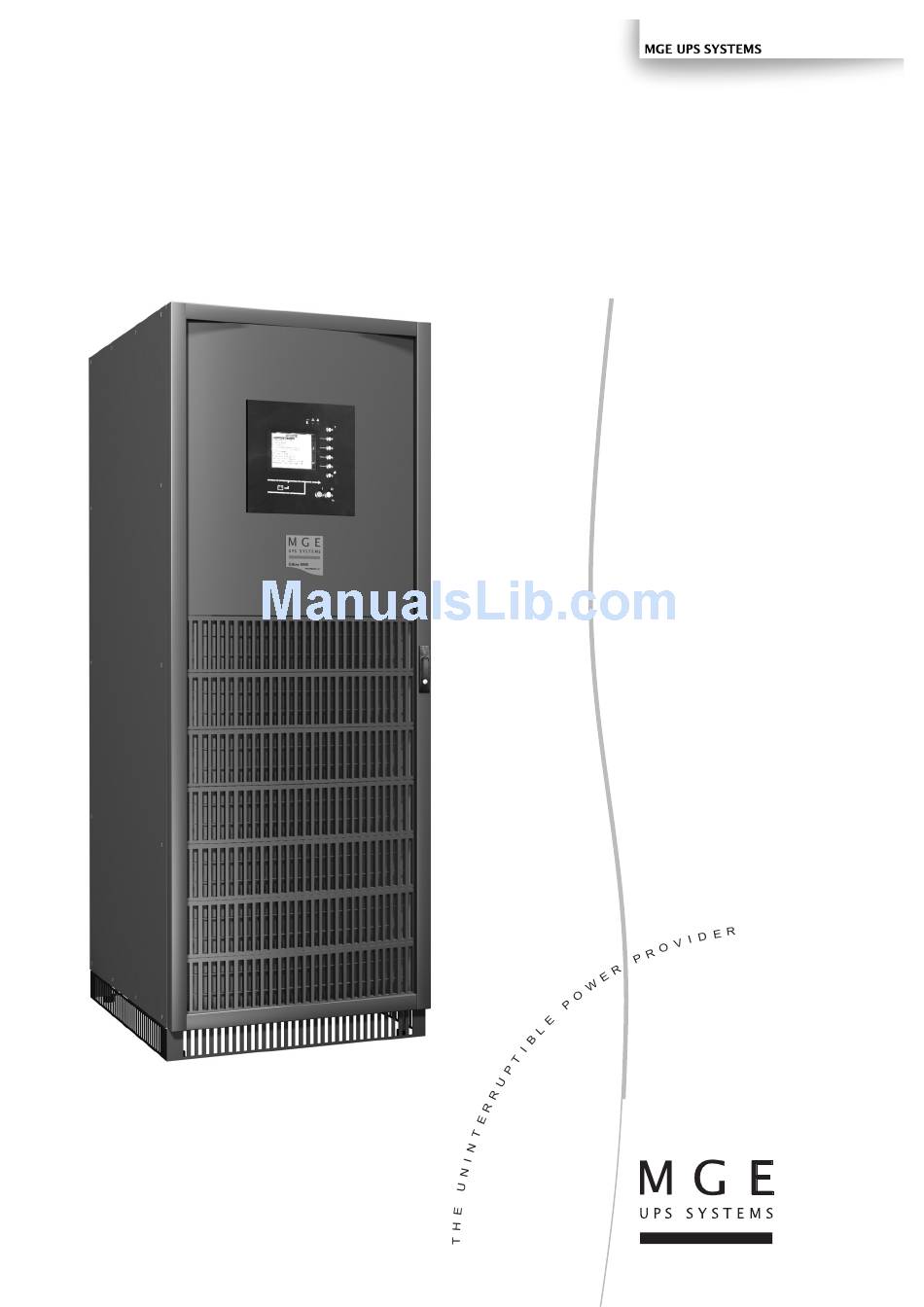

- Page 1 Galaxy 5000 20 - 120 kVA Battery circuit-breaker cabinet Installation manual - Page 1 34003641FR/AA...
-
Page 2: Table Of Contents
Galaxy 5000 at the end of its service life. To discover the entire range of MGE UPS SYSTEMS products and the options available for the Galaxy 5000 range, we invite you to visit our web site, www.mgeups.com, or contact your local MGE UPS SYSTEMS representative. -
Page 3: Installation Of Cabinet
1. Installation of cabinet ◗ the circuit-breaker cabinet must be located as close to the battery as possible, ◗ the cabinet is fixed to a vertical wall by means of 4 screws of diameter 8 using the fastening lugs placed in the vertical or horizontal position, ◗... -
Page 4: Characteristics Of Cabinet
2. Characteristics of cabinet ◗ the characteristics of the cabinets indicated in the tables below are valid for a linear load charge with power factor of 0.8 and a minimum battery voltage set to 335 V on the inverter side (340 V on the battery side), ◗... -
Page 5: Electrical Characteristics Of Cabinet
2. Characteristics of cabinet 2.2 Electrical characteristics of cabinet Inverter Maximum battery backup QF1 circuit-breaker rated power times at Pn Type Release Magnetic Thermal in kVA setting setting < or = to 10 mn NS100 TM100D 800 A > 10 mn NS100 TM100D 800 A... -
Page 6: Connections
3. Connection 3.1 Connection points Cabinet for Galaxy 5000 of 20 kVA to 160 kVA (with battery backup time < or = to 10 mn), and of 20 kVA to 100 kVA (with battery backup time > 10 mn): ◗... - Page 7 Vigilohm TR5A terminal 10 8 block terminal block insulation fault Galaxy 5000 to the insulation circuit-breaker of AC normal source in the Galaxy 5000 cubicle (see figure on next page) XMB 08 XMB 07 XMS 06 - Page 7 34002025EN/AA...
-
Page 8: Auxiliary Cabinet Connections In The Galaxy 5000 Cubicles
3. Connection Insulation circuit-breaker To terminals 1-2-3-4 of QF1 circuit-breaker To terminals 1-2 of cabinet XB4B XB1B To insulation circuit-breaker XB2B XB3B - Page 8 34002025EN/AA...
