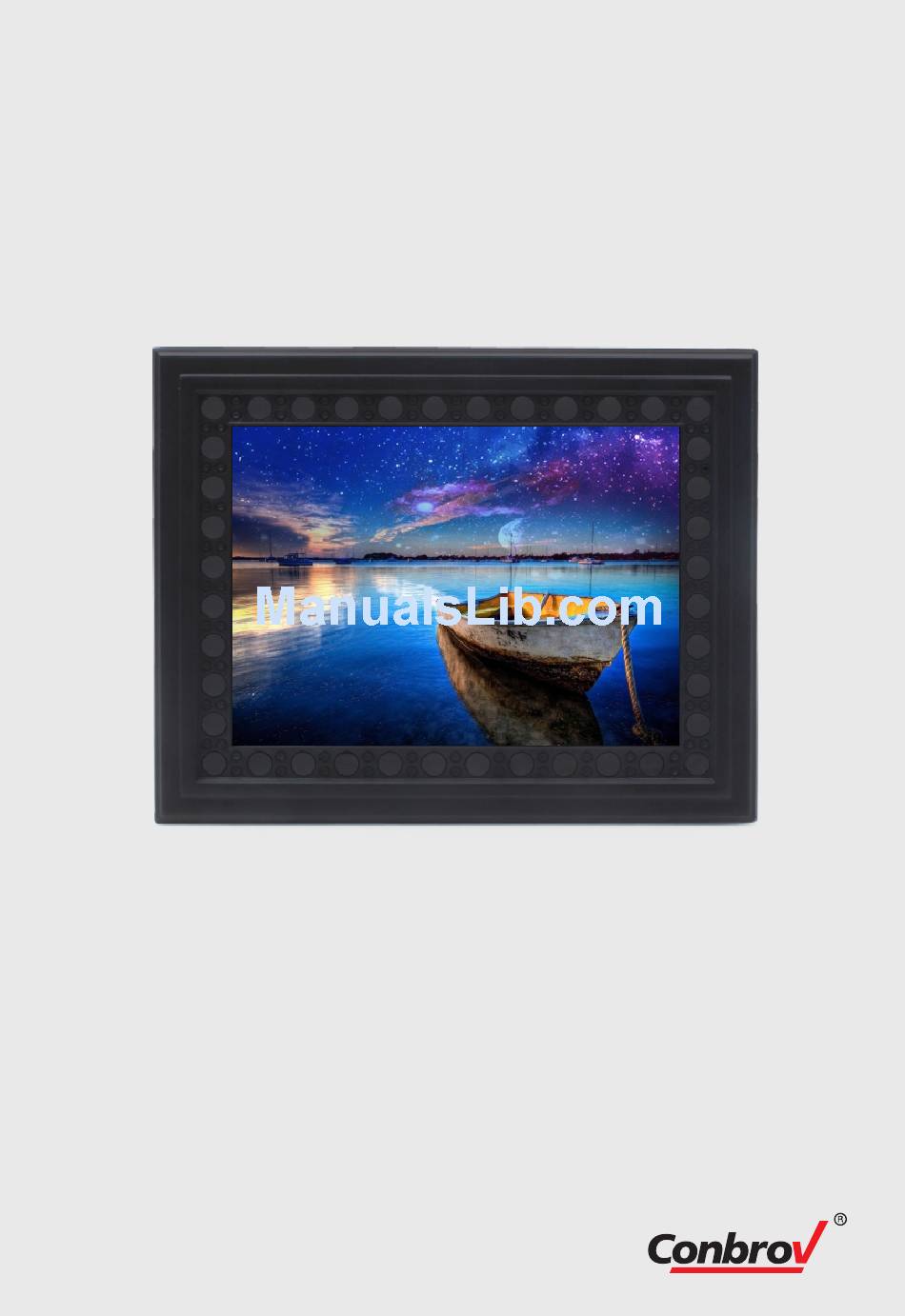

- Page 1 Photo Frame Camera Large Capacity Camera Series Model: T10 User Manual - Please ensure that you read the entire Photo Frame Camera User Manual carefully before using any part of the product. - Keep this User Manual for future reference in case of...
-
Page 2: General Overview
- Please DO NOT use this camera for illegal purpose. It is important to follow the laws in your region. - Conbrov is not responsible for missing any video recording due to incorrect operation, Micro-SD malfunctions or you're exceeding the Camera's viewing... - Page 3 Quick Start to use the camera 1.Use the blue ribbon to carefully remove the Photo Frame Camera's front cover to change the photo, charge the battery and install the Micro-SD card. 2.With the photo removed, press MD button directly and it will enter PIR motion activated mode.
- Page 4 Quick Start to Use the Camera 3.Or hold down the Power button to power On the camera and then press the REC button to start recording manually and continuously. Indicator: Blue LED stays on when you power On the camera. Indicator: Blue LED flashes and then goes Off when the camera is in recording.
- Page 5 Camera Structure and Button Function Camera lens Hole For Wall Desk Bracket...
- Page 6 How to Install and Remove the Micro-SD card Installing the Micro-SD card: Please insert the Micro-SD card correctly into the Camera card slot. The Micro-SD card must be in the slot to record video and audio. Removing the Micro-SD card: Please use your fingernail to push the card slightly into the slot until it “sets”.
-
Page 7: Charging Information
Charging Information 1.Charging using the adapter - It is recommended you charge the Photo Frame Camera using a 2A USB power adaptor (not supplied) with the USB cable provided in the package. - When the battery capacity is low, the Camera cannot be powered on, or the red and blue LED indicator will flash for 10 seconds and then Camera powers off. - Page 8 Charging Information 3. Connect with your PC as a U-disk Please turn on the Camera first, then connect the Camera to your computer via the USB cable. The yellow and blue LED indicators will stay on, the red LED indicator will flash. Detection Angle Capabilities Camera angle Detection angle...
-
Page 9: Time And Date Setting
Time and Date Setting Step 1: Power the Camera On and connect it to a computer via the provided USB cable. Please wait for a few seconds and you will see a removable disk open on your computer. Then open the SETTIME.TXT file. SETTIME.TXT Step 2: Please change the numbers/letters as needed. - Page 10 Operation guide Important Notes: 1. If you didn't find the SETTIME.TXT. file when you open the Micro-SD card from your computer, please record a video clip using the Camera to activate the card and then try to set the date and time again. 2.
- Page 11 Indicator Status and Meanings Normally the blue LED indicator will stay on. Power On If no Micro-SD, the blue LED will flash (Push and hold the power button for 10 seconds and then it powers off. for 2 seconds) The Camera powers Off after 60 seconds if there is no any operation.
-
Page 12: Detailed Parameters
Detailed parameters Item Parameter size 2 4.5*19.5*1.4CM Product net weight 410g Battery LiPo Stand-by power consumption 10uA PIR detection angle 60 degrees PIR detection distance 5-8 meters Camera angle about 75 degrees Max PIR stand-by time 2 years Day time recording power consumption 220mA Max day time recoridng time a b out 30 hours... -
Page 13: Product Accessories
- Keep this copy safe for future reference in case of operational difficulties. Camera USB cable Manual Warning sticker Card reader Screws Important notice: If there is anything missing, please contact us immediately at www.conbrov.com... -
Page 14: Questions And Answers
Questions & Answers 1-Why does the Camera not have night vision? The Camera's sensor detects the current environment. if you turn on the Camera and the light is higher than 20lux, then the sensor will test the current ambient light. The video will turn to color. Otherwise, the video will turn to black and white. - Page 15 Email: Support@conbrov.com Website: www.conbrov.com...
