SurfLink MINI MOBILE Operation Manual

System includes: surflink remote microphone 2 and surflink mini mobile adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

MINI MOBILE
System includes: SurfLink Remote Microphone 2
and SurfLink Mini Mobile Adapter
O P E R AT I O N S M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINI MOBILE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SurfLink MINI MOBILE

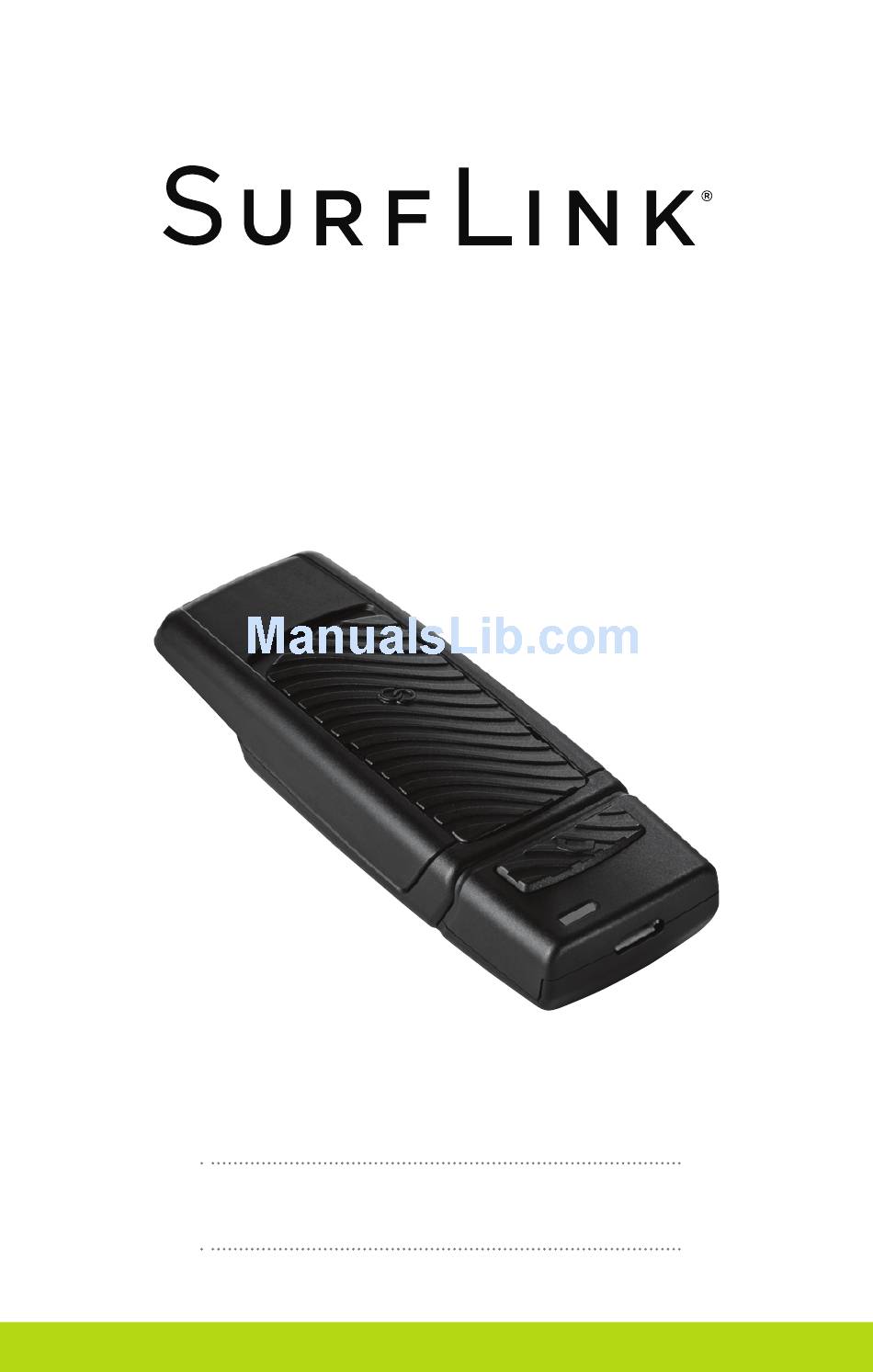

  • Page 1 MINI MOBILE System includes: SurfLink Remote Microphone 2 and SurfLink Mini Mobile Adapter O P E R AT I O N S M A N U A L...
  • Page 2 SurfLink Mini Mobile Adapter is ONLY IMPORTANT: compatible with SurfLink Remote Microphone 2.

  • Page 3: Table Of Contents

    Table of Contents Introduction Basic Use SurfLink Remote Microphone SurfLink Mini Mobile SurfLink Remote Microphone Controls Overview Operation Low Battery and Charging Power On/Off Slider Syncing to Hearing Instruments Built-In Microphones How to Wear Streaming Audio Interoperability with Other Accessories...

  • Page 4: Introduction

    Adapter. Prior to use, both products will need to be separately set up. The SurfLink Remote Microphone will be synced to your hearing instruments. The SurfLink Mini Mobile Adapter will be paired to your Bluetooth device. The SurfLink Remote Microphone is designed to stream remote microphone audio directly to your 900MHz wireless hearing instruments.
  • Page 5 Package Contents • SurfLink Remote Microphone • SurfLink Mini Mobile Adapter • USB-to-MicroUSB Charging Cable • Wall Power Adapter • Operations Manual Optional Accessories • Car Charger Adapter • Lanyard Typical Setup for SurfLink Remote Microphone Hearing Instrument Speaker...

  • Page 6: Basic Use

    SurfLink Remote Microphone Basic Use To quickly start using SurfLink Remote Microphone: 1. Power on SurfLink Remote Microphone. Green LED appears for 2 seconds. 2. Press “Sync” icon on slider button for 5 seconds until LED starts rapidly blinking blue.
  • Page 7 LED slowly pulses when audio streaming is active. 5. Have a speaker attach SurfLink Remote Microphone to their clothing, within 8 inches (20cm) of their mouth is recommended for best performance. 6. To stop streaming, turn off SurfLink Remote Microphone.

  • Page 8: Surflink Mini Mobile

    SurfLink Mini Mobile Basic Use To quickly start using SurfLink Mini Mobile: 1. Ensure SurfLink Remote Microphone has been properly setup with your hearing instruments and is in powered on state. 2. Insert the male microUSB jack of SurfLink Mini Mobile Adapter into SurfLink Remote Microphone’s...
  • Page 9 4. Put your Bluetooth device into pairing mode. NOTE: Some devices may ask for the SurfLink Mini Mobile Adapter PIN, which is 0000. 5. While the green LED is slowly pulsing, double-click the push- button. The LED starts rapidly blinking blue,...
  • Page 10 When you hear the incoming call ringtone in your hearing instruments, briefly press and release the push-button on SurfLink Mini Mobile Adapter. o Speak into SurfLink Mini Mobile Adapter microphone. o To end the call, briefly press and release the push-button.
  • Page 11 9. To turn off SurfLink Mini Mobile Adapter, press the push-button for 2 seconds and release it. The red LED briefly appears to provide confirmation.

  • Page 13: Surflink Remote Microphone Controls Overview

    2. Power On/Off Slider • Moving the slider towards the microUSB jack powers on SurfLink Remote Microphone. • Moving the slider away from the microUSB jack powers off SurfLink Remote Microphone. 3. Syncing Establishes the relationship between SurfLink Remote Microphone and hearing instruments.

  • Page 14: Operation

    Operation Low Battery and Charging If SurfLink Remote Microphone is on and enters a low battery condition, the LED slowly pulses red and provides an audible indicator tone to a hearing instrument. The indicator tone is distinctly different from the low battery indicator for a hearing instrument, so there is no confusion as to which is experiencing a low battery condition.
  • Page 15 TIP – Charging SurfLink Remote Microphone can take longer while streaming audio. Charging will be faster when the SurfLink Remote Microphone is off. Typical Charging Method To charge the battery, attach the microUSB end of the charging cable to the microUSB jack on SurfLink Remote Microphone.

  • Page 16: Power On/Off Slider

    Car Charger Adapter The SurfLink Remote Microphone can be charged using a car charger adapter. These adapters can be obtained from your hearing professional (ask for part #52869-000). Power On/Off Slider Power On – Move the slider toward the microUSB end to turn on.

  • Page 17: Syncing To Hearing Instruments

    For hearing instruments to receive streamed audio from SurfLink Remote Microphone, you must first sync the hearing instruments with SurfLink Remote Microphone. You only have to sync SurfLink Remote Microphone with your hearing instruments once, as they will automatically link when both are powered on and they are within wireless operating range.
  • Page 18 The SurfLink Remote Microphone remains in an active syncing state for up to 20 seconds (concluded by red LED blink), or until one hearing instrument is synced with it (confirmed by a green LED blink). After a successful hearing instrument syncing, SurfLink...

  • Page 19: Built-In Microphones

    Remote Microphone is placed horizontally (on its clip), it receives sound from all directions. This setting is useful for listening to multiple nearby speakers in quiet environments. TIP – In noisy environments, move SurfLink Remote Microphone as close as possible to sound source.

  • Page 20: Led

    The LED indicator provides helpful information about SurfLink Remote Microphone: SURFLINK REMOTE LED BEHAVIOR MICROPHONE STATE • SurfLink Remote Microphone is off and is not attached to a power source • If SurfLink Remote Microphone is off and attached to a power source, then battery is fully charged.

  • Page 21: How To Wear

    How to Wear The SurfLink Remote Microphone can be affixed to clothing or worn on a lanyard. For better performance, SurfLink Remote Microphone should be within 8 inches (20cm) of the speaker’s mouth. Clip – Gently press the clip as shown. Slide clip opening onto clothing and release clip.

  • Page 22: Streaming Audio

    The SurfLink Remote Microphone does not contain an integrated volume control. TIP – Try placing Surflink Remote Microphone near a television. To achieve a comfortable listening level, adjust the SurfLink Remote Microphone distance from the television speakers or modify the television...

  • Page 23: Interoperability With Other Accessories

    SurfLink Media streamed audio with preference being given to the first available audio source. If you use a SurfLink Remote or SurfLink Mobile, then remote control commands will continue to be sent to your hearing instruments.

  • Page 25: Surflink Mini Mobile Controls Overview

    3. Multi-Function Push-Button Provides control over the operational state of SurfLink Mini Mobile Adapter. 4. LED Indicator Identifies the current state of SurfLink Mini Mobile Adapter. 5. Built-In Microphone Picks up your voice and transmits to caller during phone calls.

  • Page 26: Operation

    Operation Low Battery and Charging If SurfLink Mini Mobile Adapter is on and enters a low battery condition, the LED slowly pulses red until it automatically shuts down, or until a power source is applied. When the Mini Mobile Adapter is attached to a power source, the LED becomes solid green and charging automatically begins.

  • Page 27: Multi-Function Push-Button

    Bluetooth device into pairing mode. If you are unfamiliar with the Bluetooth pairing process, consult your Bluetooth device’s operations manual. To put SurfLink Mini Mobile Adapter into an active Bluetooth pairing state, ensure it is powered on and not Bluetooth-connected to other devices (the green LED will be slowly pulsing).
  • Page 28 LED denotes an unsuccessful pairing attempt. To cancel pairing mode on Mini Mobile Adapter, press the push-button for 2 seconds and release it, which powers off the Mini Mobile Adapter. You only need to pair SurfLink Mini Mobile...

  • Page 29: Interacting With Phone Calls

    Interacting with Phone Calls The SurfLink Mini Mobile Adapter allows you to accept, reject, hang up, and transfer phone calls to/ from a Bluetooth connected phone. Accept – When you hear the incoming call ringtone in your hearing instruments, briefly press and release the push-button on Mini Mobile Adapter.

  • Page 30: Listening To Music

    To receive music or other audio in your hearing instruments, simply play the audio on your Bluetooth connected device and it will be transmitted via SurfLink Mini Mobile. It is not necessary to press the push-button on SurfLink Mini Mobile Adapter. Resetting...

  • Page 31: Led

    The LED indicator provides helpful information about SurfLink Mini Mobile Adapter: LED BEHAVIOR SURFLINK MINI MOBILE STATE • Mini Mobile Adapter is off and is not attached to a power source. • If Mini Mobile Adapter is off and is attached to a power source, then battery charging is complete.

  • Page 32: Typical Use Cases

    Typical Use Cases To effectively use SurfLink Mini Mobile Adapter, it will need to be within easy reach so that you can quickly press the push-button to answer calls and speak into the built-in microphone. Typical operating scenarios include: SCENARIO Stream SurfLink Remote Microphone audio from a distant talker.
  • Page 33 (which is powered off). SurfLink Remote Microphone is attached to SurfLink Mini Mobile Adapter and both are powered on. • Press the push-button on Mini Mobile Adapter to answer the phone call. SurfLink Remote Microphone is attached to SurfLink Mini Mobile Adapter and both are powered on.

  • Page 34: Troubleshooting

    Hearing instruments are not within wireless range. LED is slowly pulsing Hearing instruments are not blue, but no streamed properly synced with SurfLink sounds are heard in the Remote Microphone. hearing instruments. Battery level in hearing instrument cannot support audio streaming.
  • Page 35 Move closer to SurfLink Remote Microphone. Sync hearing instruments with SurfLink Remote Microphone. Replace hearing instrument battery with new one. Turn off SurfLink Remote Microphone, wait 15 seconds, and turn on SurfLink Remote Microphone. Move SurfLink Remote Microphone closer to speaker’s mouth.

  • Page 36: Surflink Mini Mobile

    SurfLink Remote Microphone may be powered off. Caller cannot hear your SurfLink Mini Mobile may voice during phone calls. be too far from your mouth. Bluetooth device may be on the edge of wireless range.
  • Page 37 Move Mini Mobile closer to your mouth. Move Bluetooth device closer to SurfLink Mini Mobile. Charge Mini Mobile Adapter. For best performance, SurfLink Mini Mobile should be within line-of-sight of your Bluetooth device. Lengthen alert tone to allow sufficient time for streaming to start.

  • Page 38: Regulatory Notices

    Instructions for Disposal of Old Electronics Paradigm encourages, and your local community laws may require, that your SurfLink Remote Microphone and/or SurfLink Mini Mobile Adapter be disposed of via your local electronics recycling/disposal process. The below instructions are provided for the benefit of disposal/recycling personnel.
  • Page 39 SurfLink Remote Microphone directly to an air conduction hearing instrument. The SurfLink Mini Mobile Adapter is an accessory to a wireless air conduction hearing instrument. It is intended to wirelessly transfer audio signals between a Bluetooth-...
  • Page 40 SurfLink Remote Microphone and/or SurfLink Mini Mobile Adapter. The batteries in your SurfLink Remote Microphone and SurfLink Mini Mobile Adapter are not replaceable. Do not attempt to replace the battery.
  • Page 41 The SurfLink Remote Microphone and SurfLink Mini Mobile Adapter are designed to the following temperature ranges: • Operating: -10 to +45 degrees C (14 to 113 degrees F), humidity ≤ 95% non-condensing • Battery Charging: 0 to +45 degrees C (32 to 113 degrees F), humidity ≤...
  • Page 42 508KF1D. The receiver section of the radio has a bandwidth of 300kHz The SurfLink Mini Mobile Adapter operates in the 2.4- 2.4835 GHz band with a maximum effected radiated power of 5 dBm with transmission modulation type of 990KF1W.
  • Page 43 FCC/IC Information SurfLink Remote Microphone FCC ID: EOA-CM IC: 6903A-CM (Model 400) SurfLink Mini Mobile Adapter FCC ID: EOA-CMA IC: 6903A-CMA (Model 500) FCC/IC Notice This device complies with part 15 of the FCC rules and with Industry Canada’s license-exempt RSS standard(s).
  • Page 44 The European version of the SurfLink Remote Microphone operates in the 863-865 MHz band with a maximum effective radiated power of 10dBm. The SurfLink Mini Mobile Adapter operates in the 2.4-2.4835 GHz band with a maximum effected radiated power of 10dBm.
  • Page 45 The following symbols are used in this document and on both the Remote Microphone and Mini Mobile Adapter: This device produces and receives radio frequency energy. Interference may occur in the vicinity of equipment marked with the following symbols: Class II device...
  • Page 46 Notes...
  • Page 47 Notes...
  • Page 48 © 2017 Paradigm, Inc. All Rights Reserved. 85269-007 1/17 BKLT2912-00-EE-XX...
