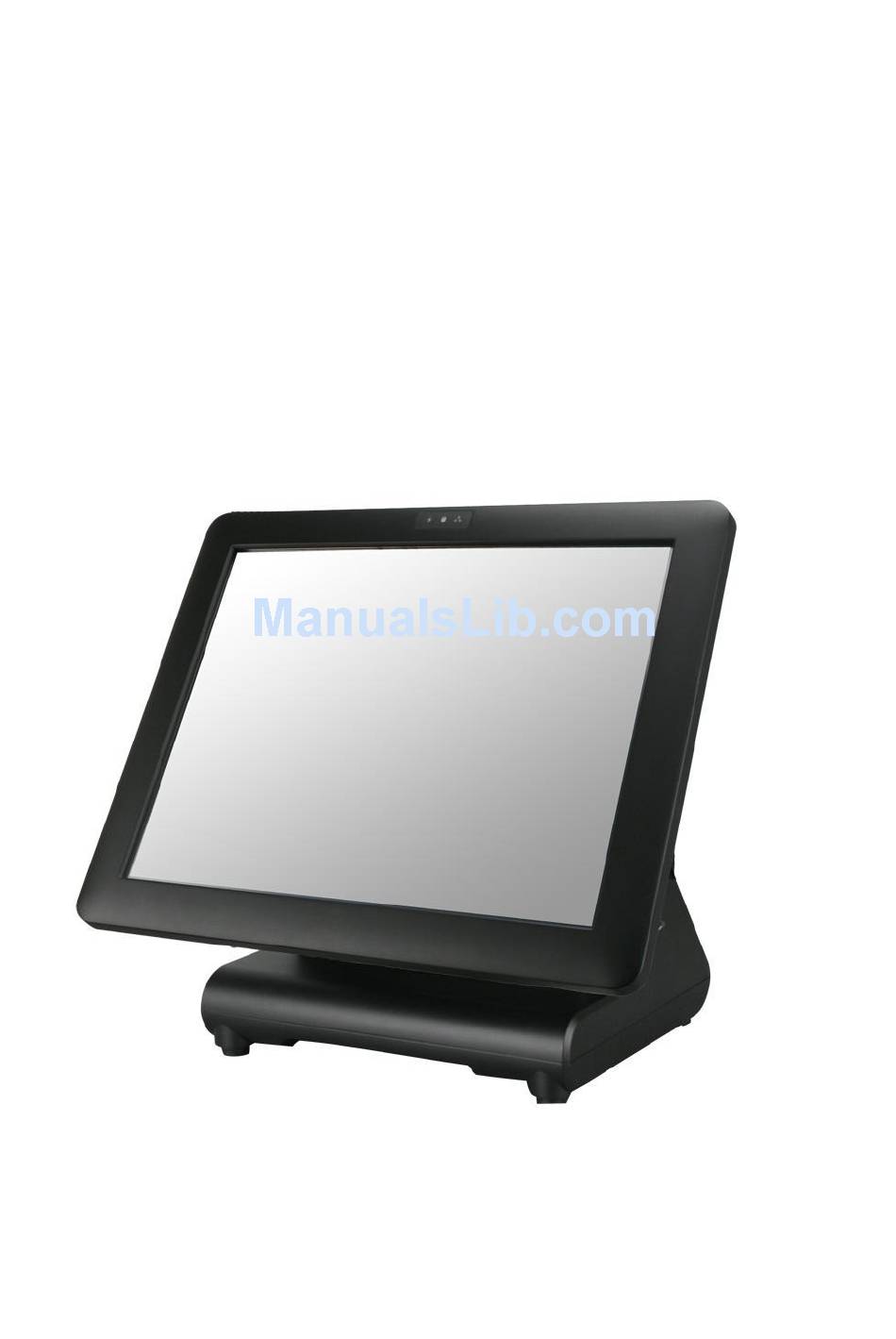

- Page 1 User’s Manual XPOS72A-5B-2930 XPOS72A-5B-1900 Copyrights...
-
Page 2: Liability Disclaimer
Copyrights that interference will not occur in a particular installation. If this equipment does cause harmful © 2015 All rights reserved. The information in this interference to radio or television reception, which document is subject to change without prior notice in can be determined by turning the equipment off and order to improve reliability, design and function and does on, the user is encouraged to try to correct the... -
Page 3: Weee Notice
WEEE Notice The WEEE mark applies only to countries within the European Union (EU) and Norway. This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). The Directive determines the framework for the return and recycling of used appliances as applicable throughout the European Union. -
Page 4: Table Of Contents
Copyrights ....................ii Liability Disclaimer ................ii Regulatory Information ................. ii FCC Notices ......................ii CE Notice ......................ii WEEE Notice....................... iii Contents ....................iv 1. Hardware Setup ................. 5 1.1. Quick Tour ....................5 Front View ...................... 5 Back View ...................... 5 Back Panel I/O .................... -
Page 5: Hardware Setup
Hardware Setup 1.1. Quick Tour Front View LED Indicator The Power indicator will glow green when power is on. The HDD indicator will blink green when the HDD is accessed. The LAN indicator will blink green when transferring data though the LAN. Back View Chapter 1... -
Page 6: Back Panel I/O
Back Panel I/O 1.2. Basic Peripherals Installation All cables and wires from peripherals to the POS device are recommended to connected as the direction as shown below. Chapter 1... -
Page 7: Power Adapter
Power Adapter Connect the 4-pin output jack of the adapter to the DC 19V jack on the back panel of the device. USB Mouse, USB Keyboard and USB ODD Connect your USB Mouse, USB Keyboard and USB ODD to USB ports on the back panel of the device. -
Page 8: Cash Drawer
Cash Drawer Connect one end of RJ-12 cable to the Cash Drawer port on the back panel of the device, another end to your cash drawer. Customer Display 1. Remover the customer display mounting hole cover from the device and pull out the connector from the device. - Page 9 3. Mount the customer display to the device and tighten the two PHILLIPS M3 screws as shown below. 4. Finished. B. Power Supply Configuration Power up the device and hit the DEL key to enter the BIOS. When the BIOS screen appears use the TAB key to select Advanced.
-
Page 10: Msr
NOTE: The figure above is for reference only; it is possible that the actual screen on your device does not agree with it. 1. Remove the MSR cover from the device. 2. Connect the cable of the MSR assembly to the device. Chapter 1... - Page 11 3. Tighten the two PHILLIPS M3 screws to fix the MSR assembly as shown below. 4. Finished. Note: The RS232 MSR is powered by COM5, Baud rate is 9000, 8, n, 1. Chapter 1...
-
Page 12: Adjust Angle
1.3. Adjust Angle 1.4. Turn on the device 1. Make sure all peripherals are connected properly. 2. Press and hold the power switch until the power indicator on the front panel glow green. Chapter 1... -
Page 13: I/O Definition
I/O Definition Please refer the detailed technical information about all I/O ports as followings. 2.1. Serial Port COM Port Description Description RI / 5V /12V R232 RS422 RS485 2.2. Cash Drawer Description Description 12V / 19V D_OUT0 D_OUT1 D_IN Chapter 5... - Page 14 Cash Drawer Control The Cash Drawer Controller use one I/O addresses to control the Cash Drawer. Register Location: 48Ch Attribute: Read / Write Size: 8-bit BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 Attribute Reserved Read Reserved Write Reserved Reserved Cash Drawer “DOUT bit0”...
- Page 15 Note: Please follow the Cash Drawer control signal design to control the Cash Drawer. Cash Drawer Control Command Example Use Debug.EXE program under DOS or Windows98 Command Cash Drawer O 48C 04 Opening O 48C 00 Allow to close Set the I/O address 48Ch bit2 =1 for opening Cash Drawer by “DOUT bit0” ...
-
Page 16: Specification
Specification Chapter 5... - Page 17 Color Plastic / Aluminum Material Certifications CE / FCC / WEEE / RoHS Dimension (W x D x H) 36.5 x 22.9 x 33.2 cm (14.4 x 9 x 13 inch) Net Weight / Gross Weight 6.8 kg, 15.1 lb / 8.8 kg, 19.6 lb...
- Page 18 0 to +40°C Operation Temperature Storage Temperature -20o ~ 60oC, Humidity 20% to 85% RH (non condensing) Chapter 5...
