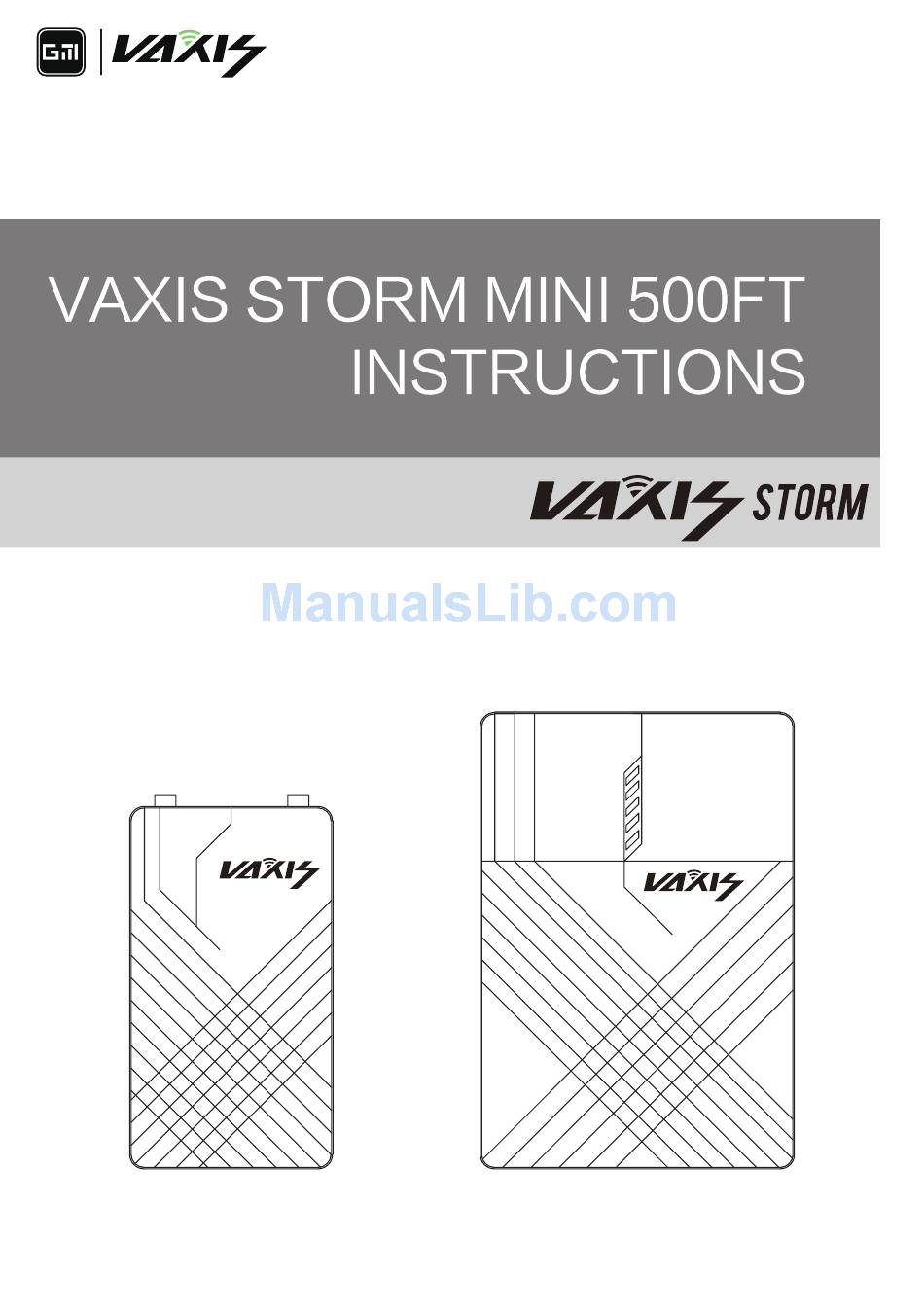

- Page 1 www.gmcine.com...
- Page 3 Preface Thanks for purchasing our Long Range Wireless HDMI/SDI HD Video Transmission Suite. Before using this product, read this user manual carefully please. Follow the instruction to keep your safety and avoid products damage.This user manual might be modified irregularly bec- ause of updated products.
- Page 4 Cautions ■Cautions 1.Do not use this product in the extreme hot, cold, dusty or humid envir- onments. 2.Prevent friction with hard objects. 3.Avoid the product falling down from a high place, or it may damage the hardware. 4.The product is not water proofed. So do not get any liquid into the unit please.
- Page 5 About ■Product model and standard The Long Range Wireless HDMI/SDI Transmission Suite utilize today's most advanced wireless video transmission technology, which can real- ize the broadcast-class and uncompressed 3G SDI/HDMI HD video sig- nal transmitted with no compression and zero delay. The suite include one transmitter and one receiver, where the transmitter provides a 3G/H D SDI input and a HDMI input, and the receiver also provide a 3G/HD SDI output and a HDMI output.
-
Page 6: Main Features
About ■Main features: HDMI 1.3 spec supports HDMI and SD/HD/3G SDI input and output Highest resolution 1080p 60,no delay and no compression AES-128 encryption with air interface HD video data stream Support point to point, and point to multi point network topology ... - Page 7 About ■Parameters: Transmitter Receiver SDI Input （ BNC Female ） ; HDMI SDI Output （ BNC Female ） ; HDMI Input (Type A female) ; 2 Antenna port(RP- Output (Type A female); DC input Interface SMA male） ; DC input Supply voltage range 7-36V DC 7-36V DC...
- Page 8 About ■Parameters: Transmitter 1) 1/4-20 Screw Hole 2) RP-SMA male antenna connector 3) Video input indicator, 1 yellow LED 4) Power on Indicator, 1 green LED 5) Frequency selection knob,0-9 6) SD/HD/3G SDI input 7) HDMI Input 8) DC power switch 9) DC input, LEMO 4-pin B series connector...
- Page 9 About ■Parameters: Receiver 1) 1/4-20 Screw Hole 2) LED status indication(4 blue LED for RSSI &1 LED yellow for POWER/VIDEO) 3) Frequency selection knob,0-9 4) SD/HD/3G SDI output 5) HDMI output 6) DC power switch 7) DC input, LEMO 4-pin B series connector...
-
Page 10: Packing List
3 5GHz Omni-directional and high efficiency antennas (SMA female) 2 DC convert cable (LEMO 4 pin-male to D-Type receptacle) 1 user manual, 2 torx screwdriver, 1 1/4-20 screw to ISO518 hot-shoe converter. SONY NP-F970 battery buckle VAXIS Storm case for MINI 500 kit... - Page 11 Installation ■Installation details and cautions Transmitter side a) Install 2 Omni-directional and high efficiency antennas to transmitter's RP-SMA female antenna connectors. b) There is one1/4-20 screw in transmitter metal case, which are located on the bottom of case. So the user can utilize a 1/4 screw to ISO518 hot-shoe converter fix the transmitter into camera.
- Page 12 Installation Receiver side a) There is one 1/4-20 screw nut in the bottom side of receiver. The user can utilize a 7'' articulating arm and crab clam to install the receiver on one tripod. b) Install battery into battery buckle if your product model includes the option of battery buckles;...
- Page 13 Installation Typical connection instruction Connect camera SDI or HDMI output to transmitter SDI or HDMI input port, and the transmitter can fixed in hot-shoe port of the camera. Connect HDMI or SDI output port of the receiver to SDI or HDMI input port of the HD moni- tor.
-
Page 14: Getting Started
Operation instruction Getting started After finishing all steps above, system is workable, follow below steps. a) Ensure the video source output of the camera is OK, and the HD monitor is power on and switched to connected video input port. b) Ensure all input, output SDI or HDMI cables are connected. - Page 15 Installation e) Ensure the frequency knobs of transmitter and receiver are set with the same number, and this will make sure the transmitter and receiver work with same RF frequency. f ) If the camera is on and video input is OK, TX side ‘video’ indicator will light. ‘...
- Page 16 Operation instruction ■ Input video port selection of transmitter The transmitter has a 3G SDI video input port and a HDMI video input port, and the system will detect valid video source automatically of SDI and HDMI port, and then switch it as main video input channel. If both SDI and HDMI h- ave valid video input, the system will take SDI input as priority.
- Page 17 Maintenance ■Storage conditions Products storage temperature should be -20°C~60°C. For long time storage requirement, please use original carbon boxes, and avoid from high humid, acid base or dusty place. ■Maintenance Warning To ensure your safety, place choose original adapters. And provide stable AC input according to this manual.
- Page 18 Trouble shooting ■Normal problems a) No output on display Check TX and RX power first, and see if TX or RX battery is existed, then check if TX antenna and RX antenna installed right. After that, check 'Video' indicator, if TX 'Video' indicator is not light, then check SDI or HDMI cable is plugged in and video source is ready please.
