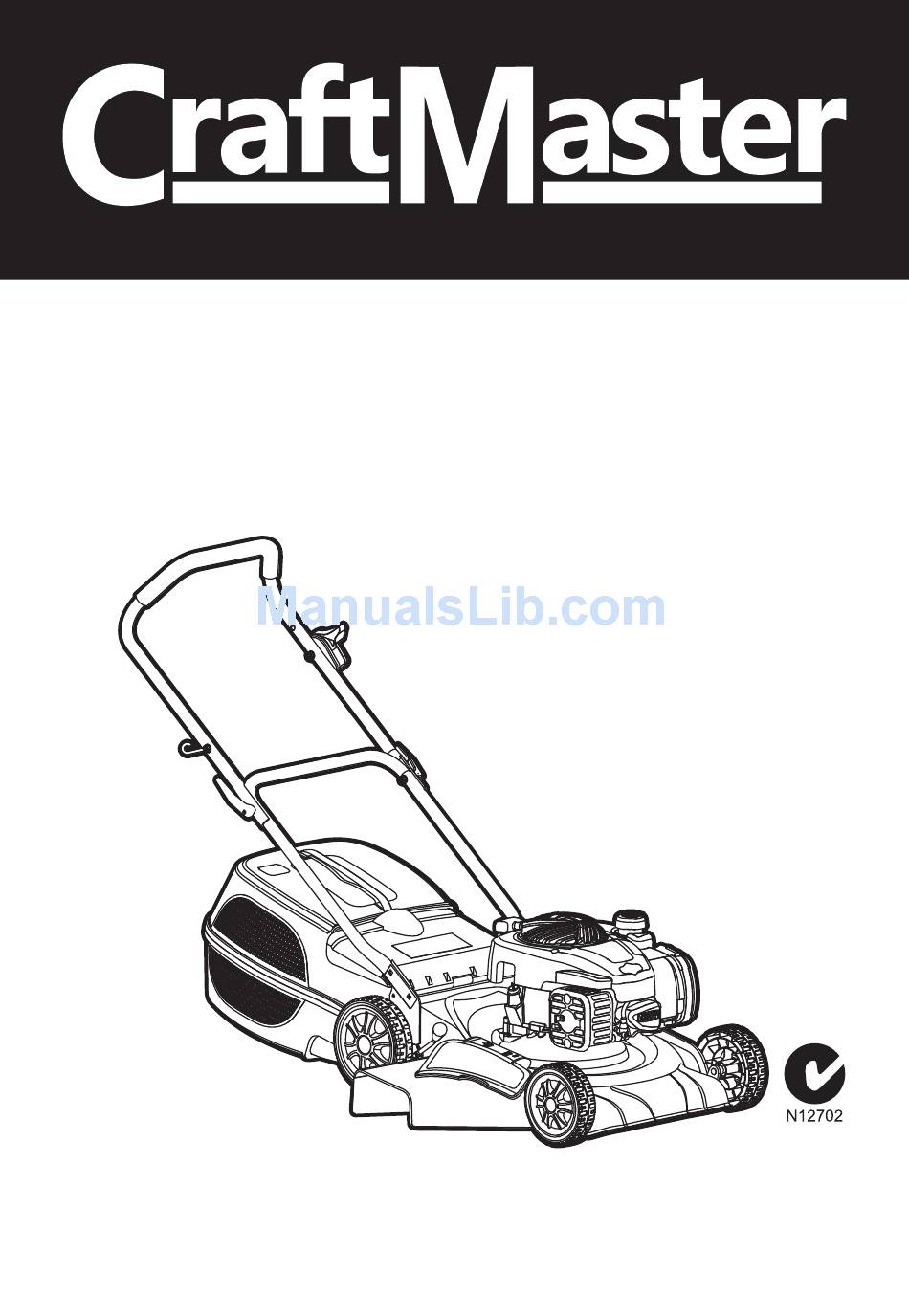

- Page 1 SAFETY AND OPERATING MANUAL 46cm 3IN1 BRIGGS & STRATTON ENGINE PETROL LAWN MOWER KM46MBS3 CAUTION: Carefully read this entire Instruction Manual before using this product...
-
Page 2: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY one blade can cause other blades to rotate. WARNINGS 3. OPERATION WARNING! Read all safety warnings and all a) Do not operate the engine in a confined space instructions. Failure to follow the warnings where dangerous carbon monoxide fumes can and instructions may result in electric shock, fire and/ collet;... -
Page 3: Maintenance And Storage
SYMBOLS restarting and operating the lawnmower; If lawnmower starts to vibrate abnormally (check immediately); Read instruction handbook before t) Stop the engine and disconnect the spark plug operation this machine. wire, make sure that all moving parts have come to a complete stop and, where a key is fitted Warning remove the key: Whenever you leave the lawnmower;... -
Page 5: Component List
COMPONENT LIST ASSEMBLY Foam Grip Handle WARNING! Lift your lawnmower from the carton Throttle Lever required two people. Make sure that you have Upper Handle sufficient space to put the lawn mower down. Keep Lock Cam Lever your feet apart so that you have a stable position, Lower Handle bend at the knees and keep your back straight. -
Page 6: Using The Grass Catcher
out the Mulch Insert completely. Fig.B1 4) The safety guard is spring loaded. When you release it, the guard will return to the closed position. Fig.C Fig.B2 2.1.2 Assembly of the Grass Catcher (See Fig. D1-D4) 1) Assemble the handle of the catcher according to the process shown in Fig. - Page 7 COME TO A COMPLETE STOP. Fig.D4 2) Raise the safety guard and hold it up. 3) Remove the grass catcher (refer to ‘2.1.3 INSTALLING/REMOVING THE GRASS CATCHER’) and slide the Mulch Insert (24) into the discharge opening until it is firmly in contact with the deck. 4) Release safety guard and ensure it is properly closed.
-
Page 8: Filling With Fuel
or clean gloves (Fig. H1). Fig.G3 2) Insert the dipstick into the oil filler neck, but do not screw it in. 3) Check the oil level. The oil level must between the Min and Max marks on the dipstick (Fig. H2). If near the lower level, fill to upper level with the recommended oil (SAE30). - Page 9 NOTE: Petrol should be stores in an approved container. Fig.I2 Slow Never buy or store more than 30 days supply of petrol. Stop Fast Do not mix oil with petrol. 6. STARTING THE ENGINE (See Fig. I1-J3) WARNING! Do not operate the machine in a closed or poorly ventilated areas as the exhaust gas contain poisonous substance.
- Page 10 off, a rotating blade can cause injury. 1) To remove the grass catcher, raise the safety flap CAUTION: Do not touch rotating blades. with one hand and remove the grass catcher using For the first cutting of the season, a high cutting its handle with your other hand.
-
Page 11: Maintenance
2. SPARK PLUG (See Fig. M ) Fig.L 1) Once the engine has cooled, remove the spark plug using the socket spanner supplied. 2) Clean the plug with a wire brush. 3) Using a feeler gauge, set the gap to 0.75mm. 4) Install the spark plug carefully by hand, to avoid cross-threading. - Page 12 2. Remove the dipstick. (See Fig. P1-P2). 3. When you drain the oil from the top oil fill tube, keep Fig.P1 the spark plug end of the engine up. Drain the oil into an approved container. WARNING! When you drain the oil from the top oil fill tube, the fuel tank must be empty or fuel can leak out and result in a fire or explosion.
-
Page 13: Troubleshooting
6. TROUBLE SHOOTING PROBLEM POSSIBLE FAULT REMEDY Incorrect oil level. Check oil level. Engine will not turn over Obstruction under deck. Remove obstruction. Excess oil level. Check oil level. Engine smokes Air cleaner cartridge oil soaked or blocked. Service air cleaner. Fuel starvation. -
Page 14: Warranty
Airflow through grass catcher is restricted Clean the grass catcher Discharge chute blocked Remove blockage Poor grass Wet grass Mow dry grass collection Grass bag full Empty grass catcher Engine speed too slow Set throttle to fast position WARRANTY This product is warranted for a 2-year period for home domestic use from the date of the original purchase.
