GoInternet Setup Guide for Netcomm NF4V Modem Router (VDSL)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Netcomm NF4V and is the answer not in the manual?

Questions and answers

Summary of Contents for GOINTERNET Netcomm NF4V

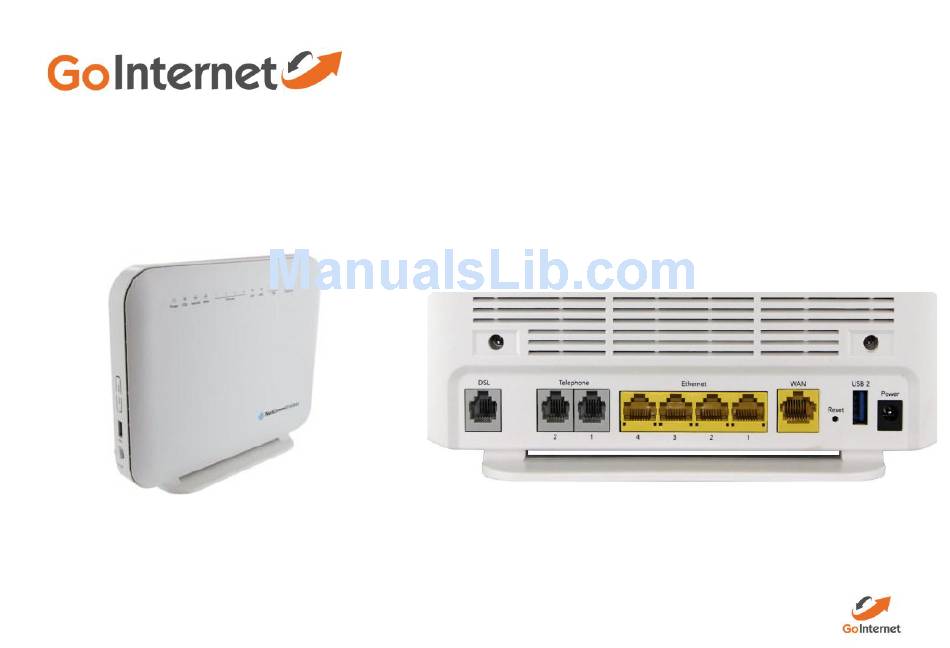

  • Page 1 GoInternet Setup Guide for Netcomm NF4V Modem Router (VDSL)
  • Page 2 Connect the DSL port on the router to a jackpoint on the wall Connect Router to computer (i.e.: PC or laptop) via an ethernet cable. Setting up for GoInternet Basic and Fast – VDSL To set the modem up for the Turbo plan: Launch your Web Browser (e.g.: Internet Explorer, Chrome or Firefox).
  • Page 3 The login screen displays. Login to the modem page: Username admin Password admin If that Username and Password do not work you should RESET the modem to factory settings (see the instructions below). Click the Log In button.
  • Page 4 The modem’s Dashboard screen displays. Configure the modem for GoInternet:...
  • Page 5 From the menu on the left, click Advanced Setup. Remove all old WAN services if there are any present. 1. Click on WAN service. 2. Tick each interface that is present. 3. Click remove.
  • Page 6 Check to see that there are no old PTM interfaces. If there are, remove them with the steps below: Click PTM Interface Tick the remove box(es) Click remove. Add your new PTM interface. Click PTM Interface.2. Click the Add button under the PTM interface.
  • Page 7 Enter the required settings for your new PTM interface. Leave all settings on defaults2. Click Apply/Save.
  • Page 8 Add a new WAN service. Click WAN service Click Add...
  • Page 9 Select your new PTM interface. Select ptm0\(0_0_100). Click Next.
  • Page 10 Enter a service name if desired. Select PPP over Ethernet. Enter Priority 0 and VLAN ID 10. Change the service name if desired, or leave on the default and click Next.
  • Page 11 Enter a PPP username and password. These can be anything you like, but cannot contain special characters or be left blank. Set authentication method to AUTO and MTU to 1492. Enter 802.1P Priority as 0 and add Vlan as you were provided by GoInternet...
  • Page 12 Ensure ppp0.1 is in the left column, and click Next.
  • Page 13 Ensure ppp0.1 is in the left column, and click Next. Click Save/Reboot...
  • Page 14 Click Apply/Save. Reboot your router.Click Reboot in the bottom left menu. Click the reboot button.
  • Page 15 Your router should now restart.

  • Page 16: Resetting The Router

    Your router is now configured for GoInternet VDSL. After your router has rebooted you should be able to browse the internet. Disclaimer: Our modem guides are just for setting up your GoInternet connection, please refer to all manufacturer settings and support material, we recommend obtaining professional IT services to install your Modem/Router.
  • Page 17 Hold for 5 seconds. Release the Factory Reset button. After a few seconds, the modem will start to reset. The modem will have reset itself to its original factory settings. Any customised settings will have been lost.
