Genie CCTV IPB2CP Manual

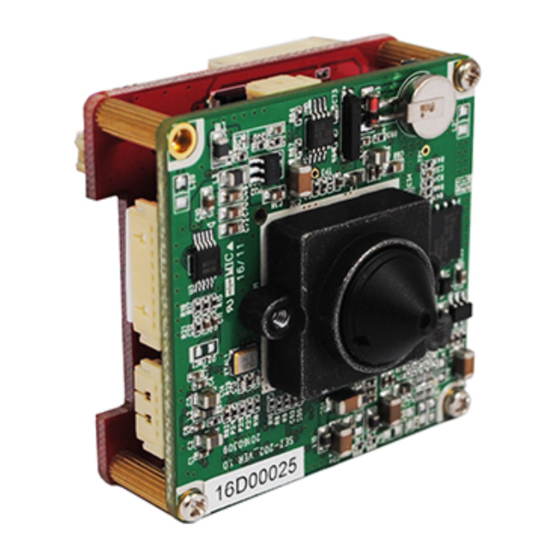

Ip conical pinhole lens board camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

IPB2CP
IP Conical Pinhole Lens Board Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPB2CP and is the answer not in the manual?

Questions and answers

Related Manuals for Genie CCTV IPB2CP

Summary of Contents for Genie CCTV IPB2CP

  • Page 1 IPB2CP IP Conical Pinhole Lens Board Camera User Manual...

  • Page 2: Table Of Contents

    Contents IP Camera Search ----------------------------------------- 4 Default IP Address ---------------------------------------- ActiveX Installation ---------------------------------------------------- 6 L O G I N - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - LIVE / Image ------------------------------------------------------- 10 LIVE / Image selection --------------------------------------------------- 11 LIVE / Digital Zoom ----------------------------------- 12...

  • Page 3: About This Manual

    Notice About this Manual It is assumed that the users are familiar with Microsoft Windows and Web Browsers such as Internet Explorer. We recommend you to review this manual before install and use the product although users have enough experience. Keep our recommended warning messages and caution notices for your safety, to prevent damage of property.

  • Page 4: Ip Camera Search

    IP Camera Search In order to have the camera viewable on the network, IP address has to be assigned first. When a user double clicks IPCamSearch.exe file which a software provided in the CD will help to search IP camera and change the IP address easily.

  • Page 5: Default Ip Address

    Default IP Address Factory default value of IP camera is like below. • IP : 192.168.10.201 • SM : 255.255.255.0 • GW : 192.168.10.1 When you connect IP camera and PC directly, please assign the IP address of PC by choosing any numbers from 2 to 254 except “201” as shown below. •...

  • Page 6: Activex Installation

    ActiveX Installation ActiveX(Web Live Player) Installation Click “Click here to install Web Live Player”. Click ‘Run’ to download or click ‘Save’ to download and save Web Live Player to your PC.
  • Page 7 ActiveX Installation Click “Run” to directly install Web Live Player. Click the ‘Next’ button.
  • Page 8 ActiveX Installation Check on Agreement message and click ‘Next’ button. Click the ‘Install’ button. Click ‘Finish’ to complete the installation.

  • Page 9: Login

    LOGIN Input IP address of IP camera on web(Internet Explorer) http://192.168.10.201 Input User ID, Password and click “Login” button. Default ID & PW User ID : User’s Account Name - User ID : admin - Password: 123456 Password : User’s Secret Number Login : After input User ID &...

  • Page 10: Live / Image

    LIVE Live View & Camera Setting on Web Selectable modes of Live / Setup / Playback Tab. Live Image Control : 1(Video), 2(OSD), 3(Lightening), 4(Camera), 5(Advanced) Live Image view mode : First Stream only or Dual Stream (First and Second )Stream) The number of connected users of camera Digital Zoom ‘Log Out’...

  • Page 11: Live / Image Selection

    LIVE Image Selection – H.264 / H.264 or H.264/MJPEG Single(First Stream : H.264) only or Dual(H.264/H.264 or H.264.MJPEG) images can be sel ected. If you click ‘Dual’, you will see dual images(First and Second Video Images). Whenever you click, Mode is changed.

  • Page 12: Live / Digital Zoom

    LIVE DIGITAL ZOOM When you click Digital Zoom, you can see pop-up window for zoom setting. From the up to down, Brightness Contrast 3.  Hue Saturation You can get ‘Factory Default Value’ by clicking return arrow. Once you do Mouse Click & Drag in the view window, the orange-colored square box w ould be created.

  • Page 13: Live / Video Compression

    LIVE VIDEO – First Stream (H.264) Go to next page for setting Default : Change all video settings to default value. Resolution : 1920x1080 fixed(no change) Quality : Video Quality Control(2~35) GOP(Group Of Picture) : 5~60 FPS(Frame Per Second) : 5FPS, 12FPS, 25FPS Bitrate §...
  • Page 14 LIVE VIDEO – Second Stream (H.264/MJPEG) § H.264 § MJPEG Second Stream Type : H.264, MJPEG, Disable Resolution -H.264 : 640x480, 320x240 -MJPEG : 1920x1080, 1280x720, 800x600, 640x480, 320x240 Quality : Video Quality Control(2~35) GOP(Group Of Picture) : 5~60 FPS(Frame Per Second) -H.264 : 5FPS, 12FPS, 25FPS -MJPEG : 5FPS only Bitrate...

  • Page 15: Live / Osd

    LIVE VIDEO – RTP/RTSP OSD – Title Setting, Date/Time Display on Screen Title setting on the screen is available. Click the right side of the arrow button after inputting the name of title. The position of title on screen is available. ( Top Left / Top Right / Disable (Off ) ) The position of date &...
  • Page 16 LIVE OSD – Title, Date & Time on Screen Title position setting is available. ( Disable/Left / Right) Date / Time setting is available. ( Disable/Left / Right)

  • Page 17: Live / Image Lightening

    LIVE LIGHTENING – White Balance / AE Exposure / IR White Balance Setting is available. Auto / Manual Mode Auto Mode – Need not set R, G, B Gain. Manual Mode - Set R, G, B Gain. AE Exposure Setting is available. Auto / Manual Mode Auto Mode Manual Mode...

  • Page 18: Live / Camera

    LIVE CAMERA – Image Enhancement, Mirror/Flip, Flicker Image Enhancement Setting is available. Edge Value Setting is available. Contrast Value Setting is available. Brightness Value Setting is available. Change the Video Output Screen mode. Set the ‘Flicker’.

  • Page 19: Live / Advanced

    LIVE ADVANCED Door / HLC / LSC function setting In / Out Door Setting Color Correction Color Correction Mode ON / OFF RGB Gamma ON / OFF Y range Gamma ON / OFF...
  • Page 20 SETUP EVENT SCHEDULE – Check options Event Source -Continue(30s) : Continuous recording for 30 seconds of period -Motion : Recording when motion is triggered by camera * ‘Motion Area’ setting is required on camera. -External Sensor : Recording when motion is triggered by external sensor.(future use) Recording time : 3 ~ 60 seconds, only available for ‘Motion’...
  • Page 21 SETUP EVENT SCHEDULE – Recording schedule Insert micro SD memory into memory slot of camera and click ‘Format’ to format the memory. If you click ‘Refresh’ button, the current status of memory will be shown in a r eal time. To make recording schedule, click ‘Clear’...

  • Page 22: Setup / Network

    SETUP NETWORK SETTING Network Information setting IP Address setting Subnet Mask setting Gateway setting DNS setting ( Primary / Secondary ) DHCP setting Apply – Setting default is saved. Cancel - Setting default is cancelled. After ‘Apply’, IP is changed. So you need to re-login RTP / RTSP Port setting is available.

  • Page 23: Setup / Date/Time

    SETUP DATE & TIME Current Equipment Time SNTP / PC Time / Manual Time setting is available. Setting of time for user or menu for time is available. Date Type setting is available. Time Type setting is available. Time Zone setting is available.

  • Page 24: Setup / Information & Account

    SETUP INFORMATION & ACCOUNT 1. The various information can be seen. 2. Device Name / Product Name / UI Firmware Version / System Firmware Version Admin / Operator / Viewer is selectable. Input password for your account. Click ‘Apply’ button, and you need re-login to check the adjustment.

  • Page 25: Setup / Update

    SETUP UPDATE(Firmware) Select the system firmware on your PC. Click ‘Apply’, and update will be proceeded for 3 minutes.

  • Page 26: Setup Update Setup Log(S) Motion Area

    SETUP LOG(S) & MOTION AREA Shows event list on this log table. Check on if you want to show motion status on screen when motion is detected. No recording on SD memory Recording on SD memory Select the area by Mouse Click and Drag.(support 1 zone only) Adjust motion sensitivity from’1’...

  • Page 27: Setup / Privacy Area

    SETUP PRIVACY AREA Select the area by Mouse Click and Drag.(only 1 zone) Select color for privacy zone you selected. Click ‘Apply’ button to save or ‘Clear’ to erase all.

  • Page 28: Playback / File Search

    PLAYBACK FILE SEARCH Click ‘Playback’ to playback the recorded video in SD memory . Select either ‘Continue’ or ‘Event’. Click ‘Refresh’ to get latest video files Input ‘Start/End date’ to search and click ‘search’ to show the recorded video list.

  • Page 29: Playback / Download & Playback

    PLAY BACK DOWNLOAD & PALYBACK Select video file and click mouse right-button to select ‘Play’, ‘Save’ or ‘Delete’. Or make mouse double-click to directly download and playback the selected video. File download will take some time(seconds ~ a minute) depending the file size. After download, the video will be play backed.

  • Page 30: Playback / Rewind & File Save

    PLAY BACK REWIND & FILE SAVE ‘Rewind’ and ‘Playback’ for the downloaded video Click to save the file as other name’. Then you can see the below image box.

  • Page 31: Q&A

    Question and Answer (Q&A) Symptom Check Point • Check Power Supply connection. • Check Power socket status. It doesn’t turn on. • Check PoE Module Power LED status. If the Camera and PC’s Subnet Mask & Gateway address are different, it’s not available to connect each other. Please set-up It’s not available to ping by IP setting address.
  • Page 32 GENIE CCTV LTD. CCTV House, City Park, Watchmead, Welwyn Garden City, Hertfordshire, AL7 ILT Tel: +44 (0) 1707 330541 Fax: +44 (0) 1707 330543 www.geniecctv.com Edition. GN-April 2016...
