Summary of Contents for Sienna ES60GFDBL

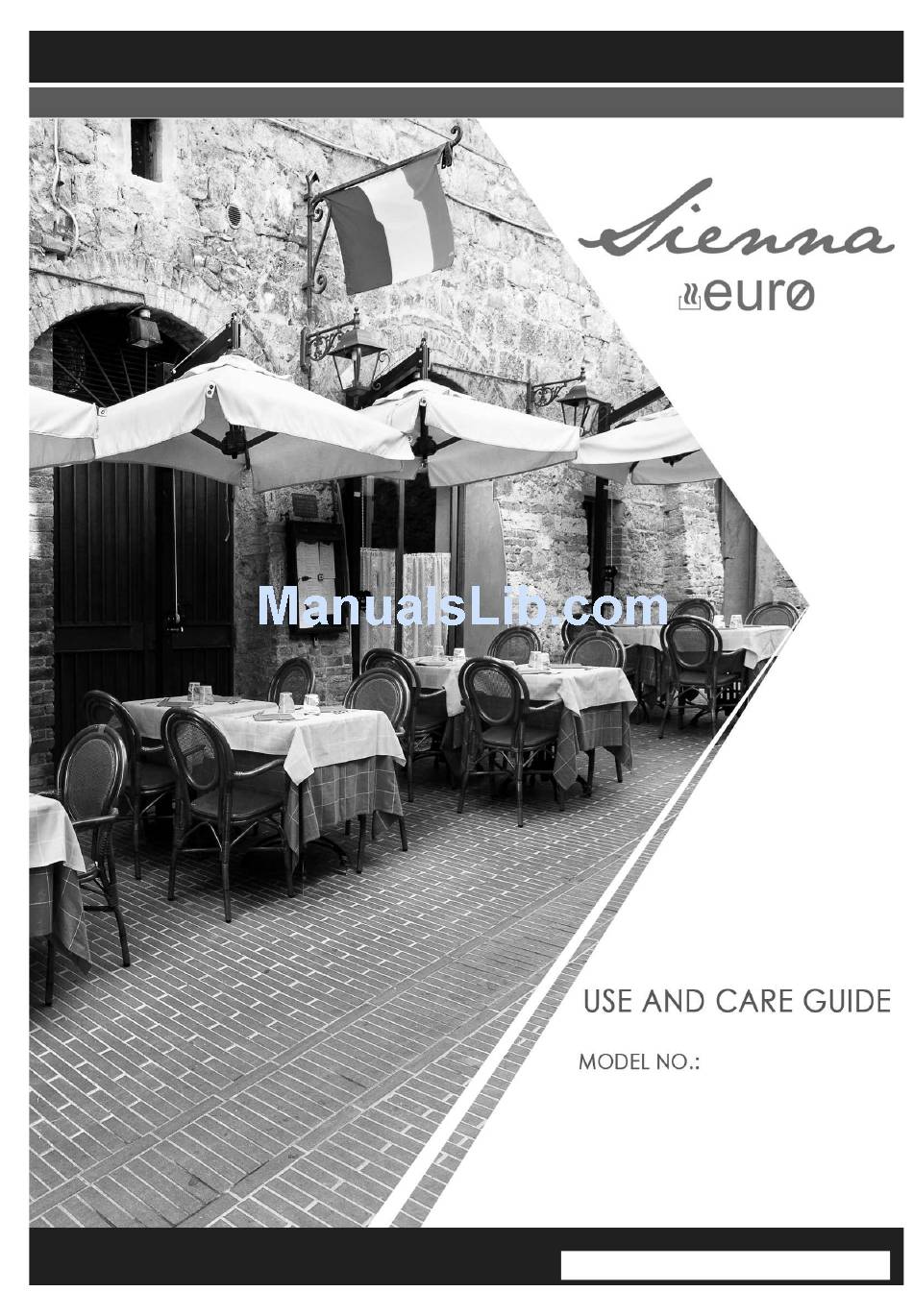

- Page 1 ES60GFDBL ES700GFDBL ES90WGFDBL COD. 04067IE 17.05.2016 REV00...
- Page 2 USE, INSTALLATION AND MAINTENANCE INSTRUCTIONS FOR BUILT-IN HOTPLATE Dear Customer Thank you for purchasing a Eurostyle Hotplate. Before we continue telling you about this hotplate, we cordially invite you to become part of the Eurostyle family by subscribing to ongoing information and invitations. You will find that the clean lines and modern look of your Eurostyle Hotplate blends perfectly with your kitchen décor.
- Page 3 DESCRIPTION OF HOTPLATE ES60GFDBL ES700GFDBL ES90WGFDBL Natural U-LPG 1 Ultra rapid gas burner/WOK 14.5 MJ/h 12.6 MJ/h 2 Rapid gas burner 12.0 MJ/h 10.4 MJ/h 3 Semirapid reduced gas burner 5.4 MJ/h 4.9 MJ/h 4 Semirapid gas burner 7.1 MJ/h 6.3 MJ/h...
- Page 4 1) BURNERS Power ratings Pan Ø A diagram is screen-printed above each knob on the Burners in cm Natural U-LPG front panel. This diagram indicates to which burner the knob in question corresponds. After having 24 - 26 Ultra rapid/WOK 14.5 MJ/h 12.6 MJ/h opened the gas mains or gas bottle tap, light the Rapid 12.0 MJ/h 10.4 MJ/h...
- Page 5 WARNINGS AND ADVICE FOR THE USER: use of a gas cooking appliance produces heat and moisture in the room in which it is installed. The room must therefore be well ventilated by keeping the natural air vents clear (fig. A) and by activating the mechanical aeration device (suction hood or electric fan fig.
- Page 6 WARNINGS AND ADVICE FOR THE USER: - Do not attempt to change the technical characteristics of the product because it can be dangerous. - If you decide longer use this appliance any more (or replace an old model), before disposing of it, make it inoperative in conformity with current law on the protection of health and the prevention of environmental pollution by making its dangerous parts harmless, especially for children who might play on an abandoned appliance.
-
Page 7: Maintenance Schedule
CLEANING IMPORTANT: Always disconnect the appliance from the gas and electricity mains before carrying out any cleaning operation. 2) HOTPLATE Periodically wash the hot plate, the enamelled stell pan support, the enamelled burner caps “A”, “B” and “C” and the burner heads "T" (see fig. 3 and 3/A) with lukewarm soapy water. They should also be cleaned plugs "AC"... -
Page 8: Installation
A minimum depth of 70 mm burners individually and combined. from the top of the worktop surface must be provided for the appliance. 3) INSTALLING THE HOTPLATE Mod.: ES700GFDBL Mod.: ES90WGFDBL FIG.4/A Mod.: ES60GFDBL FIG.4/A FIG.4/C FIG. 4/a FIG. 4... - Page 9 INSTALLATION 4) FIXING THE HOTPLATE fastening hooks “G” (fig. 6). - When the appliance is installed so that the base The hotplate has a special seal which prevents can be touched, we recommend fitting a liquid from getting into the cabinet. Strictly comply protecting shield.
-
Page 10: Gas Connection
The gas connection is located in the rear and on the right hand underside of these appliances: Liquified Petroleum Gas. 24 mm (mod:ES60GFDBL), 144 mm (mod:ES700GFDBL), In a Universal LP Gas installation the gas 230 mm (mod: ES90WGFDBL). -
Page 11: Electrical Connection
INSTALLATION 6) ELECTRICAL CONNECTION and lead to dangerous overheating. When the appliance is connected straight to the electricity main: IMPORTANT: the appliance must be installed - Install an omnipolar circuit-breaker between the following the manufacturer's instructions. The appliance and the electricity main. This circuit- manufacturer will not be liable for injury to breaker should be sized according to the load persons or animals or property damage caused... - Page 12 ADJUSTMENTS Always disconnect the appliance from the service provider in your area. 7) TAPS electricity main before making any adjustments. All seals must be replaced by the technician at Our taps are suitable for all gas, they are male the end of any adjustments or regulations. conical type.
-
Page 13: Conversion Procedure
8) UNIVERSAL LP GAS TO NATURAL GAS 9) NATURAL GAS TO UNIVERSAL LP GAS CONVERSION PROCEDURE CONVERSION PROCEDURE Appliance models: Gas stainless steel hotplate Appliance models: Gas stainless steel hotplate models: models: ES60GFDBL ES60GFDBL 4 Burners 4 Burners ES700GFDBL ES700GFDBL 5 Burners 5 Burners... -
Page 14: Replacing The Injectors
CONVERSIONS 10) REPLACING THE INJECTORS and affix the label corresponding to the new gas regulation on the appliance instead of the already The burners can be adapted to different types of existing one. This label is supplied in the packet gas by installing injectors suited to the type of gas containing the spare injectors. - Page 15 SERVICING CABLE TYPES AND SECTIONS TYPE OF TYPE OF SINGLE - PHASE HOTPLATE CABLE POWER SUPPLY Gas hotplate H05 RR - F Section 3 x 0.75 mm ATTENTION!!! If the power supply cable is replaced, the installer should leave the ground wire (B) longer than the phase conductors (fig.
-
Page 16: Technical Assistance And Spare Parts
TECHNICAL ASSISTANCE AND SPARE PARTS Before leaving the factory, this appliance will have been tested and regulated by expert and specialised personnel in order to guarantee the best performances. Any repairs or adjustments which may be subsequently required may only be carried out by qualified personnel with the utmost care and attention.
