USER MANUAL
Safety Information...............................................................3
Specifications.....................................................................4
Main Power Connection........................................................5
DMX-512 Connection...........................................................5
Main Control Menu..............................................................6
DMX Profile.....................................................................................8
Rigging the Fixture..............................................................8
Cleaning & Maintenance.................................................................9
Parts List.........................................................................................9
Advertisement
Table of Contents
Summary of Contents for Mega FX A1
-

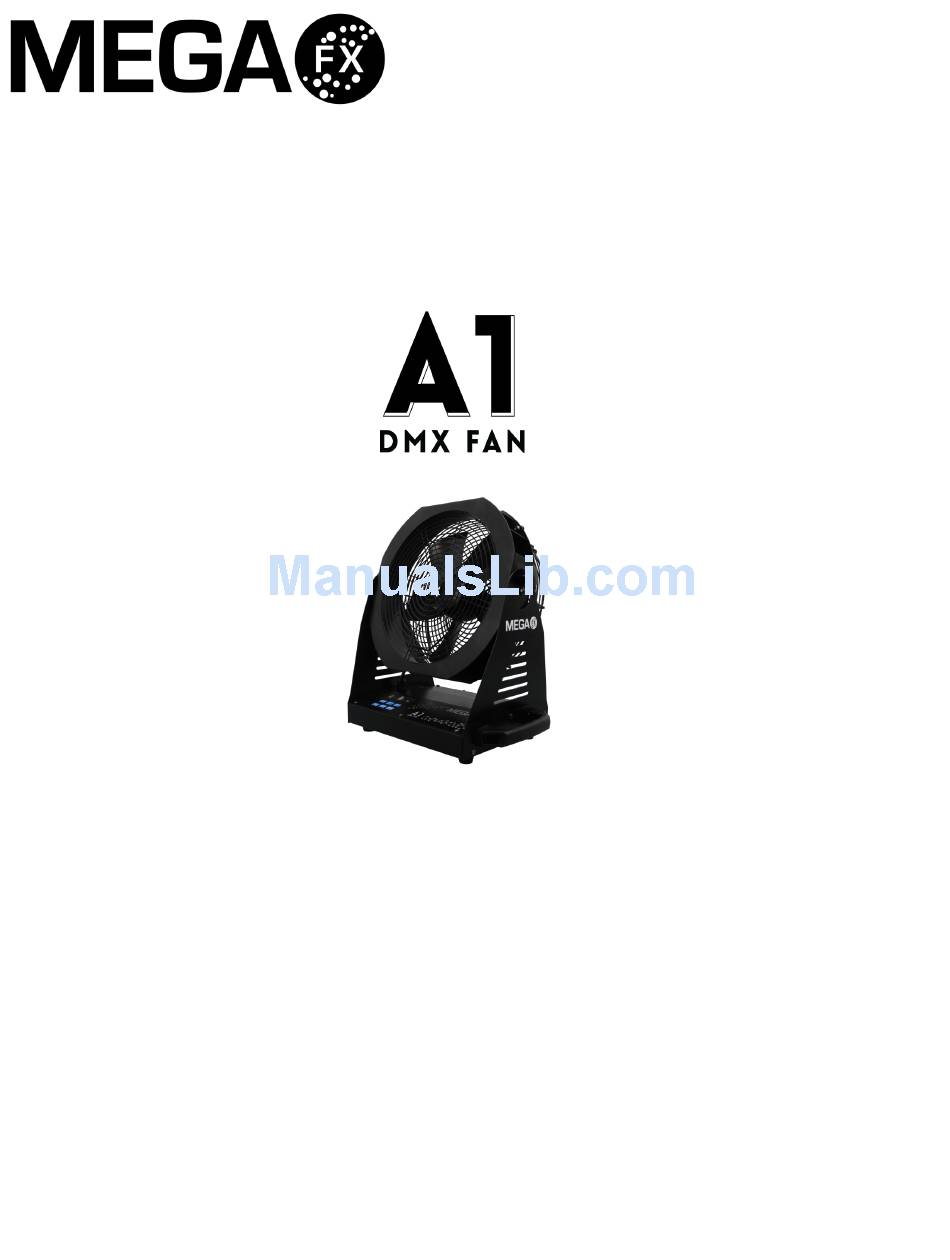

Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information……………………………………...………………3 Specifications………………………………………...…………………4 Main Power Connection…………………………...…………………..5 DMX-512 Connection……………………………..…………………...5 Main Control Menu……………..…………………………………..….6 DMX Profile..................8 Rigging the Fixture……………………………….…………………….8 Cleaning & Maintenance..............9 Parts List..................9... -
Page 3: Table Of Contents Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5. -
Page 4: Specifications
Specifications Part Numbers Fixture Flight Case 2011 - A1 DMX Fan 2011-RC Road Case Mechanical Specifications DMX Connectors: 3 and 5-pin XLR connectors Power Connectors: Power Conn Type to Nema 5-15 cable mounted Thermal: Maximum ambient temperature 110° F Maximum surface temperature 140° F... -
Page 5: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating.(F4Amp 250V, 20mm) The occupation of the connection-cable is as follows: Cable (USA) Cable (EU) 110V Black... -
Page 6: Main Control Menu
DOWN TIMER VOLUME MANUAL Ready to Use Mega A1 FUNCTION DOWN The Functions Below will adjust the A1 Fan speed when used in Timer, Volume and Manual Mode. TIMER VOLUME MANUAL Interval Set Interval Set Mega A1 Sets Interval time in Sec or Minutes the amount of time Between fan engaged. - Page 7 Ready to Use Note: (It is recommended to not run the fan at the lowest speeds for over 1 hour of time to avoid motor over heating ) Mega FX H5 FUNCTION DOWN TIMER VOLUME MANUAL DMX Address DMX 512 Add.
-
Page 8: Dmx Profile
DMX Profile A1 DMX Fan 1 Channel DMX Channel Function Description Value Init Value Fan Speed Slow to Fast 10-255 Note: (It is recommended to not run the fan at the lowest speeds for over 1 hour of time to avoid motor over heating ) -
Page 9: Cleaning & Maintenance
Cleaning and Maintenance Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installa- tions and electronics checked by an expert every 2 years. The following points have to be considered during the inspection: 1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded. - Page 10 Warranty Information Warranty Conditions -Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty. -LEDs are not guaranteed to match in color temperature or output. -It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor. If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
