Summary of Contents for Gulfstream PlaneBook

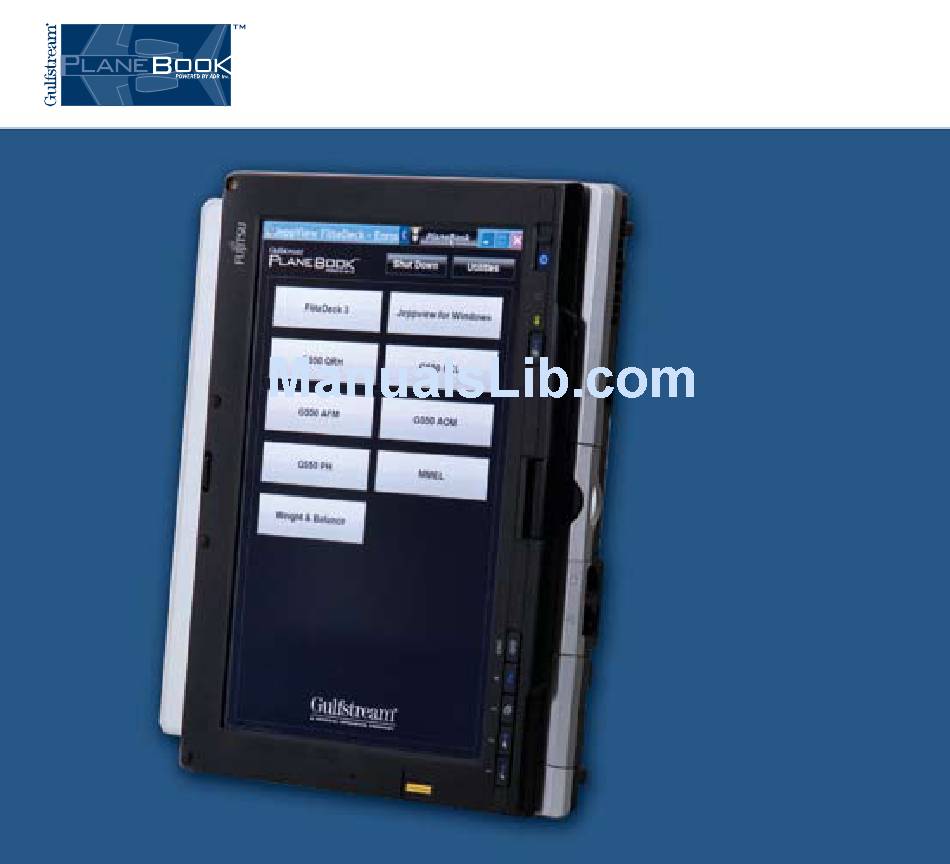

  • Page 1 quick reference guide Electronic Document Manager s m a l l e r f a s t e r b e t t e r...
  • Page 2 PlaneBook™ Tablet PC left Panel WLAN/Bluetooth On/Off Switch PC Card Eject Button PC Card Slot Back Panel front Panel Air Vents Power Hard Drive Access Battery Level Anti-Theft Lock Slot Backlight On/Off Ctrl+Alt+Del Button Secondary Function Modem (RJ-11) Port Selection...

  • Page 3: Charging Unit

    Charging Unit SteP 1 1. Plug the AC adapter into your tablet PC. 2. Plug the power cord into the AC adapter and connect to an electrical outlet. DC Power Jack...
  • Page 4 2. Rotate display 180 degrees and carefully lay display down on keyboard. 3. Push the power button to turn on the tablet PC. (Push button up) Note: If the PlaneBook™ tablet PC launches in Windows mode, double-click the PlaneBook™ icon ®...
  • Page 5 4. After the initial bootup process has finished, you will see a license agreement dialog box appear. 5. Read the disclaimer, then click “I Agree”. Make sure you check the box to no longer display the license agreement dialog box. Note: The PlaneBook™ application will now start.
  • Page 6 PlaneBook™ Shell Diagram Print Screen Button PlaneBook™ Start Button Window Controls Open PlaneBook™ Taskbar Utilities Button Document/Application Button Shut Down Button PlaneBook™ Taskbar Taskbar Pin Control PlaneBook™ Taskbar Overflow List Button PlaneBook™ Taskbar Settings Button...
  • Page 7 Note: The “Media Type” selection in the “Check for Updates” process defaults to the internet as the source for data. If you do not wish to use the internet-based process of updating your PlaneBook™, you must request a CD-ROM from Technical Information’s Sales and Distribution Group. With the external CD-ROM drive connected and ready, change the “Media Type”...
  • Page 8 PlaneBook™ Update cont. 3. Click on Set Login to set myGulfstream.com login and save settings.
  • Page 9 4. Type your User Name and Password, then click “OK”.
  • Page 10 Note: Ensure that an internet connection is established before selecting “Check for Updates”. The PlaneBook™ update internet process will start running automatically. The time required to complete the update process will vary according to the size of the update, type of internet connection and download speed.
  • Page 11 Note: A PlaneBook dialog box will appear that reads “Your PlaneBook is up to date”. 6. Click the “Close” button.
  • Page 12 Launching Documents/Applications SteP 4 1. Click on the documents/applications button to open the QRH interactive manual. See page 12 for the QRH Tab Index page diagram.
  • Page 13 Tab Index Page Diagram Tab Index Button Tab Index Section Button Previous View Button Next View Button Previous Page Button Next Page Button Note: Each manual will have a tab index page, except for the PCL and Noise Manual.
  • Page 14 Navigating Interactive Manuals SteP 5 1. Click on the tab index button for the “Engines-EB” section. 2. Click on “Engine Failure Above V1” procedure in the “Engines” index. 3. Click the “PAGE dOWN” button to page EB-5. 4. See step 22 on page EB-5 and click the linked text Before Landing Checklist.
  • Page 16 Navigating Interactive Manuals cont. 6. Click on the “BACK” button to navigate back to the previous view. Note: Every time you click the back button on each page it will take you back to the previous view that was displayed.
  • Page 17 PlaneBook™ Menu Editor SteP 6 1. Click on the PlaneBook™ “Utilities” button. 2. Click on “PlaneBook Menu Editor”. The “PlaneBook Menu Editor” dialog box will appear. See page 17.
  • Page 18 PlaneBook™ Menu Editor cont. 3. Click on the “Keyboard” button.
  • Page 19 4. Type the name of the button you are creating using the on screen keyboard. 5. Close the on screen keyboard. 6. Click on the “Browse” button.
  • Page 20 7. Navigate to the application file or document file that you want the button to launch. 8. Click the “Open” button. 9. Click the “Add Button” button. 10. Click the “Close” button. 11. Click the “PlaneBook™ Start” button to test the new document or application button.

  • Page 21: Important Numbers

    Unit S/N: Technical Support It is our desire that you are always 100% satisfied with PlaneBook™, including support after the sale. Given that a computer is still a machine, however, it is foreseeable that machines will break from time to time. We ask that you please take the following steps toward obtaining technical support.
  • Page 22 Important Numbers cont. Contact Gulfstream ® If you have any questions or encounter any difficulty while using PlaneBook™, please contact Gulfstream , Monday through Friday, 6:00 a.m. – 4:30 p.m. Eastern Time. ® email: pubs@gulfstream.com telephone: 1.800.810.4853 1.912.965.4178 (United States) /...
  • Page 23 PlaneBook™ portion of the Fujitsu FG-1620G Tablet PC. However, if we determine the problem is with the PC itself and not the PlaneBook™ system, we may confer with our PC provider. We will then get back in touch with you, or we may escalate your issue directly to our PC provider for assistance.
  • Page 24 Compact – Fully loaded and goes with you anywhere. © Gulfstream 2008 ® PlaneBook™ Quick Reference Guide...
