Summary of Contents for Top Dawg TDDCAM-01

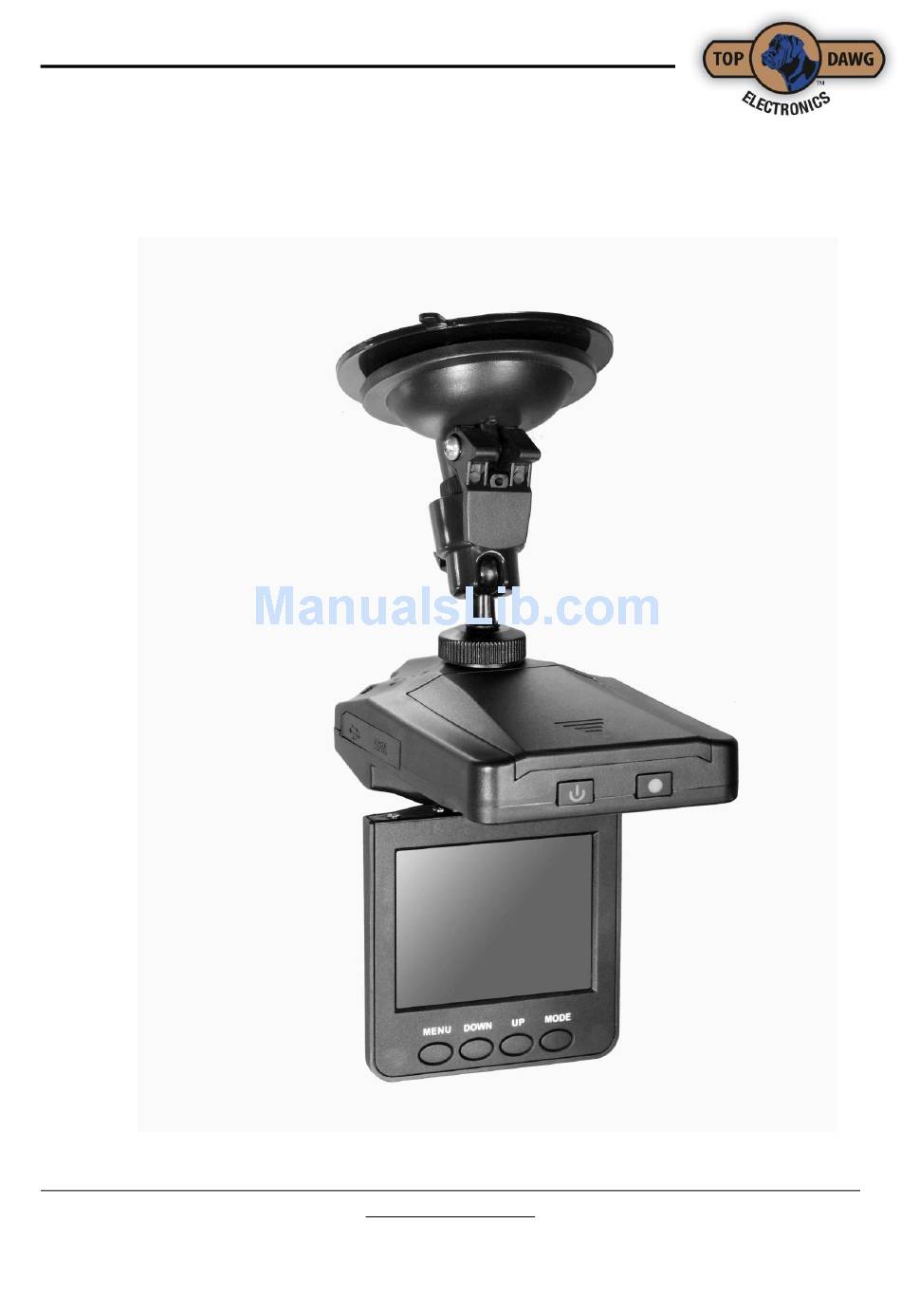

- Page 1 TOP DAWG PREMIUM DVR DASH CAM (PART #: TDDCAM-01) Instruction Manual Congratulations on your purchase! **Please read and understand all instructions before you use your device. If you do not use device properly and follow all instructions, the warranty can be voided.
-
Page 2: Using Sd Card
Using SD card 1) Insert the included 8 GB SD card (up to 32 GB SD Card) into SD Card slot until it clicks into place. 2) To remove micro SD Card, depress the SD card lightly and the SD Card will eject partially allowing you to remove it. -
Page 3: Function Keys

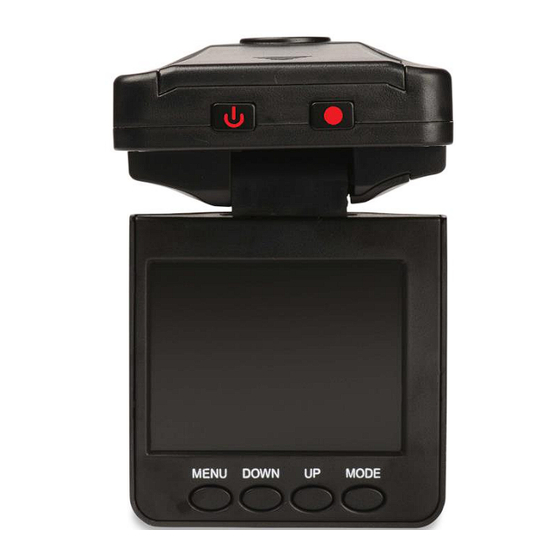

Function Keys Turn on / Turn off / Place in charge only mode (press and hold for approx 3 sec.) Confirm selection / Capture Photo / Play MENU Bring up menu / Back (out of menu) Move selection down inside menus / Zoom out X4 DOWN Move selection up inside menus / Zoom in X4 / Pause (Resume) During Playback Cycle thru Operating Modes: Video / Camera / Audio Recording / Playback / Confirm selections in... -
Page 4: Menu Setting
battery fully to ensure proper functionality of the device. Operation Instructions Switching modes 1) Press the “POWER” button momentarily to turn the device “On”. 2) When unit is powered “On” the device defaults into the video setting. This is indicated by observing a “Purple Video Camera”... -
Page 5: Playback Setting
1) Resolution : [5M] 2592x1944 [3M] 2048x1536 [2M] 1600x1200 [1M] 1280x1024 2) Quality: Super Fine / Fine / Normal 3) Exposure: Exposure luminance adjustment 4) Driver Mode: Off, Self-timer 2S, Self-timer 10S, Burst. 5) Date stamp: Off, Date&Time After selection, click “OK” to confirm, setting completed. Then click “MENU” to exit. Playback Setting Power on;... -
Page 6: Operation
Japanese, Russian 7) TV Out：NTSC or PAL NOTE: WHAT IS NTSC AND PAL STANDARD? The two most common video standards used are NTSC and PAL. NTSC is the video system, or standard, used in North America and most of South America. In NTSC, 30 frames are transmitted each second. -
Page 7: Audio Recording Mode
“Photos” icon. 2) Press “OK” button to take photos 3) Self-timer function: Press the “MENU” button in the photo mode. Select “Driver Mode” Press the “DOWN/UP” button to select self-timer: 2S, 10S, Burst. Press OK, then press “MENU” Follow the same steps as above to change the settings of the photo quality, metering mode, flash, exposure settings. -
Page 8: Specifications
TV-OUT Use the included AV cable to connect the device to a TV. HD TV-OUT If the device comes with HDMI video output, please use HDMI (not included) cable to connect the device to a HD Specifications Sensor COMS Lens Wide-angle lens 120°... - Page 9 This device may not be used to violate the privacy rights of others. In no way will Top Dawg Electronics or its subsidiaries or partners be held responsible for inappropriate use of this product. It is the sole responsibility of the buyer to consult legal counsel for the interpretation of any laws applicable to the area of intended use of these products.
