- Page 1 POWER PACK & JUMP STARTER MODEL NO: CLIPPJS PART NO: 6487075 OPERATION & MAINTENANCE INSTRUCTIONS LS1116...
-
Page 2: Environmental Protection
INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
Do not operate the jumpstart if any of the cables are damaged. Consult your Clarke dealer for repair or replacement of the parts. Do not operate the unit if the case is damaged. Consult your Clarke dealer or a qualified person for inspection and repair. -
Page 4: Electrical Connections

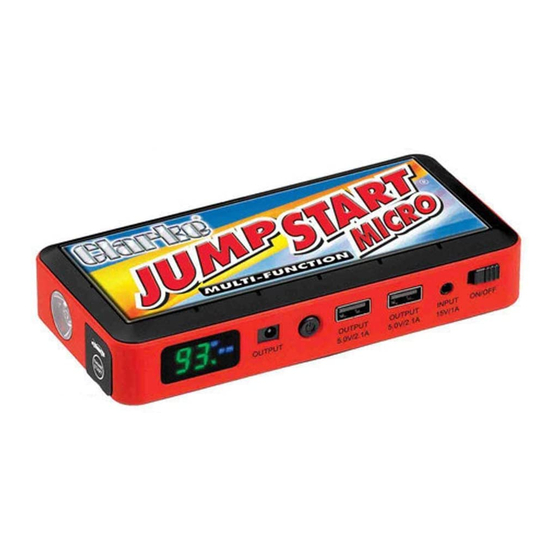

15. Never allow the jumpstart leads on this unit, to touch each other or to touch the same metal object. 16. Ensure the vehicle battery posts and battery clamps are perfectly clean before use. 17. Connect the red clamp to the unearthed battery terminal first, (this is usually the positive (+ve) terminal and painted RED);... - Page 5 OVERVIEW DESCRIPTION NO DESCRIPTION Worklight Push Button Jumpstart Lead Socket USB Sockets 5V DC Display Charger Input Socket DC Output Socket ON/OFF Switch Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 6: Charging The Power Pack
CHARGING THE POWER PACK You can charge your power pack using either: • The mains charger (A). • The cigar lighter adapter (B). 1. Switch the power pack off. 2. Plug the mains charger or cigar lighter adapter into the charger input socket. -
Page 7: Operation
OPERATION USING THE WORKLIGHT 1. Set the ON/OFF switch to the ON position. 2. Press and hold the push button for 3 seconds to turn the worklight on. 3. Press the push button again. • The worklight will flash using the morse code SOS pattern. -
Page 8: Using The Dc Power Supply
USING THE DC POWER SUPPLY SELECT THE VOLTAGE 1. Set the ON/OFF switch to the ON position. 2. Press the push button repeatly until the required voltage is shown in blue on the top of the display. • Select from 12V, 16V, or 19 V. CONNECTIONS 1. -
Page 9: Jump Starting
JUMP STARTING WARNING: IT IS POSSIBLE THAT SOME ELECTRONIC EQUIPMENT COULD BE DAMAGED BY JUMP STARTING. ALWAYS CHECK WITH THE VEHICLE HANDBOOK TO DETERMINE IF ANY PRECAUTIONS SHOULD BE TAKEN. CONNECTING THE SMART CABLE TO THE POWER PACK 1. Lift the rubber plug and insert the jumpstart leads into the power pack. -
Page 10: Jumpstart The Battery
JUMPSTART THE BATTERY CAUTION: MAKE SURE THAT THE POWER PACK IS AT LEAST 30% CHARGED BEFORE YOU ATTEMPT TO JUMPSTART. ALWAYS carry out the following preliminary checks: • Switch off the vehicle ignition and ALL ancillary equipment (lighting, radio etc.) •... -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
