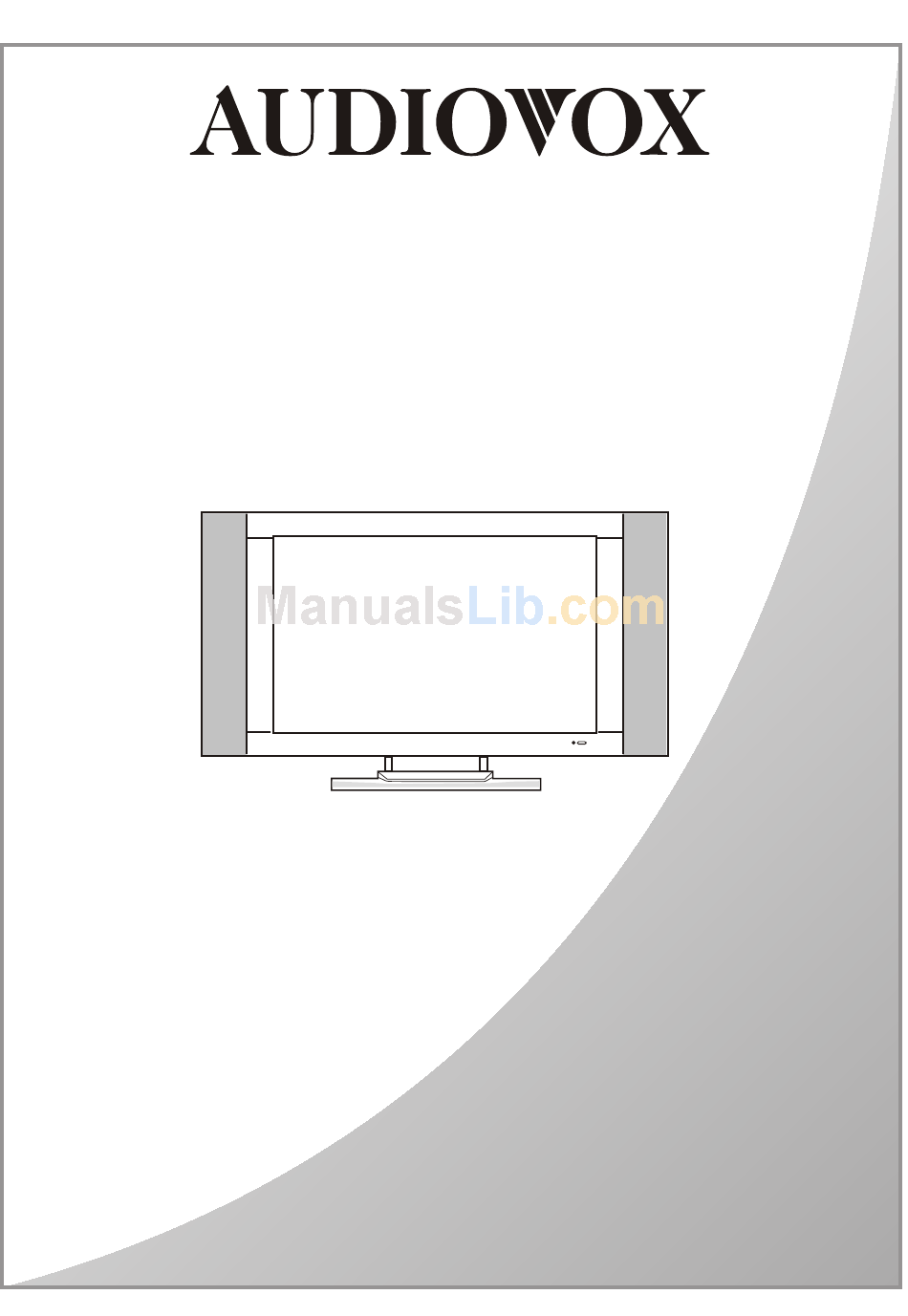

- Page 1 LCD TV Owner's Manual FPE3000 Before operating the unit, please read this manual thoroughly. 128-7081...
-
Page 2: Table Of Contents
Contents Congratulations on your purchase of this LCD TV. We recommend that you thoroughly read this manual before use to fully enjoy the many functions and excellent effects of this LCD TV. Retain this manual in an easily accessible location for future reference. Note: Screen displays and illustrations in this manual may differ from the actual ones for better visibility. -
Page 5: Important Safety Cautions
Important Safety Cautions When any unusual situation occurs, turn off the power supply at once and remove the plug from the wall outlet. Contact a qualified service department in your local area. Do not expose this unit in the rain or spatter by liquid. Do not use this product near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like. - Page 6 This TV set operates on power of 120V, 60Hz. You must not use a power supply of any other type. When relocating the product placed on a trolley, it must be moved with the utmost care. Sudden stops, excessive force and uneven floor surfaces can cause the product to fall from the trolley.
-
Page 8: Identification Of Controls
Identification of controls Front Remote sensor On/Standby Indicator Light SOURCE MENU POWER Channel up Volume up To enter into MENU Channel down Volume down Power on/ Standby To select input signal... - Page 9 Back - S VIDEO VIDEO Video input HDTV YPbPr S-video input inputs (480p, 720p,1080i) DVD input (480i) - S VIDEO ANT IN PHONE LINE IN VIDEO HDTV DC +24V ANT IN +12V HDTV VGA input Antenna input DC input from power Speaker supply outputs...
- Page 10 Identification of controls Remote Control power on/Standby Volume down To enter into MENU Colour/ sound system select Zoom mode select Auto correct picture Picture mode select Keypad Video Input select Still picture OSD position select Adjusting Bass (continued) Sound mute Channel up Volume up Channel down...
- Page 11 Battery installation Please install the batteries before using the remote control unit. Open the battery cover. Install two "AAA" batteries matching the +/- polarities of the battery to the +/- marks. Replace the battery cover. Notes: When the remote control will not be used for a long period of time or when the batteries are worn out, remove the batteries.
-
Page 12: Antenna Connection
Antenna connection CABLE TV (CATV) CONNECTION A 75-ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75- ohm coaxial cable to the set, screw the 75-ohm cable to the ANT. Terminal. Some cable TV companies offer "premium pay channels". Since the signals of these premium pay channels are scrambled, a cable TV converter/descrambler is generally provided to the subscriber by the cable TV company. -
Page 13: Installation
Installation Power connection Before using this equipment, please connect the AC power adapter correctly. - S VIDEO ANT IN VIDEO HDTV 1. Connect the female plug to the AC socket on AC adapter. 2. Connect the AC adapter to the DC power input of the set. 3. - Page 14 Installation (continued) Connecting video/audio equipment - S VIDEO VIDEO To S-video input Video equipment with S-video terminal To ANT output DC +24V ANT IN +12V HDTV To audio inputs To audio To video inputs input To audio outputs PHONE LINE IN Yellow (video) white (audio L/MONO) red (audio R)
- Page 15 Installation (continued) Connecting DVD player and speakers - S VIDEO VIDEO To YCbCr inputs To YCbCr outputs DVD Player White (audio L/MONO) Red (audio R, Cr) Green (Y) Blue (Cb) DC +24V ANT IN +12V HDTV To audio inputs To audio outputs PHONE LINE IN...
-
Page 16: Connecting Ypbpr Terminals
Installation (continued) Connecting YPbPr terminals - S VIDEO VIDEO White (audio L/MONO) Red (audio R, Pr) Green (Y) Blue (Pb) DC +24V ANT IN +12V HDTV To YPbPr inputs To YPbPr outputs (480p/720p/ 1080i) SET TOP BOX (Or other equipment with YPbPr output terminals) PHONE LINE IN To audio... -
Page 17: Connecting Vga Interface
Installation (continued) Connecting VGA interface - S VIDEO VIDEO DC +24V ANT IN +12V HDTV To VGA input interface PHONE LINE IN To LINE in Equipment with VGA output interface To LINE out To VGA output interface... - Page 18 Installation (continued) Elevation adjustment You can adjust the angle of the LCD TV as follows. The elevation can be adjusted from -5 to +10 .
-
Page 19: Menu Introduction
Menu Introduction Menu overview in TV mode PICTURE setting menu PICTURE SETTING Brightness Contrast Color Sharpness Tint <LEFT> or <RIGHT> key to change SOUND menu SOUND Bass Treble Balance MONO <LEFT> or <RIGHT> key to change SETUP menu SETUP Color sys AUTO Language OSD position... -
Page 20: Menu Introduction
Menu Introduction CCD and Vchip settings menu (in TV mode) CCD and Vchip SETTINGS CCD Mode setting CCD Background Transparent _ _ _ _ Video Rating Settings <LEFT> or <RIGHT> key to change Input the password Vchip menu RATING SETTING MPAA Rating Sys TV Block Settings Change Password... -
Page 21: Turning On/Off / Selecting Input Signal
Turning On/Off / Selecting input signal Turning On 1. Connect the power, the red indicator lights up, the set is in STANDBY mode. 2. Press the POWER button on the unit's control panel or button on the remote control to turn the set on. Turning Off With the power on, press the POWER button to turn off the set, and the set is in standby mode. -
Page 22: Operations In Tv Mode
Operations in TV mode Channel Preset CHANNEL SETTING Auto search Source Antenna Current Prog Skip Auto fine tune <LEFT> or <RIGHT> key to change * To exit the menu, press ENTER button. To enter into CHANNEL SETTING menu 1. Press MENU button repeatedly to display CHANNEL SETTING menu. -
Page 23: Channel Select
Channel Select Use 0-9 digit buttons Use 0-9 digit buttons to select one-digit channel number. - -5 Press 0-9 button To select two-digit channel: - -5 Press 0-9 Press 0-9 button button To select three-digit channel: - -1 Press 0-9 Press 0-9 button button Note: the period of two-press should be within 3 seconds. -
Page 24: Picture Adjustment
Picture adjustment PICTURE SETTING Brightness Contrast Color Sharpness Tint <LEFT> or <RIGHT> key to change * To exit the menu, press ENTER button. Adjusting picture 1. Press MENU button to display PICTURE SETTING menu. 2.Press CH / button to select item. Item Brightness darker... -
Page 25: Sound Adjustment
Sound adjustment SOUND Bass Treble Balance MONO <LEFT> or <RIGHT> key to change * To exit the menu, press ENTER button. Adjusting Sound 1. Press MENU button repeatedly to display SOUND menu. 2.Press CH / button to select item. Item VOL- Bass weaker... -
Page 26: System Setup
System setup SETUP Color sys AUTO Language OSD position Upper Left OSD background Opaque <LEFT> or <RIGHT> key to change * To exit the menu, press ENTER button. To enter into SETUP menu 1. Press MENU button repeatedly to display SETUP menu. 2. -
Page 27: Setting Osd Background
System setup SETUP Color sys AUTO Language OSD position Upper Left OSD background Opaque <LEFT> or <RIGHT> key to change * To exit the menu, press ENTER button. (continued) Setting OSD position From the SETUP menu, press CH / to select OSD position item. Press VOL- or VOL+ button to select an OSD position in your preference. -
Page 28: Timer Setting
Timer setting Turn off Use SLP button Press SLP button repeatedly to set sleep time between: 0, 10, 20, 30, 60, 90,120,180,240 minutes. If you select 0 minute, it means the sleep timer function is turned off. Use CLK button Press CLK button, the Current time menu bar appears. -
Page 29: Ccd Setting
CCD setting CCD and Vchip SETTINGS CCD Mode setting CCD Background Transparent _ _ _ _ Video Rating Settings <LEFT> or <RIGHT> key to change * To exit the menu, press ENTER button. To enter into CCD and Vchip SETTINGS menu 1. -
Page 30: V-Chip Setting
V-chip setting V-Chip enables parents to prevent their children from watching inappropriate material on TV. V-Chip reads the ratings for programming (except for news, sports, unedited movies on premium cable and Emergency System signals ), then denies access to programming if the program's rating meets the limitations you select. -
Page 31: Changing The Password
V-chip setting * To exit the menu, press ENTER button. TV RATING setup TV Parental Guidelines may have one or more letters added to the basic rating to let parents know when a show contains higher levels of violence, sex, adult 1. -
Page 32: Adjustment In Ypbpr Mode
Adjustment in YPbPr mode YPbPr * To exit the menu, press ENTER button. To enter into YPbPr mode Repeatedly press button on the remote control or SOURCE button on the set's panel until the screen display YPbPr, which indicates that the set is in YPbPr mode. -
Page 33: Adjustment In Pc Mode
Adjustment in PC mode To enter into PC mode Repeatedly press button on the remote control or SOURCE button on the set's panel until the screen display PC, which indicates that the set is in PC mode. PC signal format Please connect VGA input and be sure that there is VGA input signal. -
Page 34: Adjusting Phase And Frequency
Adjustment in PC mode PICTURE SETTING Brightness Contrast Phase Frequency Color Temp 9300K <LEFT> or <RIGHT> key to change * To exit the menu, press ENTER button. When there is correct input signal, press MENU button and PICTURE SETTING menu appears. Use CH / adjust. -
Page 41: Specifications
Super low power consumption in standby VHF-L, VHF-H, UHF 75 Ohm Coax F-Connector Anti-glare with anti-reflective coating Hard coating (2H) 5 watt x 2 FPE3000 LCD display Quantity Detachable Speakers (x2) Model specific Remote Control (Infrared) Manual Wall mounting instructions... - Page 43 PRINTED IN RECYCLED PAPER 128-7081...
