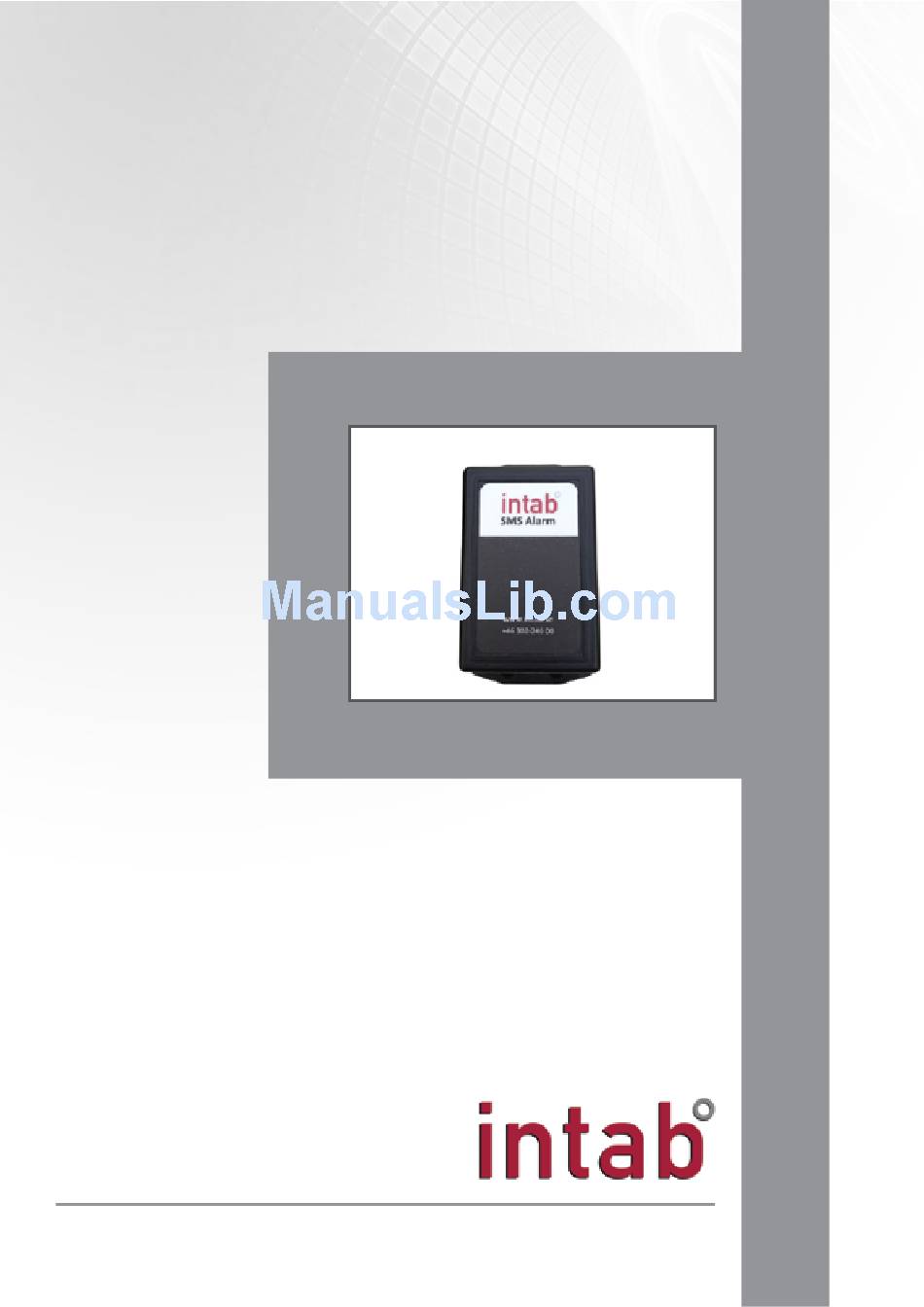

- Page 1 SMS alarm L-53 2014-06-23 www.intab.se • info@intab.se • +46 302-24 600 Gjutarevägen 1 • 443 61 Stenkullen...
- Page 2 1. Description A1000 is a simple & easy to use GSM Detector which sends SMS and calls you in case of alarm events. Alarm event occurs in case of NO and NC ports changes. Up to 3 users can be registered. Only a local GSM SIM card is required to operate the device.
-
Page 3: Getting Started
2. Getting started 2.1. Insert SIM Card A local SIM card is required to operate the system. Before inserting the SIM card, try it with a mobile phone and: • Disable PIN code protection • Send an SMS to a mobile number for testing After above steps;... - Page 4 Now please call the device’s number with your phone. Once you hear the ringing volume, your number is registe- red to devices memory as ADMIN NUMBER. Then the LED will blink and device will send you an SMS including “ADMIN OK” message. After you receive this message;...
- Page 5 EXAMPLES: 1) QUICK CONFIGURATION: 1111 Above example means you didn’t change any configuration but you know the password. Once you sent this SMS to the device; it will reply you with an SMS including “CONFIG OK <XX>” text (where XX is GSM signal strength, see “Table-2”...
- Page 6 3. Normal operation and alarms Now your device will continuously check for: • NO and NC port changesTemperature Restorations • Power failure and restorations • Low battery • And keep alive message periods In case of NO port is closed (short-circuit) you and other users (if registered) will receive SMS including “PORT1 ALARM”...
-
Page 7: Technical Specification
Technical specification Intab SMS-alarm Power supply • 2 x CR123A batteries • 12 V 1500 mA DC adaptor Inputs • SMS in case of NO Port Failure • SMS in case of NC Port FailurePower adaptor input • Power adaptor input Outputs •... - Page 8 My data: Admin telephone number: Password: Telephone number SIM: www.intab.se • info@intab.se • +46 302-24 600 Gjutarevägen 1 • 443 61 Stenkullen...
