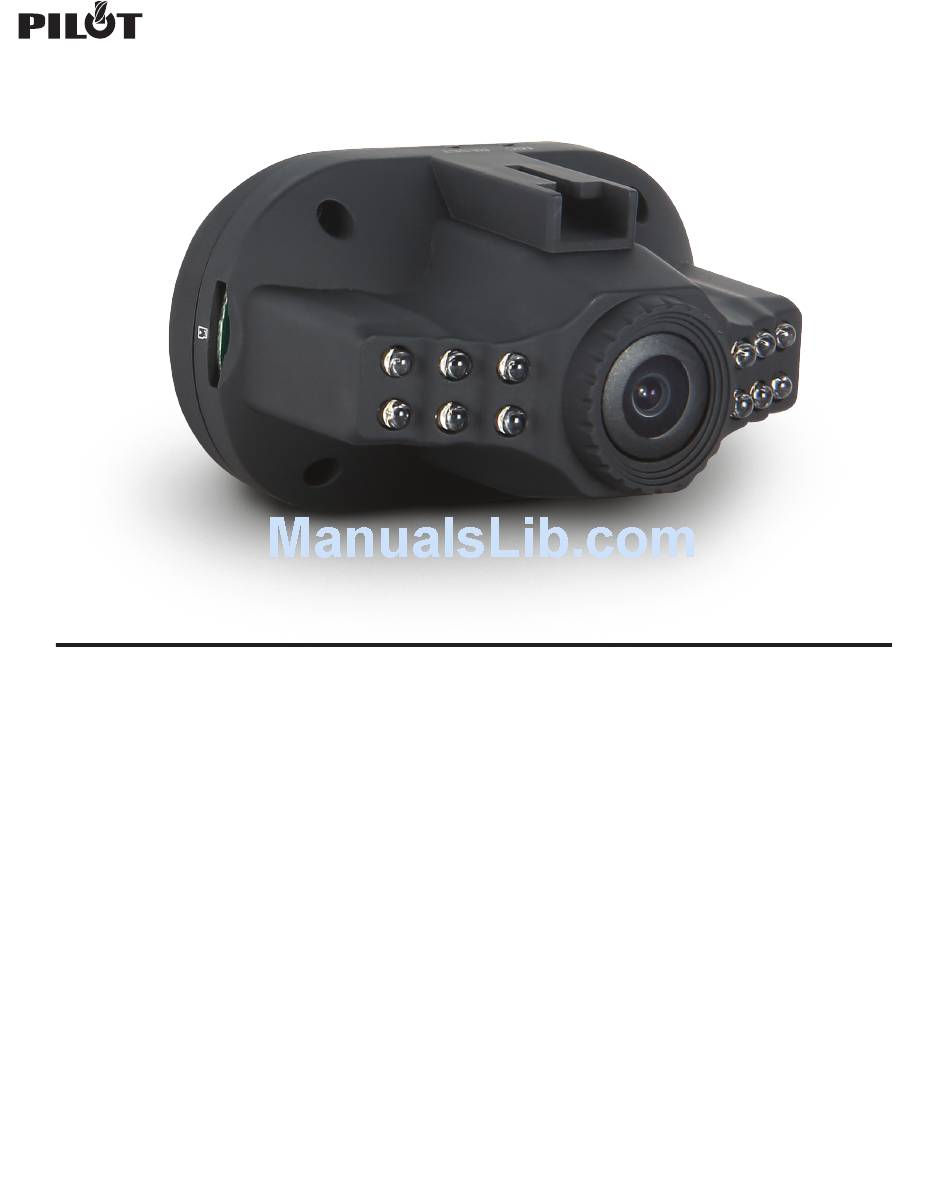

ELECTRONICS
DASH CAM INSTRUCTIONS
INSTRUCCIONES DE USO
Caution: Please charge unit completely with car charger and not USB
for first charge. Doing so may cause battery damage.
Precaucion: Por favor carga la unidad completamente con cargo
de auto y no con USB por la primera vez. Puede ser dano a la bateria.
Advertisement
Table of Contents
Summary of Contents for Pilot Electronics CL-3002WK
- Page 1 ELECTRONICS DASH CAM INSTRUCTIONS INSTRUCCIONES DE USO Caution: Please charge unit completely with car charger and not USB for first charge. Doing so may cause battery damage. Precaucion: Por favor carga la unidad completamente con cargo de auto y no con USB por la primera vez. Puede ser dano a la bateria.
-
Page 2: Camera Description
DASH CAM INSTRUCTIONS ELECTRONICS Camera description: 1. UP button 7. OK button 13. Bracket mounting 2. MENU 8. MODE 14. Reset hole 3. DOWN button 9. Power button 15. MIC 4. USB interface 10. Display screen 11. TF slot 5. Camera 6. -
Page 3: Power On/Off
DASH CAM INSTRUCTIONS ELECTRONICS Button and interface functions 8) MODE 1) UP button Short press on this button to shift among “photo mode, Short pressing on this button while in standby video mode, playback mode and SOS function. or recording activates the zoom feature. For SOS function: short press this key to enforce saving 2) Menu button the current video when Video recording. -
Page 4: Battery Instruction
DASH CAM INSTRUCTIONS ELECTRONICS • Photo mode Short press on “M” button to shift to photo mode. A photo icon is on the top left corner of screen Then short press on “OK” button to take a photo. The screen will ash one time meaning a photo was taken. •... - Page 5 DASH CAM INSTRUCTIONS ELECTRONICS Product specs Features HD camera, HD video recording G-sensor Built-in (car accident case of emergency save, will not be deleted) LCD screen size 1.5LTPS Camera 120 A + grade high-resolution ultra wide-angle lens Language Russian, Japanese, French, Italian, German, Spanish, English, Chinese (simpli ed), Chinese (Traditional), Korean, etc…...
-
Page 6: Icon Legend
Icon Legend Video settings icons: Setup Menu icons: Resolution: 1080FHD (1920x1080) / 720P (1280x720) / Set Date/Time: Using the UP and DOWN buttons WVGA (848x480) / VGA (640x480) / QVGA (320x240) * set the correct time and date. * Loop Recording: O / 1 Minute / 2 Minutes / 3 Minutes ** Auto Power Off: O / 2 Minutes / 5 Minutes / 10 Minutes EV Exposure Value: +2.0, +5/3, +4/3, +1, +2/3, +1/3, 0, Language: English / French / German / Italian / Spanish /...
